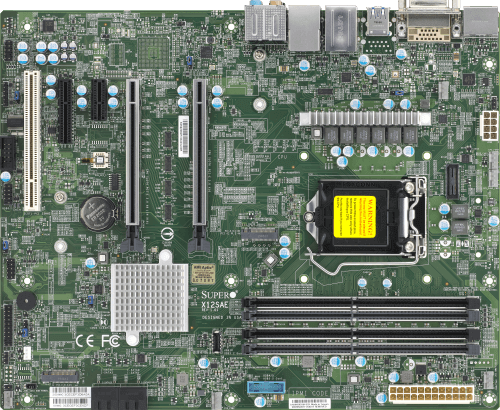

X12SAE

X12SAE
Workstation

Key Features


  1. 10th Gen Intel® Corei9/Core™ i7/Core™ i5/Core™ i3 Processor, Intel® Xeon® W-1200 Processors
    Single Socket LGA-1200 (Socket H5) supported, Up to 125W TDP
  2. Single LAN with Intel® PHY I219LM LAN controller
    for AMT/vPro
    Single LAN with Intel® Ethernet i225V
  3. Intel® W480/ W480E
  4. 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
  5. 1 PCIe 3.0 x4,
    2 PCIe 3.0 x16 slots (16/NA or 8/8),
    1 PCIe 3.0 x1
    1 - 5V PCI 32bit

    M.2 Interface: 2 PCIe 3.0 x4, RAID 0 & 1
    M.2 Form Factor: 2280/22110
    M.2 Key: M-Key
  6. Intel® W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  7. 1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-X12SAE
Physical Stats
Form Factor
  • ATX
Dimension
  • 12" x 9.6" (30.48cm x 24.38cm)
Processor
CPU
  • Intel® Xeon® W-1200 Processors, 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Core
  • Up to 10 cores
System Memory
Memory Capacity
  • 4 DIMM slots
  • 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MT/s
Memory Type
  • Up to 128GB of ered memory with speeds of up to 2933MHz (2DPC)
DIMM Sizes
  • 2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® W480/ W480E
SATA
  • Intel® W480/ W480E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Audio
  • ALC 888S HD Audio
Network Controllers
  • Single LAN with Intel® Ethernet i225V
  • Single LAN with Intel® PHY I219LM LAN controller, for AMT/vPro
Input / Output
LAN
  • 1 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 2.5 Gigabit Ethernet LAN port
USB
  • 2 USB 2.0 port(s) (2 via header)
  • 4 USB 3.2 Gen1 port(s) (2 via header; 2 type A)
  • 5 USB 3.2 Gen2 port(s) (3 rear type A; 1 rear type C; 1 via header)
Video Output
  • 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)
Serial Port
  • 1 COM Port(s) (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 3.0 x4,
  • 2 PCIe 3.0 x16 slots (16/NA or 8/8),
  • 1 PCIe 3.0 x1
M.2
  • M.2 Interface: 2 PCIe 3.0 x4, RAID 0 & 1
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • 256MB SPI Flash with AMI BIOS
BIOS Features
  • ACPI 6.0
  • Plug and Play (PnP)
  • BIOS rescue hot keys
  • Riser card auto-detection support
  • SMBIOS 3.0 or later
Management
System Management Software
  • SuperDoctor 5
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management, Power supply monitoring, Power button override mechanism, Wake-on-LAN
PC Health Monitoring
Voltage
  • VBAT, System temperature, PCH temperature, Memory temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, VRM temperature, LAN temperature, CPU thermal trip support, +1.8V PCH, +1.0V PCH
LED
  • Power LED
  • BMC/IPMI Heartbeat LED
  • Catastrophic Error LED
FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • Fan speed control
  • Overheat LED indication
Other Features
  • WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector
Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Resources
Chassis
SCGS5A-754K
(Heatsink1 :SNK-P0051AP4 )
SC732D3-903B
(Heatsink1 :SNK-P0051AP4 )
SC732D4-903B
(Heatsink1 :SNK-P0051AP4 )
SC732D4-668B
(Heatsink1 :SNK-P0051AP4 )
SC842TQC-668B
(Heatsink1 :SNK-P0051AP4 )
...
