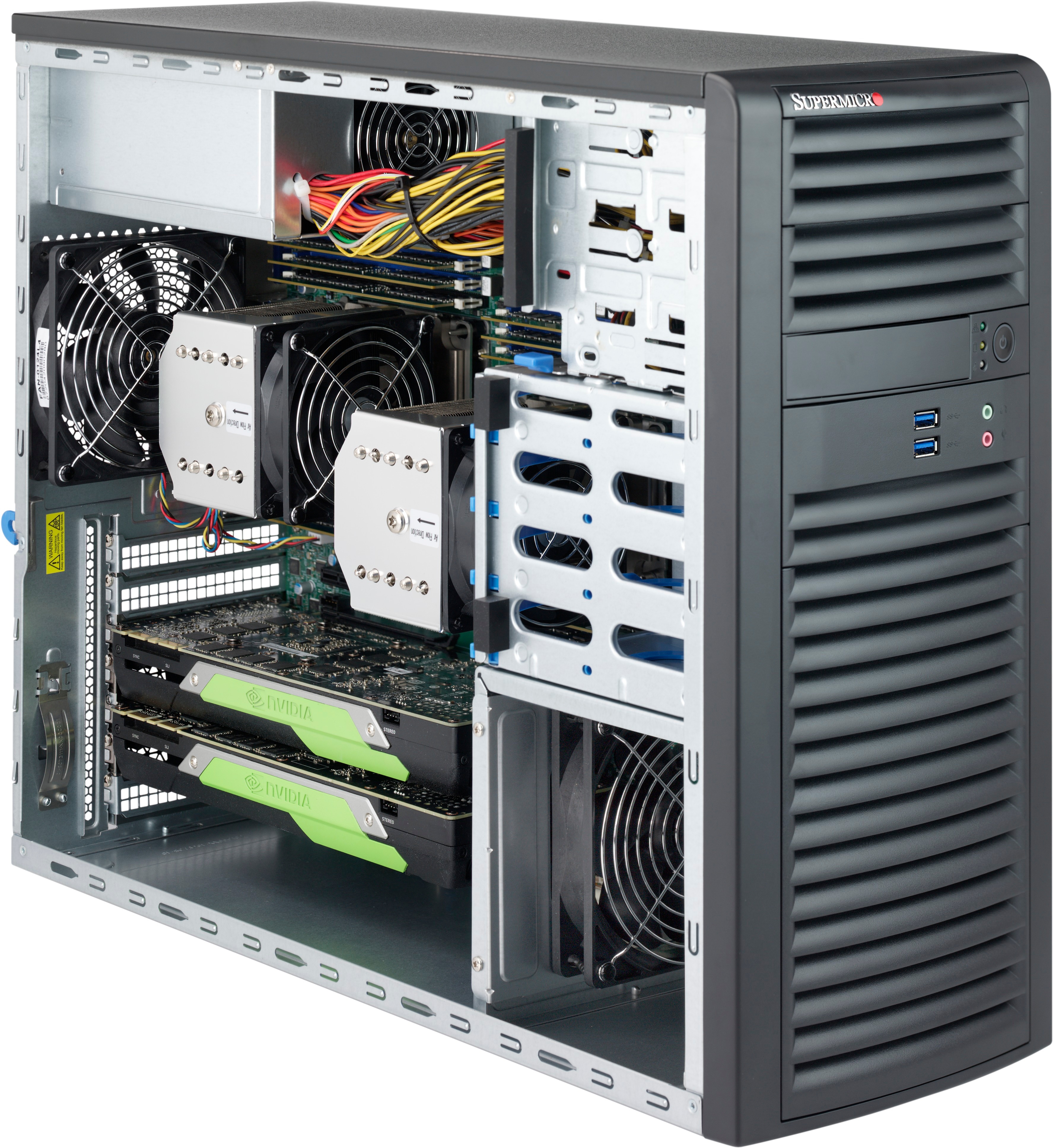

SuperChassis 732D3-903B

Key Features


  1. 90° Rotatable HDD Cage
  2. Whisper-Quiet (<21dB)
  3. Kensington Lock Support
  4. Front I/O Ports: 2x Audio (HD/AC97) & 2x USB 3.0
  5. 1x Optional Front 12cm (1850 RPM) PWM Fan
  6. Mid-Tower Chassis Supports Micro-ATX Motherboard, Sizes – E-ATX/ATX/Micro ATX
  7. 900W Gold Level Certified High-Efficiency Power Supply
  8. 1x Rear 12cm (1850 RPM) PWM Fan
  9. 2x 5.25" External HDD Drive Bays & 4x 3.5" Internal HDD Drive Bays
Specifications Resources Parts List
Specifications
Product SKUs
SuperChassis 732D3-903B
Form Factor
  • Mid-tower chassis support motherboard sizes E-ATX (12" x 13"), ATX (12" x 10") & Micro-ATX (9.6" x 9.6")
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 16.7" (424 mm)
Width
  • 7.6" (193 mm)
Depth
  • 20.68" (525 mm)
Gross Weight
  • 30 lbs (13.61 kg)
Net Weight
  • 27 lbs (12.25 kg)
Packaging (W x H x L)
  • 11.97" (304 mm) x 21.38" (543 mm) x 25.28" (642 mm)
Available Color
  • Black
Expansion Slots
  • 7x Full-height, Full-length expansion slot(s)
Drive Bays
  • Optional 4x 2.5" fixed drive bay
  • 4x 3.5" fixed drive bay
Peripheral Drives
  • 2x standard 5.25" drive bay
  • 1x card reader module
Front Panel
Button
  • Power On/Off button
LED
  • HDD activity LED
  • 1 Network activity LEDs
  • System Information LED
Port
  • 2x USB 3.0 Port(s)
  • 1x Audio Jack(s)
Systems Cooling
Fans
  • 1x 12cm rear exhaust fan(s)
  • Optional 1x 12cm (front) cooling fan
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
PS2/ATX 900W multiple outputs power supply, Gold level, 12cm fan
Power Efficiency
  • 90%
Total Output Power and Input
  • 900W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 190 x 150 x 86 mm
Output Type
  • 24pin ATX
-12V
  • Max: 0.5A / Min: 0A
+12V
  • Max: 25A / Min: 0.1A (100Vac - 240Vac)
  • Max: 25A / Min: 0.1A (100Vac - 120Vac)
+5V
  • Max: 25A / Min: 0A
+3.3V
  • Max: 25A / Min: 0A
+5Vsb
  • Max: 4A / Min: 0.02A
Certification
  • Gold Certified   Gold Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class B
  • TUV/CB
  • UL/CUL
Resources
Motherboard (for CSE-732D3-903B)
Motherboard Name
X12SCA-FX12SAEX11SSL-nFX11SSL-CFX11SAE-MC9Z590-CGWC9Z590-CGX11SRA-RFX11SRA-FX11SRAX10SRA-FC9Z390-PGWC9Z390-CGWC9Z390-CG-IWC9Z390-CGC9X299-PG300F
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Documentation
Chassis Manual
