概要

ハイライト

  • 3U systems supporting 8, 10, 12 nodes with 4 DIMM slots
  • Hot-swappable 3.5" or 2.5" NVMe/SAS3/SATA3 options
  • Onboard 10 Gigabit Ethernet for optimized cost effectivieness

イノベーション

  • Designed for Hyperscale and Cost Effectiveness
  • Power and Density Optimized
  • Front I/O Option for Easy Assess and Serviceability

Optimized for:

  • Hosting & Content Delivery
  • Hyperscale/Hyperconverge
  • Resource-saving Architecture
  • Data Center
  • Cloud
3U8N

3U8N

Compact Multi-Node Platform Purpose-Built for Hosting

  • CPU: Single Intel® Xeon® 6300/2400/2300 series processor or AMD EPYC™ 4004 series processor
  • Memory: Up to 4 DIMMs, 192GB DDR5
  • Drives: Up to 2 hot-swap 2.5″ or 3.5″ NVMe/SAS/SATA per node
  • PCIe: Up to 1 PCIe 5.0 x8 LP slot + 1 PCIe 5.0 x8 MicroLP slot or 1 PCIe 4.0 x8 MicroLP slot per node
Show Models
3U10N

3U10N

Compact Multi-Node Platform Optimized for Performance and Efficiency

  • CPU: Single AMD EPYC™ 4004 series processor
  • Memory: Up to 4 DIMMs, 192GB DDR5
  • Drives: Up to 2 internal fixed 2.5″ PCIe 5.0 NVMe + 2 internal fixed 2.5″ SATA per node
  • PCIe: Up to 1 PCIe 5.0 x16 LP slot + 1 PCIe 5.0 x4 MicroLP slot per node
Show Models

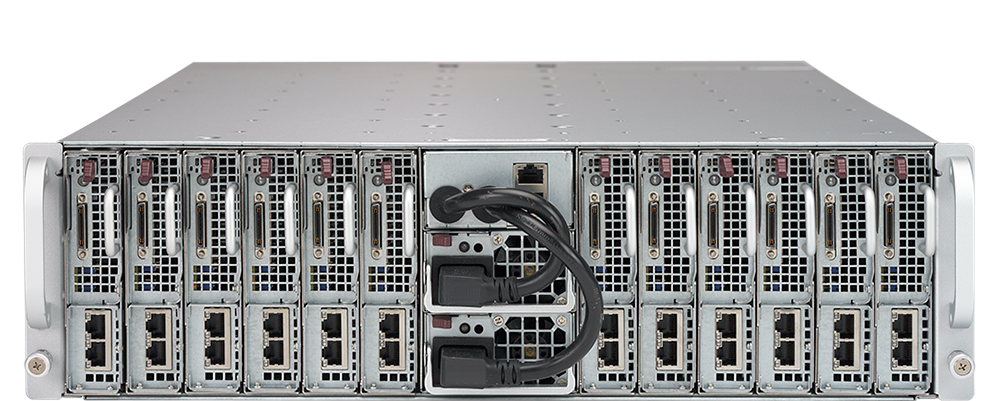

3U12N

3U12N

Compact Multi-Node Platform Designed to Maximize Productivity Per Square Foot

  • CPU: Single Intel® Xeon® 2300 series processor or 10th Gen Pentium® processor
  • Memory: Up to 4 DIMMs, 128GB DDR4
  • Drives: Up to 4 internal fixed 2.5″ NVMe/SATA per node
  • PCIe: Up to 1 PCIe 4.0 x8 MicroLP slot per node
Show Models
リソース

Supermicro MicroCloud with 8x AMD Ryzen AM5 Nodes at Computex 2023

By Cliff Robinson -

Many of our readers are already familiar with the Supermicro MicroCloud. The MicroCloud is popular in web and dedicated hosting markets where sharing the chassis, power, and cooling are desired while still maintaining physical nodes.

See the product review

Supermicro Microcloud – AMD Ryzen 7000 Blades for Cloud Gaming, Virtualization

By Lyle Smith -

Supermicro has unveiled a new server solution aimed at meeting the high-performance and scalability needs of today’s IT and data center owners.

See the product review

モデル

Card View List View
{"subgroup_0_1":["SYS-531MC-H8TNR||1"],"subgroup_0_2":["AS -3015MR-H8TNR||3"],"subgroup_0_3":["SYS-530MT-H8TNR||5"],"subgroup_0_4":["SYS-5039MC-H8TRF||7"],"subgroup_0_5":["SYS-5039MP-H8TNR||8"],"subgroup_0_6":["SYS-5039MS-H8TRF||9"]}
3U8N1
Loading Data
{"subgroup_1_1":["AS -3015MR-H10TNR||0"]}
3U10N2
Loading Data
{"subgroup_2_1":["SYS-530MT-H12TRF||2"],"subgroup_2_2":["SYS-5039MC-H12TRF||4"],"subgroup_2_3":["SYS-5039MA8-H12RFT||6"]}
3U12N3
Loading Data
System List
Product GroupHiddenOrderSKUDescriptionLinkImageGenerationComingNewGlobalCooling TypeCPUMax GPUSupported GPUsCPU TypeDIMM SlotsDrive SizeDrivesNetworkingForm FactorTotal PCI-E Slots#Total PowerInterfaceRedundant PowerApplicationsBuy Now

Certain products may not be available in your region
