Supermicro Lightbits NVMe/TCP Storage for CSPs, AI, Private, and Edge Clouds

Disaggregated, low latency block storage for cloud-native applications

Solution Overview

It's commonly recommended that NVMe-based Direct Attached Storage (DAS) be deployed to run distributed and cloud-native applications, especially high-performance databases including SQL and NoSQL. However, this approach often results in chronic over provisioning and underutilization.

Thus, Supermicro and Lightbits jointly bring this software-defined NVMe®/TCP storage solution bundle that combines Supermicro's high performance NVMe systems and Lightbits's technology to fully utilize NVMe and provide outstanding performance and low latency through standard Ethernet network to accelerate your cloud-native applications and reduce TCO.

Lightbits Solution diagram
Lightbits Solution

Solution Benefits

  • Flexibility and Operational Efficiency
    • Software-defined, highly available block storage, standard infrastructure
    • Scale storage & compute independently
    • Rich data services
  • High Performance
    • Low latency, high IOPs, high bandwidth
  • Lower TCO
    • Maximize utilization/ROI
    • Increase flash endurance
  • No change in network
    • Standard TCP/IP network infrastructure - ubiquitous, simple & efficient
    • Run on standard Ethernet NICs

Solution Features

High Performance, Low Latency

High Performance, Low Latency

  • Millions of IOPS
  • Reduction in Tail Latency/s
Clustered Failover Solution

Clustered Failover Solution

  • Distributed and Durable Cluster Management
  • Fast Failover Handling (2-3 seconds)
  • 3 to 16 Storage Servers per Cluster
  • Automatic Volume Placement
Management

Management

  • RESTful API provides a standard HTTPS-based interface
  • CLI support for scripts and monitoring
  • Metrics and Alerts based on Prometheus
  • Pre-configured Grafana dashboards
100% Target Side Solution

100% Target Side Solution

  • Leveraging standard NVMeoF 1.1 multipathing (ANA)
  • Clients can be connected to multiple storage
  • clusters enabling effectively unlimited capacity
Rich Data Service

Rich Data Service

  • Thin Provisioning
  • Compression
  • Elastic RAID
  • Volume Replication
Ecosystem Integration

Ecosystem Integration

  • Kubernetes via CSI
  • Compression
  • Ansible playbooks for various Linux distributions

Use Cases

Latency and Performance Sensitive Databases

  • Single instance database (MySQL, Postgres, Maria DB)
  • Distributed/Replicated databases (MongoDB, CockroachDB, Cassandra)

Media

  • CDN
  • Streaming

Latency Sensitive, High Transaction Workloads

  • Traditional FinTech
  • Log processing (ELK, Splunk)
  • Apache Kafka streams

CSPs, AI, Private and Edge Clouds

  • Cloud services: IaaS, PaaS, and SaaS
  • Cloud infrastructure for container and virtualized environments
use cases diagram

Supermicro Lightbits-Ready Intel X13 Reference Architecture

 Supermicro 2U Server SYS-221BT-HNRSupermicro 1U Server SSG-121E-NE316RSupermicro 1U Server SSG-121E-NE316RSupermicro 2U Server SYS-221BT-DNTRSupermicro 2U Server SYS-221BT-DNTR
 Basic DensityBasic CapacityPerformance & CapacityDensityDensity & Capacity
Server SKUSYS-221BT-HNRSSG-121E-NE316RSSG-121E-NE316RSYS-221BT-DNTRSYS-221BT-DNTR
Form Factor2U 4Node1U 1Node1U 1Node2U 2Node2U 2Node
Raw Capacity Per node/per chassis92/368 TB122 ~ 245 TB492 TB184/368 TB368/737 TB
CPU Per node/per chassisIntel SPR 6438Y x2 / x8Intel SPR 6438Y x2Intel SPR 6438Y x2Intel SPR 6438Y x2 / x4Intel SPR 6438Y x2 / x4
Memory Per node/per chassis32GB DDR5 x16 / x6432GB DDR5 x1632GB DDR5 x16~3232GB DDR5 x16 / x3264GB DDR5 x16 / x32
NVMe Drives Per node/per chassis15.36TB x6 / x2415.36TB x8~1630.72TB x1615.36TB x12 / x2430.72TB x12 / x24
Networking Per node/per chassis2p 200GbE x1 / x42p 200GbE x12p 200GbE x22p 200GbE x1 / x22p 200GbE x1 / x2
Performance Per node
  • 4K R: 2614K IOPs
  • 4K W: 1710K IOPs
  • 128K R: 20 GB/s
  • 128K W: 15 GB/s
  • 4K R: 2679K IOPs
  • 4K W: 1649K IOPs
  • 128K R: 20 GB/s
  • 128K W: 14 GB/s
  • 4K R: 4461K IOPs
  • 4K W: 2935K IOPs
  • 128K R: 34 GB/s
  • 128K W: 25 GB/s
  • 4K R: 2614K IOPs
  • 4K W: 1710K IOPs
  • 128K R: 20 GB/s
  • 128K W: 15 GB/s**
  • 4K R: 2614K IOPs
  • 4K W: 1710K IOPs
  • 128K R: 20 GB/s
  • 128K W: 15 GB/s**
  • * A Lightbits cluster requires a minimum of 3 nodes.
  • ** projected performance from 2U4N platform

Supermicro Lightbits-Ready Intel X12 Reference Architecture

 Supermicro 2U Ultra Server SYS-220U-TNRSupermicro 2U Ultra Server SYS-220U-TNRSupermicro 2U Ultra Server SYS-220U-TNRSupermicro 2U Ultra Server SYS-220U-TNRSupermicro 2U BigTwin® Multi-node Server SYS-220BT-DNTRSupermicro 1U Single-Processor 10-NVMe Storage Server SSG-110P-NTR10
ConfigurationPerformancePerformance & CapacityCapacityBasicDensityBasic
Server SKUSYS-220U-TNRSYS-220U-TNRSYS-220U-TNRSYS-220U-TNRSYS-220BT-DNTRSSG-110P-NTR10
Form Factor2U1N2U1N2U1N2U1N2U2N1U1N
Node Raw Capacity153TB307.20TB307.20TB153TB368TB61.44TB
Effective CapacityUp to 800TBUp to 800TBUp to 800TBUp to 393TBUp to 786TBUp to 188TB
CPU2x ICX 63382x ICX 6336Y2x ICX 6336Y2x ICX 6336Y4x ICX 6336Y1x 6314U
Min Memory16x 32GB32x 32GB32x 32GB16x 32GB32x 32GB8x 32GB
Recommended RAM:
(for Compression 2:1 or better)		32x 32GB32x 64GB32x 64GB32x 32GB32x 64GB8x 64GB
NVMe Drives20x 7.68TB20x 15.36TB20x 15.36TB20x 7.68TB24x 15.36TB8x 7.68TB
Networking2x 2p 100GbE2x 2p 100GbE1x 2p 100GbE1x 2p 100GbE2x 2p 100GbE1x 2p 100GbE
Lightbits License1x SFT-LB-LBOS210X1x SFT-LB-LBOS210X1x SFT-LB-LBOS210X1x SFT-LB-LBOS210X1x SFT-LB-LBOS210X1x SFT-LB-LBOS210X
IOPS*
  • [Read 100%: 4430K]
  • [Write 100%: 700K]
  • [Read-Write 70-30%: 1540K]
  • [Read-Write 50-50%: 1100K]
  • [Read 100%: 4070K]
  • [Write 100%: 650K]
  • [Read-Write 70-30%: 1450K]
  • [Read-Write 50-50%: 1000K]
  • [Read 100%: 2600K]
  • [Write 100%: 500K]
  • [Read-Write 70-30%: 1140K]
  • [Read-Write 50-50%: 860K]
  • [Read 100%: 2400K]
  • [Write 100%: 450K]
  • [Read-Write 70-30%: 1000K]
  • [Read-Write 50-50%: 800K]
  • [Read 100%: 4800K]
  • [Write 100%: 900K]
  • [Read-Write 70-30%: 2000K]
  • [Read-Write 50-50%: 1600K]
  • [Read 100%: 1120K]
  • [Write 100%: 240K]
  • [Read-Write 70-30%: 520K]
  • [Read-Write 50-50%: 380K]
  • 1. Lightbits cluster size: 3~16 nodes
  • 2. Please contact Lightbits-PM@supermicro.com for BOM
  • 3. X = 1, 3, or 5 (1 year, 3 years, 5 years)
  • * Lightbits provided

Supermicro Lightbits-Ready Server Platforms

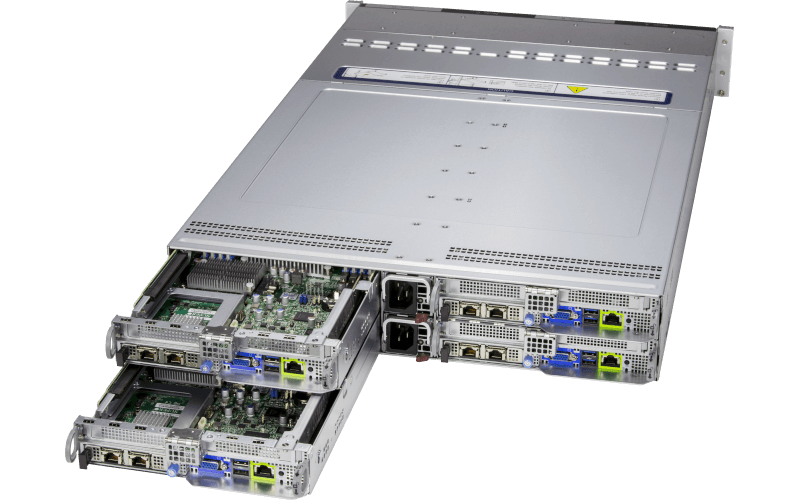

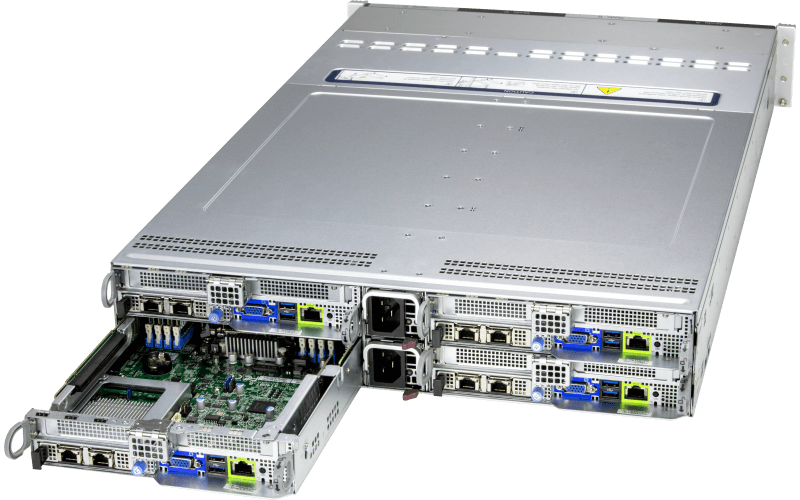

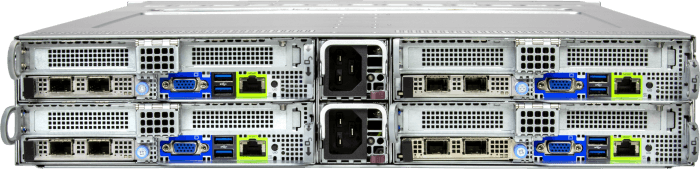

SYS-221BT-HNR

SYS-221BT-HNR

2U 4-Node

PCIe 5.0

SYS-221BT-HNR

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

  • Dual 5th/4th Gen Intel® Xeon® Scalable CPU
  • 16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
  • 2x PCI-E 5.0 x16 (LP); 1x PCI-E 5.0 x16 (AIOM)
  • 6x Hot-swap U.2 NVMe5 drive support
  • 2x 3000W redundant Titanium level power supplies
Learn more

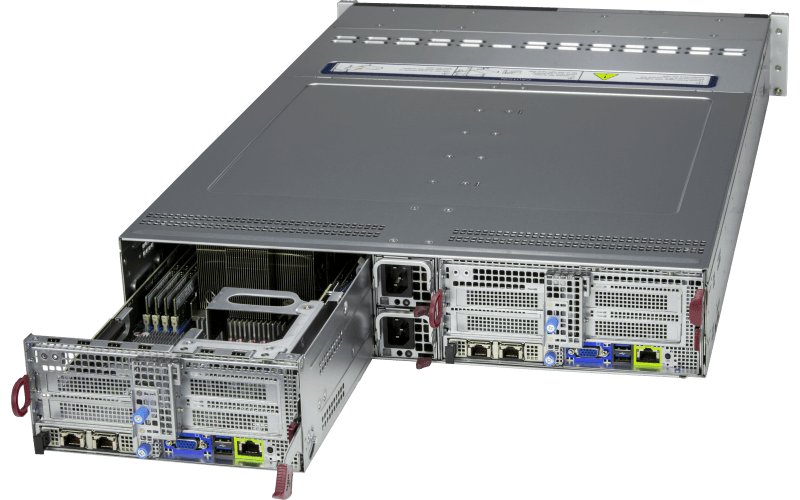

SYS-221BT-DNTR

SYS-221BT-DNTR

2U 4-Node

PCIe 5.0

SYS-221BT-DNTR

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

  • Dual 5th/4th Gen Intel® Xeon® Scalable CPU
  • 16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
  • 2x PCI-E 5.0 x16 (LP); 1x PCI-E 5.0 x16 (LP)
  • 2x Hot-swap U.2 NVMe5 and 10x Hot-swap U.2 NVMe4 drives support
  • 2x 2200W redundant Titanium level power supplies
Learn more

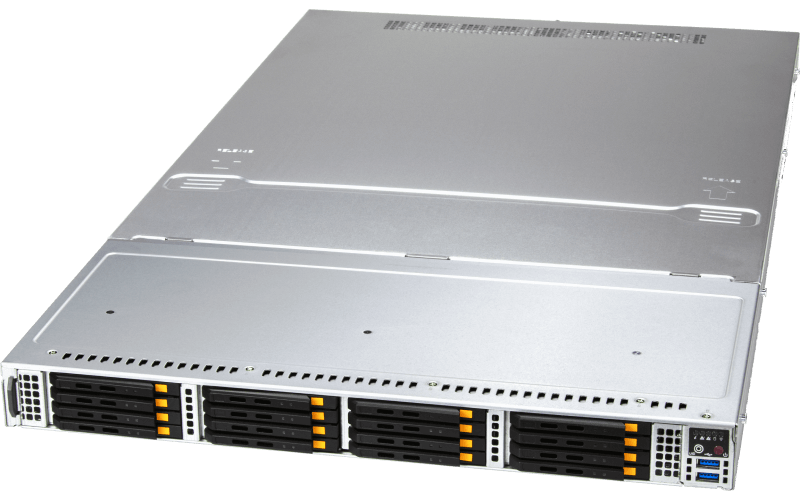

SSG-121E-NE316R

SSG-121E-NE316R

1U

PCIe 5.0

SSG-121E-NE316R

  • Dual 5th/4th Gen Intel® Xeon® Scalable CPU
  • Supports 32 DIMMs with 2DPC, up to 8TB memory capacity with 32 DIMMs of 256GB 3DS RDIMM DDR5-5600 ECC memory
  • 2x PCI-E 5.0 x16 (FHHL); 2x PCI-E 5.0 x16 (AIOM)
  • 16x front hot-swap E3.S NVMe drive bays
  • 2x 1600W redundant Titanium level power supplies
Learn more
SYS-220U-TNR

SYS-220U-TNR

2U

PCIe 4.0

SYS-220U-TNR

  • Dual 3rd Gen Intel® Xeon® Scalable Processors
  • 32x DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
  • 1x internal PCI-E 4.0 x8 (in x16 slot, LP); 1x PCI-E 4.0 x16 (FH, 10.5"L); 1x PCI-E 4.0 x16 (LP); 5x PCI-E 4.0 x8 (FH, 10.5"L)
  • 10x Hot-swap U.2 NVMe4/NVMe3/SATA3 fully-hybrid drive support
  • Networking options:
    • 2x 10GBase-T with Intel® X710-AT2 (optional)
    • or 2x 10GBase-T and 2x 10G SFP+ with Intel® X710-TM4 (optional)
  • 1600W redundant Titanium level power supplies
Learn more
SYS-220BT-DNTR

SYS-220BT-DNTR

2U

PCIe 4.0

SYS-220BT-DNTR

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

  • Dual 3rd Gen Intel® Xeon® Scalable Processors
  • 20x DIMM Slots (16x DIMM Slots + 4x Intel® Optane™ Persistent Memory Slots)
  • 1x PCI-E 4.0 x16 (LP) slot; 2x PCI-E 4.0 x8 (LP) slot; 1x AIOM PCI-E 4.0 x16
  • 12x Hot-swap 2.5" drive bays; 12 PCI-E 4.0 NVMe/SATA 2.5" drives
  • 2200W redundant Titanium level power supplies
Learn more
SSG-110P-NTR10

SSG-110P-NTR10

1U

PCIe 4.0

SSG-110P-NTR10

  • Single 3rd Gen Intel® Xeon® Scalable Processor
  • 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
  • 1x PCI-E 4.0 x16
  • 10x Hot-swap 2.5" All-NVMe Gen 4 tool-less drive bays; Onboard 2x NVMe Gen 3/SATA M.2
  • 860W redundant Platinum level power supplies
Learn more
