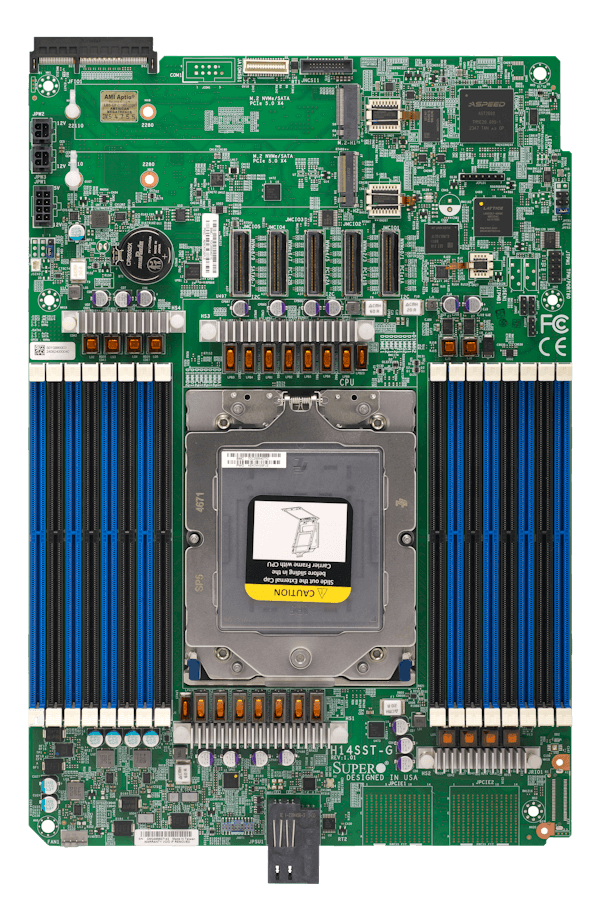

H14SST-G

GrandTwin UP Server board

Key Features

AMD EPYC™ 9005 series Processors
Up to 6TB 3DS ECC RDIMM, 2DPC DDR5-4400MT/s in 16 DIMM slots Up to 3TB 3DS ECC RDIMM, 1DPC DDR5-5200MT/s in 16 DIMM slots
4 PCIe 5.0 x8 MCIO connector, 1 PCIe 5.0/SATA3 x8 MCIO hybrid port connector
2x USB 3.0 (Front I/O board)
NCSI Support for riser slot
M.2 Interface: 2 PCIe 5.0 x4/w SATA support, Form Factor: 2280/22110

...

...

Optimized Servers

AS -2116GT-HNTF

Specifications

Product SKUs
MBD-H14SST-G

Physical Stats
Form Factor	Proprietary
Dimension	8.53" x 12.42" (21.67cm x 31.55cm)

Processor
CPU	AMD EPYC™ 9005 Series Processors Single Socket SP5 supported, CPU TDP supports Up to 500W TDP
Core	Up to 192 cores, 384 threads

System Memory
Memory Capacity	16 DIMM slots Up to 6TB 3DS ECC Registered RDIMM, DDR5-4400MT/s
Memory Type	4400 MT/s ECC DDR5 RDIMM (3DS) Up to 6TB 3DS ECC Registered RDIMM, 2DPC DDR5-4400 MT/s, 1DPC DDR5-5200MT/s
DIMM Sizes	16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 192GB, 256GB, 384GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	System on Chip
IPMI	ASPEED AST2600 BMC
Graphics	1 Aspeed AST2600 BMC port(s)
Network Controllers	N/A

Input / Output
TPM	1 TPM Header
Others	4 MCIO (PCIe 5.0 x8) Port(s) 1 MCIO (PCIe 5.0 x8/SATA3) Hybrid Port(s)

Expansion Slots
PCIe	1 PCIe 5.0 x8 4C Slot
M.2	M.2 Interface: 2 PCIe 5.0 x4 Form Factor: 2280/22110 Key: M-Key

System BIOS
BIOS Type	AMI 64MB SPI Flash EEPROM
BIOS Features	ACPI 6.5 SMBIOS 3.7 or later UEFI 2.8

PC Health Monitoring
Voltage	3.3V standby, +5V standby, +5V, +3.3V, +12V
LED	UID/Remote UID Power LED BMC/IPMI Heartbeat LED
Temperature	CPU thermal trip support System temperature Memory temperature CPU temperature
Other Features	RoT

Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)

Resources

Servers (Optimized for H14SST-G)

AS -2116GT-HNTF

...

Component Options

Software

Documentation

Parts List

H14SST-G (For A+ Server Only) Coming Soon
