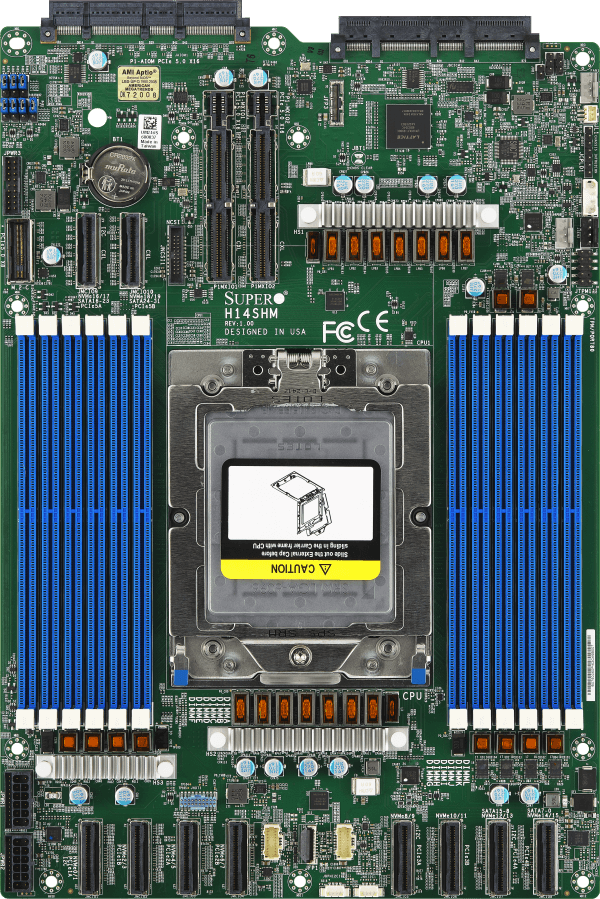

H14SHM

CloudDC UP Server board

Key Features

AMD EPYC™ 9005 series Processors
Up to 4.5TB 3DS ECC RDIMM, DDR5-6000MHz in 12 DIMM slots
2 PCIe 5.0 x16 M-XIO
1 PCIe 5.0 x16 AIOM
M.2 Interface: 2 PCIe 3.0 x2 M-PIC
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key
AIOM for LAN
10 PCIe 5.0 x8 MCIO connectors
I/O: 1 DC-SCM

...

...

Optimized Servers

AS -1116CS-TN

Specifications

Product SKUs
MBD-H14SHM

Physical Stats
Form Factor	OCP M-DNO
Dimension	8.27" x 12.03" (21.01cm x 30.56cm)

Processor
CPU	AMD EPYC™ 9005 Series Processors Single Socket SP5 supported, CPU TDP supports Up to 500W TDP
Core	Up to 192 cores, 384 threads

System Memory
Memory Capacity	12 DIMM slots Up to 4.5TB 3DS ECC Registered RDIMM, DDR5-6000MT/s
Memory Type	6000 MT/s ECC DDR5 RDIMM (3DS) Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, 1DPC)
DIMM Sizes	16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 192GB, 256GB, 384GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	System on Chip
Network Controllers	N/A

Input / Output
LAN	1 AIOM
Others	8 MCIO (PCIe 5.0 x8) Port(s) 2 MCIO (PCIe 5.0 x8/SATA3) Hybrid Port(s)

Expansion Slots
PCIe	1 PCIe 5.0 x16 AIOM, 10 PCIe 5.0 x8 MCIO connector, 2 PCIe 5.0 x16 M-XIO slot
M.2	M.2 Interface: 2 PCIe 3.0 x2 Form Factor: 2280/22110 Key: M-Key *M.2 support requires an optional M.2 adapter card

System BIOS
BIOS Type	AMI 64MB SPI Flash EEPROM
BIOS Features	ACPI 6.5 SMBIOS 3.7 or later UEFI 2.8

PC Health Monitoring
Voltage	VBAT, +5V standby, +5V, +3.3V, +12V, 1.8V standby, +12V Standby
LED	HDD Activity LED LAN1 Activity LED LAN2 Activity LED Power Failed LED Power Status LED System Information LED
Temperature	peripheral temperature System temperature Memory temperature CPU temperature VRM temperature LAN temperature
Other Features	Chassis intrusion header RoT

Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-30°C - 60°C (-22°F - 140°F)
Operating Relative Humidity Range	8% - 80% (non-condensing)
Non Operating Relative Humidity Range	8% - 90% (non-condensing)
