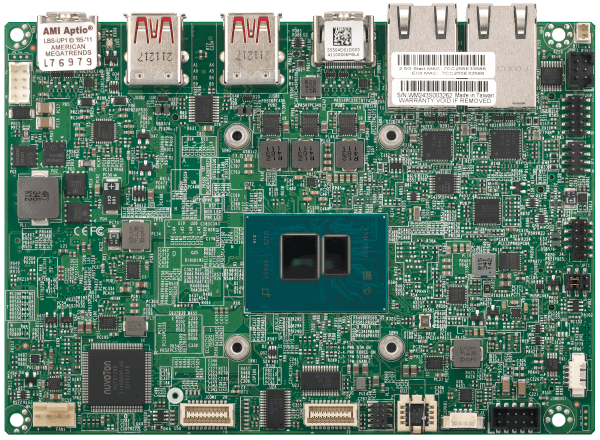

A4SAN-L-WOHS

A4SAN-L-WOHS
Low Power
Embedded

Key Features


  1. Intel® processor N97 (12W, 4C)
  2. DDR5 4800 MHz, SODIMM x 1, Up to16GB, In-Band ECC supported
  3. Dual 2.5GbE, M.2 B-key w/ nano SIM & 5G module supported
  4. 9-36V wide range power with RVP and TVS
  5. M.2 M-Key 2242/2280, M.2 E-key 2230, M.2 B-key 2240/3052/2280
  6. 4 USB3.2, 2 USB2.0, 4COM ports, audio with AMP, SMBus/I2C, 8bit GPIO
  7. 2 HDMI, 1 48bit LVDS, Intel HD Graphics 3 independent displays
...
...

Optimized Servers


SYS-E100-14AM-L
Specifications Resources Parts List
Specifications
Product SKUs
MBD-A4SAN-L-WOHS
Physical Stats
Form Factor
  • 3.5" SBC
Dimension
  • 5.7" x 4" (14.6cm x 10.16cm)
Processor
CPU
  • Intel®  Processor  N97
  • Single Socket FCBGA-1264 supported, CPU TDP supports Up to 12W TDP
Core
  • Up to 4 cores / 6MB Cache
System Memory
Memory Capacity
  • 1 DIMM slots
  • Up to 16GB Unbuffered non-ECC SODIMM, DDR5-4800MT/s
Memory Type
  • 4800 MT/s non-ECC DDR5 SODIMM Unbuffered DDR5 up to 16GB
DIMM Sizes
  • 8GB, 16GB
  • SODIMM: 8GB, 16GB
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Audio
  • ALC 888S HD Audio
Graphics
  • 1 Intel® UHD Graphics port(s)
Network Controllers
  • Dual LAN with Intel® Ethernet Controller I226-IT
Input / Output
USB
  • 4 USB 3.2 Gen2 port(s) (4 rear)
  • 1 USB 2 port(s) (1 via header)
Video Output
  • 2 HDMI port(s), 1 48-bit LVDS port(s)
TPM
  • 1 TPM Chip
Others
  • 1 8-bit GPIO header
  • 1 HD Audio header (Mic-in/Headphone-out)
  • 1 SMBus/I2C header
  • 1 Speaker w/ 3W amp.
Expansion Slots
PCIe
  • N/A
M.2
  • Key: B-Key, M-Key, E-Key
  • M.2 2242/3052/2280 B-Key (USB3.0/2.0, SATA Gen3/PCIe Gen3 x1) with nano SIM holder
    M.2 2230 E-Key (CNVi,PCIe 3.0 x1/USB2)
    M.2 2242/2280 M-Key (SATA Gen3/PCIe Gen3 x1)
System BIOS
BIOS Type
  • 32MB AMI UEFI
BIOS Features
  • ACPI 6.4
  • SMBIOS 3.3
  • UEFI 2.7
  • PCI FW3.0
  • RTC (Real Time Clock) Wakeup
PC Health Monitoring
FAN
  • 1x 4-pin fan header (up to 1 fan)
Operating Environment
Operating Temperature Range
  • 0°C - 85°C (32°F - 185°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
