Part Number |
Qty |
Description |
| Motherboard / Chassis |
MBD-X13SCH-SYS
CSE-512F-350B1
|
1
1
|

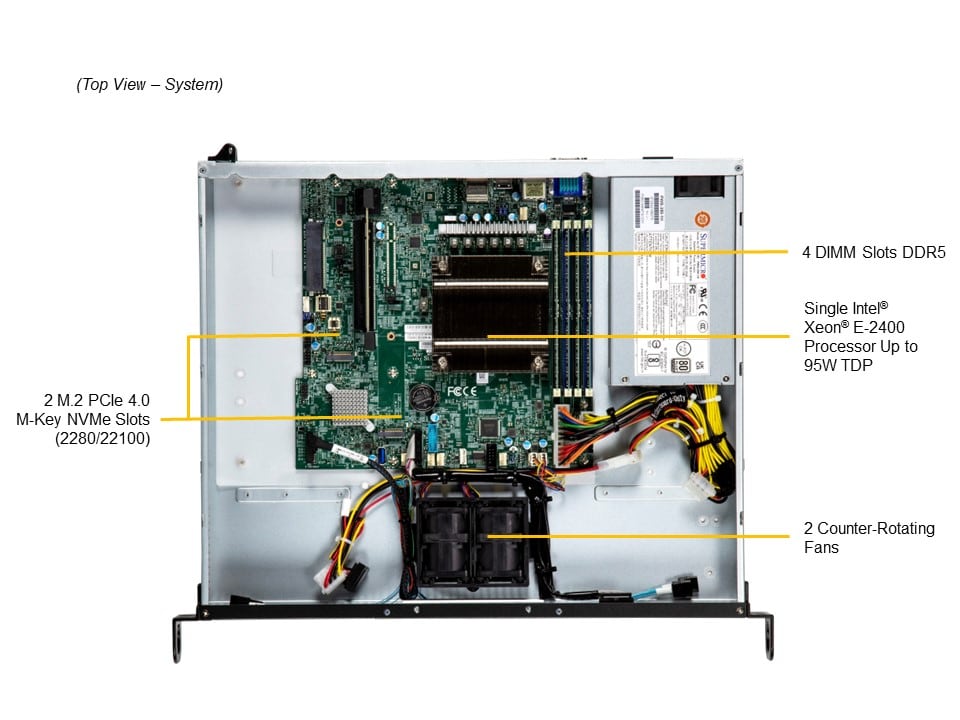

Super X13SCH-SYS Motherboard
Mini-1U Chassis
|
|
Cable
|
CBL-SAST-1251-100 |
1 |
Slimline x8 (STR) to 4x SATA,60/50/50/60CM,SB 5CM,100 OH |
| CBL-0156L |
1 |
ROUND 16PIN TO 16PIN FP CABLE,40CM, PB FREE |
| CBL-0260L |
1 |
US POWER CORD 18 AWG, PBF |
| CBL-0261L |
1 |
7pin SATA (STR to RA), 40cm, PBF |
| CBL-0262L |
1 |
4PIN TO 1xSATA(RA)+1x4PIN(RA)+1xFPD PWS EXT. CBL |
|

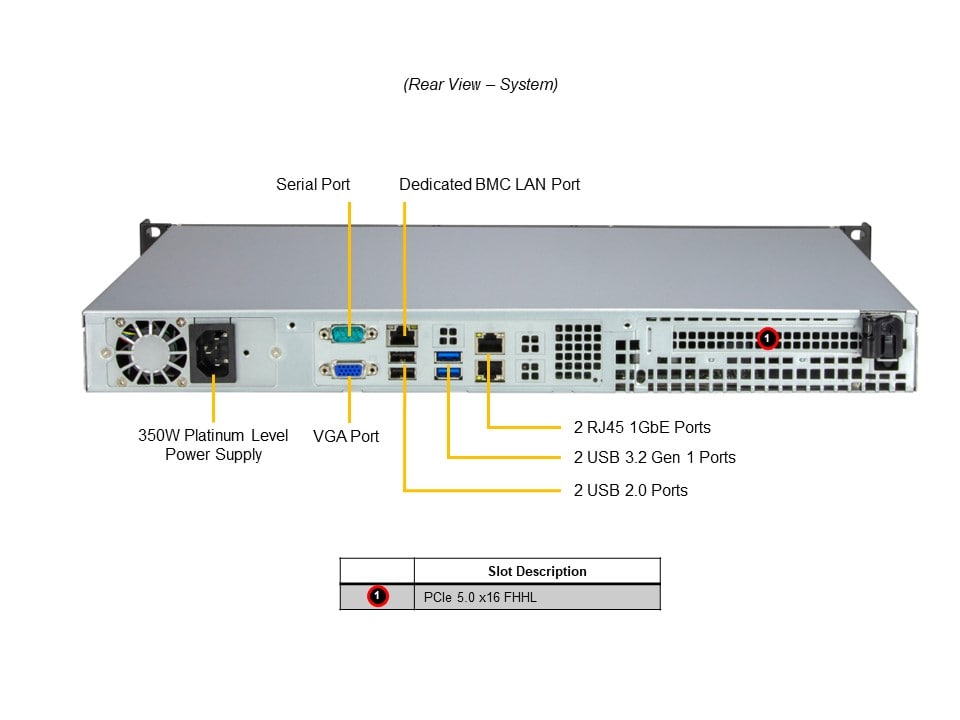

Rear Window
|
MCP-240-00091-0N |
2 |
1U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF |
|
Parts
|
MCP-260-00165-0N |
1 |
1U I/O Shield for X12STH-F with EMI Gasket |
| MCP-260-00024-0N |
1 |
1U I/O shield for X8 server MB (3rd LAN + 4xLAN) |
| MCP-260-00078-0N |
1 |
1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF |
| MCP-290-00005-01 |
2 |
Black chassis handle for SC512F-520 |
|
Air Shroud
|
MCP-310-51207-0B |
1 |
Mylar air shroud for SC512F+X13SCH-SYS |
|
Manual
|
MNL-2601-QRG |
1 |
511R-ML Quick Reference Guide |
|
Riser Card
|
RSC-S-6G5 |
1 |
1U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H |
|
Software
|
SFT-OOB-LIC |
1 |
License key for enabling OOB BIOS management |
|
Heatsink / Retention
|
SNK-P0086P |
1 |
1U Passive HS for Intel Raptor Lake (Catlow) SocketV LGA1700 |
|
*Power Supply
|
PWS-350-1H |
1 |
1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm) |
|
*Fan
|
FAN-0087L4 |
2 |
40x56,4 Pin PWM Fan |
|

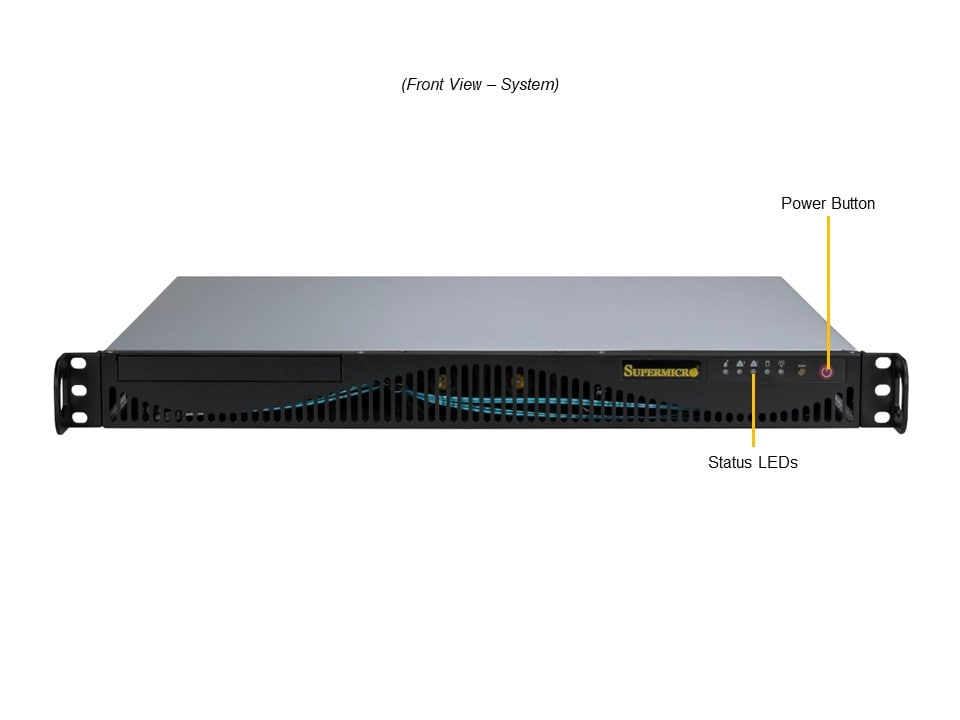

*Front Panel
|
MCP-280-51201-0N |
1 |
Front control board (FP512) for SC512 (surface-mounted LED) |
|
*Peripheral Drive
|
MCP-290-00006-01 |
1 |
Black DVD dummy cover for SC512, RoHS |
|
*Fan Holder
|
MCP-320-00003-01 |
1 |
Fan holder of two 40x40x56mm fans for SC512F-280 |
Notes:
- Parts with * are inside the chassis
- Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
|
