Twin Server Solutions

The Supermicro Twin SuperServer® systems are a family of high-density 2U hot-plug multi-node servers available with a variety of memory capacities, HDD technologies, PCIe alternatives, networking capabilities, and GPU support options. Support for the 2nd generation Intel® Xeon™ Scalable processors enable a host benefits to each generation of the Twin architecture with: up to 6TB (BigTwin)/4TB (TwinPro) of DDR4-2933MHz memory in 24 or 16 DIMM slots, flexible networking options of up to 100G, and integrated Ultra Path Interconnect technology for lower latency and extra bandwidth. Support for Intel® Optane™ DC Persistent Memory brings a new class of big, affordable memory to the BigTwin SuperServer® family.

The BigTwin™ is the 5th generation of the breakthrough Twin architecture which extends the compute and storage capabilities of Supermicro's 2U TwinPro and 1U Twin family SuperServer systems. Offering up to 24 All-Flash NVMe or Hybrid HDDs, 2 low-profile PCI-E x16 slots and 1 SIOM slot for maximum networking flexibility, the BigTwin is optimized for today's demanded IT requirements.

The Supermicro Twin Family represents a revolution in Green Computing designed to support customers' critical applications and also reduce Data Center TCO to help preserve the environment. Due to their shared components, the Twin Family improves cost-effectiveness and reliability over rackmount servers, while their modular architecture enables flexible configuration and easy maintenance.

Versatile configurations and the availability of 1U, 2U or 4U form factors allow the Twin Servers to be optimized for many different environments including Enterprise, Data Center, Cloud Computing, HPC, Financial, Science and Engineering, File and Storage Servers.

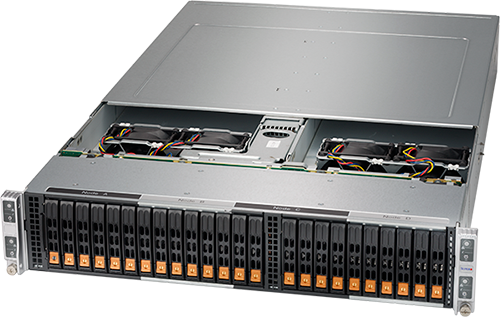

BigTwin:

Up to 4 hot-pluggable Dual Processor nodes
Up to 6TB DDR4-2933MHz memory in 24 DIMM slots
205W per socket
Up to 24 2.5" All-Flash NVMe or Hybrid Drive Bays in 2U
Up to 3 PCI-E 3.0 x16 slots
Redundant 2200W high efficiency (96%) power supplies

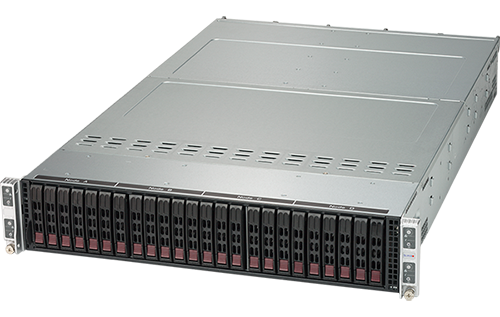

TwinPro:

Up to 2 hot-pluggable Dual Processor nodes
Up to 4TB DDR4-2933MHz memory in 16 DIMM slots
205W per socket
24 2.5" / 12 3.5" SAS3 Drive Bays in 2U
3 PCI-E 3.0 x16 slots
Redundant 2200W high efficiency (96%) power supplies

2nd generation Intel® Xeon® Scalable processors supported.

Intel, the Intel logo, Xeon, and Xeon Inside are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.

SYS-1029U-TN12RV (Coming Soon)

12 NVMe support • 24 DDR4 DIMM • Flexible Networking

Virtualization, Cloud Computing, High End Enterprise Server
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4 2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
12 Hot-swap 2.5" NVMe/SATA3 drive bays
1 PCI-E 3.0 x16 (FH, 10.5"L), 1 PCI-E 3.0 x8 (LP) slots
Flexible networking options, up to 25GbE via Ultra Riser card, 1 Dedicated IPMI port
1 VGA (rear), 1 Serial, 2 USB 3.0 (rear)
8 heavy duty fans w/ optimal fan speed control
1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029UZ-TN20R25M

20 NVMe support • 24 DDR4 DIMM • 2x 25G SFP28

Virtualization, Cloud Computing, High End Enterprise Server, SDS
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
20 Hot-swap 2.5" 7mm drive bays; up to 20 NVMe (CPU1: 8 NVMe + 2 NVMe/SAS/SATA3 hybrid, CPU2: 10 NVMe)
Up to 2 PCI-E 3.0 x8 (FH, FL)
2x 25G SFP28 Ethernet ports, 1 Dedicated IPMI port
1 VGA, 1 Serial, 3 USB 3.0 (2 rear, 1 Type A), 2 USB 2.0 (front)
8 heavy duty fans w/ optimal fan speed control, 2 air shroud
1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029UZ-TN20R25M

20 NVMe support • 24 DDR4 DIMM • 2x 25G SFP28

Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
24 Hot-swap 2.5" drive bays; 20 NVMe + 4 SAS3/SATA
1 PCI-E 3.0 x8 (LP)
2x 25G SFP28 Ethernet ports, 1 Dedicated IPMI port
2 VGA, 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
4 heavy duty 8cm fans
1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029UZ-TR4+

Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
24 Hot-swap 2.5" drive bays; 20 SAS3 + 4 SAS3/NVMe
1 PCI-E 3.0 x16 (FH, 10.5"L); 5 PCI-E 3.0 x8 (FH, 10.5"L); 1 PCI-E 3.0 x8 (LP); 1 PCI-E 3.0 x8 (internal LP)
4 Gigabit Ethernet ports, 1 Dedicated IPMI port
2 VGA, 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
4 heavy duty 8cm fans
1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6029UZ-TR4+

Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
12 Hot-swap 3.5" drive bays; Optional 8 SAS3 + 4 SAS3/NVMe
1 PCI-E 3.0 x16 (FH, 10.5"L); 5 PCI-E 3.0 x8 (FH, 10.5"L); 1 PCI-E 3.0 x8 (LP); 1 PCI-E 3.0 x8 (internal LP)
4 Gigabit Ethernet ports, 1 Dedicated IPMI port
2 VGA, 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
4 heavy duty 8cm fans
1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029UX-LL1-C16

Xeon 6244 and 12x 16GB DDR4-2933MHz included

Financial Analysis, Business Critical Applications, Enterprise Server
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors (Dual Intel® Xeon® Gold 6244 Processors included); Dual UPI up to 10.4GT/s
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
8 Hot-swap 2.5" SAS3 drive bays and 2 NVMe bays
2 PCI-E 3.0 x16 (FH, 10.5"/10" L), 1 PCI-E 3.0 x8 (LP),
1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
4x 1GbE ports, 1 Dedicated IPMI port
1 VGA, 1 Serial, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
8 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies

SYS-1029UX-LL1-S16

Xeon 6144 and 12x 16GB DDR4-2666MHz included

Financial Analysis, Business Critical Applications, Enterprise Server
Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors (Dual Intel® Xeon® Gold 6144 Processors included); Dual UPI up to 10.4GT/s
16 DIMMs; up to 2TB 3DS ECC DDR4-2666 MHz RDIMM/LRDIMM
8 Hot-swap 2.5" SAS3 drive bays and 2 NVMe bays
2 PCI-E 3.0 x16 (FH, 10.5"/10" L), 1 PCI-E 3.0 x8 (LP),
1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
4x 1GbE ports, 1 Dedicated IPMI port
1 VGA, 1 Serial, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
8 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies

SYS-1029UX-LL2-S16

Xeon 6146 and 12x 16GB DDR4-2666MHz included

Financial Analysis, Business Critical Applications, Enterprise Server
Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors (Dual Intel® Xeon® Gold 6146 Processors included); Dual UPI up to 10.4GT/s
16 DIMMs; up to 2TB 3DS ECC DDR4-2666MHz RDIMM/LRDIMM
8 Hot-swap 2.5" SAS3 drive bays and 2 NVMe bays
2 PCI-E 3.0 x16 (FH, 10.5"/10" L), 1 PCI-E 3.0 x8 (LP),
1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
4x 1GbE ports, 1 Dedicated IPMI port
1 VGA, 1 Serial, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
8 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies

SYS-1029UX-LL3-S16

Xeon 6154 and 12x • 16GB DDR4-2666MHz included

Financial Analysis, Business Critical Applications, Enterprise Server
Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors (Dual Intel® Xeon® Gold 6154 Processors included); Dual UPI up to 10.4GT/s
16 DIMMs; up to 2TB 3DS ECC DDR4-2666MHz RDIMM/LRDIMM
8 Hot-swap 2.5" SAS3 drive bays and 2 NVMe bays
2 PCI-E 3.0 x16 (FH, 10.5"/10" L), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
4x 1GbE ports, 1 Dedicated IPMI port
1 VGA, 1 Serial, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
8 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies

SYS-1029U-TN10RT

10 NVMe support • 24 DDR4 DIMM • 2x 10GBase-T

Virtualization, Cloud Computing, High End Enterprise Server
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
10 Hot-swap 2.5" drive bays; 4 NVMe/SAS3 hybrid + 6 NVMe ports
2 PCI-E 3.0 x16 Full-height, 10.5" L slots
2x 10GBase-T ports, 1 Dedicated IPMI port
2 VGA (1 rear, 1 onboard), 1 Serial, 5 USB 3.0
8 heavy duty fans w/ optimal fan speed control
1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029U-TR4T

/ SYS-1029U-TR4 / SYS-1029U-TRT / SYS-1029U-TRTP / SYS-1029U-TRTP2 / SYS-1029U-TR25M

10x 2.5" SATA3 or Opt. • 8x SAS3 + 2x NVMe/SATA • Flexible Network Opt.

Virtualization, Cloud Computing, High End Enterprise Server
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
10 Hot-swap 2.5" drive bays; 10 SATA3 (2 hybrid ports - 2 NVMe opt.)
2 PCI-E 3.0 x16 (FH, 10.5" L), 2 PCI-E 3.0 x8 (1 LP, 1 LP internal)
2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (1 LP), 1 PCI-E 3.0 x16 (internal LP) - SYS-1029U-TR25M
Networking Options:
- SYS-1029U-TR4 - 4x 1GbE ports
- SYS-1029U-TR4T - 4x 10GBase-T ports
- SYS-1029U-TRT - 2x 10GBase-T ports
- SYS-1029U-TRTP - 2x 10G SFP+ ports
- SYS-1029U-TRTP2 - 2x 10G SFP+ ports + 2x 1GbE ports
- SYS-1029U-TR25M - 2x 25GbE SFP28 ports
1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
5 USB 3.0 (2 rear, 2 front, 1 Type A)
8 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029U-E1CR4T

/ SYS-1029U-E1CR4 / SYS-1029U-E1CRT / SYS-1029U-E1CRTP / SYS-1029U-E1CRTP2 / SYS-1029U-E1CR25M

10x 2.5" SAS3 • Flexible Network Opt.

Virtualization, Cloud Computing, High End Enterprise Server
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
10 Hot-swap 2.5" drive bays; 10 SAS3 via optional AOC
2 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (1 LP), 1 PCI-E 3.0 x16 (internal LP) - SYS-1029U-E1CR25M
Networking Options:
- SYS-1029U-E1CR4 - 4x 1GbE ports
- SYS-1029U-E1CR4T - 4x 10GBase-T ports
- SYS-1029U-E1CRT - 2x 10GBase-T ports
- SYS-1029U-E1CRTP - 2x 10G SFP+ ports
- SYS-1029U-E1CRTP2 - 2x 10G SFP+ ports + 2x 1GbE ports
- SYS-1029U-E1CR25M - 2x 25GbE SFP28 ports
1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 COM/Serial
5 USB 3.0 (2 rear, 2 front, 1 Type A)
8 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6019U-TN4R4T

/ SYS-6019U-TN4RT

4 NVMe support • 24 DDR4 DIMM • 4x/2x 10GBase-T

Virtualization, Cloud Computing, High End Enterprise Server
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
4 Hot-swap 3.5" drive bays; 4 NVMe/SAS3 hybrid ports, 2 internal M.2 (1 SATA3, 1 NVMe)
2 PCI-E 3.0 x16 (FH, 10.5" L), 2 PCI-E 3.0 x8 (1 LP, 1 LP internal)
Networking Options:
- SYS-6019U-TN4R4T - 4x 10GBase-T ports
- SYS-6019U-TN4RT - 2x 10GBase-T ports
1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
3 USB 3.0 (2 rear, 1 Type A)
8 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6019U-TR4T

/ SYS-6019U-TR4 / SYS-6019U-TRT / SYS-6019U-TRTP / SYS-6019U-TRTP2 / SYS-6019U-TR25M

4x 3.5" SATA3 • Flexible Network Opt.

Virtualization, Cloud Computing, High End Enterprise Server
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
4 Hot-swap 3.5" drive bays
2 PCI-E 3.0 x16 (FH, 10.5" L), 2 PCI-E 3.0 x8 (1 LP, 1 LP internal)
2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (1 LP), 1 PCI-E 3.0 x16 (internal LP) - SYS-6019U-TR25M
Networking Options:
- SYS-6019U-TR4 - 4x 1GbE ports
- SYS-6019U-TR4T - 4x 10GBase-T ports
- SYS-6019U-TRT - 2x 10GBase-T ports
- SYS-6019U-TRTP - 2x 10G SFP+ ports
- SYS-6019U-TRTP2 - 2x 10G SFP+ ports + 2x 1GbE ports
- SYS-6019U-TR25M - 2x 25GbE SFP28 ports
1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
3 USB 3.0 (2 rear, 1 Type A)
8 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029U-TN24R4T

24 NVMe support • 4x 10GBase-T

Virtualization Hosting, Cloud Computing, Data Center
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
24 Hot-swap 2.5" drive bays; 24 NVMe (4 hybrid ports - SAS3 via AOC), 2 rear Hot-swap 2.5" drive bays; 2 internal M.2 (1 SATA3, 1 NVMe)
2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (LP)
4x 10GBase-T ports, 1 Dedicated IPMI port
2 VGA (1 rear, 1 onboard), 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
4 heavy duty 8cm PWM fans
1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029U-TR4T

/ SYS-2029U-TR4 / SYS-2029U-TRT / SYS-2029U-TRTP / SYS-2029U-TR25M

24x 2.5" Drive Bays • Opt. 20 SAS3 + 4 NVMe/SAS3 • Flexible Network Opt.

Virtualization Hosting, Cloud Computing, Data Center
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
24 Hot-swap 2.5" drive bays; 14 SATA (opt. 20 SAS3 + 4 NVMe/SAS3)
Expansion Slots:
- 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
- 7 PCI-E Slots (SYS-2029U-TR4T): 2 PCI-E 3.0 x16, 5 PCI-E 3.0 x8
Networking Options:
- SYS-2029U-TR4 - 4x 1GbE ports
- SYS-2029U-TR4T - 4x 10GBase-T ports
- SYS-2029U-TRT - 2x 10GBase-T ports
- SYS-2029U-TRTP - 2x 10G SFP+ ports
- SYS-2029U-TR25M - 2x 25GbE SFP28 ports
1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
3 USB 3.0 (2 rear, 1 Type A)
4 heavy duty 8cm PWM fans
1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029U-E1CR4T

/ SYS-2029U-E1CR4 / SYS-2029U-E1CRT / SYS-2029U-E1CRTP / SYS-2029U-E1CR25M

24x 2.5" SAS3 Opt. 4 NVMe • Flexible Network Opt.

Virtualization Hosting, Cloud Computing, Data Center
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
24 Hot-swap 2.5" drive bays; optional 20 SAS3 + 4 NVMe/SAS3, 2 rear Hot-swap 2.5" drive bays
Expansion Slots:
- 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
- 7 PCI-E Slots (SYS-2029U-E1CR4T): 2 PCI-E 3.0 x16, 5 PCI-E 3.0 x8
Networking Options:
- SYS-2029U-E1CR4 - 4x 1GbE ports
- SYS-2029U-E1CR4T - 4x 10GBase-T ports
- SYS-2029U-E1CRT - 2x 10GBase-T ports
- SYS-2029U-E1CRTP - 2x 10G SFP+ ports
- SYS-2029U-E1CR25M - 2x 25GbE SFP28 ports
1 Dedicated IPMI port
2 VGA (1 rear, 1 onboard), 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
4 heavy duty 8cm PWM fans
1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6029U-TR4T

/ SYS-6029U-TR4 / SYS-6029U-TRT / SYS-6029U-TRTP / SYS-6029U-TR25M

12x 3.5" SATA3 Opt. 4 NVMe • Flexible Network Opt.

Virtualization, Cloud Computing, High End Enterprise Server
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
12 Hot-swap 3.5" drive bays; Optional 8 SAS3 + 4 SAS3/NVMe and 2 Rear Hot-swap 2.5" drive bays
Expansion Slots:
- 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
- 7 PCI-E Slots (SYS-6029U-TR4T): 2 PCI-E 3.0 x16, 5 PCI-E 3.0 x8
Networking Options:
- SYS-6029U-TR4 - 4x 1GbE ports
- SYS-6029U-TR4T - 4x 10GBase-T ports
- SYS-6029U-TRT - 2x 10GBase-T ports
- SYS-6029U-TRTP - 2x 10G SFP+ ports
- SYS-6029U-TR25M - 2x 25GbE SFP28 ports
1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
3 USB 3.0 (2 rear, 1 Type A)
4 heavy duty fans w/ optimal fan speed control
1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6029U-E1CR4T

/ SYS-6029U-E1CR4 / SYS-6029U-E1CRT / SYS-6029U-E1CRTP / SYS-6029U-E1CR25M

12x 3.5" SAS3 opt. 4 NVMe • Flexible Network Opt.

Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
12 Hot-swap 3.5" drive bays; 12 SAS3 via opt. AOC (4 hybrid ports - 4 NVMe opt.)
Expansion Slots:
- 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
- 7 PCI-E Slots (SYS-6029U-E1CR4T): 2 PCI-E 3.0 x16, 5 PCI-E 3.0 x8
Networking Options:
- SYS-6029U-E1CR4 - 4x 1GbE ports
- SYS-6029U-E1CR4T - 4x 10GBase-T ports
- SYS-6029U-E1CRT - 2x 10GBase-T ports
- SYS-6029U-E1CRTP - 2x 10G SFP+ ports
- SYS-6029U-E1CR25M - 2x 25GbE SFP28 ports
1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
3 USB 3.0 (2 rear, 1 Type A)
4 heavy duty 8cm PWM fans
1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2049U-TR4

2U Ultra 4-Way • 112 Cores per System • 48 DDR4 DIMMs

High End Enterprise Server, in-memory database, Business Intelligence, High Performance Computer Cluster, Virtualization, ERP, CRM
Quad Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
11 PCI-E 3.0 total: 5 PCI-E 3.0 x8 and 6 PCI-E 3.0 x16 slots
48 DIMMs; up to 12TB 3DS ECC DDR4-2399 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
24 Hot-swap 2.5" drive bays: 4 U.2 NVMe + 20 SAS3 opt. via AOC
4 GbE via AOC, 1 dedicated IPMI
1 VGA, 1 COM, 2 USB 3.0 (rear)
4 heavy duty 8cm PWM fans
1600W (1+1) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-5028TK-HTR

HPC/Cluster, Financial Analysis, oil & gas simulation
4 Hot-plug System Nodes in 2U, each Node:
Single Socket P (LGA 3647) support: Intel® Coprocessor x200; optional integrated Intel® Omni-Path fabric
3 Hot-swap 3.5" SATA3 Drive Bays
6 DIMM slots; up to 384GB ECC LRDIMM or 192GB RDIMM, DDR4-2400MHz
2 PCI-E 3.0 x16 (Low-profile) slots
2 GbE, 1 Video, 1 COM, 2 USB 3.0 (rear)
System management: Built-in Server management tool(IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy-duty 8cm PWM fans w/ optimal fan speed control
2000W Redundant Titanium Level Power Supplies

SYS-5038AD-I

Gaming, Digital Imaging, Entry-Level Workstation, Simulation and Creation Design
Single Socket R3 (LGA 2011) supports: Intel® 4th Gen Core i7 series, Xeon E5-2600 v4/v3, E5-1600 v3 processors
Removable 3.5" and 2.5" HDD/SSD cages with tool-less trays for up to 10 drives, 2x 5.25" Peripheral Drive Bays
4 PCI-E 3.0 x16, 2 PCI-E 2.0 x1 (in x4) slots
Up to 64GB Non-ECC UDIMMs DDR4 3300MHz (OC) in 8 sockets
2 GbE LAN ports (via Intel® i210-AT)
8 USB 3.0 (6 rear, 2 via headers); 4 of 8 USB 3.0 upgradable to USB 3.1 (10Gbps)
Audio: RealTek ALC1150 HD Audio
750W Multi-output Power Supply

SYS-5038K-i

Development Box, Financial Analysis, Oil and Gas Simulation, Code Optimization
Single socket P (LGA 3647) supports: Intel® Coprocessor x200
Removable 3.5" and 2.5" HDD/SSD cages with tool-less trays for up to 10 drives, 2x 5.25" Peripheral Drive Bays
6 DIMM slots; up to 384GB ECC LRDIMM or 192GB RDIMM, DDR4-2400MHz
2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x4 slots
2 GbE, 1 Video, 1 COM, 6 USB 3.0 (4 rear, 2 front)
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
750W Multi-output Power Supply

SYS-5039AD-I

Extreme Gaming, HPC, High-end Desktop, Simulation and Creation Design
Single socket R4 supports Intel® Core™ i9/i7/i5 X-Series and Intel® Core™ i9 Extreme X-Series Processors; Intel® X299 Chipset
6 Fixed 3.5" and 4 Fixed 2.5" drive bays; 2x 5.25" Peripheral drive bays
4 PCI-E 3.0 x16, 1 PCI-E 3.0 x1 slots, 2 U.2, 2 M.2 M-key for SSD & Optane
Up to 128GB DDR4-2666MHz non-ECC UDIMMs in 8 DIMM slots
Single GbE LAN port with Intel® i210-AT
Single LAN with Aquantia 5G LAN chip AQC108
6 SATA3 ports via PCH; RAID 0, 1, 5, 10
4 USB 3.1 (rear, 3 Type A + 1 Type C), 4 USB 3.0 (2 rear, 2 front), 4 USB 2.0 headers
ALC 1220 7.1 HD Audio
2x 12cm front cooling fans, 1x 12cm rear exhaust fan
750W Multi-output Power Supply

SYS-5039MA16-H12RFT

12 modular UP Nodes in 3U; EACH NODE:
Intel® Atom® processor C3955; Socket FCBGA1310
Intel® C3000 chipset
Up to 128GB RDIMM or 64GB UDIMM,
up to 2400MHz DDR4 VLP ECC memory support
Flexible storage options: 2x 3.5" SATA3 or 4x 2.5" SATA3 or
2x 2.5" NVMe + 2x 2.5" SATA3 or 2x 2.5" NVMe + 1x 3.5" SATA3
2x 10GBase-T LAN ports via C3000 SoC
4 heavy-duty 9cm PWM fans with optimal cooling zone
2000W Redundant Titanium Level Power Supplies

SYS-5039MA8-H12RFT

12 modular UP Nodes in 3U; EACH NODE:
Intel® Atom® processor C3750; Socket FCBGA1310
Intel® C3000 chipset
Up to 128GB RDIMM or 64GB UDIMM,
up to 2400MHz DDR4 VLP ECC memory support
Flexible storage options: 2x 3.5" SATA3 or 4x 2.5" SATA3 or
2x 2.5" NVMe + 2x 2.5" SATA3 or 2x 2.5" NVMe + 1x 3.5" SATA3
2x 10GBase-T LAN ports via C3000 SoC
4 heavy-duty 9cm PWM fans with optimal cooling zone
2000W Redundant Titanium Level Power Supplies

SYS-5130AD-T

Gaming, Digital Imaging, Entry-Level Worksation, Simulation and Creation Design
Socket H4 (LGA 1151) supports Intel® 7th/6th Gen. Core™ i7/i5/i3 series Processor; Intel® Z270 Express Chipset
Removable 3.5" and 2.5" HDD/SSD cages with tool-less trays
Up to 10 drives; 2x 5.25" Peripheral Drive Bays
4 PCI-E 3.0 x16, 1 PCI-E 3.0 x4, 2 PCI-E 3.0 x4 M.2, 2 PCI-E 3.0 x4 U.2 (1 share with M.2)
Up to 64GB DDR4 non-ECC UDIMMs in 4 sockets; Overclocking* support up to 3733MHz
Dual GbE LAN port with Intel® i219V and Intel® i210-AT
6 SATA3 ports via PCH; RAID 0, 1, 5, 10
4 USB 3.1 (3 Type A, 1 Type C), 4 USB 3.0 (2 rear, 2 via headers), 8 USB 2.0 (2 rear, 6 via headers)
7.1 HD Audio by RealTek ALC1150
3x 12 cm PWM fans
750W Multi-output Power Supply

SYS-5130DB-IL

Single socket H4 (LGA 1151) supports Intel® 7th/6th Gen. Core™ i7/i5/i3 series
Intel® B250 Express Chipset
Up to 64GB Non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4, 1 PCI-E 3.0 x1
2x 5.25" drive bays, 2x 3.5" fixed drive bays, 1x 2.5" fixed drive bay
1 HDMI, 1 DP, 1 DVI-D
HD Audio 7.1 channel connector by Realtek ALC888S, support SPDIF-Out
1x 80mm Rear Fan
260W 80Plus Bronze Power Supply

SYS-5130DQ-IL

Commercial Desktop, Remote Manageability, Intel® vPro™ Technology
Socket H4 (LGA 1151) supports Intel® 7th/6th Gen. Core™ i7/i5/i3 series Processor; Intel® Q270 Express Chipset
2 Fixed 3.5" drive bays, 1 Fixed 2.5" drive bay, 2x 5.25" Peripheral Drive Bays
1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4, 1 PCI-E 3.0 x1, 1 PCI-E 3.0 x4 M.2 (support 2280)
Up to 64GB Non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
1 GbE LAN port with Intel® i219LM
6 SATA3 ports via PCH; RAID 0, 1, 5, 10
6 USB 3.0 (2 front, 4 rear), 4 USB 2.0 (2 front, 2 rear)
7.1 HD Audio by RealTek ALC1150
1x 80mm rear fan
260W 80Plus Bronze Power Supply

SYS-1029GP-TR

Up to 3 NVIDIA GPUs

2D/3D and CAD Applications, Astrophysics, Chemistry, Cloud and Virtualization
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 Hot-swap 2.5" SAS/SATA drive bays, 2 Hot-swap 2.5" SAS/SATA/NVMe drive bays
4 PCI-E 3.0 x16 (FHFL) and 1 PCI-E 3.0 x8 (in x16, LP) slots
1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0 (rear)
10x 4cm heavy duty counter-rotating fans with air shroud
1600W Redundant Platinum Level (94%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-5039MS-H12NR

12 modular UP Nodes in 3U; EACH NODE:
Intel® Xeon® processor E3-1200 v6/v5 family; socket H4 (LGA 1151)
Intel® C236 chipset
Up to 128GB UDIMM, up to 2666MHz DDR4 VLP ECC memory support
4x 2.5" NVMe + 1 M.2 (2280 SATA3)
1 SFP28 25GbE LAN port and 1 dedicated LAN supports IPMI 2.0
1 Micro-LP
4x 9cm heavy-duty PWM fans with optimal cooling zone
2000W Redundant Titanium Level Power Supplies

SSG-1029P-NEL32R

High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
32 Hot-swap EDSFF Long drive slots
24 DIMMs; up to 6TB 3DS ECC DDR4 2933MHz RDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16 Low-profile slots
2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
1 VGA, 2 USB 3.0, 1 TPM header
8x 40x56mm PWM fans
1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-1029P-NES32R

IOPS Intensive Storage App., DB App. (MySQL, Casandra), Hyper-converged Infrastructure / Scale-out Architectures
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
32 Hot-swap EDSFF Short drive bays
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16, 1 PCI-E 3.0 x4
2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
1 VGA, 4 USB 3.0, 1 TPM header
8x 4cm counter-rotating cooling fans
1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-1029P-NMR36L

IOPS Intensive Storage App., DB App. (MySQL, Casandra), Hyperconverged Infrastructure / Scale-out Architectures
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
32 Hot-swap NF1 drive bays, 4 hybrid PCI-E NF1 or SATA3 M.2 drive bays
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16, 1 PCI-E 3.0 x4
2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
1 VGA, 4 USB 3.0, 1 TPM header
8x 4cm counter-rotating cooling fans
1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-136R-N32JBF

32 NVMe support • (2 sleds with • 16 drives per sled)

1U 32 NVMe JBOF Storage Enclosure
High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
32 Hot-swap 2.5" NVMe SSDs (2 sleds with 16 drives per sled)
4 PCI-E x16 IO ports, 2 PCI-E x16 slots
2 RJ45 Dedicated IPMI LAN ports, support for IPMI v.2.0
8x 40mm Hot-swap cooling fans
1000W Redundant Titanium Level (96%) Power Supplies

SSG-136R-NEL32JBF (Coming Soon)

32 EDSFF Long SSDs

1U 32 NVMe 9.5mm EDSFF Long SSDs JBOF Storage Enclosure
High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
32 Hot-swap NVMe, 9.5mm EDSFF Long SSDs
4 PCI-E 3.0 x16 IO ports, 2 PCI-E 3.0 x16 slots
2 RJ45 Dedicated IPMI LAN ports, support for IPMI v.2.0
8x 40mm Hot-swap cooling fans
1000W Redundant Titanium Level (96%) Power Supplies

SSG-136R-NR32JBF

32 NVMe Ruler SSDs

1U 32 NVMe Ruler SSD JBOF Storage Enclosure
High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
32 Hot-swap NVMe Ruler SSDs
4 PCI-E x16 IO ports, 2 PCI-E x16 slots
2 RJ45 Dedicated IPMI LAN ports, support for IPMI v.2.0
8x 40mm Hot-swap cooling fans
1000W Redundant Titanium Level (96%) Power Supplies

SSG-2029P-ACR24H

/ SSG-2029P-ACR24L

24 Hot-swap 2.5" SAS3/SATA3

Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 Hot-swap 2.5" SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
Storage Options:
- SSG-2029P-ACR24H - SAS3 via Broadcom 3108 AOC
- SSG-2029P-ACR24L - SAS3 via Broadcom 3008 AOC
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8
2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
1 VGA, 1 COM, 3 USB 3.0, 1 Type A
3 Hot-swap 8cm redundant PWM cooling fans
1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-2029P-DN2R24L

2U 2-Node Mission critical storage server
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16 Low-profile slots
1 SIOM card support for flexible networking options
Dual port 10GBase-T (Intel® X557-AT2), 1 Dedicated IPMI port.
1 VGA, 2 USB 3.0, 1 Type A,1x TPM header
5x 8cm high-performance PWM fans w/ optimal fan speed control.
Lowest latency:
- 24 U.2 Hot-swap dual-port NVMe drive bays
- Omni-Path SIOM support
Robust Data Availability:
- Shared storage between redundant controllers
- Node to node heartbeat/ NTB connectivity
- Dual 10G private Ethernet between nodes
- Redundant power supply and cooling system
Greener Storage:
- Titanium Level (96%+) efficiency 2000W redundant power supplies
- 90%+ VRM power efficiency

*Contact your Supermicro sales rep for more info.

SSG-2029P-E1CR24H

/ SSG-2029P-E1CR24L

24 Hot-swap 2.5" SAS3/SATA3 • Dual JBOD Exp. Ports

Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 Hot-swap 2.5" SAS3/SATA3 drive bays
Storage Options:
- SSG-2029P-E1CR24H - SAS3 via Broadcom 3108 AOC
- SSG-2029P-E1CR24L - SAS3 via Broadcom 3008 AOC
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
1 VGA, 1 COM, 3 USB 3.0, 1 Type A
3 Hot-swap 8cm redundant PWM cooling fans
1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-2029P-E1CR48H

/ SSG-2029P-E1CR48L

48 Hot-swap 2.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)

Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
48 Hot-swap 2.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear)
Storage Options:
- SSG-2029P-E1CR48H – SAS3 via Broadcom 3108 AOC
- SSG-2029P-E1CR48L – SAS3 via Broadcom 3008 AOC
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0, 1 Type A
5 Hot-swap 80mm redundant PWM cooling fans
1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-5019D8-TR12P

12x 3.5" SATA3 drive bays

Warm storage, CDN, Web or DB Server, Multi-access Edge Computing, VM and SMB Servers
Intel® Xeon® processor D-2146NT (8-Core)
12x 3.5" SATA3 Drive Bays, SAS3 support by AOC
4 DIMMs, up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM, DDR4-2133MHz memory
1 PCI-E 3.0 x8 (FH), M.2: M Key and B Key
2x 10GBase-T, 4x 1GbE, 2x 10G SFP+ ports, 1x dedicated IPMI LAN port
I/O ports: 1 VGA, 1 COM, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
6x 40mm 4-pin fans
400W Redundant Platinum Level Power Supplies

SSG-5029P-E1CTR12L

12 Hot-swap 3.5" SAS3/SATA3

Application and data serving, Connectivity/Storage Compute Nodes, High Availability Storage Appliance Platform
Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
12 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional NVMe/SATA (rear)
SAS3 via Broadcom 3008 controller
8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
1 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
2x 10GBase-T ports via X557, 1 Dedicated IPMI port
1 VGA, 2 COM, 2 USB 3.0, 2 USB 2.0
3 High-performance 80mm PWM fans
800W Redundant Titanium Level (96%) Power Supplies

SSG-5049P-E1CR45H

/ SSG-5049P-E1CR45L

Backup Storage, Cold Storage; Database Applications; Data Warehousing, Archiving
Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays (NVMe/SATA optional)
Storage Options:
- SSG-5049P-E1CR45H – SAS3 via Broadcom 3108 AOC
- SSG-5049P-E1CR45L – SAS3 via Broadcom 3008 AOC
8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x8 (in x16), 4 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
2 GbE LAN ports via Intel i210, 1 Dedicated IPMI port
1 VGA, 2 COM, 2 USB 3.0, 2 USB 2.0
5 Hot-swap 8cm redundant PWM fans
1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-5049P-E1CTR36L

36 Hot-swap 3.5" SAS3/SATA3

Connectivity/Storage Compute Nodes, Database Processing & Storage Appliance Platform
Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
36 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional NVMe/SATA (rear)
SAS3 via Broadcom 3008 controller
8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
1 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
2x 10GBase-T ports via Intel X722 + X557, 1 Dedicated IPMI port
1 VGA, 2 COM, 2 USB 3.0, 2 USB 2.0
7 High-performance 80mm PWM fans
1200W Redundant Titanium Level (96%) Power Supplies

SSG-6019P-ACR12L

12 Hot-swap 3.5" SAS3/SATA3 + 4 Hot-swap 2.5" NVMe/SATA

High Density Storage, Object Storage 1U, Ceph / Hadoop, Scale-out Storage, Big Data Analytics
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 Hot-swap 3.5" SAS3/SATA3 drive bays, 4 Hot-swap 2.5" NVMe/SATA drive bays
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
1 VGA, 4 USB 3.0, 1 TPM header
6x 4cm 20.5K RPM cooling fans
600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6019P-ACR12L+

12 Hot-swap 3.5" SAS3/SATA3 + 4 Hot-swap 2.5" NVMe/SATA

High Density Storage, Object Storage 1U, Ceph / Hadoop, Scale-out Storage, Big Data Analytics
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 Hot-swap 3.5" SAS3/SATA3 drive bays, 4 Hot-swap 2.5" 7mm NVMe/SATA drive bays
12 DIMMs; up to 3TB 3DS ECC DDR4 2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
3 PCI-E 3.0 x16, 1 PCI-E 3.0 x16 for AOM
2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
1 VGA, 4 USB 3.0, 1 TPM header
6x 4cm 20.5K RPM cooling fans
800W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6029P-E1CR12H

/ SSG-6029P-E1CR12L

12 Hot-swap 3.5" SAS3/SATA3 • Dual JBOD Exp. Ports

Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
12 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
Storage Options:
- SSG-6029P-E1CR12H - SAS3 via Broadcom 3108 AOC
- SSG-6029P-E1CR12L - SAS3 via Broadcom 3008 AOC
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
1 VGA, 1 COM, 3 USB 3.0, 1 Type A
3 Hot-swap 8cm redundant PWM cooling fans
1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6029P-E1CR12T

12 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108

Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
12 Hot-swap 3.5" SAS3 (via Broadcom 3108)/SATA3 drive bays, 2 Optional onboard NVMe M.2
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 1 occupied by controller)
2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
1 VGA, 1 COM, 3 USB 3.0, 1 Type A
3 Hot-swap 8cm redundant PWM cooling fans
1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6029P-E1CR16T

16 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108

Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
16 Hot-swap 3.5" SAS3 (via Broadcom 3108)/SATA3 drive bays
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 1 occupied by controller)
2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
1 VGA, 1 COM, 3 USB 3.0, 1 Type A
3 Hot-swap 8cm redundant PWM cooling fans
1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6029P-E1CR24H

/ SSG-6029P-E1CR24L

24 Hot-swap 3.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)

Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear)
Storage Options:
- SSG-6029P-E1CR24H – SAS3 via Broadcom 3108 AOC
- SSG-6029P-E1CR24L – SAS3 via Broadcom 3008 AOC
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0, 1 Type A
5 Hot-swap 80mm redundant PWM cooling fans
1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6039P-E1CR16H

/ SSG-6039P-E1CR16L

16 Hot-swap 3.5" SAS3/SATA3 • Dual JBOD Exp. Ports

Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
16 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
Storage Options:
- SSG-6039P-E1CR16H - SAS3 via Broadcom 3108 AOC
- SSG-6039P-E1CR16L - SAS3 via Broadcom 3008 AOC
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
1 VGA, 1 COM, 3 USB 3.0, 1 Type A
3 Hot-swap 8cm redundant PWM cooling fans
1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6049P-E1CR24H

/ SSG-6049P-E1CR24L

24 Hot-swap 3.5" SAS3/SATA3 • Dual JBOD Exp. Ports

Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24" Hot-swap 3.5 SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
Storage Options:
- SSG-6049P-E1CR24H - SAS3 via Broadcom 3108 AOC
- SSG-6049P-E1CR24L - SAS3 via Broadcom 3008 AOC
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
1 VGA, 1 COM, 4 USB 3.0, 1 Type A
3 Hot-swap 8cm redundant PWM cooling fans
1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6049P-E1CR36H

/ SSG-6049P-E1CR36L

36 Hot-swap 3.5" SAS3/SATA3 • Dual JBOD Exp. Ports

Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
36 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
Storage Options:
- SSG-6049P-E1CR36H - SAS3 via Broadcom 3108 AOC
- SSG-6049P-E1CR36L - SAS3 via Broadcom 3008 AOC
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
1 VGA, 1 COM, 4 USB 3.0, 1 Type A
3 Hot-swap 8cm redundant PWM cooling fans
1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6049P-E1CR45H

/ SSG-6049P-E1CR45L

Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays, 6 optional NVMe bays
Storage Options:
- SSG-6049P-E1CR45H – SAS3 via Broadcom 3108 AOM
- SSG-6049P-E1CR45L – SAS3 via Broadcom 3008 AOM
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card slot
1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0, 1 Type A
5 Hot-swap 8cm rear exhaust PWM cooling fans
1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6049P-E1CR45L+

Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays, 6 optional NVMe bays
Storage Options:
- SSG-6049P-E1CR45L+ – SAS3 via Broadcom 3616 AOM
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card slot
1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0, 1 Type A
5 Hot-swap 8cm rear exhaust PWM cooling fans
1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6049P-E1CR60H

/ SSG-6049P-E1CR60L

Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
60 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays
Storage Options:
- SSG-6049P-E1CR60H – SAS3 via Broadcom 3108 AOM
- SSG-6049P-E1CR60L – SAS3 via Broadcom 3008 AOM
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0, 1 Type A
5 Hot-swap 8cm rear exhaust PWM cooling fans
2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6049P-E1CR60L+

Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
60 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays
Storage Options:
- SSG-6049P-E1CR60L+ – SAS3 via Broadcom 3616 AOM
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0, 1 Type A
5 Hot-swap 8cm rear exhaust PWM cooling fans
2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1019C-FHTN8

uCPE Network Appliance, Network Security Appliance, Virtualization Server
Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C246 chipset
Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
8x 1GbE LAN ports (Intel i210-AT)
1 PCI-E 3.0 x16 slot
2 Hot-swap 2.5", 2 Internal 2.5" SATA3 drive bays (SSD only)
M.2: 1 SATA/PCI-E 3.0 x4, 2280, M-Key
2 USB 3.1 ports (rear), 2 USB 2.0 ports (rear)
1 VGA port, 1 COM, 1 TPM 2.0 (header)
350W Platinum Level AC-DC multiple output power supply

SYS-1019C-HTN2

Digital Signage, DVR/NVR, POS, Office Server, Security Appliance Network Security, and Video Surveillance
Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3 processors, Intel® Celeron®, Intel® Pentium®
Up to 64GB unbuffered ECC/non-ECC UDIMM in 4 DIMM slots
2x 1GbE LAN ports (Intel i210-AT and Intel PHY I219LM)
1x 3.5" or 4x 2.5" drive bays with bracket
1x PCI-E 3.0 x8 slot, M.2 PCIe 3.0 x4, M Key 2242/2280/22110
Mini-PCIe with mSATA support
4 USB 3.1 (3 Type A, 1 Type C), 1 COM, 1 TPM, 1 HDMI, 1 DVI, ALC 888S HD Audio
400W Redundant Platinum Level Power Supplies

SYS-1019D-12C-FRN5TP

Centralized/Cloud Radio Access Network (C-RAN), Universal Customer Premise Equipment (uCPE), Software Defined WAN (SD-WAN), Network Function Virtualization (NFV)
Intel® Xeon® processor D-2163IT SoC, 12-Cores, 24 Threads, 75W
Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2133MHz in 4 DIMM slots
2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
2x 2.5” drive bays (one drive space shares with M.2), 2 EDSFF
2 M.2: M-Key: 2280/22110, 1 M.2 E-Key: 2230, 1 M.2 B-Key: 3042
4 PCI-E 3.0 x8 slots for optional AIOM
2 USB 3.0, 1 VGA, 1 COM via RJ45
400W Redundant Platinum Level Power Supplies

SYS-1019D-14C-FRN5TP

Centralized/Cloud Radio Access Network (C-RAN), Universal Customer Premise Equipment (uCPE), Software Defined WAN (SD-WAN), Network Function Virtualization (NFV)
Intel® Xeon® processor D-2173IT SoC, 14-Cores, 28 Threads, 70W
Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2133MHz in 4 DIMM slots
2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
2x 2.5” drive bays (one drive space shares with M.2), 2 EDSFF
2 M.2: M-Key: 2280/22110, 1 M.2 E-Key: 2230, 1 M.2 B-Key: 3042
4 PCI-E 3.0 x8 slots for optional AIOM
2 USB 3.0, 1 VGA, 1 COM via RJ45
400W Redundant Platinum Level Power Supplies

SYS-1019D-14CN-FHN13TP

Multi-Access Edge Computing (MEC), Centralized/Cloud Radio Access Network (C-RAN), Universal Customer Premise Equipment (uCPE), Software Defined WAN (SD-WAN), Network Function Virtualization (NFV), Artificial Intelligence (AI)
Intel® Xeon® processor D-2177NT SoC, 14-Cores, 28 Threads, 105W
Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2666MHz in 4 DIMM slots
9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
2 Hot-swap 2.5" drive bays and 2 Internal 2.5" SSD bays
3 M.2: M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 3042
2 PCI-E 3.0 x16 (FHFL) slots
2 USB 3.0, 1 VGA, 1 COM via RJ45
500W Multi-output Platinum Level Power Supply

SYS-1019D-16C-FHN13TP

Multi-Access Edge Computing (MEC), Centralized/Cloud Radio Access Network (C-RAN), Universal Customer Premise Equipment (uCPE), Software Defined WAN (SD-WAN), Network Function Virtualization (NFV), Artificial Intelligence (AI)
Intel® Xeon® processor D-2183IT SoC, 16-Cores, 32 Threads, 100W
Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2400MHz in 4 DIMM slots
9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
2 Hot-swap 2.5" drive bays and 2 Internal 2.5" SSD bays
1 M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 3042
2 PCI-E 3.0 x16 slots
2 USB 3.0, 1 VGA, 1 COM via RJ45
500W Multi-output Platinum Level Power Supply

SYS-1019D-16C-FRN5TP

Centralized/Cloud Radio Access Network (C-RAN), Universal Customer Premise Equipment (uCPE), Software Defined WAN (SD-WAN), Network Function Virtualization (NFV)
Intel® Xeon® processor D-2183IT SoC, 16-Cores, 32 Threads, 100W
Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2400MHz in 4 DIMM slots
2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
2x 2.5” drive bays (one drive space shares with M.2), 2 EDSFF
2 M.2: M-Key: 2280/22110, 1 M.2 E-Key: 2230, 1 M.2 B-Key: 3042
4 PCI-E 3.0 x8 slots for optional AIOM
2 USB 3.0, 1 VGA, 1 COM via RJ45
400W Redundant Platinum Level Power Supplies

SYS-1019D-4C-FHN13TP

Multi-Access Edge Computing (MEC), Centralized/Cloud Radio Access Network (C-RAN), Universal Customer Premise Equipment (uCPE), Software Defined WAN (SD-WAN), Network Function Virtualization (NFV), Artificial Intelligence (AI)
Intel® Xeon® processor D-2123IT SoC, 4-Cores, 8 Threads, 60W
Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2666MHz in 4 DIMM slots
9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
2 Hot-swap 2.5" drive bays and 2 Internal 2.5" SSD bays
1 M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 3042
2 PCI-E 3.0 x16 slots
2 USB 3.0, 1 VGA, 1 COM via RJ45
350W AC-DC Multi-output Platinum Level Power Supply

SYS-1019D-FHN13TP

Multi-Access Edge Computing (MEC), Centralized/Cloud Radio Access Network (C-RAN), Universal Customer Premise Equipment (uCPE), Software Defined WAN (SD-WAN), Network Function Virtualization (NFV), Artificial Intelligence (AI)
Intel® Xeon® processor D-2146NT SoC, 8-Cores, 16 Threads, 80W
Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2133MHz in 4 DIMM slots
9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
2 Hot-swap 2.5" drive bays and 2 Internal 2.5" SSD bays
3 M.2: M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 3042
2 PCI-E 3.0 x16 slots
2 USB 3.0, 1 VGA, 1 COM via RJ45
350W AC-DC Multi-output Platinum Level Power Supply

SYS-1019D-FRN5TP

Centralized/Cloud Radio Access Network (C-RAN), Universal Customer Premise Equipment (uCPE), Software Defined WAN (SD-WAN), Network Function Virtualization (NFV)
Intel® Xeon® processor D-2146NT SoC, 8-Cores, 16 Threads, 80W
Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2133MHz in 4 DIMM slots
2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
2x 2.5” drive bays (one drive space shares with M.2), 2 EDSFF
2 M.2: M-Key: 2280/22110, 1 M.2 E-Key: 2230, 1 M.2 B-Key: 3042
4 PCI-E 3.0 x8 slots for optional AIOM
2 USB 3.0, 1 VGA, 1 COM via RJ45
400W Redundant Platinum Level Power Supplies

SYS-1019D-FRN8TP

Network Security Appliance, FireWall Applications, Virtualization, SD-WAN and vCPE/uCPE
Intel® Xeon® processor D-2146NT SoC, 8-Cores, 16 Threads, 80W
Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2666MHz in 4 DIMM slots
4x 1GbE, 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0 (front)
Up to 4 Internal fixed 2.5" drive bays
1 M.2 M-Key for storage: 2242/2280, 1 M.2 B-Key for SSD & WAN: 2242
2 USB 3.0 (front), 1 VGA (front)
400W Redundant Platinum Level Power Supplies

SYS-1019GP-TT

Up to 2 NVIDIA GPUs in 1U

HPC cluster computer nodes
Single Socket P (LGA 3647) supports: 2nd Gen. Intel® Xeon® Scalable processors
6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
6 Hot-swap 2.5" SAS/SATA drive bays
2 PCI-E 3.0 x16 (right riser) and 1 PCI-E x16 (left riser) slots
2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
1 VGA, 2 USB 3.0 (rear)
8 heavy duty 4cm counter-rotating fans with air shroud
1400W Platinum Level (94%) Power Supply

*Contact your Supermicro sales rep for more info.

SYS-1019P-WTR

WIO, Flexible I/O, UP • 10 Hot-swap 2.5" bays • 2 NVMe w/ AOC opt.

Database Processing and Storage, Data Center Applications
Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
10 Hot-swap 2.5" drive bays, M.2 mini-PCI-e support
2 PCI-E 3.0 x16 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
2x 10GBase-T ports via Intel X557, 1 Dedicated IPMI port
1 VGA, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
5 Counter-rotating 4cm PWM cooling fans
500W Redundant Platinum Level Power Supplies

SYS-1019S-M2

X11SSZ-QF + • SC514-704C-1P

Embedded, Industrial automation & control, military compact server, VOIP & network appliance, mdeical applications
Single Socket H4 (LGA 1151) supports: Intel® 7th/6th Gen Core i7/i5/i3 series processor, Intel® Celeron® and Intel® Pentium processors
Intel® Q170 express chipset
2x 2.5" Fixed bays with bracket
1 PCI-E 3.0 x16 (in x16) slot
Up to 64GB DDR4 2400MHz Non-ECC UDIMMs in 4 sockets
2 RJ45 1GbE LAN ports (Intel® i210-AT and i219LM)
Integrated IPMI 2.0 with KVM and Dedicated LAN
1 HDMI, 1 DP, 1 DVI-I, 1 VGA, 1 BMC integrated Matrox G200
2 COM, 2 USB 3.0 (rear), 3 USB 2.0 (2 rear, 1 Type A)
1 SuperDOM, ALC 888S HD Audio
400W Platinum Level Redundant Power Supplies w/ BBP® option

SYS-1019S-MC0T

X11SSH-CTF + • SC113MFTQC-350CB

Storage HN, VM, Web hosting, Small File Server, Entry Level Storage
Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
Intel® C236 chipset
8x 2.5" Hot-swap SAS3 (Broadcom 3008) bays w/ RAID
1 PCI-E 3.0 x8 AOC Slot
Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
2 RJ45 10GBase-T LAN ports (Intel® X550)
Integrated IPMI 2.0 with KVM and Dedicated LAN
1 VGA, 2 COM, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
2 SuperDOM ports with built-in power; TPM header
340W High-efficiency Power Supply

SYS-1019S-WR

X11SSW-F + • SC514-R407W

Appliance Server, WIO, Embedded Applications
Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
Intel® C236 chipset
2x 2.5" internal fixed SATA3 drive bays
1 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8 Left Riser slot; 1 PCI-E 3.0 x4 (in x8); 1 M.2 connector
Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
2 RJ45 1GbE LAN ports (Intel® i210-AT)
Integrated IPMI 2.0 with KVM and Dedicated LAN
1 VGA, 1 COM, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
2 SuperDOM ports with built-in power; TPM header
400W Redundant High-efficiency Power Supplies

SYS-1029GQ-TNRT

Up to 4 GPUs in 1U

High-performance Computing, Big Data Analytics, Business Intelligence, Research Lab, Astrophysics
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 Hot-swap 2.5" drive bays, 2 Internal 2.5" drive bays
4 PCI-E 3.0 x16 (FHFL), 1 PCI-E x16 (LP), and 1 PCI-E 3.0 x8 (LP) slots
2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
1 VGA, 2 COM, 2 USB 3.0 (rear)
9x 4cm heavy duty counter-rotating fans with air shroud
2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029GQ-TRT

Up to 4 NVIDIA GPUs in 1U

GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2x Hot-swap 2.5" drive bays, 2 Internal 2.5" drive bays
4 PCI-E 3.0 x16 (FHFL) and 2 PCI-E x16 (LP) slots
2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
1 VGA, 2 COM, 2 USB 3.0 (rear)
9x 4cm heavy duty counter-rotating fans with air shroud
2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029GQ-TVRT

Up to 4 NVIDIA Tesla • V100 SXM2 GPUs • Up to 300 GB/s • GPU-to-GPU NVLINK

HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 Hot-swap 2.5" drive bays, 2 Internal 2.5" drive bays
4 PCI-E 3.0 x16 slots
2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
1 VGA, 2 COM, 2 USB 3.0 (rear)
7x 4cm heavy duty counter-rotating fans with air shroud
2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029GQ-TXRT

Up to 4 NVIDIA Tesla P100 SXM2 GPUs

HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 Hot-swap 2.5" drive bays, 2 Internal 2.5" drive bays
4 PCI-E 3.0 x16 slots
2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
1 VGA, 2 COM, 2 USB 3.0 (rear)
7x 4cm heavy duty counter-rotating fans with air shroud
2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029P-MT

Short Depth (19.98") • Data Center Optimized

1U Data Center Optimized Server, Short-Depth
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
8 Hot-swap 2.5" SATA3 drive bays
1 PCI-E 3.0 x8 (FHHL) slot
2x 1GbE ports, 1 Dedicated IPMI port, 1 VGA, 2 USB 2.0
4x 4cm 22.5K RPM middle cooling fans
600W Platinum Level Power Supply

SYS-1029P-MTR

Short Depth (19.98") • Data Center Optimized

1U Data Center Optimized Server, Short-Depth
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
8 Hot-swap 2.5" SATA3 drive bays
1 PCI-E 3.0 x8 (FHHL) slot
2x 1GbE ports, 1 Dedicated IPMI port, 1 VGA, 2 USB 2.0
4x 4cm 22.5K RPM middle cooling fans
800W Redundant Platinum Level Power Supplies

SYS-1029P-N32R

32 NVMe Support • (2 sleds with 16 drives per sled)

High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
Dual socket P (LGA 3647) supports 2nd Gen. Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
32 Hot-swap 2.5" NVMe SSDs (2 sleds with 16 drives per sled), 2 M.2 boot drives
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16 slots
2x 10GBase-T LAN ports, 1 dedicated IPMI Port
1 VGA, 2 USB 3.0, 1 COM, 2 SuperDOM
Built-in Intel® QAT for Crypto/Compression
8 Hot-swap 40mm cooling fans
1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029P-NR32R

32 NVMe Ruler SSDs

High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
Dual socket P (LGA 3647) supports 2nd Gen. Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
32 Hot-swap NVMe Ruler SSDs, 2 M.2 boot drives
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16 slots
2x 10GBase-T LAN ports, 1 dedicated IPMI Port
1 VGA, 2 USB 3.0, 1 COM, 2 SuperDOM
Built-in Intel® QAT for Crypto/Compression
8 Hot-swap 40mm cooling fans
1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029P-WT

WIO, Flexible I/O • 8 Hot-swap 2.5" bays • 1 Slim DVD-ROM (Opt.)

Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
8 Hot-swap 2.5" drive bays; 1 slim DVD-ROM bay (option)
2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
1 VGA, 6 USB 3.0 (4 rear, 2 via header)
4 Counter-rotating 4cm PWM cooling fans
600W Multi Output Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

SYS-1029P-WTR

WIO, Flexible I/O • 8 Hot-swap 2.5" bays • 1 Slim DVD-ROM (Opt.)

Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
8 Hot-swap 2.5" drive bays; 1 slim DVD-ROM bay (option)
2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
1 VGA, 6 USB 3.0 (4 rear, 2 via header)
4 Counter-rotating 4cm PWM cooling fans
750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029P-WTRT

WIO, Flexible I/O • 10 Hot-swap 2.5" bays • 2 NVMe support

Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
10 Hot-swap 2.5" drive bays; 8 SATA3 + 2 NVMe/SATA3 hybrid ports
2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
1 VGA, 6 USB 3.0 (4 rear, 2 front via header)
4 Counter-rotating 4cm PWM cooling fans
750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029TP-DTR

/ SYS-1029TP-DC0R / SYS-1029TP-DC1R

TwinPro • 2 Hot-swappable DP nodes in 1U

2 Hot-swappable DP nodes in 1U; Each Node (x2 nodes) supports:
Dual 2nd Gen. Intel® Xeon® Scalable processors
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz L/RDIMM
2 PCI-E 3.0 x16 slots and 1 SIOM slot for flexible Networking options (SIOM must bundle 1 per node)
Storage Drive Options:
- SYS-1029TP-DTR - 4 Hot-swap 2.5" SATA3 (Intel C621)
- SYS-1029TP-DC0R - 4 Hot-swap 2.5" SAS3 (Broadcom 3008)
- SYS-1029TP-DC1R - 4 Hot-swap 2.5" SAS3 (Broadcom 3108)
1 Video, 2 USB 3.0, 2 SuperDOM, 2 SATA M.2 or 1 NVMe M.2 (optional carrier card AOC-SMG3-2H8M2, support 1029TR-DTR/DC0R)
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 heavy duty counter rotating fans with air shroud
1000W Redundant Titanium Level (96%) Power Supplies

SYS-2029BR-HER (Coming Soon)

BigTwin™ • 10 EDSFF (E1.S) per Node

4 DP nodes in 2U; depth 28.75", Each Node:
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4 2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
10 EDSFF (E1.S) drive bays and 2 SATA M.2 drive bays per node.
2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
4 Heavy duty 8cm PWM fans w/ optimal fan speed control
2600W Redundant Titanium Level (96%) Power Supplies

* Contact your Supermicro sales rep for more info.

SYS-2029BT-DNC0R

BigTwin™ • 4 NVMe/SAS3 + • 8 SAS3 per Node

2 DP nodes in 2U; depth 28.5", Each Node:
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
4 NVMe/SAS3 + 8 SAS3 Hot-swap 2.5" drive bays per node
SAS3 (12Gbps) support via Broadcom 3216; IT mode
2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16, 1 Networking SIOM card support
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029BT-HNC0R

BigTwin™ • 4 NVMe/SAS3/SATA3 + • 2 SAS3/SATA3 per Node

4 DP nodes in 2U; depth 28.5", Each Node:
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays per node
SAS3 support via Broadcom 3008; IT mode
2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029BT-HNC1R

BigTwin™ • 4 NVMe/SAS3/SATA3 + 2 SAS3/SATA3 per Node

4 DP nodes in 2U; depth 28.5", Each Node:
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays per node
SAS3 support via Broadcom 3108; RAID 0, 1, 5, 6, 10, 50, 60
1 PCI-E 3.0 x16 Low-profile slot, 1 Networking SIOM card support
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029BT-HNR

BigTwin™ • 6 NVMe per Node

4 DP nodes in 2U; depth 28.5", Each Node:
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
6 Hot-swap 2.5" NVMe drive bays per node
2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029BT-HNTR

BigTwin™ • 4 NVMe/SATA3 + • 2 SATA3 per Node

4 DP nodes in 2U; depth 28.5", Each Node:
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
4 Hot-swap 2.5" NVMe/SATA3 + 2 Hot-swap 2.5" SATA3 drive bays per node
2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029BT-HTR

BigTwin™ • 6 SATA3 per Node

4 DP nodes in 2U; depth 28.5", Each Node:
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
6 Hot-swap 2.5" SATA3 drive bays per node
2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029BZ-HNR

BigTwin™ • 6 NVMe per Node • N+1 Cooling

4 DP nodes in 2U; depth 28.75", Each Node:
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
6 Hot-swap 2.5" NVMe drive bays per node; 2 M.2 SATA3 or NVMe support
2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
16 Heavy duty 40x56mm fans w/ optimal fan speed control (4 fans per node)
2600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029GP-TR

Up to 6 NVIDIA GPUs

GPU Server, Mission-critical app., enterprise server, oil & gas, large database, e-business, on-line transaction processing, medical
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
8 Hot-swap 2.5" SAS/SATA drive bays, 2 Hot-swap 2.5" SAS/SATA/NVMe drive bays
6 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 (in x16) slots
1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0 (rear)
5 heavy duty fans w/ optimal fan speed control
2000W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029P-C1RT

/ SYS-2029P-C1R

8 2.5" + 8 2.5" • SAS3 via Broadcom 3108

Compute Intensive Application/Storage, Big Data Analytics, DB Application/Processing, Mission-critical Application, Simulation and Automation
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
8 Hot-swap 2.5" SAS3 drives (via Broadcom 3108), 8 Hot-swap 2.5" SATA3 drives (via Intel C620 series chipset)
4 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots
2x 10GBase-T (-C1RT) / 1GbE (-C1R), 1 Dedicated IPMI port
1 Video, 2 COM, 2 USB 3.0, 4 USB 2.0, 1 Type A, 1 M.2 support
3 Hot-swap 80mm PWM cooling fans
1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029P-TXRT

11 PCI-E Slots • 16 Hot-swap 2.5", 1 Peripheral 5.25"

2U Max I/O Server - Expansion / Performance / Flexibility
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
16 Hot-swap 2.5" drive bays and 1 peripheral 5.25" bay
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16 (HSSI), 2 PCI-E 3.0 x16 (or 4 PCI-E x8), 4 PCI-E 3.0 x8 , 1 PCI-E 3.0 x4 (in x8 slot)
1 PCI-E 3.0 x4 M.2 2280 slot from PCH
2 GbE, 1 Video, 2 COM, 2 USB 3.0 (rear), 4 USB 2.0 (rear), 1 Type A
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4x 80mm 7K RPM middle fans
1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029TP-HTR

/ SYS-2029TP-HC0R / SYS-2029TP-HC1R / SYS-6029TP-HTR / SYS-6029TP-HC0R / SYS-6029TP-HC1R

TwinPro² (SIOM) • Flexible Storage Options

4 DP nodes in 2U; depth 28.5" (2029TP) / 30.5" (6029TP), Each Node:
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
Storage Drive Options:
- SYS-2029TP-HTR - 6 Hot-swap 2.5" SATA3
- SYS-2029TP-HC0R - 6 Hot-swap 2.5" SAS3 (Broadcom 3008)
- SYS-2029TP-HC1R - 6 Hot-swap 2.5" SAS3 (Broadcom 3108)
- SYS-6029TP-HTR - 3 Hot-swap 3.5" SATA3
- SYS-6029TP-HC0R - 3 Hot-swap 3.5" SAS3 (Broadcom 3008)
- SYS-6029TP-HC1R - 3 Hot-swap 3.5" SAS3 (Broadcom 3108)
2 PCI-E 3.0 x16 Low-profile slots
1 SIOM card support for flexible networking options
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 2 SuperDOM
4 Heavy duty 8cm fans with optimal fan speed control
2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-4029GP-TRT

Up to 8 NVIDIA GPUs

3D rendering, Astrophysics, Chemistry, Cloud Computing, Virtualization, Compute intensive application
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
Up to 24 Hot-swap 2.5" Drive Bays, 8x 2.5” drives supported natively
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
8 PCI-E 3.0 x16 (double-width), 2 PCI-E 3.0 x8 slots, 1 PCI-E 3.0 x4 slot
I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 4 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
8x 92mm RPM Hot-Swappable Cooling Fans
2000W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-4029GP-TRT2

Up to 8 GPUs

Artificial Intelligence, Big Data Analytics, High-performance Computing, Research Lab/National Lab, Astrophysics, Business Intelligence
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
24 Hot-swap 2.5" drive bays (8x 2.5" drives supported natively)
11 PCI-E 3.0 x16 (FH, FL) and 1 PCI-E 3.0 x8 (in x16) slots
2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
1 VGA, 1 COM, 4 USB 3.0
8x 92mm Hot-swap cooling fans
2000W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-4029GP-TRT3

Up to 8 NVIDIA GPUs

Artificial Intelligence, Big Data Analytics, High-performance Computing, Research Lab/National Lab, Astrophysics, Business Intelligence
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
24 Hot-swap 2.5" drive bays (8x 2.5" drives supported natively)
11 PCI-E 3.0 x16 (FH, FL) and 1 PCI-E 3.0 x8 (in x16) slots
2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
1 VGA, 1 COM, 4 USB 3.0
8x 92mm Hot-swap cooling fans
2000W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-4029GP-TVRT

Up to 8 NVIDIA Tesla • V100 SXM2 GPUs • Up to 300 GB/s • GPU-to-GPU NVLINK

Artificial Intelligence, Big Data Analytics, High-performance Computing, Research Lab/National Lab, Astrophysics, Business Intelligence
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
16 Hot-swap 2.5" drive bays (support 8 NVMe drives)
4 PCI-E 3.0 x16 (LP, GPU tray for GPUDirect RDMA), 2 PCI-E 3.0 x16 (LP, CPU tray)
2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0 (front)
8x 92mm cooling fans, 4x 80mm cooling fans
2200W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-5019C-FL

Appliance Server, Security/Gateway Server, Edge Computing
Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C242 chipset
Up to 64GB unbuffered ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots
2x 1GbE LAN ports (Intel i210-AT)
1 PCI-E 3.0 x16 slot
2 Fixed 3.5" drive bay or 4 Fixed 2.5" drive bays
M.2: 1 PCI-E 3.0 x4, 2280, M-Key
2 USB 3.1 ports (front), 2 USB 2.0 ports (front)
Front side: 1 VGA port, 2 COM, 1 TPM 2.0 (header)
200W Multi-output Gold Level power supply

SYS-5019C-L

Appliance Server, Front-end, Web Hosting, Edge Computing
Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C242 chipset
Up to 64GB unbuffered ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots
2x 1GbE LAN ports (Intel i210-AT)
1 PCI-E 3.0 x16 slot
2 Fixed 3.5" drive bay or 4 Fixed 2.5" drive bays
M.2: 1 PCI-E 3.0 x4, 2280, M-Key
2 USB 3.1 ports (rear), 2 USB 2.0 ports (rear)
1 VGA port, 2 COM, 1 TPM 2.0 (header)
200W Multi-output Gold Level power supply

SYS-5019C-M

General Purpose, SMB, Web Hosting, Application and data serving, Archiving, Mail/Finance, Security
Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C246 chipset
Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
2x 1GbE LAN ports (Intel i210-AT)
1 PCI-E 3.0 x16 slot
4 Hot-swap 3.5" drive bays
M.2: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4, 2280/22110, M-Key
2 USB 3.1 ports (rear)
1 VGA port, 1 COM (header), 1 TPM 2.0 (header)
350W Multi-output Platinum Level power supply

SYS-5019C-M4L

Entry level, Cost effective, Compact, less than 15" depth
Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C242 chipset
Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
4x 1GbE LAN ports (Intel i210-AT)
1 PCI-E 3.0 x16 slot
2 Fixed 3.5" or 3 Fixed 2.5" drive bays
M.2: 1 PCI-E 3.0 x4, 2280/22110, M-Key
2 USB 3.1 ports (rear), 2 USB 2.0 ports (rear)
1 VGA port, 1 COM (header), 1 TPM 2.0 (header)
350W Multi-output Platinum Level power supply

SYS-5019C-MHN2

General Purpose, SMB, Web Hosting, Application and data serving, Archiving, Mail/Finance, Security
Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C246 chipset
Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
2x 1GbE LAN ports (Intel i210-AT)
1 PCI-E 3.0 x16 slot
4 Hot-swap 3.5" drive bays
M.2: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4, 2280/22110, M-Key
2 USB 3.1 ports (rear), 2 USB 2.0 ports (rear)
1 VGA port, 1 COM (header), 1 TPM 2.0 (header)
350W Multi-output Platinum Level power supply

SYS-5019C-MR

General Purpose, SMB, Web Hosting, Application and data serving, Archiving, Mail/Finance, Security
Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C246 chipset
Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
2x 1GbE LAN ports (Intel i210-AT)
1 PCI-E 3.0 x16 slot
4 Hot-swap 3.5" drive bays
M.2: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4, 2280/22110, M-Key
2 USB 3.1 ports (rear), 2 USB 2.0 (rear)
1 VGA port, 1 COM (header), 1 TPM 2.0 (header)
400W Redundant Platinum Level power supplies

SYS-5019C-WR

HA, High flexibility, VM, Communication, Application and data serving, Appliance Server
Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C246 chipset
Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
2x 1GbE LAN ports (Intel i210-AT)
1 PCI-E 3.0 x16 slot or 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) slot
4 Hot-swap 3.5" drive bays
M.2: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4, 2260/2280/22110, M-Key
2 USB 3.1 ports (rear), 2 USB 2.0 (rear)
1 VGA port, 2 COM, 1 TPM 2.0 (header)
500W Redundant Platinum Level power supplies

SYS-5019D-4C-FN8TP

Network Security Appliance, SDN-WAN, vCPE controller box, NFV Edge Computing Server, Virtualization Server, IoT Edge Computing
Intel® Xeon® processor D-2123IT SoC, 4-Cores, 8 Threads, 80W
Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4-2666MHz in 4 DIMM slots
4x 1GbE, 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
2 Internal 3.5" or 4 Internal 2.5" drive bays
1 M.2 slot M key for SSD, 2242/80, 1 M.2 B Key for SSD/ WAN card,
1 Mini-PCI-E with mSATA Support, 1 PCI-E 3.0 x8 slot
2 USB 3.0, 1 VGA
200W Low-noise AC-DC Power Supply

SYS-5019D-FN8TP

Network Security Appliance, SDN-WAN, vCPE controller box, NFV Edge Computing Server, Virtualization Server, IoT Edge Computing / Gateway
Intel® Xeon® processor D-2146NT SoC, 8-Cores, 16 Threads, 80W
Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4-2666MHz in 4 DIMM slots
4x 1GbE, 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
2 Internal 3.5" or 4 Internal 2.5" drive bays
1 M.2 slot M key for SSD, 2242/8, 1 M.2 B Key for SSD/ WAN card,
1 Mini-PCI-E with mSATA Support, 1 PCI-E 3.0 x8 slot
2 USB 3.0, 1 VGA
200W Low-noise AC-DC Power Supply

SYS-5019GP-TT

Up to 2 NVIDIA GPUs in 1U

HPC cluster computer nodes
Single Socket P (LGA 3647) supports: 2nd Gen. Intel® Xeon® Scalable processors
6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
3 Hot-swap 3.5" SAS/SATA drive bays
1 slim DVD-ROM bay or 1 USB + COM port tray
2 PCI-E 3.0 x16 (right riser) and 1 PCI-E x16 (left riser) slots
2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
1 VGA, 2 USB 3.0 (rear)
8 heavy duty 4cm counter-rotating fans with air shroud
1400W Platinum Level (94%) Power Supply

*Contact your Supermicro sales rep for more info.

SYS-5019P-M

Mainstream, UP

Web Hosting, VM, Compact Network Appliance
Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
4 Hot-swap 3.5" SATA3 drive bays, M.2 PCIe 3.0 x4
1 PCI-E 3.0 x16 slot
2x 1GbE ports, 1 Dedicated IPMI port
1 VGA, 2 COM, 4 USB 3.0 (front/rear), 2 USB 2.0
4x 40mm mid-fan
350W Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

SYS-5019P-MR

Mainstream, UP

Web Hosting, VM, Compact Network Appliance
Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
4 Hot-swap 3.5" SATA3 drive bays, M.2 PCIe 3.0 x4
1 PCI-E 3.0 x16 slot
2x 1GbE ports, 1 Dedicated IPMI port
1 VGA, 2 COM, 4 USB 3.0 (front/rear), 2 USB 2.0
4x 40mm mid-fan
400W Redundant Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

SYS-5019P-MT

Mainstream, UP

Web Hosting, VM, Application and Data Serving, DB Applications
Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
4 Hot-swap 3.5" SATA3 drive bays, M.2 mini-PCI-e support
1 PCI-E 3.0 x16 slot
2x 10GBase-T ports, 1 Dedicated IPMI port
1 VGA, 2 COM, 4 USB 3.0 (front/rear), 2 USB 2.0
4x 40mm mid-fan
350W Platinum Level Power Supply

SYS-5019P-MTR

Mainstream, UP

Web Hosting, VM, Application and Data Serving, DB Applications, Mission-critical Applications
Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
4 Hot-swap 3.5" SATA3 drive bays, M.2 mini-PCI-e support
1 PCI-E 3.0 x16 slot
2x 10GBase-T ports, 1 Dedicated IPMI port
1 VGA, 2 COM, 4 USB 3.0 (front/rear), 2 USB 2.0
4x 40mm mid-fan
400W Redundant Platinum Level Power Supplies

SYS-5019P-WT

WIO, Flexible I/O, UP • 4 Hot-swap 3.5" bays

Database Processing and Storage, Data Center / Firewall Applications
Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
4 Hot-swap 3.5" drive bays, 1 slim DVD-ROM bay, M.2 mini-PCI-e support
2 PCI-E 3.0 x16 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
2x 10GBase-T ports via Intel X557, 1 Dedicated IPMI port
1 VGA, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
5 Counter-rotating 4cm PWM cooling fans
600W Multi Output Platinum Level Power Supply

SYS-5019P-WTR

WIO, Flexible I/O, UP • 4 Hot-swap 3.5" bays

Database Processing and Storage, Data Center / Firewall Applications
Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
4 Hot-swap 3.5" drive bays, M.2 mini-PCI-e support
2 PCI-E 3.0 x16 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
2x 10GBase-T ports via Intel X557, 1 Dedicated IPMI port
1 VGA, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
5 Counter-rotating 4cm PWM cooling fans
500W Redundant Platinum Level Power Supplies

SYS-5019S-L

X11SSL-F + • SC510-203B

Entry Appliance, Low Power, Cost effective
Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
Intel® C232 chipset
1x 3.5" or 2x 2.5" Internal drive option
1 PCI-E 3.0 x8 (in x16) AOC Slot
Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
2 RJ45 1GbE LAN ports (Intel® i210-AT), 1 dedicated IPMI port
1 VGA, 2 COM, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
2 SuperDOM ports with built-in power; TPM header
200W High-efficiency Power Supply

SYS-5019S-M

X11SSH-F + • SC813MFTQC-350CB

Cloud, Web hosting, File/Print, VM, Communication
Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
Intel® C236 chipset
4x 3.5" Hot-swap SATA3 bays w/ RAID
1 PCI-E 3.0 x8 (in x16) AOC Slot; 1 M.2 connector
Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
2 RJ45 1GbE LAN ports (Intel® i210-AT)
Integrated IPMI 2.0 with KVM and Dedicated LAN
1 VGA, 2 COM, 2 USB 3.0 (front/rear), 2 USB 2.0 (rear)
2 SuperDOM ports with built-in power; TPM header
350W Platinum Level Power Supply

SYS-5019S-M2

X11SSZ-F + • SC813MFTQC-350CB

Embedded, security & surveillance, appliance server, secure storage
Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i7/i5/i3 series processor, Intel® Celeron® and Intel® Pentium processors
Intel® C236 express chipset
4x 3.5" Hot-swap SATA3 bays, Intel RST
1 PCI-E 3.0 x16 (FH, FL) slot
Up to 64GB DDR4 2400MHz ECC/non-ECC UDIMMs in 4 sockets
2 RJ45 1GbE LAN ports (Intel® i210-AT)
Integrated IPMI 2.0 with KVM and Dedicated LAN
2 COM, 4 USB 3.0 (2 rear), 3 USB 2.0 (2 rear, 1 Type A)
1 SuperDOM (shared) Audio header
350W Platinum Level Power Supply

SYS-5019S-ML

X11SSH-F + • SC512F-350B1

Entry Appliance, Cost effective
Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
Intel® C236 chipset
2x 3.5" or 3x 2.5" Internal drive option
1 PCI-E 3.0 x8 AOC Slot; 1 M.2 connector
Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
2 RJ45 1GbE LAN ports (Intel® i210-AT), 1 dedicated IPMI port
1 VGA, 2 COM, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
2 SuperDOM ports with built-in power; TPM header
350W Platinum Level Power Supply

SYS-5019S-MN4

X11SSH-LN4F + • SC813MFTQC-350CB

SMB, Web hosting, File/Print, Network-Centric, Domain Controller
Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
Intel® C236 chipset
4x 3.5" Hot-swap SATA3 bays w/ RAID
1 PCI-E 3.0 x8 (in x16) AOC Slot; 1 M.2 connector
Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
4 RJ45 1GbE LAN ports (Intel® i210-AT)
Integrated IPMI 2.0 with KVM and Dedicated LAN
1 VGA, 2 COM, 2 USB 3.0 (front/rear), 2 USB 2.0 (rear)
2 SuperDOM ports with built-in power; TPM header
350W Platinum Level Power Supply

SYS-5019S-MR

X11SSH-F + • SC813MFTQC-R407B

HA, Web hosting, File/Print, Mission-Critical, Light load VM
Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
Intel® C236 chipset
4x 3.5" Hot-swap SATA3 bays w/ RAID
1 PCI-E 3.0 x8 (in x16) AOC Slot; 1 M.2 connector
Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
2 RJ45 1GbE LAN ports (Intel® i210-AT)
Integrated IPMI 2.0 with KVM and Dedicated LAN
1 VGA, 2 COM, 2 USB 3.0 (front/rear), 2 USB 2.0 (rear)
2 SuperDOM ports with built-in power; TPM header
400W Platinum Level Redundant Power Supplies w/ BBP® option

SYS-5019S-MT

X11SSH-TF + • SC813MTQ-350CB

Storage HN, VM, Web hosting, Small File Server, Entry Caching
Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
Intel® C236 chipset
4x 3.5" Hot-swap SATA3 bays w/ RAID
1 PCI-E 3.0 x8 AOC Slot
Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
2 RJ45 10GBase-T LAN ports (Intel® X550)
Integrated IPMI 2.0 with KVM and Dedicated LAN
1 VGA, 2 COM, 2 USB 3.0 (front/rear), 2 USB 2.0 (rear)
2 SuperDOM ports with built-in power; TPM header
350W Platinum Level Power Supply

SYS-5019S-WR

X11SSW-F + • SC815TQC-R504WB

HA, VM, Communication, WIO, Flexible I/O
Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
Intel® C236 chipset
4x 3.5" Hot-swap SATA3 bays w/ RAID
2 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) AOC Slot; 1 M.2 connector
Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
2 RJ45 1GbE LAN ports (Intel® i210-AT)
Integrated IPMI 2.0 with KVM and Dedicated LAN
1 VGA, 2 COM, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
2 SuperDOM ports with built-in power; TPM header
500W (1+1) Redundant High-efficiency Power Supplies

SYS-5029C-T

File server/ Entry Storage, Local Cloud and Web Hosting, Mainstream
Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C242 chipset
Up to 64GB unbuffered ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots
2x 1GbE LAN ports (Intel i210-AT)
1 PCI-E 3.0 x16 slot, for low-profile AOC
4 Hot-swap 3.5" drive bays, 2 Fixed 2.5" drive bays
1 M.2 (M-key, 2280) via PCI-E 3.0 x4 or SATA 3.0
2 USB 3.1 Gen1 (front), 2 USB 3.1 Gen1 (rear), 2 USB 2.0 ports (rear)
1 VGA port, 1 COM, 1 TPM 2.0 (header)
250W Bronze Level power supply

SYS-5029P-WTR

WIO, Flexible I/O, UP • 8 Hot-swap 3.5" bays

Database Processing and Storage, Connectivity/Storage Computer Nodes, Data Warehouse
Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
8 Hot-swap 3.5" drive bays, 1 Slim DVD-ROM bay, M.2 mini-PCI-e support
4 PCI-E 3.0 x8 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
2x 10GBase-T ports via Intel X557, 1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
3 Hot-swap 8cm PWM cooling fans
500W Redundant Platinum Level Power Supplies

SYS-5029S-TN2

X11SSV-Q + • SC721TQ-250B

Embedded, database processing & storage, high performance NAS, security appliance, video surveillance, small and medium business
Single Socket H4 (LGA 1151) supports: Intel® 7th/6th Gen Core i3/i5/i7 series processor, Intel® Celeron® & Intel® Pentium processors
Intel® Q170 express chipset
4 3.5" hot-swap + 2x 2.5" fixed drive bays
1 slim DVD-ROM drive bay
1 PCI-E 3.0 x16 (in x16) LP slot, 1 M.2 (Mkey 2242/80 PCI-E 3.0 x4), 1 Mini-PCI-E with mSATA support
Up to 32GB DDR4 2400MHz Non-ECC Unbuf. SO-DIMMs in 2 sockets
2 RJ45 GbE LAN ports (Intel® i210-AT & i219LM)
1 HDMI, 1 DP, 1 DVI-D, Intel HD graphics, 3 Independent Displays
2 COM, 4 USB 3.0 (rear), 2 USB 2.0 (front), 1 USB 2.0 (Type A)
1 SuperDOM, ALC 888S HD Audio
250W Bronze Level Power Supply

SYS-5039A-I

Designed for Content Creation, Engineering and Scientific applications
Single socket R4 supports Intel® Xeon® processor W Family; Intel® C422 Chipset
4 Fixed 3.5" drive bays; 2 optional 5.25" Peripheral drive bays
3 PCI-E 3.0 x16, 1 PCI-E 3.0 x4 slots, 2 U.2, 2 M.2 M key
Up to 512GB Registered ECC LRDIMMs, up to DDR4-2666MHz; in 8 DIMM slots
Dual GbE LAN ports
6 SATA3 ports via PCH; RAID 0, 1, 5, 10
2 USB 3.1 (2 Type A), 6 USB 3.0 (4 rear, 2 headers), 6 USB 2.0 (2 rear, 4 headers)
ALC 1220 7.1 HD Audio
1x 12cm front cooling fan
900W High Efficiency Power Supply

SYS-5039A-IL

X11SAE + • SC732D4-500B

CAD/CAM/CAE, Digital Imaging, Entry-Level Worksation, Medical Applications, Oil & Gas, Simulation & Automation
Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i7/i5/i3 series processors
Intel® C236 Chipset
4x 3.5" internal SATA HDD Bays, 90° rotatable HDD cage design, 4x 2.5" internal SATA HDD Bays (opt.)
2 PCI-E 3.0 x16, 2 PCI-E 3.0 x1 (in x4), and 2 PCI 32-bit slots
Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
Dual GbE LAN ports (1 via Intel® i219LM + 1 via Intel® i210-AT)
8 SATA3 (6Gbps) from Intel® C236; RAID 0, 1, 5, 10
6 USB 3.0 (2 rear, 4 via headers), 8 USB 2.0 (2 rear, 6 via headers), 2 USB 3.1 (rear)
Audio: RealTek ALC888S HD Audio; Video: Aspeed AST2400
500W High-efficiency Power Supply

SYS-5039C-I

Entry-Level Server for SOHO, SMB, Remote access for mobile users, Data sharing/storage and Centralized backup
Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C242 chipset
Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
2x 1GbE LAN ports (Intel i210-AT)
1 PCI-E 3.0 x8 (in x16) slot, 2 PCI-E 3.0 x4 (in x8) slots
4 Fixed 3.5" drive bays, 2 External 5.25" peripheral bays
1 M.2 (M-Key, 22110/2280) via PCI-E 3.0 x4
2 USB 3.1 Gen1 (front), 2 USB 3.1 Gen1 (rear), 2 USB 2.0 (rear)
1 VGA port, 1 COM, 1 TPM 2.0 (header)
400W Gold Level power supply

SYS-5039C-T

Entry-Level Worksation, CAD/CAM/CAE, Digital Imaging, 3D Simulation and Rendering, Cost effective UP platform
Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3 processors, Intel® Celeron®, Intel® Pentium®
Up to 64GB ECC/non-ECC UDIMM in 4 DIMM slots
2x 1GbE LAN ports (Intel i210-AT and Intel PHY I219LM)
4 Fixed 3.5" and 4 optional 2.5" drive bays, 2 standard 5.25" peripheral drive bays, 1 Internal 3.5" fixed device bay
2 PCI-E 3.0 x16 (NA/16 or 8/8), 1 PCI-E 3.0 x4, 1 PCI-E 3.0 x1, 1 PCI 32bit 5V
2 M.2 (M key, 2260/2280/22110), 1 U.2 for optional expanded storages
2 USB Type A & Type C, 4 USB 3.1 Gen1 (2 rear + 2 front), 2 USB 2.0 (front)
1 HDMI 2.0a port, 1 DVI-D port, 1 DP 1.2 port, 1 TPM header, 1 COM header, 7.1 HD Audio
500W Bronze Certified High Efficient power supply

SYS-5039MC-H12TRF

Cloud Computing, Web Cache, Web Hosting, VM, Social Networking, Corporate-WINS
Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C246 chipset
Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
2x 1GbE LAN ports (Intel i350)
1 Micro-LP slot (MicroLP upgradable)
Drive options: 2x 3.5" SATA3 or 4x 2.5" SATA3 drives or
2x 2.5" NVMe + 2x 2.5" SATA3 drives or 2x 2.5" NVMe + 1x 3.5" SATA3 drive
M.2: 1 PCI-E 3.0 x4, 2280/22110, M-Key
1 VGA port, 1 TPM 2.0 (header)
4x 9cm Heavy duty fans with optimal cooling zone (per system)
2000W Redundant Titanium Level power supplies

SYS-5039MC-H8TRF

Cloud Computing, Web Cache, Web Hosting, VM, Social Networking, Corporate-WINS
Single socket H4 (LGA 1151) supports Intel® Xeon® E-2100 and E-2200 processors, 8th Gen. Intel® Core™ i3/Pentium®/Celeron®; Intel ® C246 chipset
Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
2x 1GbE LAN ports (Intel i350)
1 PCI-E 3.0 LP slot, 1 Micro-LP slot (MicroLP upgradable)
Drive options: 2x 3.5" SATA3 or 2x 2.5" SATA3 drives (with optional kits)
M.2: 2 PCI-E 3.0 x4, 2280/22110, M-Key
1 VGA port, 1 TPM 2.0 (header)
4x 8cm Heavy duty fans with optimal cooling zone (per system)
2000W Redundant Titanium Level power supplies

SYS-5039MD18-H8TNR

Cloud computing, dynamic web serving, dedicated hosting, content delivery network, memory caching, and corporate applications
8 modular UP Nodes in 3U; EACH NODE:
Intel® Xeon® processor D-2191 SoC, 18-Cores, 36 Threads, 86W
Up to 512GB ECC LRDIMM, up to 256GB ECC RDIMM DDR4-2400MHz in 4 DIMM slots
2 GbE LAN ports and 1 dedicated LAN supports IPMI 2.0
2x 3.5" SATA3 or 2x 2.5" Hybrid SATA3/NVMe w/ optional kits
1 PCI-E 3.0 x16, 1 Micro-LP, and 2 M.2
1600W Redundant Titanium Level Power Supplies

SYS-5039MD8-H8TNR

Cloud computing, dynamic web serving, dedicated hosting, content delivery network, memory caching, and corporate applications
8 modular UP Nodes in 3U; EACH NODE:
Intel® Xeon® processor D-2141i SoC, 8-Cores, 16 Threads, 65W
Up to 512GB ECC LRDIMM, up to 256GB ECC RDIMM DDR4-2133MHz in 4 DIMM slots
2 GbE LAN ports and 1 dedicated LAN supports IPMI 2.0
2x 3.5" SATA3 or 2x 2.5" Hybrid SATA3/NVMe w/ optional kits
1 PCI-E 3.0 x16, 1 Micro-LP, and 2 M.2
1600W Redundant Titanium Level Power Supplies

SYS-5039MS-H12TRF

12 modular UP Nodes in 3U; EACH NODE:
Intel® Xeon® processor E3-1200 v6/v5 family; socket H4 (LGA 1151)
Intel® C236 chipset
Up to 64GB UDIMM, up to 2400MHz DDR4 VLP ECC memory support
Flexible storage options: 2x 3.5" SATA3 or 4x 2.5" SATA3 or 2x 2.5" NVMe + 2x 2.5" SATA3 or 2x 2.5" NVMe + 1x 3.5" SATA3
2 GbE LAN ports and 1 dedicated LAN supports IPMI 2.0
2 USB 2.0, 1 VGA, 1 COM port (w/ KVM dongle); 1 USB 3.0 (Type A), 1 SATA DOM
1 Micro-LP
4x 9cm heavy-duty PWM fans with optimal cooling zone
2000W Redundant Titanium Level Power Supplies

SYS-5039MS-H8TRF

8 modular UP Nodes in 3U; EACH NODE:
Intel® Xeon® processor E3-1200 v6/v5 family; socket H4 (LGA 1151)
Intel® C236 chipset
Up to 64GB UDIMM, up to 2400MHz DDR4 ECC memory support
2x 3.5" SATA3 (default) or 2x 2.5" SATA3 HDDs with optional kits
2 GbE LAN ports and 1 dedicated LAN supports IPMI 2.0
2 USB 2.0, 1 VGA, 1 COM port (w/ KVM dongle), 1 SATA DOM
1 PCI-E 3.0 x8 and 1 Micro-LP
4x 8cm heavy-duty PWM fans with optimal cooling zone
1600W Redundant Titanium Level Power Supplies

SYS-5049A-T

Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 by default) with SGPIO
4 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 (in x16) slots
1x 10GBase-T and 1x 1GbE port, 1 dedicated IPMI port
1 VGA, 1 COM, 6 USB 3.1 Gen1, 4 USB 3.1 Gen2, M.2, 7.1 HD Audio
2 Super quiet PWM fans and 1 Super quiet rear fan
1200W Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

SYS-6019P-MT

Short Depth (19.98") • Data Center Optimized

1U Data Center Optimized Server, Short-Depth
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
4 Hot-swap 3.5" SATA3 drive bays
1 PCI-E 3.0 x8 (FHHL) slot
2x 1GbE ports, 1 Dedicated IPMI port, 1 VGA, 2 USB 2.0
4x 4cm 22.5K RPM middle cooling fans
500W Platinum Level Power Supply

SYS-6019P-MTR

Short Depth (19.98") • Data Center Optimized

1U Data Center Optimized Server, Short-Depth
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
4 Hot-swap 3.5" SATA3 drive bays
1 PCI-E 3.0 x8 (FHHL) slot
2x 1GbE ports, 1 Dedicated IPMI port, 1 VGA, 2 USB 2.0
4x 4cm 22.5K RPM middle cooling fans
800W Redundant Platinum Level Power Supplies

SYS-6019P-WT

WIO, Flexible I/O • 4 Hot-swap 3.5" bays

Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
4 Hot-swap 3.5" drive bays
2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
1 VGA, 4 USB 3.0 (rear)
4 Counter-rotating 4cm PWM cooling fans
600W Multi Output Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

SYS-6019P-WT8

WIO, Flexible I/O • 8x 3.5" + 2x 2.5" bays

Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
8 Fixed 3.5" + 2 Fixed 2.5" drive bays
2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E NVMe M.2 SSD
2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
1 VGA, 4 USB 3.0 (rear)
6 Counter-rotating 4cm PWM cooling fans
650W/600W Multi-output Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

SYS-6019P-WTR

WIO, Flexible I/O • 4 Hot-swap 3.5" bays

Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
4 Hot-swap 3.5" drive bays
2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
1 VGA, 4 USB 3.0 (rear)
4 Counter-rotating 4cm PWM cooling fans
750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6029BT-DNC0R

BigTwin™ • 3 NVMe/SAS3 + 3 SAS3 per Node

2 DP nodes in 2U; depth 30.11", Each Node:
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processor; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
3 NVMe/SAS3 + 3 SAS3 Hot-swap 3.5" drive bays per node, 2 Internal M.2 NVMe/SATA slots
SAS3 support via Broadcom 3008; IT mode
2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16, 1 Networking SIOM card support
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6029BT-HNC0R

BigTwin™ • 3 NVMe/SAS3 per Node

4 DP nodes in 2U; depth 30.11", Each Node:
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
3 Hot-swap NVMe/SAS3 drive bays per node
SAS3 support via Broadcom 3008; IT mode
2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6029P-TRT

/ SYS-6029P-TR

Mainstream • Cost Effective

Cloud, Virtualization, Compute Intensive App, DB Processing/Storage, High Availability Storage, Hosting & Application Delivery
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
8 Hot-swap 3.5" SATA3 drive bays, 2 Optional fixed NVMe drives
4 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 Low-profile slots
2x 10GBase-T (-TRT) / 1GbE (-TR) ports, 1 Dedicated IPMI port
1 VGA, 2 COM, 2 USB 3.0, 4 USB 2.0, 1 Type A, 1 M.2 support
3 heavy duty 80mm fans with PWM fan speed control
1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6029P-WTR

WIO, Flexible I/O • 8 Hot-swap 3.5" and • 2 Fixed 3.5" bays

Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
8 Hot-swap 3.5" drive bays with SGPIO, 2 Fixed 3.5" drive bays
4 PCI-E 3.0 x8 (FHHL), 2 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
1 VGA, 4 USB 3.0 (rear)
3 high-performance 8cm heavy duty PWM fans
1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6029P-WTRT

WIO, Flexible I/O • 12 Hot-swap 3.5" bays

Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
12 Hot-swap 3.5" drive bays with SES2 and Mini-i-Pass: 8 SATA3 + 4 NVMe/SATA3 hybrid ports
1 PCI-E 3.0 x16 (FHHL), 2 PCI-E 3.0 x8 (FHHL), 2 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
1 VGA, 4 USB 3.0 (rear)
3 high-performance 8cm heavy duty PWM fans
1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6029TR-DTR

2 DP nodes in 2U; depth 28.5", Each Node (x2 nodes):
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; Dual UPI up to 10.4GT/s
8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
2 PCI-E 3.0 x8 (FHHL) or 1 PCI-E 3.0 x8 (FHHL) + 1 PCI-E 3.0 x4 (FHHL) + 1 PCI-E 3.0 x4 (LP) (8/8/0 or 8/4/4)
6 Hot-swap 3.5" SATA3 drive bays
2x 1GbE LAN ports, 1 dedicated IPMI port
I/O ports: 2 USB 3.0, 1 VGA, 1 COM, TPM 2.0 header
4 heavy duty fans w/ optimal fan speed control
1200W Redundant Titanium Level (96%) Power Supplies

SYS-6029TR-HTR

4 DP nodes in 2U, depth 28.5", Each Node (x4 nodes):
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; Dual UPI up to 10.4GT/s
8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
1 PCI-E 3.0 x16 (LP) slot
3 Hot-swap 3.5" SATA3 drive bays
2x 1GbE LAN ports, 1 dedicated IPMI port
I/O ports: 2 USB 3.0, 1 VGA, 1 COM, TPM 2.0 header
4 heavy duty fans w/ optimal fan speed control
1600W Redundant Titanium Level (96%) Power Supplies

SYS-6039P-TXRT

11 PCI-E Slots • 8 Hot-swap 3.5", 2 Peripheral 5.25"

3U Max I/O Server - Expansion / Performance / Flexibility
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
8 Hot-swap 3.5" SATA3 drive bays and 2 Peripheral 5.25" bays
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 PCI-E 3.0 x16 (HSSI), 2 PCI-E 3.0 x16 (or 4 PCI-E x8), 4 PCI-E 3.0 x8 , 1 PCI-E 3.0 x4 (in x8 slot)
1 PCI-E 3.0 x4 M.2 2280 slot from PCH
2 GbE, 1 Video, 2 COM, 4 USB 3.0 (2 rear, 2 via header), 4 USB 2.0 (2 rear, 2 via header), 1 Type A
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3x 80mm middle fans and 1x 80mm fear exhaust fan
980W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6049GP-TRT

Up to 20 single-width GPUs

AI/Deep Learning, Video Transcoding
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
24 Hot-swap 3.5" drive bays, 2 optional 2.5" U.2 NVMe drives
20 PCI-E 3.0 x16 slots, 1 PCI-E 3.0 x8 (FHFL, in x16 slot)
2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
1 VGA, 1 COM, 4 USB 3.0 (rear)
8x 92mm RPM Hot-Swappable Cooling Fans
2000W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-7039A-i

Up to 2 GPUs • 7.1 HD Audio

CAD/CAM/CAE, 3D Rendering, Digital Content Creation, Oil and Gas Simulation, Research lab/National Lab
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
4x 3.5" drive bays supported by 90° rotating hard drive cage
Optional 4x 2.5" internal drive bays (supports 2 NVMe via opt. cables)
2x 5.25" Peripheral drive bays
4 PCI-E 3.0 x16, 2 PCI-E x8
2x 1GbE, 1 shared IPMI port
1 VGA, 1 COM, 6 USB 3.0, 2 USB 3.1, M.2, 7.1 HD Audio
1 rear 12cm exhaust fan, 1 front 12cm cooling fan
1200W Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

SYS-7049A-T

Up to 2 GPUs • 7.1 HD Audio

CAD/CAM/CAE, 3D Rendering, Digital Content Creation, Oil and Gas Simulation, Research lab/National Lab
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
8 Hot-swap 3.5" drive bays (SATA3 by default, SAS3 via opt. AOC, 2 NVMe support with optional cables)
4 PCI-E 3.0 x16, 2 PCI-E x8
2x 1GbE ports, 1 shared IPMI port
1 VGA, 1 COM, 6 USB 3.0, 2 USB 3.1, M.2, 7.1 HD Audio
2 Super quiet PWM fans and 1 Super quiet rear fan
1200W Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

SYS-7049GP-TRT

Up to 4 GPUs

GPU Server, Mission-critical app., enterprise server, large database, e-business, on-line transaction processing, oil & gas, medical app.
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
8 Hot-swap 3.5" drive bays (2 SATA3 ports by default)
4 PCI-E 3.0 x16 (double-width), 2 PCI-E 3.0 x16 (single-width), 1 PCI-E x4 (in x8) slots
2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
1 VGA, 2 COM, 4 USB 3.0 (front/rear), 2 USB 2.0, 7.1 HD Audio
4 heavy duty fans, 4 exhaust fans, 2 active heat sinks with optimal fan speed control
2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-7049P-TRT

/ SYS-7049P-TR

8 Hot-swap 3.5" Bays • 3 Peripheral 5.25" bays • Cost Effective

4U Mainstream Server for Virtualization and Multi Tasking
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
8 Hot-swap 3.5" SATA3 drive bays, 3 Peripheral 5.25" bays, 2 opt. fixed 2.5" SATA, SSD/NVMe
4 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots
2x 10GBase-T (-TRT) / 1GbE (-TR) ports, 1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0, 4 USB 2.0, 1 Type A, 1 M.2 support
3 Hot-swap PWM cooling fans and 2 Hot-swap rear fans
1280W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-7089P-TR4T

7U 8-Way • 224 Cores per System • 96 DDR4 DIMMs

In-Memory Database Application, Research lab/National Lab, Scale-up HPC, Virtualization, ERP, CRM
Octa Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 8S-3 UPI up to 10.4GT/s
Up to 23 or 39 (OEM) PCI-E 3.0 slots, 32 U.2 NVMe support opt. available
96 DIMMs; up to 24TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM using 8x X11OPi-CPU modules
Supports Intel® Optane™ DCPMM*
16 Hot-swap 2.5" SAS3 drive bays (w/ RAID cards); 8x 2.5" or 6x 3.5" internal drive bays (w/ RAID cards)
4x 10GBase-T via SIOM, 1 dedicated IPMI
1 VGA, 1 COM, 2 USB 2.0 (rear)
8x 9cm 10.5K-10.8K RPM Hot-Swap Counter-rotating Rear Fans
5x 1600W (N+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-8049U-E1CR4T

4-Way MP • 112 Cores per System • 48 DDR4 DIMMs

High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack
Quad Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
6 PCI-E 3.0 x16 slots, 10 PCI-E 3.0 x8 slots (Up to 6 double width passive GPUs)
48 DIMMs; up to 12TB 3DS ECC DDR4 2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
24 Hot-swap 3.5" SAS3/SATA3 drive bays via opt. RAID card; 8 Hybrid ports with NVMe support via opt. AOC
4x 10GBase-T via AOC, 1 dedicated IPMI
1 VGA, 1 COM, 2 USB 3.0 (rear)
8x 9cm heavy duty fans with speed control
1600W (3+1) Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-9029GP-TNVRT

Up to 16 V100 SXM3 GPUs

AI/Deep Learning, High-performance Computing
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
16 Hot-swap 2.5" NVMe drive bays, 6 Hot-swap 2.5" SATA3 drive bays
16 PCI-E 3.0 x16 slots for RDMA via IB EDR, 2 PCI-E 3.0 x16 on board
2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
1 VGA, 1 COM, 2 USB 3.0 (front)
6x 80mm hot-swap PWM Fans, 8x 92mm Hot-swap Fans
6x 3000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-E403-9D-12C-FN13TP (Coming Soon)

Multi-Access Edge Computing (MEC), Universal Customer Premise Equipment (uCPE), Network Function Virtualization (NFV), Edge Computing, Vehicle to Everything Application (C-V2X / V2X)
Intel® Xeon® processor D-2163IT SoC, 12-Cores, 24 Threads, 75W
Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2133MHz in 4 DIMM slots
9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
4 Internal 2.5" drive bays
1 M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 3042
2 PCI-E 3.0 x16 slots or 2 PCI-E 3.0 x8 + 1 PCI-E 3.0 x16 (FH3/4L) slots
2 USB 3.0, 2 USB 2.0, 1 COM via RJ45, VGA (option)
600W Multi-output Gold Level Power Supply

SYS-E403-9D-14C-FN13TP (Coming Soon)

Multi-Access Edge Computing (MEC), Universal Customer Premise Equipment (uCPE), Network Function Virtualization (NFV), Edge Computing, Vehicle to Everything Application (C-V2X / V2X)
Intel® Xeon® processor D-2173IT SoC, 14-Cores, 28 Threads, 70W
Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2133MHz in 4 DIMM slots
9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
4 Internal 2.5" drive bays
1 M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 3042
2 PCI-E 3.0 x16 slots or 2 PCI-E 3.0 x8 + 1 PCI-E 3.0 x16 (FH3/4L) slots
2 USB 3.0, 2 USB 2.0, 1 COM via RJ45, VGA (option)
600W Multi-output Gold Level Power Supply

SYS-E403-9D-14CN-FN13TP (Coming Soon)

Multi-Access Edge Computing (MEC), Universal Customer Premise Equipment (uCPE), Network Function Virtualization (NFV), Edge Computing, Vehicle to Everything Application (C-V2X / V2X)
Intel® Xeon® processor D-2177NT SoC, 14-Cores, 28 Threads, 105W
Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2133MHz in 4 DIMM slots
9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
4 Internal 2.5" drive bays
1 M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 2242/3042
2 PCI-E 3.0 x16 slots or 2 PCI-E 3.0 x8 + 1 PCI-E 3.0 x16 (FH3/4L) slots
2 USB 3.0, 2 USB 2.0, 1 COM via RJ45, VGA
600W Multi-output Gold Level Power Supply

SYS-E403-9D-16C-FN13TP (Coming Soon)

Multi-Access Edge Computing (MEC), Universal Customer Premise Equipment (uCPE), Network Function Virtualization (NFV), Edge Computing, Vehicle to Everything Application (C-V2X / V2X)
Intel® Xeon® processor D-2183IT SoC, 16-Cores, 32 Threads, 100W
Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2400MHz in 4 DIMM slots
9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
4 Internal 2.5" drive bays
1 M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 3042
2 PCI-E 3.0 x16 slots or 2 PCI-E 3.0 x8 + 1 PCI-E 3.0 x16 (FH3/4L) slots
2 USB 3.0, 2 USB 2.0, 1 COM via RJ45, VGA (option)
600W Multi-output Gold Level Power Supply

SYS-E403-9D-4C-FN13TP (Coming Soon)

Multi-Access Edge Computing (MEC), Universal Customer Premise Equipment (uCPE), Network Function Virtualization (NFV), Edge Computing, Vehicle to Everything Application (C-V2X / V2X)
Intel® Xeon® processor D-2123IT SoC, 4-Cores, 8 Threads, 60W
Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2400MHz in 4 DIMM slots
9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
4 Internal 2.5" drive bays
1 M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 3042
2 PCI-E 3.0 x16 slots or 2 PCI-E 3.0 x8 + 1 PCI-E 3.0 x16 (FH3/4L) slots
2 USB 3.0, 2 USB 2.0, 1 COM via RJ45, VGA (option)
600W Multi-output Gold Level Power Supply

SYS-E403-9D-8CN-FN13TP (Coming Soon)

Multi-Access Edge Computing (MEC), Universal Customer Premise Equipment (uCPE), Network Function Virtualization (NFV), Edge Computing, Vehicle to Everything Application (C-V2X / V2X)
Intel® Xeon® processor D-2146NT SoC, 8-Cores, 16 Threads, 80W
Up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4 2400MHz in 4 DIMM slots
9x 1GbE (1 port used for management), 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
4 Internal 2.5" drive bays
1 M-Key: 2280/22110, 1 E-Key: 2230, 1 B-Key: 3042
2 PCI-E 3.0 x16 slots or 2 PCI-E 3.0 x8 + 1 PCI-E 3.0 x16 (FH3/4L) slots
2 USB 3.0, 2 USB 2.0, 1 COM via RJ45, VGA (option)
600W Multi-output Gold Level Power Supply

SYS-F619P2-FT

Front I/O, 8-Node, • Each: 2/4 Fixed 2.5" SATA3/ NVMe

FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 or 4 Fixed 2.5" SATA3/NVMe drive bays
1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 (SIOM)
SIOM flexible Network card, 1 Dedicated IPMI port
1 VGA, 2 USB 3.0, 2 M.2 support
8x 8cm 13.5k RPM rear fans
2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-F619P2-RT

/ SYS-F619P2-RTN / SYS-F619P2-RC0 / SYS-F619P2-RC1

Rear I/O, 8-Node, Each: • 6 Hot-swap 2.5" SAS3/SATA3/NVMe opt.

FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
Storage Options (all Hot-swap):
- SYS-F619P2-RT – 6x 2.5" SATA3
- SYS-F619P2-RTN – 6x 2.5" SATA3 or 2 SATA3 + 4 NVMe U.2
- SYS-F619P2-RC0 – 6x 2.5" SAS3 or 2 SAS3 + 4 opt. NVMe U.2; SAS3 with Broadcom 3008
- SYS-F619P2-RC1 – 6x 2.5" SAS3 or 2 SAS3 + 4 opt. NVMe U.2; SAS3 with Broadcom 3108
1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x16 (SIOM)
SIOM flexible Network card, 1 Dedicated IPMI port
1 VGA, 2 USB 3.0, 1 M.2 support
3x 4cm 20k RPM middle fans
2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-F619P2-RTN

/ SYS-F619P2-RC0 / SYS-F619P2-RC1

Rear I/O, 8-Node, Each: • 6 Hot-swap 2.5"

FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
Dual Socket P (LGA 3647) support:
2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz L/RDIMM, Up to 2TB Intel® DCPMM (Optane™)
Supports Intel® Optane™ DCPMM*
Storage Options (all Hot-swap):
- SYS-F619P2-RTN – 6x 2.5" SATA3 or 2 SATA3 + 4 NVMe U.2
- SYS-F619P2-RC0 – 6x 2.5" SAS3 or 2 SAS3 + 4 opt. NVMe U.2; SAS3 with Broadcom 3008
- SYS-F619P2-RC1 – 6x 2.5" SAS3 or 2 SAS3 + 4 opt. NVMe U.2; SAS3 with Broadcom 3108
1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x16 (SIOM)
SIOM flexible Network card, 1 Dedicated IPMI port
1 VGA, 2 USB 3.0, 1 M.2 support
3x 4cm 20k RPM middle fans
2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-F619P3-FT

Front I/O, 8-Node, • Each: 2 Fixed 3.5" SATA3

FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
2 Fixed 3.5" SATA3 drive bays
1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 (SIOM)
SIOM flexible Network card, 1 Dedicated IPMI port
1 VGA, 2 USB 3.0, 2 M.2 support
8x 8cm 13.5k RPM rear fans
2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-F629P3-RTB

/ SYS-F629P3-RTBN / SYS-F629P3-RC0B / SYS-F629P3-RC1B

Rear I/O, 4-Node, Each: • 8 Hot-swap 3.5" SAS3/SATA3/NVMe opt.

FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
Storage Options (all Hot-swap):
- SYS-F629P3-RTB – 8x 3.5" SATA3
- SYS-F629P3-RTBN – 8x 3.5" SATA3 or 6 SATA3 + 2 NVMe U.2
- SYS-F629P3-RC0B – 8x 3.5" SAS3 or 6 SAS3 + 2 opt. NVMe U.2; SAS3 with Broadcom 3008
- SYS-F629P3-RC1B – 8x 3.5" SAS3 or 6 SAS3 + 2 opt. NVMe U.2; SAS3 with Broadcom 3108
1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x16 (SIOM)
SIOM flexible Network card, 1 Dedicated IPMI port
1 VGA, 2 USB 3.0, 1 M.2 support
2x 8cm 14k RPM middle fans
1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-F629P3-RTBN

/ SYS-F629P3-RC0B / SYS-F629P3-RC1B

Rear I/O, 4-Node, Each: • 8 Hot-swap 3.5"

FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM*
Storage Options (all Hot-swap):
- SYS-F629P3-RTBN – 8x 3.5" SATA3 or 6 SATA3 + 2 NVMe U.2
- SYS-F629P3-RC0B – 8x 3.5" SAS3 or 6 SAS3 + 2 opt. NVMe U.2; SAS3 with Broadcom 3008
- SYS-F629P3-RC1B – 8x 3.5" SAS3 or 6 SAS3 + 2 opt. NVMe U.2; SAS3 with Broadcom 3108
1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x16 (SIOM)
SIOM flexible Network card, 1 Dedicated IPMI port
1 VGA, 2 USB 3.0, 1 M.2 support
2x 8cm 14k RPM middle fans
1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6028R-TDWNR

4 Internal NVMe ports • Data Center Optimized • WIO, Flexible I/O

2U WIO Server
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
8x 3.5" Hot-swap SATA3 + 4x 2.5" NVMe drive bays
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 (FHHL), 2x PCI-E 3.0 x8 (FHHL), and 1x PCI-E 3.0 (LP) via riser card
2 GbE, 1 Video, 2 USB 3.0, 2 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3x 80mm PWM fans w/ optimal fan speed control
920W Redundant Platinum Level Power Supplies

SSG-2028R-ACR24H

/ SSG-2028R-ACR24L

24 Hot-swap 2.5" SAS3/SATA3 • 3 Broadcom 3108(H) / • 3 Broadcom 3008(L)

Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
24 Hot-swap 2.5" SAS3/SATA3 direct attached drive bays;
2 optional Hot-swap 2.5" rear side drive bays
SAS3 via 3 Broadcom 3108 AOC; HW RAID (2028R-ACR24H)
SAS3 via 3 Broadcom 3008 - IT mode; SW RAID (2028R-ACR24L)
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 slots (slot 1-3 occupied)
I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 heavy duty fans w/ optimal fan speed control
920W Redundant Platinum Level Power Supplies

SSG-2028R-DE2CR24L

2U 2-Node Mission critical storage server
High Density: 24x 2.5" hot-swap SAS3/SATA* HDDs
Fastest Storage: SAS3 (12Gbps)
Robust Data Availability:
- Shared storage between redundant controllers
- Node to node heartbeat/ NTB connectivity
- Redundant power supply and cooling system
Greener Storage:
- Titanium Level (96%+) efficiency 1200W redundant power supplies
- 90%+ VRM power efficiency

SSG-2028R-DN2R20L

20 NVMe support

2U 2-Node Mission critical storage server
Lowest latency:
- 20 Hot-swap 2.5" NVMe drive bays
- Omni-Path SIOM support
Robust Data Availability:
- Shared storage between redundant controllers
- Node to node heartbeat/10G connectivity
Redundant power supply and cooling system
Greener Storage:
- Titanium Level (96%+) efficiency 2000W redundant power supplies
- 90%+ VRM power efficiency

SSG-2028R-DN2R24L

2U 2-Node Mission critical storage server
Lowest latency:
- 24 Hot-swap 2.5" NVMe drive bays
- Omni-Path SIOM support
Robust Data Availability:
- Shared storage between redundant controllers
- Node to node heartbeat/10G connectivity
- Redundant power supply and cooling system
Greener Storage:
- Titanium Level (96%+) efficiency 2000W redundant power supplies
- 90%+ VRM power efficiency

SSG-2028R-DN2R48L

2U 2-Node Mission critical storage server
Lowest latency:
- 48 Hot-swap 2.5" NVMe drive bays
- Omni-Path SIOM support
Robust Data Availability:
- Shared storage between redundant controllers
- Node to node heartbeat/10G connectivity
- Redundant power supply and cooling system
Greener Storage:
- Titanium Level (96%+) efficiency 2000W redundant power supplies
- 90%+ VRM power efficiency

SSG-2028R-E1CR24H

/ SSG-2028R-E1CR24L

24 Hot-swap 2.5" SAS3/SATA3 • Broadcom 3108(H) / Broadcom 3008(L)

Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
24 Hot-swap 2.5" SAS3/SATA3 drive bays;
2 optional Hot-swap 2.5" rear side drive bays
SAS3 via Broadcom 3108 AOC; HW RAID (-E1CR24H)
SAS3 via Broadcom 3008 - IT mode; SW RAID (-E1CR24L)
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 and 6x PCI-E 3.0 x8 slots (slot 1 & 2 occupied)
I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 heavy duty fans w/ optimal fan speed control
920W Redundant Platinum Level Power Supplies

SSG-2028R-E1CR24N

24 Hot-swap 2.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC

Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
24 Hot-swap 2.5" SAS3/SATA3 drive bays (SAS3 via Broadcom 3108 AOC)
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (slot 3 & 4 occupied)
I/O ports: 4x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 heavy duty fans w/ optimal fan speed control
920W Redundant Platinum Level Power Supplies

SSG-2028R-E1CR48L

48 Hot-swap 2.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)

IOPS Intensive Storage Applications, Database Applications (MySQL, Casandra), Virtual Storage Environments, Single Instance Storage & Data Deduplication
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
48 Hot-swap 2.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear); Cable-arm for second row drives' hot-swap access
SAS3 via Broadcom 3008, IT mode controller
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16 slots
I/O: SIOM for flexible networking options, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5 Hot-swap 80mm redundant PWM cooling fans
1600W Redundant Titanium Level (96%) Power Supplies

SSG-2028R-E1CR48N

48 Hot-swap 2.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)

IOPS Intensive Storage Applications, Database Applications (MySQL, Casandra), Virtual Storage Environments, Single Instance Storage & Data Deduplication
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
48 Hot-swap 2.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear); Cable-arm for second row drives' hot-swap access
SAS3 via Broadcom 3108, HW RAID 0, 1, 5, 6, 10, 50, 60
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
I/O: SIOM for flexible networking options, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5 Hot-swap 80mm redundant PWM cooling fans
1600W Redundant Titanium Level (96%) Power Supplies

SSG-2028R-NR48N

48 NVMe support • 2 rear 2.5" drive bays

IOPS Intensive Storage Applications, Database Applications (MySQL, Casandra), Virtual Storage Environments, Single Instance Storage & Data Deduplication
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
48 Hot-swap 2.5" NVMe bays; 2 Hot-swap 2.5" drive bays (rear) Cable-arm for second row drives' hot-swap access
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
I/O: SIOM for flexible networking options, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5 Hot-swap 80mm redundant PWM cooling fans
1600W Redundant Titanium Level (96%) Power Supplies

SSG-5018A-AR12L

12x 3.5" SAS2/SATA3 drive bays

1U High-density Storage Server
Socket FCBGA 1283 support Intel Atom® processor C2750
12x 3.5" SAS2/SATA3 Drive Bays
Broadcom 2116 SW controller for SATA3 or SAS2 with IT Mode
4 DIMMs, up to 64GB, up to 1600MHz DDR3 memory
1 PCI-E 2.0 x4 (in x8, Low-profile) slot
I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 3 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
6x 40x28mm PWM cooling fans
400W Redundant Short-Depth Gold level Power Supplies

SSG-5018D2-AR12L

12x 3.5" SAS2/SATA3 drive bays

1U High-density Storage Server
Socket FCBGA 1667 support Intel® Pentium® processor D1508 (2-Core)
12x 3.5" SAS2/SATA3 Drive Bays
Broadcom 2116 SW controller for SATA3 or SAS2 with IT Mode
4 DIMMs, up to 128GB, up to 1866MHz DDR4 memory
1 PCI-E 3.0 x8, M.2 PCIe 3.0 x4, M Key 2242/2280/22110,
Mini-PCIe w/ mSATA support
I/O ports: 2 10G SFP+, 2 GbE, 1 Video, 1 COM, 2 USB 3.0, 5 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5x 40mm middle fans
400W Redundant Short-Depth Power Supplies

SSG-5018D4-AR12L

12x 3.5" SAS2/SATA3 drive bays

1U High-density Storage Server
Socket FCBGA 1667 support Intel® Xeon® processor D1518 (4-Core)
12x 3.5" SAS2/SATA3 Drive Bays
Broadcom 2116 SW controller for SATA3 or SAS2 with IT Mode
4 DIMMs, up to 128GB, up to 1866MHz DDR4 memory
1 PCI-E 3.0 x8, M.2 PCIe 3.0 x4, M Key 2242/2280/22110,
Mini-PCIe w/ mSATA support
I/O ports: 2 10G SFP+, 2 GbE, 1 Video, 1 COM, 2 USB 3.0, 5 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5x 40mm middle fans
400W Redundant Short-Depth Power Supplies

SSG-5018D8-AR12L

12x 3.5" SAS2/SATA3 drive bays

1U High-density Storage Server
Socket FCBGA 1667 support Intel® Xeon® processor D1537 (8-Core)
12x 3.5" SAS2/SATA3 Drive Bays
Broadcom 2116 SW controller for SATA3 or SAS2 with IT Mode
4 DIMMs, up to 128GB, up to 1866MHz DDR4 memory
1 PCI-E 3.0 x8, M.2 PCIe 3.0 x4, M Key 2242/2280/22110,
Mini-PCIe w/ mSATA support
I/O ports: 2 10G SFP+, 2 GbE, 1 Video, 1 COM, 2 USB 3.0, 5 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5x 40mm middle fans
400W Redundant Short-Depth Power Supplies

SSG-5028R-E1CR12L

6x 3.5" SAS3 per U • 2 Rear Optional 2.5" • SAS3 via Broadcom 3008

2U Storage Server – Expansion / Capacity / Cost per TB
Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
12 Hot-swap 3.5" SAS3 HDD Bays (SAS3 via Onboard Broadcom 3008 to SAS3 backplane); 2x Rear optional 2.5" Hot-swap HDD Bays
8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
4 PCI-E 3.0 (x8/4, x16/8, x8) + 2 PCI-E 2.0 (x8/4, x4/2)
I/O ports: 4 GbE, 1 Video, 1 COM/Serial, 2 USB 3.0, 2 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 heavy duty fans w/ optimal fan speed control
920W Redundant Platinum Level Power Supplies

SSG-5048R-E1CR36L

Storage Powerhouse • 24 Front + 12 Rear • SAS3 via Broadcom 3008

4U Storage Server (Double-sided) – Expansion / Capacity / Cost per TB
Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
36 Hot-swap 3.5" SAS3 HDD Bays (SAS3 via Onboard Broadcom 3008 to SAS3 backplane); Optional 2 Rear 2.5" Hot-swap HDD Bays
8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
4 PCI-E 3.0 (x8/4, x16/8, x8) + 2 PCI-E 2.0 (x8/4, x4/2)
I/O ports: 4 GbE, 1 Video, 1 COM/Serial, 2 USB 3.0, 2 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 heavy duty fans w/ optimal fan speed control
1280W Redundant Platinum Level Digital Power Supplies

SSG-6028R-E1CR12H

/ SSG-6028R-E1CR12L

12x 3.5" Hot-swap SAS3/SATA3 • SAS3 via Broadcom 3108 AOC or Broadcom 3008 controller

Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
12x 3.5" Hot-swap SAS3/SATA3 drive bays, 2x 2.5" optional Hot-swap drive bays (rear)
SAS3 via Broadcom 3108 AOC, HW RAID (-E1CR12H)
SAS3 via Broadcom 3008 controller, IT mode (-E1CR12L)
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 slots (slot 1 & 2 occupied)
I/O ports: 2x 10GBase-T, 1x Video, 1x COM, 2x USB 3.0, 1x Type A
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3x heavy duty fans w/ optimal fan speed control
920W Redundant Platinum Level Power Supplies

SSG-6028R-E1CR12N

12 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC

Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
12 Hot-swap 3.5" SAS3/SATA3 drive bays (SAS3 via Broadcom 3108 AOC)
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (slot 3 & 4 occupied)
I/O ports: 4x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 heavy duty fans w/ optimal fan speed control
920W Redundant Platinum Level Power Supplies

SSG-6028R-E1CR12T

12 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108

Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
12 Hot-swap 3.5" SAS3/SATA3 drive bays (SAS3 via Broadcom 3108)
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 slots
I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 heavy duty fans w/ optimal fan speed control
920W Redundant Platinum Level Power Supplies

SSG-6028R-E1CR16T

16x 3.5" Hot-swap SAS3/SATA3 • SAS3 via Broadcom 3108

Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
16x 3.5" Hot-swap SAS3/SATA3 drive bays (SAS3 via Broadcom 3108)
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 slots
I/O ports: 2x 10GBase-T, 1x Video, 1x COM, 2x USB 3.0, 1x Type A
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4x 80mm hot-swap redundant PWM cooling fans
1000W Redundant Titanium Level (96%) Power Supplies

SSG-6028R-E1CR24L

24 Hot-swap 3.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)

Corporate Database, Data Center, Database Processing & Storage, Enterprise Server, HPC, iSCSI SAN
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
24 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear); Cable-arm for second row drives' hot-swap access
SAS3 via Broadcom 3008, IT mode controller
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
I/O: SIOM for flexible networking options, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5 Hot-swap 80mm redundant PWM cooling fans
1600W Redundant Titanium Level (96%) Power Supplies

SSG-6028R-E1CR24N

24 Hot-swap 3.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)

Corporate Database, Data Center, Database Processing & Storage, Enterprise Server, HPC, iSCSI SAN
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
24 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear); Cable-arm for second row drives' hot-swap access
SAS3 via Broadcom 3108, HW RAID 0, 1, 5, 6, 10, 50, 60
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
I/O: SIOM for flexible networking options, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5 Hot-swap 80mm redundant PWM cooling fans
1600W Redundant Titanium Level (96%) Power Supplies

SSG-6038R-DE2CR16L

3U 2-Node Mission critical storage server
High Density: 16x 3.5" hot-swap SAS3/SATA* HDDs
Fastest Storage: SAS3 (12Gbps)
Robust Data Availability:
- Shared storage between redundant controllers
- Node to node heartbeat/ NTB connectivity
- Redundant power supply and cooling system
Greener Storage:
- Titanium Level (96%+) efficiency 1200W redundant power supplies
- 90%+ VRM power efficiency

SSG-6038R-E1CR16H

/ SSG-6038R-E1CR16L

16 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC or Broadcom 3008 controller

Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
16 Hot-swap 3.5" SAS3/SATA3 drive bays,
2 optional Hot-swap 2.5" drive bays (rear)
SAS3 via Broadcom 3108 AOC; HW RAID (-E1CR16H)
SAS3 via Broadcom 3008 controller; IT mode (-E1CR16L)
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 and 3 PCI-E 3.0 x8 (-E1CR16L: slot 3 & 4 occupied)
1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 (-E1CR16H: slot 1 & 2 occupied)
I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
2 Hot-swap 80mm rear exhaust PWM cooling fans
920W Redundant Platinum Level Power Supplies

SSG-6038R-E1CR16N

16 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC

Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
16 Hot-swap 3.5" SAS3/SATA3 drive bays (SAS3 via Broadcom 3108 AOC);
2 optional Hot-swap 2.5" drive bays (rear)
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (slot 3 & 4 occupied)
I/O ports: 4x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
2 Hot-swap 80mm rear exhaust PWM cooling fans
920W Redundant Platinum Level Power Supplies

SSG-6048R-DE2CR24L

4U 2-Node Mission critical storage server
High Density: 24x 3.5" hot-swap SAS3/SATA* HDDs
Fastest Storage: SAS3 (12Gbps)
Robust Data Availability:
- Shared storage between redundant controllers
- Node to node heartbeat/ NTB connectivity
- Redundant power supply and cooling system
Greener Storage:
- Titanium Level (96%+) efficiency 1600W redundant power supplies
- 90%+ VRM power efficiency

SSG-6048R-E1CR24H

/ SSG-6048R-E1CR24L

24 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC or Broadcom 3008 controller

Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
24 Hot-swap 3.5" SAS3/SATA3 drive bays,
2 optional Hot-swap 2.5" drive bays (rear)
SAS3 via Broadcom 3108 AOC, HW RAID (-E1CR24H);
SAS3 via Broadcom 3008 controller, IT mode (-E1CR24L)
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 (slot 1 & 2 occupied)
I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
2 Hot-swap 80mm rear exhaust PWM cooling fans
920W Redundant Platinum Level Power Supplies

SSG-6048R-E1CR24N

24 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC

Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
24 Hot-swap 3.5" SAS3/SATA3 drive bays (SAS3 via Broadcom 3108 AOC);
2 optional Hot-swap 2.5" drive bays (rear)
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (slot 3 & 4 occupied)
I/O ports: 4x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
2 Hot-swap 80mm rear exhaust PWM cooling fans
920W Redundant Platinum Level Power Supplies

SSG-6048R-E1CR36H

/ SSG-6048R-E1CR36L

36x 3.5" Hot-swap SAS3/SATA3 • SAS3 via Broadcom 3108 AOC or Broadcom 3008 controller

Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
36x 3.5" Hot-swap SAS3/SATA3 drive bays, 4x 2.5" internal fixed drive bays; 2x 2.5" optional Hot-swap drive bays (rear)
SAS3 via Broadcom 3108 AOC, HW RAID (-E1CR36H)
SAS3 via Broadcom 3008 controller, IT mode (-E1CR36L)
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 slots (slot 1 & 2 occupied)
I/O ports: 2x 10GBase-T, 1x Video, 1x COM, 2x USB 3.0, 1x Type A
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
2x 80mm Hot-swap rear exhaust PWM cooling fans
1280W Redundant Platinum Level Power Supplies

SSG-6048R-E1CR36N

36 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108 AOC

Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
36 Hot-swap 3.5" SAS3/SATA3 drive bays (SAS3 via Broadcom 3108 AOC);
4 internal fixed 2.5" drive bays
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (slot 3 & 4 occupied)
I/O ports: 4x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
2 Hot-swap 80mm rear exhaust PWM cooling fans
1280W Redundant Platinum Level Power Supplies

SSG-6048R-E1CR45H

45 Hot-swap Top-Loading drive bays, 6 opt. NVMe, Broadcom 3108

Software Defined Storage Applications, Backup, Archive and Cold storage, Data Replication & Business Continuity, Virtual Tape Library
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear), 6 Optional NVMe bays
SAS3 via Broadcom 3108, HW RAID
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
Front 3.5" LCD display
I/O: SIOM for flexible networking options, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5 Hot-swap 80mm rear exhaust cooling fans
1600W Redundant Platinum Level Power Supplies

SSG-6048R-E1CR45L

45 Hot-swap Top-Loading drive bays, 6 opt. NVMe, Broadcom 3008

Software Defined Storage Applications, Backup, Archive and Cold storage, Data Replication & Business Continuity, Virtual Tape Library
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear), 6 Optional NVMe bays
SAS3 via Broadcom 3008, IT mode controller
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
Front 3.5" LCD display
I/O: SIOM for flexible networking options, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5 Hot-swap 80mm rear exhaust cooling fans
1600W Redundant Platinum Level Power Supplies

SSG-6048R-E1CR60L

60 Hot-swap Top-Loading, 6 opt. NVMe, Broadcom 3008

Software Defined Storage Applications, Backup, Archive and Cold storage, Data Replication & Business Continuity, Virtual Tape Library
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
60x 3.5" Hot-swap SAS3/SATA3 drive bays, 2x 2.5" Hot-swap drive bays (rear), 6 Optional NVMe bays
SAS3 via Broadcom 3008, IT mode controller
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
Front 3.5" LCD display
I/O: SIOM for flexible networking options, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
2x 80mm hot-swap rear exhaust cooling fans
2000W Redundant Titanium Level (96%) Power Supplies

SSG-6048R-E1CR60N

60 Hot-swap Top-Loading, 6 opt. NVMe, Broadcom 3108

High capacity File and Object storage, Backup, Archive and Cold storage, Data Replication & Business Continuity, Virtual Tape Library
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
60x 3.5" Hot-swap SAS3/SATA3 drive bays, 2x 2.5" Hot-swap drive bays (rear), 6 Optional NVMe bays
SAS3 via Broadcom 3108, HW RAID 0, 1, 5, 6, 10, 50, 60
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
Front 3.5" LCD display
I/O: SIOM for flexible networking options, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
2x 80mm hot-swap rear exhaust cooling fans
2000W Redundant Titanium Level (96%)Power Supplies

SSG-6048R-E1CR72L

72 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3008 controller; IT mode

Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
72 Hot-swap 3.5" SAS3/SATA3 drive bays,
2 Hot-swap 2.5" drive bays (rear)
SAS3 via Broadcom 3008 controller, IT mode
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 slots (3 slots occupied)
I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 2 USB 3.0, 1 Type A
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
7 Hot-swap 92mm cooling fans
2000W Redundant Titanium Level (96%) Power Supplies

SSG-6048R-E1CR90L

90 Hot-swap • Top-Loading • Broadcom 3008

Software Defined Storage Applications, Backup, Archive and Cold storage, Data Replication & Business Continuity, Virtual Tape Library
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
90 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear)
SAS3 via 2 Onboard Broadcom 3008 SAS3 controllers
8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
I/O: SIOM card for multiple IO options
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5 Hot-swap 8cm redundant PWM fans
1000W Redundant Titanium Level (96%) Power Supplies

SYS-1018GR-T

GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 or E5-1600 v3 family; QPI up to 9.6GT/s
6 Hot-swap 2.5" SATA3 HDD Bays
8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16 (2 GPU cards opt.) and 1 PCI-E 3.0 x8 slots
I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 2 USB 3.0 (rear)
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
8 counter-rotating fans w/ optimal fan speed control
1400W Platinum Level digital-switching Power Supplies

SYS-1018R-WC0R

WIO, Flexible I/O • Storage Array

Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
8 Hot-swap 2.5" SAS3 + 2 Hot-swap 2.5" SATA3 drive bays
8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400
2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 (in x16) slots
2 GbE, 1 Video, 2 COM, 2 USB 3.0, 4 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 PWM Cooling fans
700W/750W Redundant Platinum Level Power Supplies

SYS-1018R-WR

Embedded Appliances

1U Appliance Server, WIO, Embedded Applications
Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
2 fixed 2.5" SATA3 drive bays
8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400
2 PCI-E 3.0 x16 left riser slot, 1 PCI-E 3.0 x8 LP slot
2 GbE, 1 Video, 2 COM, 4 USB 3.0, 2 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 PWM Cooling fans; 2 optional fans for AOC cooling
400W Redundant Platinum Level Power Supplies

SYS-1028GQ-TR

/ SYS-1028GQ-TRT

GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
2 Hot-swap 2.5" and 2 internal 2.5" Drive Bays
16x DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
4 PCI-E 3.0 x16 (4 GPU cards opt.) and 2 PCI-E 3.0 x8 (in x16) LP slots
I/O ports: 2 GbE (-TR)/10GbE (-TRT), 1 Video, 1 COM/Serial, 2 USB 3.0 (2 via header)
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
9x 4cm heavy-duty counter-rotating fans w/ optimal fan speed control
2000W Redundant Platinum Level Power Supplies

SYS-1028GQ-TVRT

Up to 4 NVIDIA Tesla • V100 SXM2 GPUs • Up to 300 GB/s • GPU-to-GPU NVLINK

HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
2 Hot-swap 2.5" Drive Bays and 2 internal 2.5" Drive Bays
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
3 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 Low-profile slots; support up to 4 Pascal GPU
2x 10GBase-T (1028GQ-TVRT), 1 Video, 1 Serial, 2 USB 3.0 (via header)
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
7x 4cm heavy duty PWM fans w/ optimal fan speed control
2000W Redundant Titanium Level Power Supplies

SYS-1028GQ-TXR

/ SYS-1028GQ-TXRT

New! HPC Solutions Powered by NVIDIA

HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
2 Hot-swap 2.5" Drive Bays and 2 internal 2.5" Drive Bays
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
3 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 Low-profile slots; support up to 4 Pascal GPU
2 GbE (1028GQ-TXR)/10GBase-T (1028GQ-TXRT), 1 Video, 1 Serial, 2 USB 3.0 (via header)
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
7x 4cm heavy duty PWM fans w/ optimal fan speed control
2000W Redundant Titanium Level Power Supplies

SYS-1028GR-TR

/ SYS-1028GR-TRT

Up to 3 GPU

GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
4 Hot-swap 2.5" SATA3 HDD Bays
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
4 PCI-E 3.0 x16 (3 GPU cards opt.) and 1 PCI-E 3.0 x8 slots
I/O ports: 2 GbE/10GBase-T (TRT), 1 Video, 1 COM/Serial, 4 USB 3.0 (2 rear, 2 via header), 2 USB 2.0 (2 via header)
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
10 heavy duty fans w/ optimal fan speed control
1600W Redundant Platinum Level Power Supplies

SYS-1028R-WC1R

/ SYS-1028R-WC1RT

10x 2.5" Hot-swap bays • SAS3 via Broadcom 3108 • 2 NVMe support

Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
10x 2.5" Hot-swap SAS/SATA HDD Bays; SAS3 via Broadcom 3108, 2 Opt. NVMe drive support
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16 (FHHL) via riser card, 1 PCI-E 3.0 x8 Mezzanine for HBA cards
2 GbE (1028R-WC1R) / 10GBase-T (1028R-WC1RT), 1 Video, 1 COM, 6 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5x 40mm Counter-rotating PWM fans
700W/750W Redundant Platinum Level Power Supplies

SYS-1028R-WMR

/ SYS-1028R-WMRT

Short Depth 16.9", WIO • Flexible I/O

Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
Dual socket R3 (LGA 2011) supports: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
2 Fixed 2.5" drive bays w/ bracket
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400
2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 (in x16) slots
2 SuperDOM, 1 VGA, 1 COM, 2 USB 3.0, 4 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4x 40x56mm PWM fan; 2x fans for AOC cooling
400W (1+1) Redundant SuperCompact Short-depth AC-DC Gold-level power supply with PMBus and I²C

SYS-1028R-WTR

/ SYS-1028R-WTRT / SYS-1028R-WC1R / SYS-1028R-WC1RT

10 Hot-swap 2.5" bays • SAS3 via Broadcom 3108, • 2 NVMe support ("C")

Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
10 Hot-swap 2.5" SAS/SATA drive bays; SAS3 via Broadcom 3108 ("C" SKUs), 2 Opt. NVMe drive support ("C" SKUs)
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400
2 PCI-E 3.0 x16 (FHHL) via riser card, 1 PCI-E 3.0 x8 Mezzanine for HBA cards
2 GbE/10GBase-T ("RT"), 1 Video, 1 COM, 6 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5x 40mm Counter-rotating PWM fans
750W Redundant Platinum Level Power Supplies

SYS-1028TP-DC0R

/ SYS-1028TP-DC0TR / SYS-1028TP-DC0FR

TwinPro • Supermicro Data Center Management Support • SAS3 via Broadcom 3008

2 DP nodes in 1U; Each Node (x2 nodes) supports:
Dual Socket R3 support Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 Low-profile slot and 1 "0 slot"
4 Hot-swap 2.5" drive bays support SAS3 with Broadcom 3008 SW RAID controller
1 InfiniBand port (FDR, 56Gbps), w/ QSFP connector (-DC0FR SKU)
I/O ports: 2 GbE (-DC0R/-DC0FR) / 10GBase-T (-DC0TR), 1 Video, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 heavy duty counter rotating fans with air shroud and optimal fan speed control
1000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies

SYS-1028TP-DC1R

/ SYS-1028TP-DC1TR / SYS-1028TP-DC1FR

TwinPro • Supermicro Data Center Management Support • SAS3 via Broadcom 3108

2 DP nodes in 1U; Each Node (x2 nodes) supports:
Dual Socket R3 support Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 Low-profile slot
4 Hot-swap 2.5" drive bays support SAS3 with Broadcom 3108 HW RAID controller
Broadcom 3108 HW RAID controller supports RAID 0, 1, 10, 5, 6
1 InfiniBand port (FDR, 56Gbps), w/ QSFP connector (-DC1FR SKU)
I/O ports: 2 GbE (-DC1R/-DC1FR) / 10GBase-T (-DC1TR), 1 Video, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 heavy duty counter rotating fans with air shroud and optimal fan speed control
1000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies

SYS-1028TP-DTR

/ SYS-1028TP-DTTR / SYS-1028TP-DTFR

TwinPro • Supermicro Data Center Management Support

2 DP nodes in 1U; Each Node (x2 nodes) supports:
Dual Socket R3 support Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 Low-profile slot and 1 "0 slot"
4 Hot-swap 2.5" drive bays support SATA3
1 InfiniBand port (FDR, 56Gbps), w/ QSFP connector (-DTFR SKU)
I/O ports: 2 GbE (-DTR/-DTFR) / 10GBase-T (-DTTR), 1 Video, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 heavy duty counter rotating fans with air shroud and optimal fan speed control
1000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies

SYS-1028TR-T

/ SYS-1028TR-TF

Single port IB (FDR, 56Gbps) - SYS-1028TR-TF

2 DP nodes in 1U; depth 27.75", Each Node (x2 nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E x16 slot
4x 2.5" Hot-swap SATA3 drive bays
2 GbE, 1 VGA, 1 COM, 2 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 counter-rotating 40x56mm PWM fans
IB FDR (56Gbps) - SYS-1028TR-TF
1000W Titanium Level (96%) Power Supply

SYS-1028U-E1CR4+

/ SYS-1028U-E1CRTP+

10x 2.5" SAS3/SATA3 • Flexible Network Opt.

Virtualization Hosting, Cloud Computing, Data Center
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
10 Hot-swap 2.5" drive bays; 10 SAS3 via optional AOC
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
2x 10G SFP+ and 2 GbE (-E1CRTP+) / 4 GbE (-E1CR4+), 1 Video, 1 COM/Serial, 5 USB 3.0 (2 rear, 2 front, 1 Type A)
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies

SYS-1028U-TN10RT+

10 NVMe support • 24 DDR4 DIMM • 2x 10GBase-T

Virtualization Hosting, Cloud Computing, Data Center
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
10 Hot-swap 2.5" drive bays; 4 NVMe/SAS3 hybrid + 6 NVMe ports
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
3 PCI-E 3.0 x8 slots (2 FH 10.5" L, 1 LP)
2x 10GBase-T, 1 Video, 1 Serial, 5 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
8 heavy duty fans w/ optimal fan speed control
1000W Redundant Titanium Level (96%) Power Supplies

SYS-1028U-TNRTP+

/ SYS-1028U-TNR4T+ / SYS-1028U-TNRT+

2 NVMe + 8 SATA3 2.5" (SAS3 opt.) • Flexible Network Opt.

Virtualization Hosting, Cloud Computing, Data Center
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
10 Hot-swap 2.5" drive bays; 2 NVMe + 8 SATA3, SAS3 optional
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
2x 10G SFP+ (-TNRTP+) / 4x 10GBase-T (-TNR4T+) / 2x 10GBase-T (-TNRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies

SYS-1028U-TR4+

/ SYS-1028U-TR4T+ / SYS-1028U-TRT+

10x 2.5" SATA3 or Opt. • 8x SAS3 • Flexible Network Opt.

Virtualization Hosting, Cloud Computing, Data Center
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
10 Hot-swap 2.5" drive bays; 10 SATA3 or Optional 8 SAS3
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
4 GbE (-TR4+) / 4x 10GBase-T (-TR4T+) / 2x 10GBase-T (-TRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies

SYS-1028UX-CR-LL1

8x 2.5" SAS3 + 2x SATA3 or Opt. 2 NVMe via AOC • 4 GbE LAN

Optimized for Low-Latency/Low-Jitter apps. with BIOS optimizations
Pre-installed w/ accelerated dual E5-2643 v3 CPUs and 8x 8GB DDR4 DIMMs (64GB total)
8 Hot-swap 2.5" SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
16 DIMM slots; up to 1TB DDR4
2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
8 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies
Hyper-Speed hardware acceleration technology

SYS-1028UX-CR-LL2

8x 2.5" SAS3 + 2x SATA3 or Opt. 2 NVMe via AOC • 4 GbE LAN

Optimized for Low-Latency/Low-Jitter apps. with BIOS optimizations
Pre-installed w/ accelerated dual E5-2687W v3 CPUs and 8x 8GB DDR4 DIMMs (64GB total)
8 Hot-swap 2.5" SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
16 DIMM slots; up to 1TB DDR4
2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
8 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies
Hyper-Speed hardware acceleration technology

SYS-1028UX-LL1-B8

8x 2.5" SAS3 + 2 SATA3 or Opt. 2 NVMe via AOC • 4 GbE LAN

Optimized for Low-Latency/Low-Jitter apps. with BIOS optimizations
Pre-installed w/ accelerated dual E5-2643 v4 CPUs and 8x 8GB DDR4-2400MHz DIMMs (16 DIMM, up to 1TB DDR4-2400MHz)
8x Hot-swap 2.5" SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies
Hyper-Speed hardware acceleration technology

SYS-1028UX-LL2-B8

8x 2.5" SAS3 + 2 SATA3 or Opt. 2 NVMe via AOC • 4 GbE LAN

Optimized for Low-Latency/Low-Jitter apps. with BIOS optimizations
Pre-installed w/ accelerated dual E5-2687W v4 CPUs and 8x 8GB DDR4-2400MHz DIMMs (16 DIMM, up to 1TB DDR4-2400MHz)
8 Hot-swap 2.5" SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies
Hyper-Speed hardware acceleration technology

SYS-1028UX-LL3-B8

8x 2.5" SAS3 + 2 SATA3 or Opt. 2 NVMe via AOC • 4 GbE LAN

Optimized for Low-Latency/Low-Jitter apps. with BIOS optimizations
Pre-installed w/ accelerated dual E5-2689 v4 CPUs and 8x 8GB DDR4-2400MHz DIMMs (16 DIMM, up to 1TB DDR4-2400MHz)
8 Hot-swap 2.5" SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies
Hyper-Speed hardware acceleration technology

SYS-2028BT-HNC0R+

16 NVMe support • 4 NVMe/SAS3/SATA3 + • 2 SAS3/SATA3 per Node

4 DP nodes in 2U; depth 28.75", Each Node:
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
At least one network card must be bundled
6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays per node
SAS3 support via Broadcom 3008; IT mode
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) High-efficiency Power Supplies

SYS-2028BT-HNC1R+

BigTwin™ • 4 NVMe/SAS3/SATA3 + • 2 SAS3/SATA3 per Node

4 DP nodes in 2U; depth 28.75", Each Node:
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 Low-profile slot, 1 Networking SIOM card support
At least one network card must be bundled
6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays per node
SAS3 support via Broadcom 3108; HW RAID 0, 1, 5, 6, 10, 50, 60
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) Power Supplies

SYS-2028BT-HNR+

24 NVMe support • 6 NVMe per Node

4 DP nodes in 2U; depth 28.75", Each Node:
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
At least one network card must be bundled
6 Hot-swap 2.5" NVMe drive bays per node
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) High-efficiency Power Supplies

SYS-2028BT-HTR+

BigTwin™ • 6 SATA3 per Node

4 DP nodes in 2U; depth 28.75", Each Node:
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
At least one network card must be bundled
6 Hot-swap 2.5" SATA3 drive bays per node
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) High-efficiency Power Supplies

SYS-2028GR-TR

/ SYS-2028GR-TRT / SYS-2028GR-TRH / SYS-2028GR-TRHT

GPU Server, Mission-critical app., enterprise server, oil & gas, large database, e-business, on-line transaction processing, medical
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
10 Hot-swap 2.5" SATA3 HDD Bays
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
4 PCI-E 3.0 x16 (4 GPU cards opt.) and 1 PCI-E 3.0 x8 slots
I/O ports: 2 GbE/10GBase-T (TRT, TRHT), 1 Video, 1 COM/Serial, 4 USB 3.0 (2 rear, 2 via header), 2 USB 2.0 (2 via header)
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5 heavy duty fans w/ optimal fan speed control
2000W Redundant Platinum Level Power Supplies

SYS-2028TP-DC1R

/ SYS-2028TP-DC1TR / SYS-2028TP-DC1FR / SYS-2028TP-DC0R / SYS-2028TP-DC0TR / SYS-2028TP-DC0FR

TwinPro

2x DP nodes in 2U; depth 28.75", Each Node (x2 nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
16x DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1x PCI-E 3.0 x16, 1x PCI-E x8, and 1x "0 Slot" ("C0" SKUs)
1x PCI-E 3.0 x16, 1x PCI-E x8, and GPU support via x16 slot ("C1" SKUs)
12x 2.5" Hot-swap SAS (8) / SATA (4) HDD bays
1x InfiniBand port (FDR, 56Gbps), w/ QSFP connector ("FR" SKUs)
I/O ports: 2x GbE/10GBase-T ("TR"), 1x Video, 2x USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4x 80mm heavy duty fans w/ optimal fan speed control
1280W Redundant Platinum Level Digital Power Supplies

SYS-2028TP-DECR

/ SYS-2028TP-DECTR / SYS-2028TP-DECFR

TwinPro

2 DP nodes in 2U; depth 28.75", Each Node (x2 nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
16x DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1x PCI-E 3.0 x16, 1x PCI-E x8, and 1x "0 Slot"
12x 2.5" Hot-swap SAS3 HDD bays; SAS3 via Broadcom 3008 expander
1x InfiniBand port (FDR, 56Gbps), w/ QSFP connector ("FR" SKUs)
I/O ports: 2x GbE/10GBase-T ("TR"), 1x Video, 2x USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4x 80mm heavy duty fans w/ optimal fan speed control
1280W Redundant Platinum Level Digital Power Supplies

SYS-2028TP-DNCR

/ SYS-2028TP-DNCTR / SYS-2028TP-DNCFR

NVMe support

2 DP nodes in 2U; depth 28.75", Each Node (x2 nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
16x DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 and 1 PCI-E x8 slots
4 NVMe and 8x 2.5" Hot-swap SAS3 HDD bays
1 InfiniBand port (FDR, 56Gbps), w/ QSFP connector (2028TP-DNCFR)
2 GbE (2028TP-DNCR) / 10GBase-T (2028TP-DNCTR), 1 Video, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4x 80mm heavy duty fans w/ optimal fan speed control
1600W Redundant Titanium Level (96%) Power Supplies

SYS-2028TP-DTR

/ SYS-2028TP-DTTR / SYS-2028TP-DTFR

TwinPro

2 DP nodes in 2U; depth 28.75", Each Node (x2 nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
16x DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1x PCI-E 3.0 x16, 1x PCI-E x8, and GPU support via x16 slot
8x 2.5" Hot-swap SATA3 HDD bays
1x InfiniBand port (FDR, 56Gbps), w/ QSFP connector ("FR" SKUs)
I/O ports: 2x GbE/10GBase-T ("TR"), 1x Video, 2x USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4x 80mm heavy duty fans w/ optimal fan speed control
1280W Redundant Platinum Level Digital Power Supplies

SYS-2028TP-HC0R

/ SYS-2028TP-HC0TR / SYS-2028TP-HC0FR / SYS-6028TP-HC0R / SYS-6028TP-HC0TR / SYS-6028TP-HC0FR / SYS-2028TP-HC1R / SYS-2028TP-HC1TR / SYS-2028TP-HC1FR / SYS-6028TP-HC1R / SYS-6028TP-HC1TR / SYS-6028TP-HC1FR

TwinPro²

4 DP nodes in 2U; depth 28.75" (2028TP) / 30.5" (6028TP), Each Node (x4 nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
16x DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1x PCI-E 3.0 x16 Low-profile slot and 1x "0 Slot" ("C0" SKUs)
1x PCI-E 3.0 x16 Low-profile slot ("C1" SKUs)
Storage Drive Options:
- 6x 2.5" Hot-swap HDD bays; supports SAS3, SATA3 and mSATA (2028TP SKUs)
- 3x 3.5" Hot-swap HDD bays; supports SAS3 (6028TP SKUs)
Broadcom 3008 ("C0" SKUs) / 3108 ("C1" SKUs) controller for 6x SAS3 (12Gbps) ports
1x InfiniBand port (FDR, 56Gbps), w/ QSFP connector ("FR" SKUs)
Support external slot for rear expansion or "0 slot" AOC solution
I/O ports: 2x GbE or 2x 10GBase-T ("TR" SKUs), IPMI 2.0, 1x Video, 2x USB 3.0
4x 80mm heavy duty fans w/ optimal fan speed control
2000W Redundant Titanium Level (96%) High-efficiency Power Supplies

SYS-2028TP-HTR

/ SYS-2028TP-HTTR / SYS-2028TP-HTFR/ SYS-6028TP-HTR / SYS-6028TP-HTTR / SYS-6028TP-HTFR

TwinPro²

4 DP nodes in 2U; depth 28.75" (2028TP) / 30.5" (6028TP), Each Node (x4 nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
16x DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1x PCI-E 3.0 x16 Low-profile slot and 1x "0 Slot"
Support external slot for rear expansion or "0 slot" AOC solution
Storage Drive Options:
- 6x 2.5" Hot-swap HDD bays; supports SATA3 (2028TP SKUs)
- 3x 3.5" Hot-swap HDD bays; supports SATA3 (6028TP SKUs)
1x InfiniBand port (FDR, 56Gbps), w/ QSFP connector ("FR" SKUs)
I/O ports: 2x GbE/10GBase-T ("TR"), 1x Video, 2x USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4x 80mm heavy duty fans w/ optimal fan speed control
2000W Redundant Titanium Level (96%) High-efficiency Power Supplies

SYS-2028TP-HTR-SIOM

/ SYS-2028TP-HC0R-SIOM / SYS-2028TP-HC1R-SIOM / SYS-6028TP-HTR-SIOM / SYS-6028TP-HC0R-SIOM / SYS-6028TP-HC1R-SIOM

TwinPro² (SIOM)

4 DP nodes in 2U; depth 28.5" (2028TP) / 30.5" (6028TP), Each Node (x4 nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
16x DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1x PCI-E 3.0 x16 Low-profile slot, 1 PCI-E 3.0 x8 Low-profile slot, 1 SIOM card support
At least one SIOM network card must be bundled
Storage Drive Options:
- 6x 2.5" Hot-swap SATA3 drive bays per node (2028TP-HTR-SIOM)
- 6x 2.5" Hot-swap SAS3 (Broadcom 3008) drive bays per node (2028TP-HC0R-SIOM)
- 6x 2.5" Hot-swap SAS3 (Broadcom 3108) drive bays per node (2028TP-HC1R-SIOM)
- 3x 3.5" Hot-swap SATA3 drive bays per node (6028TP-HTR-SIOM)
- 3x 3.5" Hot-swap SAS3 (Broadcom 3008) drive bays per node (6028TP-HC0R-SIOM)
- 3x 3.5" Hot-swap SAS3 (Broadcom 3108) drive bays per node (6028TP-HC1R-SIOM)
I/O ports: 1x Dedicated IPMI port, 1x Video, 2x USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4x 80mm heavy duty fans w/ optimal fan speed control
2000W Redundant Titanium Level (96%) High-efficiency Power Supplies

SYS-2028TR-H72R

/ SYS-2028TR-H72FR / SYS-2028TR-HTR / SYS-2028TR-HTFR

Titanium, 96% Efficiency Power Supplies • IB FDR (56Gbps)

4 DP nodes in 2U; Each Node (x4 nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
6 Hot-swap 2.5" HDD Bays: SATA3 ('HT' SKUs), SAS2 via Broadcom 2208 ('H72' SKUs)
8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 Low-profile slot
I/O ports: 2 GbE, 1 Video, 2 USB 3.0 (rear)
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
Mellanox ConnectX-3 FDR ('FR' SKUs) IB Controller
4 heavy duty fans w/ optimal fan speed control
1600W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies

SYS-2028U-E1CNR4T+

/ SYS-2028U-E1CNRT+

24x 2.5" SAS3 via Expander & AOC, • 4 NVMe • 24 DDR4 DIMM • 4x/2x 10GBase-T

Virtualization Hosting, Cloud Computing, Data Center
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
24 Hot-swap 2.5" SAS3 via Expander and AOC; 4 NVMe
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
7 PCI-E 3.0 x8 slots (5 FH, 2 LP) (-E1CNRT+), 6 PCI-E 3.0 x8 slots (4 FH, 2 LP) (-E1CNR4T+)
4x 10GBase-T (-E1CNR4T+) / 2x 10GBase-T (-E1CNRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty fans w/ optimal fan speed control
1000W Redundant Titanium Level (96%) Power Supplies

SYS-2028U-TN24R4T+

24 NVMe support • 4x 10GBase-T

Virtualization Hosting, Cloud Computing, Data Center
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
24 Hot-swap 2.5" NVMe bays (4 hybrid ports - optional SAS3 support via AOC); 2x 2.5" Hot-swap SATA3 drive bays (rear)
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
2 PCI-E 3.0 x16 slots (FH 10.5" L), 1 PCI-E 3.0 x8 (LP) slot
4x 10GBase-T ports, 1 dedicated IPMI, 1 Video, 1 COM, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
4x 80mm heavy duty PWM fans
1600W Redundant Titanium Level (96%) Power Supplies

SYS-2028U-TNR4T+

/ SYS-2028U-TNRT+

24x 2.5" Drive bays • 4 NVMe ports + 8 SATA3 ports • 24 DDR4 DIMM • 4x/2x 10GBase-T

Virtualization Hosting, Cloud Computing, Data Center
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
24 Hot-swap 2.5" drive bays; 4 NVMe ports + 8 SATA3 ports; 24 SAS3 ports optional via AOC
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
7 PCI-E 3.0 x8 slots (5 FH, 2 LP) (-TNR4T+)
6 PCI-E 3.0 x8 slots (4 FH, 2 LP) (-TNRT+)
4x 10GBase-T (-TNR4T+) / 2x 10GBase-T (-TNRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty fans w/ optimal fan speed control
1000W Redundant Titanium Level (96%) Power Supplies

SYS-2028UT-BTNRT

/ SYS-2028UT-BC1NRT

EX DP • 2 NVMe HDD bays

Each EX DP Node supports:

Dual Socket R1 (LGA 2011) support Intel® Xeon® processor E7-8800/4800/2800 v2 family (15-Core) with QPI up to 8.0 GT/s
32 DIMM slots: up to 2TB ECC DDR3, up to 1600MHz memory
2 PCI-E 3.0 x16 FH/HL slots and 1 PCI-E 3.0 x8 for MicroLP card
2 NVMe 2.5" SSD and 8x 2.5" SAS3/SATA3 HDD/SSD bays
8 SATA3 (6Gbps) ports via C602; RAID 0, 1, 5, 10 (-BTNRT)
Broadcom 3108 SAS3 (12Gbps); RAID 0, 1, 5, 6, 10, 50 (-BC1NRT)
Connectivity: 2x 10GBase-T
1 VGA, 1 Aspeed AST2400 BMC, 1 COM port
IPMI 2.0 + KVM with dedicated LAN, SuperDoctor 5, Watch Dog
4x 80mm Energy-Efficient PWM fans
1280W Redundant Platinum Level power supplies

SYS-2048U-RTR4

2U 4-way (22-Core) MP • 11 PCI-E 3.0 • NVMe support

Mission Critical applications, Virtualization, HPC, Data Center
Quad Intel® Xeon® processor E5-4600 v4/v3 family 4-Way (up to 22 cores) with QPI up to 9.6GT/s
11 PCI-E 3.0 total: 9 PCI-E 3.0 x8 and 2 PCI-E 3.0 x16 slots
48 DIMM slots; Up to 6TB 3DS LRDIMM, up to DDR4-2400MHz
24x 2.5" Hot-swap drive bays: 8 SATA3 default, 4 NVMe + 20 SAS3 optional via AOC
4 GbE (via AOC, other opt. available), 1 dedicated IPMI, 1 Video, 1 COM, 5 USB 3.0 (2 rear, 2 via header, 1 Type A), 2 USB 2.0
System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
4x 8cm heavy duty PWM fans
1000W Redundant Titanium Level (96%) Power Supplies

SYS-4028GR-TR

/ SYS-4028GR-TRT

GPU Server, Mission-critical app., enterprise server, large database, e-business, on-line transaction processing, oil & gas, medical app.
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
24 Hot-swap 2.5" Drive Bays
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
8 PCI-E 3.0 x16 (double-width), 2 PCI-E 3.0 x8 (in x16) slots, 1 PCI-E 2.0 x4 (in x16) slot
I/O ports: 2 GbE/10GBase-T (TRT), 1 Video, 1 COM/Serial,
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
8x 92mm RPM Hot-Swappable Cooling Fans
1600W Redundant (2+2) Platinum Level Power Supplies

SYS-4028GR-TR2

/ SYS-4028GR-TRT2

HPC Solutions Powered by NVIDIA

HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
24 Hot-swap 2.5" Drive Bays
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
11 PCI-E 3.0 x16 (FH, FL) and 1 PCI-E 3.0 x8 (in x16) slots, Single Root Complex
2 GbE (4028GR-TR2)/10GBase-T (4028GR-TRT2), 1 Video, 1 Serial
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
8x 92mm RPM Hot-Swappable Cooling Fans
2000W Redundant Titanium Level Power Supplies

SYS-4028GR-TVRT

Up to 8 NVIDIA Tesla • V100 SXM2 GPUs • Up to 300 GB/s • GPU-to-GPU NVLINK

HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
16 Hot-swap 2.5" Drive Bays
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
4 PCI-E 3.0 x16 (low-profile) and 2 PCI-E 3.0 x8 slots
2x 10GBase-T, 1 Video, 1 Serial
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
8x 92mm RPM Hot-Swappable Cooling Fans
2200W Redundant Titanium Level Power Supplies

SYS-4028GR-TXR

/ SYS-4028GR-TXRT

HPC Solutions Powered by NVIDIA

HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
16 Hot-swap 2.5" Drive Bays
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
4 PCI-E 3.0 x16 (low-profile) and 2 PCI-E 3.0 x8 slots
2 GbE (4028GR-TXR)/10GBase-T (4028GR-TXRT), 1 Video, 1 Serial
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
8x 92mm RPM Hot-Swappable Cooling Fans
2200W Redundant Titanium Level Power Supplies

SYS-4048B-TR4FT

4U, 4-way

In-memory Database, ERP, CRM, Business Intelligence, Scientific Research, Virtualization
Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
11 PCI-E 3.0 slots (4 x16, 7 x8)
96 DIMM slots support up to 12TB of DDR4 ECC 3DS LRDIMMs
Up to 24x 2.5" hot-swap SAS3/SATA3 HDD/SSD drive bays (48x 2.5" Hot-swap HDD/SSD optional)
Intel® X540 dual-port 10GBase-T LAN controller (via AOM)
Onboard BMC supports IPMI 2.0 + Virtual Media over LAN (via AOM)
Default HDD connection: 2 SATA3 + 4 SATA2 ports via C602J onboard
1620W Hot-swap (N+1) redundant Platinum Level power supplies

SYS-4048B-TRFT

4U, 4-way

In-memory Database, ERP, CRM, Business Intelligence, Scientific Research, Virtualization
Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
11 PCI-E 3.0 slots (4 x16, 7 x8)
96 DIMM slots support up to 6TB of DDR3 ECC LRDIMMs/RDIMMs
Up to 24x 2.5" hot-swap SAS3/SATA3 HDD/SSD drive bays (48x 2.5" Hot-swap HDD/SSD optional)
Intel® X540 dual-port 10GBase-T LAN controller (via AOM)
Onboard BMC supports IPMI 2.0 + Virtual Media over LAN (via AOM)
Default HDD connection: 2 SATA3 + 4 SATA2 ports via C602J onboard
1620W Hot-swap (N+1) redundant Platinum Level power supplies

SYS-5018GR-T

GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 or E5-1600 v3 family; QPI up to 9.6GT/s
3 Hot-swap 3.5" SATA3 HDD Bays
8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16 (2 GPU cards opt.) and 1 PCI-E 3.0 x8 slots
I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 2 USB 3.0 (rear)
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
8 counter-rotating fans w/ optimal fan speed control
1400W Platinum Level digital-switching Power Supplies

SYS-5028R-WR

WIO, Flexible I/O

Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
8 Hot-swap 3.5" SATA3 drive bays
8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400
4 PCI-E 3.0 x8 (FH) and 1 PCI-E 3.0 x8 (LP) slots via riser card
2 GbE, 1 Video, 1 COM/Serial, 2 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 Counter-rotating PWM Cooling fans
500W Redundant Platinum Level Power Supplies

SYS-5038A-i

High Performance, Versatile Features & I/O Access
Intel® Xeon® processor E5-2600 v4/v3, E5-1600 v3 family and Intel® 4th Gen Core i7 processor; Socket R3 (LGA 2011)
4x 3.5" internal drive bays, 2x 5.25" peripheral drive bays, 1x card reader module
4 PCI-E 3.0 x16 and 2 PCI-E 2.0 x1 (in x4) slots
8 DIMMs slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
I/O ports: 2 GbE, ALC1150 HD Audio, 8 USB 3.0 (2 front, 6 rear)
900W Multi-output Power Supply

SYS-5038MD-H24TRF

12 trays per system, 2 modular UP Nodes per tray in 3U, EACH NODE:
Intel® Xeon® processor D-1531 SoC, 6-Core, 45W
Up to 128GB ECC DDR4 RDIMM 2133MHz in 4 DIMM slots
1x 2.5" SATA3 HDDs; optional kit for 2x 2.5" slim SSDs
2 GbE LAN ports, 1 shared LAN port for IPMI Remote Management
2 USB 2.0, 1 VGA, 1 COM port (w/ KVM dongle)
4x 9cm heavy-duty PWM fans with optimal cooling zone
1600W Redundant Platinum Level Power Supplies

SYS-5038MD-H8TRF

Cloud and Virtualization, Computing, Web Servers
8 modular UP Nodes in 3U; EACH NODE:
Intel® Xeon® processor D-1541 SoC, 8 cores, 45W
Up to 128GB ECC DDR4 RDIMM 2133MHz in 4 DIMM slots
2 GbE LAN ports and 1 dedicated LAN supports IPMI 2.0
2x 3.5" Hot-swap SATA3/SAS Drive Bays
1 PCI-E 3.0 x8 (LP) slot, MicroLP slot, 4 M Key 2242/22110
1600W Redundant Titanium Level Power Supplies

SYS-5038ML-H12TRF

12 modular UP Nodes in 3U, EACH NODE:
Intel® Xeon® processor E3-1200 v3/v4 family, Intel® 4th/5th Gen Core™ processor family; socket H3 (LGA 1150) from 13W to 80W
Intel® C224 PCH Chipset
Up to 32GB DDR3 VLP ECC UDIMM 1600/1333MHz memory support
2x 3.5" SATA3 HDDs; optional kit for 4x 2.5" SATA HDDs
2 GbE LAN ports and 1 dedicated LAN supports IPMI 2.0
2 USB 2.0 ports, 1 VGA, 1 USB 3.0 (Type-A), 1 SATA DOM
4 heavy-duty 9cm PWM fans with optimal cooling zone
1620W Redundant Platinum Level Power Supplies

SYS-5038ML-H24TRF

12 trays per system, 2 modular UP Nodes per tray in 3U, EACH NODE:
Intel® Xeon® processor E3-1200 v3 family, Intel® 4th/5th Gen Core™ processor family; socket H3 (LGA 1150) up to 80W
Intel® C224 PCH Chipset
Up to 32GB DDR3 VLP ECC UDIMM 1600/1333MHz memory support
1x 2.5" SATA3 HDD; optional kit for 2x 2.5" slim SSDs
4 GbE LAN ports and 1 dedicated LAN supports IPMI 2.0
2 USB 2.0 ports, 1 VGA
4 heavy-duty 9cm PWM fans with optimal cooling zone
2000W Redundant Platinum Level Power Supplies

SYS-5038ML-H8TRF

8 modular UP Nodes in 3U; EACH NODE:
Intel® Xeon® processor E3-1200 v3/v4 family, Intel® 4th/5th Gen Core™ processor family; socket H3 (LGA 1150) from 13W to 84W
Intel® C224 PCH chipset
Up to 32GB DDR3 ECC UDIMM 1600/1333MHz memory support
2x 3.5" hot-swap SAS/SATA HDDs (SW/HW RAID 0,1 depends on RAID card config.)
2 GbE LAN ports and 1 dedicated LAN supports IPMI 2.0
2 USB 2.0 ports, 1 USB 3.0 (Type-A), 1 VGA, 1 SATA DOM
Low-profile PCI-E x8 expansion support
4 heavy-duty 8cm PWM fans with optimal cooling zone
1620W Redundant Platinum Level Power Supplies

SYS-5038MR-H8TRF

8 modular UP Nodes in 3U; EACH NODE:
Intel® Xeon® processor E5-2600 v4/v3 family; socket R3 (LGA 2011)
Intel® C612 chipset
Up to 512GB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz in 4 DIMM slots
2x 3.5" Hot-swap SATA3/SAS drive bays
2 GbE LAN ports and 1 dedicated LAN supports IPMI 2.0
2 USB 2.0, 1 VGA, 1 COM port (w/ KVM dongle), 1 SATA DOM
1 PCI-E 3.0 x8 Low-profile expansion slot
4 heavy-duty 8cm PWM fans with optimal cooling zone
1620W Redundant Platinum Level Power Supplies

SYS-6018R-WTR

/ SYS-6018R-WTRT

WIO, Flexible I/O

Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
4 Hot-swap 3.5" SAS/SATA drive bays for Customizable storage
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400
Riser card support: Left side - 2 PCI-E 3.0 x16 slots
2 GbE/10GBase-T (WTRT), 1 Video, 1 Serial, 6 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) w/ dedicated LAN port
5 Counter-rotating PWM fans
750W Redundant Platinum Level Power Supplies

SYS-6018TR-T

/ SYS-6018TR-TF

Single port IB (FDR, 56Gbps) - SYS-6018TR-TF

2 DP nodes in 1U; depth 27.75", Each Node (x2 nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E x16 slot
2x 3.5" Hot-swap SATA3 drive bays
2 GbE, 1 VGA, 1 COM, 2 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 counter-rotating 40x56mm PWM fans
IB FDR (56Gbps) - SYS-6018TR-TF
1000W Titanium Level (96%) Power Supply

SYS-6018U-TR4+

/ SYS-6018U-TR4T+ / SYS-6018U-TRT+ / SYS-6018U-TRTP+

4x 3.5" SATA3 • Flexible Network Opt.

Virtualization Hosting, Cloud Computing, Data Center
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
4 Hot-swap 3.5" SATA3 drive bays
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
4 GbE (-TR4+) / 4x 10GBase-T (-TR4T+) / 2x 10GBase-T (-TRT+) / 2x 10G SFP+ (-TRTP+), 1 Video, 1 COM/Serial, 5 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty fans w/ optimal fan speed control
750W Redundant Platinum Level Power Supplies

SYS-6028BT-HNC0R+

BigTwin™ • 3 NVMe/SAS3 per Node

4 DP nodes in 2U; depth 30.5", Each Node:
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
At least one network card must be bundled
3 Hot-swap 3.5” NVMe/SAS3 drive bays per node
SAS3 support via Broadcom 3008; IT mode
1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
4 heavy duty 80mm fans w/ optimal fan speed control
2200W Redundant Titanium Level (96%) Power Supplies

SYS-6028R-WTR

/ SYS-6028R-WTRT

WIO, Flexible I/O

2U Mainstream WIO Server
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
8 Hot-swap 3.5" drive bays ready for flexible storage support
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400
4 PCI-E 3.0 x8 (2 FHFL, 2 FHHL), 2 PCI-E 3.0 (LP) slots via riser card
2 GbE/10GBase-T (WTRT), 1 Video, 2 COM, 6 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 heavy duty fans w/ optimal fan speed control
740W Redundant Platinum Level Power Supplies

SYS-6028TP-DNCR

/ SYS-6028TP-DNCTR / SYS-6028TP-DNCFR

NVMe support

2 DP nodes in 2U; depth 30.5", Each Node (x2 nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 and 1 PCI-E x8 slots
6x 3.5" Hot-swap drive bays (up to 4 NVMe + 2 SAS3 or 6 SAS3)
1 InfiniBand port (FDR, 56Gbps), w/ QSFP connector ("FR" SKUs)
2 GbE (6028TP-DNCR) / 10GBase-T (6028TP-DNCTR), 1 Video, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4x 80mm heavy duty fans w/ optimal fan speed control
1600W Redundant Titanium Level (96%) Power Supplies

SYS-6028TR-D72R

/ SYS-6028TR-DTR

SAS2 via Broadcom 2208 (6028TR-D72R)

2 DP nodes in 2U; depth 28.5", Each Node (x2 nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x8 and 1 PCI-E x8 slots
6x 3.5" Hot-swap SAS2 (6028TR-D72R)/SATA3 drive bays
2 GbE, 1 Video, 1 RS232, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty fans w/ optimal fan speed control
1280W Redundant Platinum Level Digital Power Supplies

SYS-6028TR-HTFR

/ SYS-6028TR-HTR

Titanium, 96% Efficiency Power Supplies • IB FDR (56Gbps)

4 DP nodes in 2U, depth 28.5", Each Node (x4 nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 and 1 PCI-E x8 connectors for SMCI AOC
3x 3.5" Hot-swap SAS2/SATA3 drive bays
I/O ports: 2x GbE, 1x Video, 1x RS232, 2x USB 3.0
1 InfiniBand port (FDR, 56Gbps), w/ QSFP connector ('FR' SKU)
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty fans w/ optimal fan speed control
1600W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies

SYS-6028U-E1CNR4T+

/ SYS-6028U-E1CNRT+

12x 3.5" SAS3 via Expander & AOC, 4 NVMe • 24 DDR4 DIMM • 4x/2x 10GBase-T

Virtualization Hosting, Cloud Computing, Data Center
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
12 Hot-swap 3.5" SAS3 via Expander and AOC; 4 NVMe
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
SYS-6028U-E1CNRT+: 7 PCI-E 3.0 x8 slots (5 FH, 2 LP)
SYS-6028U-E1CNR4T+: 6 PCI-E 3.0 x8 slots (4 FH, 2 LP)
4x 10GBase-T (-E1CNR4T+) / 2x 10GBase-T (-E1CNRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty fans w/ optimal fan speed control
1000W Redundant Titanium Level (96%) Power Supplies

SYS-6028U-TNR4T+

/ SYS-6028U-TNRT+

12x 3.5" Drive bays • 4 NVMe ports + 8 SATA3 ports • 24 DDR4 DIMM • 4x/2x 10GBase-T •

Virtualization Hosting, Cloud Computing, Data Center
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
12 Hot-swap 3.5" drive bays; 4 NVMe ports + 8 SATA3 ports; 12 SAS3 ports optional via AOC
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
SYS-6028U-TNRT+: 7 PCI-E 3.0 x8 slots (5 FH, 2 LP)
SYS-6028U-TNR4T+: 6 PCI-E 3.0 x8 slots (4 FH, 2 LP)
4x 10GBase-T (-TNR4T+) / 2x 10GBase-T (-TNRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty fans w/ optimal fan speed control
1000W Redundant Titanium Level (96%) Power Supplies

SYS-6028U-TR4+

/ SYS-6028U-TR4T+ / SYS-6028U-TRT+ / SYS-6028U-TRTP+

12x 3.5" drive bays • Opt. 12 SAS3 • GbE/10GBase-T/10G SFP+

Virtualization Hosting, Cloud Computing, Data Center
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
12 Hot-swap 3.5" drive bays; Optional 12 SAS3
24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
1 PCI-E 3.0 x16&7 PCI-E 3.0 x8 slots (5 FH, 2 LP)
1 PCI-E 3.0 x16&6 PCI-E 3.0 x8 slots (4 FH, 2 LP) 6028U-TR4T+
4 GbE (-TR4+) / 4x 10GBase-T (-TR4T+) / 2x 10GBase-T
(-TRT+) / 2x 10G SFP+ (-TRTP+), 1 Video, 1 COM/Serial, 5 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty fans w/ optimal fan speed control
1000W Redundant Titanium Level (96%) Power Supplies

SYS-6028UX-TR4

12x 3.5" drive bays: • SATA default, SAS3 Opt. Opt. 4 NVMe via AOC • 4 GbE LAN

Remote Workstation, EDA/CAD license server, High Performance single node compute
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
12 Hot-swap 3.5" drive bays: SATA3 default, SAS3 Optional, 4 Optional NVMe via AOC
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400
3 PCI-E 3.0 x16 (FHFL), 3 PCI-E 3.0 x8 (1 in x16, 1 LP, 1 internal LP)
4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty fans w/ optimal fan speed control
1000W Redundant Titanium Level (96%) Power Supplies
Hyper-Speed hardware acceleration technology

SYS-7038A-i

Thunderbolt Support • Up to 3 GPUs • 7.1 HD Audio

Mid-Tower Mainstream Whisper Quiet Workstation
Dual Socket R3 support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
4x 3.5" internal drive bays, 2x 5.25" drive bays, and 1x 3.5" internal fixed drive bay
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
3 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, and 1 PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC
I/O ports: 2 GbE, 1 Video, 2 COM/Serial, 6 USB 3.0, 4 USB 2.0, 1 Type A, 7.1 HD Audio
1 Super-quiet PWM rear fan
900W Gold Level Power Supply

SYS-7048A-T

Thunderbolt Support • Up to 3 GPUs • 7.1 HD Audio

4U Whisper Quiet Workstation for Virtualization and Multi Tasking
Dual Socket R3 support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
8x 3.5" Hot-swap drive bays
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
3 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, and 1 PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC
I/O ports: 2 GbE, 1 Video, 2 COM/Serial, 2 USB 3.0 (rear), 4 USB 2.0, 7.1 HD Audio
2x 2800 RPM cooling fans and 1x 2700 RPM fan
1200W Platinum Level Power Supply

SYS-7048GR-TR

Thunderbolt Support • Up to 4 GPUs • 7.1 HD Audio

GPU Server, Mission-critical app., enterprise server, large database, e-business, on-line transaction processing, oil & gas, medical app.
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
8 Hot-swap 3.5" SATA HDD Bays, 3 peripheral 5.25" drive bays, 1 fixed 3.5" drive bay
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
4 PCI-E 3.0 x16 (4 GPU cards opt.), 2 PCI-E 3.0 x8 (1 in x16), and 1 PCI-E 2.0 x4 (in x8) slot
2 GbE, 1 Video, 2 COM/Serial, 5 USB 3.0, 4 USB 2.0, 7.1 HD Audio, Thunderbolt Support
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 PWM Middle cooling fans and 2 PWM rear exhaust fans
2000W Redundant Titanium Level Power Supplies

SYS-7088B-TR4FT

7U, 8-way • U.2 NVMe Support option

In-memory Database, ERP, CRM, Business Intelligence, Scientific Research, Virtualization
8 Intel® Xeon® processor E7-8800 v4/v3 family (up to 24-Core)
Up to 15 or 23 (OEM) PCI-E 3.0 slots, 16 U.2 NVMe support option available
192 DDR4 memory DIMM slots, support up to 24TB of DDR4 ECC 3DS LRDIMMs
Up to 12x 2.5" hot-swap SAS3/SATA3 HDD/SSD drive bays
4 10GBase-T LAN ports (via SIOM)
Onboard BMC supports IPMI 2.0
Default HDD connection: 2 SATA2 ports via C602J onboard
2 SATA3 SATA DOM + 2 SATA2 M.2 for internal storage device connection via C602J onboard
5x 1600W Hot-swap (N+2) redundant Titanium Level power supplies

SYS-8028B-TR3F

/ SYS-8028B-C0R3FT

2U, 4-way

Enterprise mission-critical applications, financial, oil & gas, medical, e-Commerce, virtualization
Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 Low-profile slots
32 DIMM slots support up to 2TB of DDR3 ECC LRDIMMs
6x 3.5" Hot-swap SATA3 (TR3F) or SAS2 (C0R3FT) drive bays
Onboard Broadcom 3008 controller (C0R3FT)
I/O: 2 GbE (TR3F) / 2 10GBase-T (C0R3FT), 1 Video, 1 COM, 3 USB 2.0
System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
3 Hot-swap PWM Cooling fans
1400W Redundant Platinum Level Digital Power Supplies

SYS-8028B-TR4F

/ SYS-8028B-C0R4FT

2U, 4-way

Enterprise mission-critical applications, financial, oil & gas, medical, e-Commerce, virtualization
Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 Low-profile slots
32 DIMM slots support up to 4TB of DDR4 ECC 3DS LRDIMMs
6x 3.5" Hot-swap SATA3 (TR4F) or SAS2 (C0R4FT) drive bays
Onboard Broadcom 3008 controller (C0R4FT)
I/O: 2 GbE (TR4F) / 2 10GBase-T (C0R4FT), 1 Video, 1 COM, 3 USB 2.0
System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
3 Hot-swap PWM Cooling fans
1400W Redundant Platinum Level Digital Power Supplies

SYS-8048B-TR3F

/ SYS-8048B-C0R3FT

4U Tower, 4-way

Enterprise mission-critical applications, financial, oil & gas, medical, e-Commerce
Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 Full-height slots
32 DIMM slots support up to 2TB of DDR3 ECC LRDIMMs
5x 3.5" Hot-swap SATA (TR3F) or SAS3 (C0R3FT) drive bays
Onboard Broadcom 3008 controller (C0R3FT)
I/O: 2 GbE (TR3F) / 2 10GBase-T (C0R3FT), 1 Video, 1 COM, 3 USB 2.0
System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
3x 9cm + 3x 8cm Heavy Duty fans with speed control
1400W Redundant Platinum Level Digital Power Supplies

SYS-8048B-TR4F

/ SYS-8048B-C0R4FT

4U Tower, 4-way

Enterprise mission-critical applications, financial, oil & gas, medical, e-Commerce
Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 Full-height slots
32 DIMM slots support up to 4TB of DDR4 ECC 3DS LRDIMMs
5x 3.5" Hot-swap SATA (TR4F) or SAS3 (C0R4FT) drive bays
Onboard Broadcom 3008 controller (C0R4FT)
I/O: 2 GbE (TR4F) / 2 10GBase-T (C0R4FT), 1 Video, 1 COM, 3 USB 2.0
System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
3x 9cm + 3x 8cm Heavy Duty fans with speed control
1400W Redundant Platinum Level Digital Power Supplies

SYS-8048B-TR4FT

4U, 4-way

In-memory Database, ERP, CRM, Business Intelligence, Scientific Research, Virtualization
Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
11 PCI-E 3.0 slots (4 x16, 7 x8)
96 DIMM slots support up to 12TB of DDR4 ECC 3DS LRDIMMs
24x 3.5" hot-swap SAS2/SATA3 drive bays
Intel® X540 dual-port 10GBase-T LAN controller (via AOM)
Onboard BMC supports IPMI 2.0 + Virtual Media over LAN (via AOM)
Default HDD connection: 2 SATA3 + 4 SATA2 ports via C602J onboard
1620W Hot-swap (N+1) redundant Platinum Level power supplies

SYS-8048B-TRFT

4U, 4-way

In-memory Database, ERP, CRM, Business Intelligence, Scientific Research, Virtualization
Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
11 PCI-E 3.0 slots (4 x16, 7 x8)
96 DIMM slots support up to 6TB of DDR3 ECC LRDIMMs/RDIMMs
Up to 24x 3.5" hot-swap SAS2/SATA3 HDD/SSD drive bays
Intel® X540 dual-port 10GBase-T LAN controller (via AOM)
Onboard BMC supports IPMI 2.0 + Virtual Media over LAN (via AOM)
Default HDD connection: 2 SATA3 + 4 SATA2 ports via C602J onboard
1620W Hot-swap (N+1) redundant Platinum Level power supplies

SYS-F618H6-FTPT+

/ SYS-F618H6-FT+

Hadoop, 4 DP Nodes with Front I/O

Up to 12 Fixed 3.5" SATA3 drives per U
Evolutionary 4U Twin Architecture that Offers Industry's Best Capacity and Efficiency
4 Hot-plug System Nodes in 4U
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x8 (LP) expansion slots via riser card
Ports: 2 GbE/10GBase-T ("PT"), 1 Video, 2 USB 3.0
Server Management with Onboard IPMI 2.0 through Dedicated LAN Port
8x 8cm heavy duty fans with PWM fan speed control
2000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies

SYS-F618H6-FTPTL+

/ SYS-F618H6-FTL+

Hadoop, 4 DP Nodes with Front I/O

Up to 8 Fixed 3.5" SAS/SATA + 4 Fixed 3.5" SATA HDDs per U
Evolutionary 4U Twin Architecture that Offers Industry's Best Capacity and Efficiency
4 Hot-plug System Nodes in 4U
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x8 (LP) expansion slots via riser card
Ports: 2 GbE/10GBase-T ("PT"), 1 Video, 2 USB 3.0
Server Management with Onboard IPMI 2.0 through Dedicated LAN Port
SAS3 (12Gbps) via Broadcom 3008 controller; SW RAID 0, 1, 10 support
8x 8cm heavy duty fans with PWM fan speed control
2000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies

SYS-F618R2-FT

/ SYS-F618R2-FC0

8 DP Nodes with Front I/O

FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
2x 2.5" Hot-swap SATA3 HDD Bays (F618R2-FT); 2x 2.5" Hot-swap SAS3 HDD Bays; SAS3 via Broadcom 3008 (F618R2-FC0)
8x DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1x PCI-E 3.0 x16 Low-profile slot
I/O ports: 2x GbE, 1x Video, 2x USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
8x 8cm 9.5K RPM Rear fans total in the system
1620W Redundant Platinum Level Power Supplies

SYS-F618R2-FT+

/ SYS-F618R2-FTPT+ / SYS-F618R3-FT+ / SYS-F618R3-FTPT+

8 DP Nodes with Front I/O

FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
4 Fixed 2.5" ("R2") or 2 Fixed 3.5" ("R3") SATA3 drive bays
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x8 and 1 PCI-E 2.0 x4 or 2 PCI-E 3.0 x8 (optional)
Ports: 2 GbE/10GBase-T ("PT+"), 1 Video, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
8x 8cm 9.5k RPM Rear fans
2000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies

SYS-F618R2-RC1+

/ SYS-F618R2-RC1PT+ / SYS-F618R2-RC0+ / SYS-F618R2-RC0PT+

8-Node Rear I/O • 6 Hot-swap 2.5" HDDs per Node • 4 SAS3 + 2 NVMe

FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
6x 2.5" Hot-swap drive bays: 6 SAS3 or 4 SAS3 + 2 NVMe SSD SAS3 support via Broadcom 3108 ("C1") / Broadcom 3008 ("C0")
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 Micro LP slot (flexible networking opt.)
2 GbE/10GBase-T ("PT+"), 1 Video, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 heavy duty internal fans, optional rear fan w/ Optimal Fan Speed Control
2000W Redundant Titanium Level (96%) Power Supplies

SYS-F618R2-RT+

/ SYS-F618R2-R72+ / SYS-F618R2-RTPT+ / SYS-F618R2-R72PT+

8 DP Nodes with Rear I/O

FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
6 Hot-swap 2.5" SATA3 HDD Bays (-RT+ and -RTPT+ SKUs); SAS2 support via Broadcom 2208 (-R72+ and -R72PT+ SKUs)
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 Micro LP slot (flexible networking opt.)
Ports: 2 GbE/10GBase-T ("PT+"), 1 Video, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3x 4cm 14K RPM middle fans
1620W Redundant Platinum Level Power Supplies

SYS-F618R2-RTN+

/ SYS-F618R2-RTPTN+

8-Node Rear I/O • 6 Hot-swap 2.5" HDDs per Node • 4 SATA3 + 2 NVMe

FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
6x 2.5" Hot-swap drive bays: 6 SATA3 or 4 SATA3 + 2x NVMe SSD
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 Micro LP slot (flexible networking opt.)
2 GbE (SYS-F618R2-RTN+) / 10GBase-T (SYS-F618R2-RTPTN+), 1 Video, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 heavy duty internal fans, optional rear fan w/ Optimal Fan Speed Control
2000W Redundant Titanium Level (96%) Power Supplies

SYS-F618R3-FT

8 DP Nodes with Front I/O

FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
2 Fixed 3.5" SATA3 HDD Bays
8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 Low-profile slot
Ports: 2 GbE, 1 Video, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
8x 8cm 9.5K RPM Rear fans total in the system
1620W Redundant Platinum Level Power Supplies

SYS-F618R3-FTL

8 DP Nodes with Front I/O

FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
2 Fixed 3.5" SATA3 HDD Bays
8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 Low-profile slot
Ports: 2 GbE, 1 Video, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
2x 17cm Rear fans total in the system
1620W Redundant Platinum Level Power Supplies

SYS-F628G2-FT+

/ SYS-F628G2-FTPT+ / SYS-F628G2-FC0+ / SYS-F628G2-FC0PT+

Up to 6 Hot-swap 2.5" SATA (-FT+/-FTPT+) or SAS3 (-FC0+/-FC0PT+) HDDs per U
Outstanding high-density compute performance for Engineering and Scientific Research, Modeling, Simulation and HPC applications
4 Hot-plug System Nodes in 4U, each Node:
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
3 PCI-E 3.0 x16 support 3 Double-width GPU/Xeon Phi™; and 2 PCI-E 3.0 x8 Low-profile slots
I/O ports: 2 GbE/10GBase-T ("PT"), 1 Video, 2 USB 3.0
Server Management with Onboard IPMI 2.0 through Dedicated LAN Port
SAS3 (12Gbps) via Broadcom 3008 controller ("C0"); SW RAID 0, 1, 10 support
8x 8cm heavy duty 11K fans with air shroud and PWM fan speed control
2000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies

SYS-F628G3-FT+

/ SYS-F628G3-FTPT+ / SYS-F628G3-FC0+ / SYS-F628G3-FC0PT+

Up to 2 Hot-swap 3.5" SATA (-FT+/-FTPT+) or SAS3 (-FC0+/-FC0PT+) HDDs per U
Outstanding high-density compute performance for Engineering and Scientific Research, Modeling, Simulation and HPC applications
4 Hot-plug System Nodes in 4U, each Node:
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
3 PCI-E 3.0 x16 support 3 Double-width GPU/Xeon Phi™; and 2 PCI-E 3.0 x8 Low-profile slots
I/O ports: 2 GbE/10GBase-T ("PT"), 1 Video, 2 USB 3.0
Server Management with Onboard IPMI 2.0 through Dedicated LAN Port
SAS3 (12Gbps) via Broadcom 3008 controller ("C0"); SW RAID 0, 1, 10 support
8x 8cm heavy duty 11K fans with air shroud and PWM fan speed control
2000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies

SYS-F628R2-FC0

4 DP Nodes with Front I/O

FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
8 Hot-swap 2.5" SAS3 HDD Bays; SAS3 via Broadcom 3008
8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 Low-profile slot
Ports: 2 GbE, 1 Video, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
8x 8cm 9.5K RPM Rear fans total in the system
1280W Redundant Platinum Level Power Supplies

SYS-F628R2-FT+

/ SYS-F628R2-FTPT+ / SYS-F628R2-FC0+ / SYS-F628R2-FC0PT+

4 DP Nodes with Front I/O

Up to 6 Hot-swap 2.5" SATA3 (-FT+/-FTPT+) or SAS3 (-FC0+/-FC0PT+) HDDs per U
Outstanding high-density compute performance for Engineering and Scientific Research, Modeling, Simulation and HPC applications
4 Hot-plug System Nodes in 4U
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x8 (FH HL) slots
Ports: 2 GbE/10GBase-T ("PT"), 1 Video, 2 USB 3.0
Server Management with Onboard IPMI 2.0 through Dedicated LAN Port
SAS3 (12Gbps) via Broadcom 3008 controller ("C0"); SW RAID 0, 1, 10 support
8x 8cm heavy duty 9.5K hot swappable fans with air shroud and PWM fan speed control
1280W Redundant Platinum Level Power Supplies

SYS-F628R3-FT

/ SYS-F628R3-FC0

4 DP Nodes with Front I/O

FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
4 Hot-swap 3.5" SATA3 HDD Bays (F628R3-FT); 4 Hot-swap 3.5" SAS3 HDD Bays; SAS3 via Broadcom 3008 (F628R3-FC0)
8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16 Low-profile slot
Ports: 2 GbE, 1 Video, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
8x 8cm 9.5K RPM Rear fans total in the system
1280W Redundant Platinum Level Power Supplies

SYS-F628R3-FT+

/ SYS-F628R3-FTPT+ / SYS-F628R3-FC0+ / SYS-F628R3-FC0PT+

4 DP Nodes with Front I/O

Up to 2 Hot-swap 3.5" SATA (-FT+/-FTPT+) or SAS3 (-FC0+/-FC0PT+) HDDs per U
Outstanding high-density compute performance for Engineering and Scientific Research, Modeling, Simulation and HPC applications
4 Hot-plug System Nodes in 4U
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
2 PCI-E 3.0 x8 (FH HL) slots
Ports: 2 GbE/10GBase-T ("PT"), 1 Video, 2 USB 3.0
Server Management with Onboard IPMI 2.0 through Dedicated LAN Port
SAS3 (12Gbps) via Broadcom 3008 controller ("C0"); SW RAID 0, 1 support
8x 8cm heavy duty 9.5K hot swappable fans with air shroud and PWM fan speed control
1280W Redundant Platinum Level Power Supplies

SYS-F628R3-RC1B+

/ SYS-F628R3-RC1BPT+ / SYS-F628R3-RC0B+ / SYS-F628R3-RC0BPT+

4-Node Rear I/O • 8 Hot-swap 3.5" HDDs per 1U • 6 SAS3 + 2 NVMe

FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
8x 3.5" Hot-swap drive bays: 8 SAS3 or 6 SAS3 + 2 NVMe SSD SAS3 (12Gbps) support via Broadcom 3108 ("C1") / Broadcom 3008 ("C0")
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 Micro LP slot (flexible networking opt.)
2 GbE/10GBase-T ("PT+"), 1 Video, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
2 heavy duty internal fans, optional rear fan w/ Optimal Fan Speed Control
1280W Redundant Platinum Level Power Supplies

SYS-F628R3-RTB+

/ SYS-F628R3-R72B+ / SYS-F628R3-RTBPT+ / SYS-F628R3-R72BPT+

4 DP Nodes with Rear I/O

FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
6 + 2 Hot-swap 3.5" SATA3 HDD Bays(-RTB+ and -RTBPT+ SKUs); SAS2 support via Broadcom 2208 (-R72B+ and -R72BPT+ SKUs)
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 Micro LP slot (flexible networking opt.)
Ports: 2 GbE/10GBase-T ("PT+"), 1 Video, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
2x 8cm 11K RPM middle fans
1280W Redundant Platinum Level Power Supplies

SYS-F628R3-RTBN+

/ SYS-F628R3-RTBPTN+

4-Node Rear I/O • 8 Hot-swap 3.5" HDDs per 1U • 6 SATA3 + 2 NVMe

FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
8x 3.5" SATA3 or 6x 3.5" SATA3 and 2x NVMe Hot-swap drives per U
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 Micro LP slot (flexible networking opt.)
2 GbE (SYS-F628R3-RTBN+) / 10GBase-T (SYS-F628R3-RTBPTN+), 1 Video, 2 USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
2x 80mm 11K RPM middle fans
1280W Redundant Platinum Level Power Supplies

SYS-F648G2-FT+

/ SYS-F648G2-FTPT+ / SYS-F648G2-FC0+ / SYS-F648G2-FC0PT+

12 GPU/Coprocessor, Front I/O

Outstanding high-density compute performance for Engineering and Scientific Research, Modeling, Simulation and HPC applications
2 Hot-plug System Nodes in 4U supporting 12 double-width GPU/Coprocessor, each Node:
Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
8 Hot-swap 2.5" SATA3 (-FT+/-FTPT+) or SAS3 (-FC0+/-FC0PT+) HDDs; SAS3 via Broadcom 3008
16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
6 PCI-E 3.0 x16 support 6 Double-width GPU/Coprocessor ; and 2 PCI-E 3.0 x8 FHHL slots
I/O ports: 2x GbE (-FT+/-FC0+)/10GBase-T (-FTPT+/-FC0PT+), 1x Video, 2x USB 3.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
8 heavy duty rear fans, optional rear fan w/ Optimal Fan Speed Control
2000W Redundant Titanium Level (96%) High-efficiency Digital Power Supplies

SYS-1027GR-TQF

X9DRG-HF • + SC118GQ-1800GB

GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
4 Hot-swap 2.5" SATA2/3 HDD Bays
8 DIMMs support up to DDR3 1866MHz reg. ECC memory
4 (x16) PCI-E 3.0 and 1 (x8) PCI-E 3.0 (in x16) slots
I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 2 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
10 heavy duty fans w/ optimal fan speed control
1800W Platinum Level Power Supply

SYS-1027GR-TRF

X9DRG-HF • + SC118GQ-R1800B

GPU/MIC Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
4 Hot-swap 2.5" SATA2/3 HDD Bays
8 DIMMs support up to DDR3 1866MHz reg. ECC memory
3 (x16) PCI-E 3.0 and 1 (x8) PCI-E 3.0 (in x16) slots
I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 2 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
10 heavy duty fans w/ optimal fan speed control
1800W Redundant Platinum Level Power Supplies
K10 (Kepler) and Xeon Phi support

SYS-1027R-72RFTP

X9DRW-7TPF • + SC119TQ-R700WB

Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
8 Hot-swap 2.5" SAS/SATA2 HDD Bays (SAS2 via Broadcom 2208)
16 DIMMs support up to 512GB DDR3 1600MHz reg. ECC memory
Riser card support: 2 (x16) and 1 (x8) PCI-E 3.0 slots
I/O ports: 2 GbE, 2 SFP+ 10Gb, 1 Video, 1 COM/Serial, 7 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
6x 4cm Counter-rotating PWM fans
700W Redundant Gold Level Power Supplies

SYS-1027R-WC1NR

/ SYS-1027R-WC1NRT

2 NVMe PCIe SSD/SATA3

Dual Socket R (LGA 2011) support Intel® Xeon® processor E5-2600 or E5-2600 v2 family
2 NVMe and 8x 2.5" Hot-swap SAS3 drives; Broadcom 3108 SAS3; RAID 0, 1, 5, 6, 10, 50, 60
16 DIMM slots: up to 1TB ECC DDR3, up to 1866MHz memory
1 PCI-E 3.0 x16 Full-height, Half-length slot
Connectivity: 2 GbE (-WC1NR) / 2x 10GBase-T (-WC1NRT)
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5x 40x56mm counter-rotating PWM fans
700W Redundant Gold Level Power Supplies

SYS-1027R-WRF

X9DRW-iF + SC113TQ-R700WB

Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
8 Hot-swap 2.5" SATA HDD Bays for Customizable storage
16 DIMMs support up to 1TB DDR3 1866MHz reg. ECC memory
Riser card support: Left side - 2 PCI-E 3.0 x16 slots
I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 6 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
5x 4cm Counter-rotating PWM fans
700W Redundant Gold Level Power Supplies

SYS-4027GR-TR

/ SYS-4027GR-TRT

X9DRG-OTF-CPU • + SC418GTS-R3200B

Mission-critical app., enterprise server, large database, e-business, on-line transaction processing, oil & gas, medical app.
Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
24 Hot-swap 2.5" SAS2/SATA3 HDD Bays
24 DIMMs, up to 1.5TB, up to 1866MHz DDR3 memory
8 PCI-E 3.0 x16 (double-width), 2 PCI-E 3.0 x8 (in x16), 1 PCI-E 2.0 x4 (in x16)
I/O ports: 2 GbE/10GBase-T (TRT), 1 Video, 1 COM/Serial, 10 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
8 Hot-swap cooling fans
1600W Redundant Platinum Level Power Supplies

SYS-6017R-72RFTP

X9DRW-7TPF • + SC819TQ-R700WB

Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
4 Hot-swap 3.5" SAS/SATA2 HDD Bays (SAS2 via Broadcom 2208)
16 DIMMs support up to 512GB DDR3 1600MHz reg. ECC memory
Riser card support: 2 (x16) and 1 (x8) PCI-E 3.0 slots
I/O ports: 2 GbE, 2 SFP+ 10Gb, 1 Video, 1 COM/Serial, 7 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
6x 4cm Counter-rotating PWM fans
700W Redundant Gold Level Power Supplies

SYS-6027R-72RFTP+

X9DRW-7TPF+ • + SC829BTQ-R920WB

2U WIO Server
Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
10 Hot-swap 3.5" SAS/SATA HDD Bays
Support SAS2 HW RAID via Broadcom 2208
24 DIMMs support up to DDR3 1866MHz reg. ECC memory
Left: 1 (x16) & 2 (x8) PCI-E 3.0 slots; Right: 2 (x8) PCI-E 3.0 slots via Riser
I/O ports: 2 10G SFP+, 2 GbE, 1 Video, 1 COM/Serial, 5 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty fans w/ optimal fan speed control
920W Redundant Platinum Level Power Supplies

SYS-6027R-CDNRT+

4 NVMe ports • SAS3 via Broadcom 3108 • 24 DDR3 DIMM • 2x 10GBase-T

Data Center Optimized (DCO)
Dual Socket R (LGA 2011) support Intel® Xeon® processor E5-2600 or E5-2600 v2 family
12x 3.5" Hot-swap Bays; 4x NVMe + 8 SAS/SATA; SAS3 via Broadcom 3108; HW RAID 0, 1, 5, 6, 10, 50, 60 support
24 DIMM slots: up to 1.5TB ECC DDR3, up to 1866MHz memory
1 PCI-E 3.0 x16 (FHHL), 2 PCI-E 3.0 x8 (FHHL), 1 PCI-E 3.0 x8 (LP)
2x 10GBase-T, 1 Video, 1 COM, 4 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 heavy duty fans w/ optimal fan speed control
920W Redundant Platinum Level Power Supplies

SYS-6027TR-D70RF

X9DRT-HF • + SC827HD-R1K28B

2U Twin Server; EACH NODE (x2 nodes):
Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
6 Hot-swap 3.5" HDD Bays: SAS via Broadcom 2008
8 DIMMs support up to 256GB DDR3 1600MHz reg. ECC memory
3 (x8) PCI-E 3.0 slots (1x LP and 2x FH FL)
I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 3 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
Mellanox ConnectX QDR (QRF) / FDR (FRF) InfiniBand Controller
4 heavy duty fans w/ optimal fan speed control
1280W Redundant Platinum Level Power Supplies

SYS-6027TR-H70RF

X9DRT-HF • + SC827HQ-R1620B

2U Twin²® Server; EACH NODE (x4 nodes):
Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
3 Hot-swap 3.5" HDD Bays: SAS via Broadcom 2008
16 DIMMs support up to DDR3 1866MHz reg. ECC memory
1 (x16) PCI-E 3.0 Low-profile (LP) slot
I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 3 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
4 heavy duty fans w/ optimal fan speed control
1620W Redundant Platinum Level Power Supplies

SYS-6037R-TXRF

X9DRX+-F • + SC835XTQ-R982B

3U Multi-I/O Server for Flexible & Efficient Expandable I/O Deployment
Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
8 Hot-swap 3.5" HDD Bays and 2 5.25" Peripheral Drive Bays
16 DIMMs support up to 512GB DDR3 1600MHz reg. ECC memory
10 (x8) PCI-E 3.0 and 1 (x4) PCI-E 2.0 (in x8) expansion slots
I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 10 USB 2.0
System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
3 middle fans and 1 rear exhaust fan
980W Redundant Platinum Level Power Supplies

SYS-F617R3-FT+

X9DRFF-i+ • + CSE-F418IF-R1K62B

2x (up to 4) 3.5" fixed SATA HDDs per 1/2 U
Evolutionary 4U Twin Architecture that Offers Industry's Best Capacity and Efficiency
4x 1620W Redundant Platinum Level (94%+) Digital Power Supplies
8 Hot-plug System Nodes in 4U, each Node:
Dual Intel® Xeon® Processor E5-2600 or E5-2600 v2 Family; Socket R (LGA 2011)
16 DIMMs, up to 1TB, up to 1866MHz DDR3 memory
1 PCI-E 3.0 x16 Low-profile (LP) and 1 PCI-E 3.0 x8 Low-profile (LP) slots via riser card
Dual LAN ports via Intel® i350 Gigabit Ethernet controller
Server Management with Onboard IPMI 2.0 through Dedicated LAN Port
SATA3 (6Gbps) and SATA2 (3Gbps); RAID 0, 1 support
Standard 19" Rack Cabinet support

Rackmount Servers

1U Dual Processor

2U Dual Processor

Single Processor

Multi Processor

Product Families

GPU Servers

8U/10U GPU Lines

4U/5U GPU Lines

2U GPU Lines

1U GPU Lines

Twin Servers

FlexTwin™

BigTwin®

GrandTwin®

TwinPro®

Twin

FatTwin®

Blade Servers

SuperBlade®

MicroBlade®

MicroCloud

Storage Servers

All Storage Systems

All-Flash NVMe

Top-Loading Storage

JBOF

Petascale Grace Storage

Enterprise-Optimized Storage

JBOD Storage Enclosures

Motherboards

Server Boards

Workstation Boards

Embedded / IoT Boards

Desktop / Gaming Boards

Previous Gen.

Motherboard Matrix

Global SKUs

Chassis

1U Chassis

2U Chassis

3U Chassis

4U / Tower Chassis

Mid / Mini-Tower

Embedded / IoT Chassis

Mobile Racks / Drive Kits

JBOD Storage Enclosures

Global SKUs

SuperRack®

Data Center Solution Engineering (DCSE)

Rack Integration Service

Accessories

Cable Matrix

Riser Card Matrix

Storage AOC Matrix

Power Supply Matrix

Heatsink Matrix

System Fan Matrix

Mobile Racks / Drive Kits

Front Chassis Bezels

Storage, I/O, Security

Edge & Telecom Servers

Fanless Edge Systems

Compact Edge Systems

Edge GPU Systems

Outdoor Edge Systems

1U Edge Network Systems

5G/Telecom Systems

Embedded Components

Embedded Motherboards

Embedded Chassis

Switches

Adapters

SuperWorkstations

Liquid-Cooled AI Development Platform

Single-Processor

Dual-Processor

Supero™ Gaming Solutions

AI Infrastructure

AI SuperCluster
