SuperStorage 6028R-E1CR24L (Complete System Only)

  Products  Systems   Simply Double   [ 6028R-E1CR24L ]


SAS3 IT mode controller, Storage Expandable



Integrated Board
Super X10DSC+

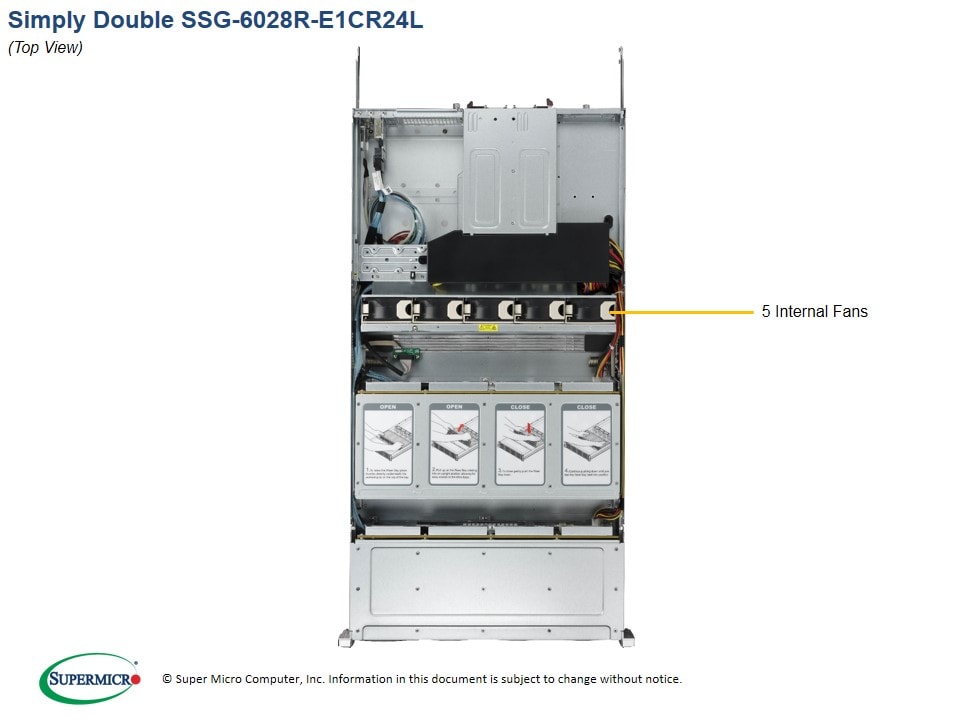

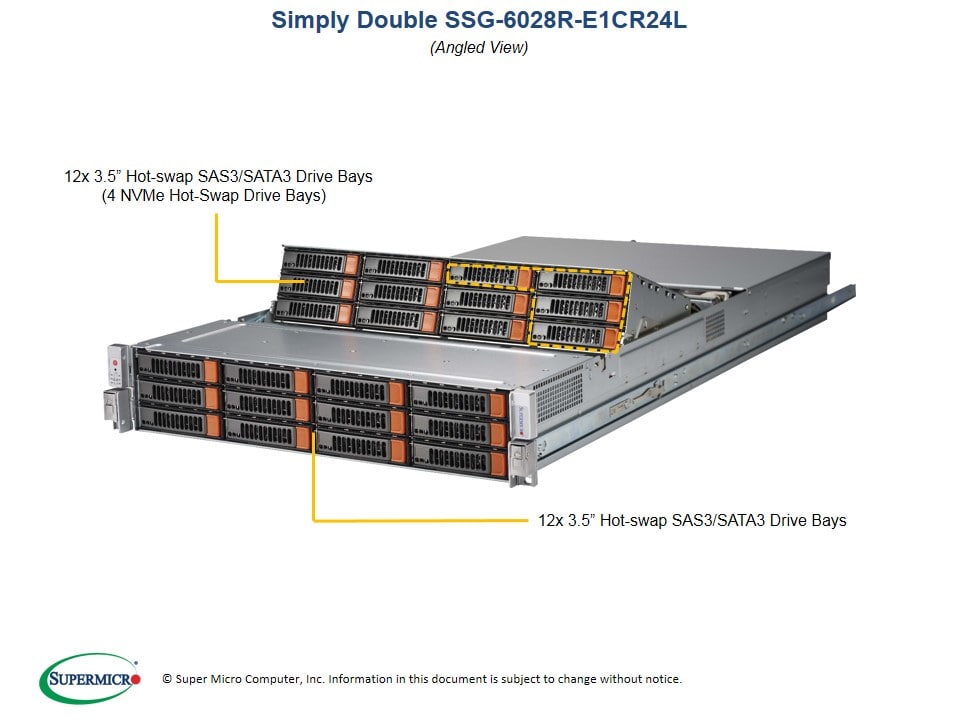

Views: | Angled View | Top View |

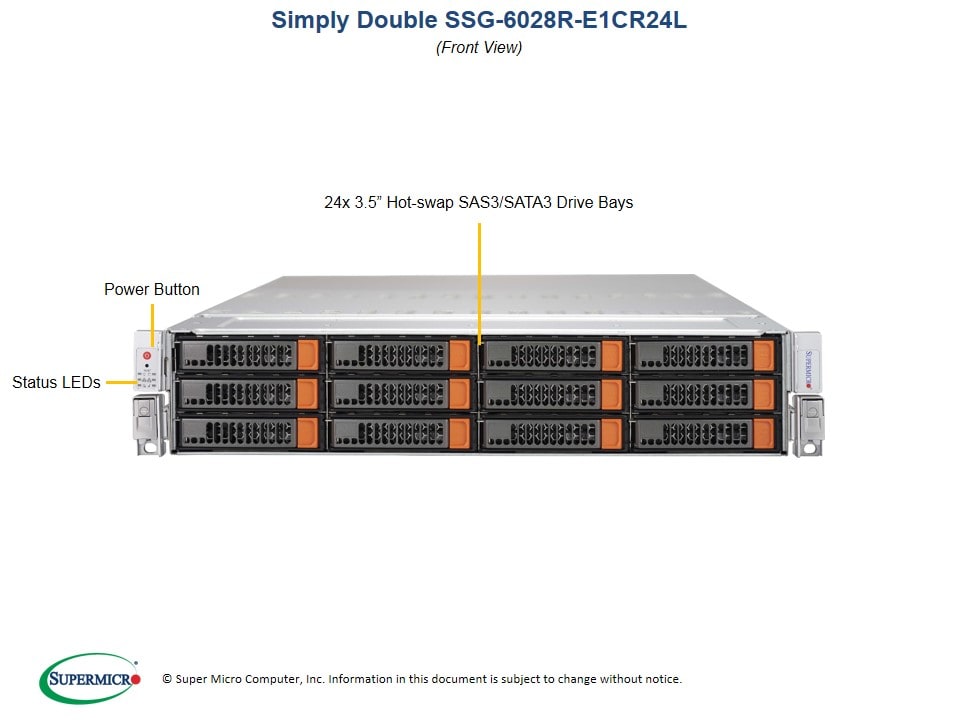

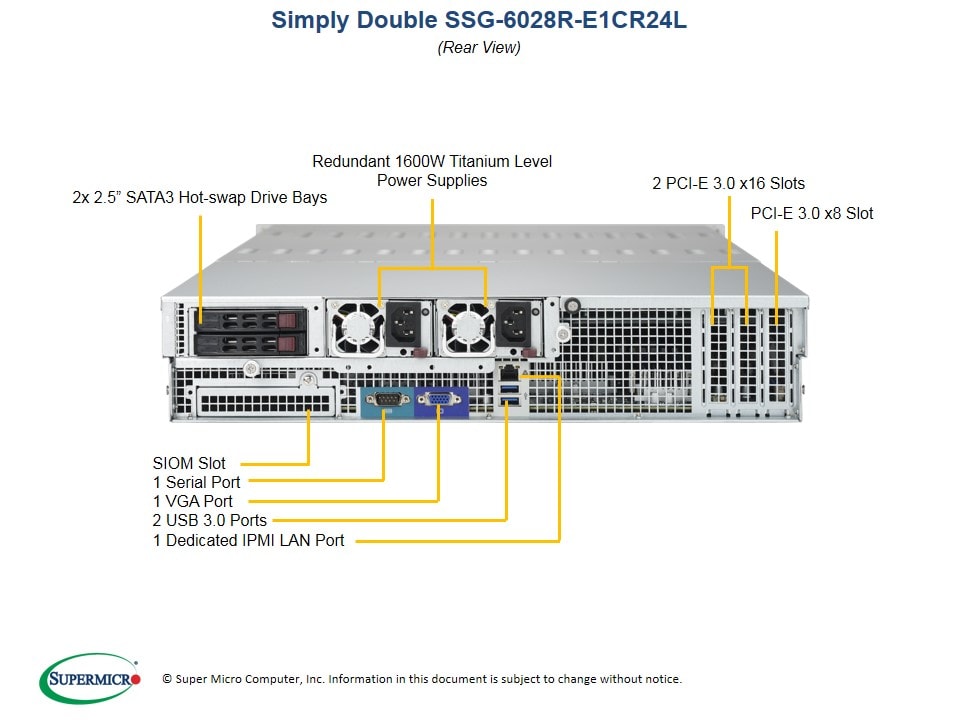

| Front View | Rear View |

Key Features
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 3TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 24x DIMM slots
3. 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
4. SIOM for flexible networking options
5. 24x 3.5" Hot-swap SAS3/SATA3 drive
    bays; 2x 2.5" Hot-swap rear
    SATA drive bays
6. Broadcom 3008 SAS3 IT mode controller
7. Server remote management: IPMI 2.0
    / KVM over LAN / Media over LAN
8. 5x 8cm hot-swap redundant PWM fans
9. 1600W Redundant Power Supplies
    Titanium Level (96%)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, 6 HDDs and 1 NIC or SIOM card).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Drive Options   Tested SIOM

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SSG-6028R-E1CR24L
  • SuperStorage 6028R-E1CR24L (Black)

Motherboard

Super X10DSC+

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
SAS3
  • Broadcom 3008 SAS3 IT mode
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • SIOM support for flexible networking options
Graphics
  • ASPEED AST2400 BMC

Input / Output
LAN
  • LAN ports via SIOM Add-On-Card
USB
  • 3 USB 3.0 ports (2 rear + 1 Type A)
Video
  • 1 VGA port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-826SE1C4-R1K62

Dimensions
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 34" (863.6mm)
  • With Cable Management Arm Installed:
    41" (1041.4mm)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • 2 Network activity LEDs
  • System Information LED
  • Power fail LED

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 slots
  • 1 PCI-E 3.0 x8 slot

Drive Bays
Hot-swap
  • 24x 3.5" Hot-swap SAS3/SATA3 drive bays
  • 2x 2.5" rear Hot-swap SATA drive bays

Backplane
Two 12 port SAS3 12G expander backplanes, each supporting up to 12x 2.5" SAS3 drives

System Cooling
Fans
  • 5x 8cm hot-swap redundant PWM cooling fans

Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power
  • 1600W/1000W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DSC+
CSE-826SE1C4-R1K62
1
1
Super X10DSC+ Motherboard
2U Chassis
Cable Management Arm MCP-290-00086-0N 1 Cable Management Arm for 1U ball bearing Chassis
Add-on Card / Module AOM-S3008M-L8-P 1 Mezz card with LSI 3008 controller
Backplane BPN-SAS3-826SEL1-N4 2 12-port 2U Simply-Double SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD and 4x NVMe/SAS3/SATA3 storage devices
Cable 1 CBL-PWEX-0702 1 PWEX,2X4F/P4.2 TO 1X4F/P5.08/RA,32CM,18AWG,YEL,BLK*2,RED
Cable 2 CBL-SAST-0835 2 SLIMLINE SAS to MiniSAS HD, INT, 100CM, 32AWG
Cable 3 CBL-SAST-0836 2 MINI SAS HD,INT,SAS3 SSD,48CM,32AWG
Heatsink / Retention SNK-P0047PS 2 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
* Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
* Power Distributor PDB-PT226S-8824 1 12V 25pair connector inpu with special wires 12V/168A output
* Cable 4 CBL-0156L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,40CM,28AWG
* Cable 5 CBL-0459L 2 LATCH CLAMP,AC POWER CORD
* Cable 6 CBL-CDAT-0728 1 4 Pin to 4 Pin I2C cable, 65cm, 26AWG, 4 wires, pinout 1-1, for vpp header(jnvi2c1),RoHS/REACH
* Cable 7 CBL-PWEX-0760 1 PWR EXT,2X4F/P4.2 TO 2X4F/P4.2,CPU 12V,13CM,16AWG,RoHS/REACH
* Cable 8 CBL-PWEX-0901 2 BPN PWEX,2X4F to 2X4F,GPU,P4.2,BLK*4,YEL*2,RED*2,33CM,18AWG,
* Cable 9 CBL-PWEX-0903 2 BPN PWEX,2X4F to 2X4F,GPU,P4.2,BLK*4,YEL*2,RED*2,72CM,18AWG,For CSE-226STS-R1K62P1 only
* FAN 1 FAN-0168L4 5 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for SC226S Chassis (48-bay)
* Drive Tray(s) MCP-220-00133-0B 24 Black gen 8 hot-swap 3.5\" HDD tray
* Front Panel MCP-280-00015-0N 1 Front control board for SC826 (inside the left handle),FP826
* Front Panel MCP-280-00018-0N 1 SC826 front control board adapter
* Drive Tray(s) MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List
  Part Number Qty Description
Converter Tray MCP-220-00140-0B - Hot-swap 3.5" to 2.5" converter tray
2x 2.5" rear SATA drive bay to support (2+2) drive bays CBL-PWEX-0650
MCP-240-22603-0N
MCP-240-22604-0N
MCP-220-82616-0N
1
1
1
1
8-pin female to 2 Right Angle big 4-pin female power, 47/62cm
2U Rear Window support (2 + 2) 2.5 HDD
2U Rear plate support (2 + 2) 2.5 HDD
Rear 2.5 x 2 Hot swap HDD kit
4 NVMe Drives Support CBL-SAST-0929
MCP-220-00140-0B
4
4
OCuLink 0.91 to MiniSAS HD,INT,PCIe NVMe SSD, 57CM,34AWG
Hot-swap 3.5" to 2.5" converter tray
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
SIOM Network Card(s) AOC-MGP-I2
AOC-MGP-I4
AOC-MTG-I2T
AOC-MTG-I4T
AOC-MTGN-I2S
AOC-MTG-I4S
-
-
-
-
-
-
SIOM 2-port GbE, Intel i350-AM2
SIOM 4-port GbE, Intel i350-AM4
SIOM 2-port 10GBase-T, Intel X550
SIOM 4-port 10GBase-T, Intel X550
SIOM 2-port 10G SFP+, Intel 82599ES
SIOM 4-port 10G SFP+, Intel XL710
Hide Parts List
