Wide Variety of Servers for Entry Level or Volume Selections Supporting Mainstream Server Applications

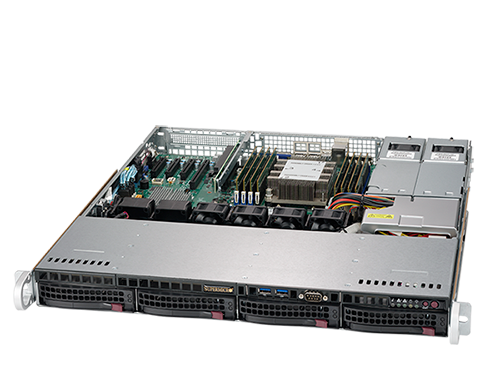

1U Rackmount

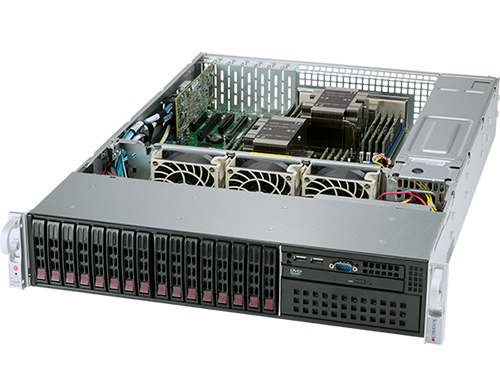

2U Rackmount
4U Tower/Rackmount

Mainstream Application Optimized

The Mainstream Application Optimized SuperServer® product family from Supermicro is a series of servers designed for entry level or volume selections. Enterprise IT Managers can choose the exact model for their applications, with a precise set of integrated features needed for their applications.

The new generation of X11 Mainstream SuperServers supports up to: 4TB DDR4-2933MHz memory in 16 DIMM slots with support for Intel® Optane™ DC Persistent Memory, 6 PCI-E 3.0 slots, 10 SATA 3.0 (6Gbps) ports with Intel® C620 controller, LAN supports 2x 10GBase-T or 2x 1GbE ports, redundant Platinum Level (94%+) or Titanium Level (96%) power supplies, integrated IPMI 2.0 with KVM over dedicated LAN, and dual or single Socket P (LGA 3647) 2nd generation Intel® Xeon® Scalable processors; UPI up to 10.4GT/s, Support CPU TDP 45-205W with IVR. This range enables customers to save significant amounts on CAPEX/OPEX thanks to Supermicro energy-efficient server design.

The Supermicro Application Optimized SuperServer® product family supports a wide variety of mainstream server applications, including General Purpose Data Center Servers, Web Servers, and Enterprise/Workgroup Server Systems, in multiple attractive and cost-effective form factors.

Supports up to:

  • 4TB DDR4-2933MHz ECCmemory in 16 DIMM slots with support for Intel® Optane™ DC Persistent Memory
  • 205W per socket
  • 16x 2.5" drives (8 SAS3 + 8 SATA3) or 8x 3.5" SATA3 drives
  • 6 PCI-E 3.0 slots
  • Redundant 1280W high efficiency power supplies
New Generation of Computing Excellence
2nd generation Intel® Xeon® Scalable processors supported.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
SYS-1029U-TN12RV
SYS-1029U-TN12RV (Coming Soon)
12 NVMe support • 24 DDR4 DIMM • Flexible Networking
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4 2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 12 Hot-swap 2.5" NVMe/SATA3 drive bays
  • 1 PCI-E 3.0 x16 (FH, 10.5"L), 1 PCI-E 3.0 x8 (LP) slots
  • Flexible networking options, up to 25GbE via Ultra Riser card, 1 Dedicated IPMI port
  • 1 VGA (rear), 1 Serial, 2 USB 3.0 (rear)
  • 8 heavy duty fans w/ optimal fan speed control
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029UZ-TN20R25M
SYS-1029UZ-TN20R25M
20 NVMe support • 24 DDR4 DIMM • 2x 25G SFP28
  • Virtualization, Cloud Computing, High End Enterprise Server, SDS
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 20 Hot-swap 2.5" 7mm drive bays; up to 20 NVMe (CPU1: 8 NVMe + 2 NVMe/SAS/SATA3 hybrid, CPU2: 10 NVMe)
  • Up to 2 PCI-E 3.0 x8 (FH, FL)
  • 2x 25G SFP28 Ethernet ports, 1 Dedicated IPMI port
  • 1 VGA, 1 Serial, 3 USB 3.0 (2 rear, 1 Type A), 2 USB 2.0 (front)
  • 8 heavy duty fans w/ optimal fan speed control, 2 air shroud
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029UZ-TN20R25M
SYS-2029UZ-TN20R25M
20 NVMe support • 24 DDR4 DIMM • 2x 25G SFP28
  • Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays; 20 NVMe + 4 SAS3/SATA
  • 1 PCI-E 3.0 x8 (LP)
  • 2x 25G SFP28 Ethernet ports, 1 Dedicated IPMI port
  • 2 VGA, 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029UZ-TR4+
SYS-2029UZ-TR4+
  • Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays; 20 SAS3 + 4 SAS3/NVMe
  • 1 PCI-E 3.0 x16 (FH, 10.5"L); 5 PCI-E 3.0 x8 (FH, 10.5"L); 1 PCI-E 3.0 x8 (LP); 1 PCI-E 3.0 x8 (internal LP)
  • 4 Gigabit Ethernet ports, 1 Dedicated IPMI port
  • 2 VGA, 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6029UZ-TR4+
SYS-6029UZ-TR4+
  • Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 12 Hot-swap 3.5" drive bays; Optional 8 SAS3 + 4 SAS3/NVMe
  • 1 PCI-E 3.0 x16 (FH, 10.5"L); 5 PCI-E 3.0 x8 (FH, 10.5"L); 1 PCI-E 3.0 x8 (LP); 1 PCI-E 3.0 x8 (internal LP)
  • 4 Gigabit Ethernet ports, 1 Dedicated IPMI port
  • 2 VGA, 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029UX-LL1-C16
SYS-1029UX-LL1-C16
Xeon 6244 and 12x 16GB DDR4-2933MHz included
  • Financial Analysis, Business Critical Applications, Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors (Dual Intel® Xeon® Gold 6244 Processors included); Dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 8 Hot-swap 2.5" SAS3 drive bays and 2 NVMe bays
  • 2 PCI-E 3.0 x16 (FH, 10.5"/10" L), 1 PCI-E 3.0 x8 (LP),
    1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
  • 4x 1GbE ports, 1 Dedicated IPMI port
  • 1 VGA, 1 Serial, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
SYS-1029UX-LL1-S16
SYS-1029UX-LL1-S16
Xeon 6144 and 12x 16GB DDR4-2666MHz included
  • Financial Analysis, Business Critical Applications, Enterprise Server
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors (Dual Intel® Xeon® Gold 6144 Processors included); Dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 2TB 3DS ECC DDR4-2666 MHz RDIMM/LRDIMM
  • 8 Hot-swap 2.5" SAS3 drive bays and 2 NVMe bays
  • 2 PCI-E 3.0 x16 (FH, 10.5"/10" L), 1 PCI-E 3.0 x8 (LP),
    1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
  • 4x 1GbE ports, 1 Dedicated IPMI port
  • 1 VGA, 1 Serial, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
SYS-1029UX-LL2-S16
SYS-1029UX-LL2-S16
Xeon 6146 and 12x 16GB DDR4-2666MHz included
  • Financial Analysis, Business Critical Applications, Enterprise Server
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors (Dual Intel® Xeon® Gold 6146 Processors included); Dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 2TB 3DS ECC DDR4-2666MHz RDIMM/LRDIMM
  • 8 Hot-swap 2.5" SAS3 drive bays and 2 NVMe bays
  • 2 PCI-E 3.0 x16 (FH, 10.5"/10" L), 1 PCI-E 3.0 x8 (LP),
    1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
  • 4x 1GbE ports, 1 Dedicated IPMI port
  • 1 VGA, 1 Serial, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
SYS-1029UX-LL3-S16
SYS-1029UX-LL3-S16
Xeon 6154 and 12x • 16GB DDR4-2666MHz included
  • Financial Analysis, Business Critical Applications, Enterprise Server
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors (Dual Intel® Xeon® Gold 6154 Processors included); Dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 2TB 3DS ECC DDR4-2666MHz RDIMM/LRDIMM
  • 8 Hot-swap 2.5" SAS3 drive bays and 2 NVMe bays
  • 2 PCI-E 3.0 x16 (FH, 10.5"/10" L), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
  • 4x 1GbE ports, 1 Dedicated IPMI port
  • 1 VGA, 1 Serial, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
SYS-1029U-TN10RT
SYS-1029U-TN10RT
10 NVMe support • 24 DDR4 DIMM • 2x 10GBase-T
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 10 Hot-swap 2.5" drive bays; 4 NVMe/SAS3 hybrid + 6 NVMe ports
  • 2 PCI-E 3.0 x16 Full-height, 10.5" L slots
  • 2x 10GBase-T ports, 1 Dedicated IPMI port
  • 2 VGA (1 rear, 1 onboard), 1 Serial, 5 USB 3.0
  • 8 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029U-TR4T
SYS-1029U-TR4T

/ SYS-1029U-TR4 / SYS-1029U-TRT / SYS-1029U-TRTP / SYS-1029U-TRTP2 / SYS-1029U-TR25M

10x 2.5" SATA3 or Opt. • 8x SAS3 + 2x NVMe/SATA • Flexible Network Opt.
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 10 Hot-swap 2.5" drive bays; 10 SATA3 (2 hybrid ports - 2 NVMe opt.)
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 2 PCI-E 3.0 x8 (1 LP, 1 LP internal)
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (1 LP), 1 PCI-E 3.0 x16 (internal LP) - SYS-1029U-TR25M
  • Networking Options:
    • SYS-1029U-TR4 - 4x 1GbE ports
    • SYS-1029U-TR4T - 4x 10GBase-T ports
    • SYS-1029U-TRT - 2x 10GBase-T ports
    • SYS-1029U-TRTP - 2x 10G SFP+ ports
    • SYS-1029U-TRTP2 - 2x 10G SFP+ ports + 2x 1GbE ports
    • SYS-1029U-TR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
  • 5 USB 3.0 (2 rear, 2 front, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029U-E1CR4T
SYS-1029U-E1CR4T

 / SYS-1029U-E1CR4 / SYS-1029U-E1CRT / SYS-1029U-E1CRTP / SYS-1029U-E1CRTP2 / SYS-1029U-E1CR25M

10x 2.5" SAS3 • Flexible Network Opt.
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 10 Hot-swap 2.5" drive bays; 10 SAS3 via optional AOC
  • 2 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (1 LP), 1 PCI-E 3.0 x16 (internal LP) - SYS-1029U-E1CR25M
  • Networking Options:
    • SYS-1029U-E1CR4 - 4x 1GbE ports
    • SYS-1029U-E1CR4T - 4x 10GBase-T ports
    • SYS-1029U-E1CRT - 2x 10GBase-T ports
    • SYS-1029U-E1CRTP - 2x 10G SFP+ ports
    • SYS-1029U-E1CRTP2 - 2x 10G SFP+ ports + 2x 1GbE ports
    • SYS-1029U-E1CR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 COM/Serial
  • 5 USB 3.0 (2 rear, 2 front, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6019U-TN4R4T
SYS-6019U-TN4R4T

 / SYS-6019U-TN4RT

4 NVMe support • 24 DDR4 DIMM • 4x/2x 10GBase-T
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 Hot-swap 3.5" drive bays; 4 NVMe/SAS3 hybrid ports, 2 internal M.2 (1 SATA3, 1 NVMe)
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 2 PCI-E 3.0 x8 (1 LP, 1 LP internal)
  • Networking Options:
    • SYS-6019U-TN4R4T - 4x 10GBase-T ports
    • SYS-6019U-TN4RT - 2x 10GBase-T ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
  • 3 USB 3.0 (2 rear, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6019U-TR4T
SYS-6019U-TR4T

 / SYS-6019U-TR4 / SYS-6019U-TRT / SYS-6019U-TRTP / SYS-6019U-TRTP2 / SYS-6019U-TR25M

4x 3.5" SATA3 • Flexible Network Opt.
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 Hot-swap 3.5" drive bays
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 2 PCI-E 3.0 x8 (1 LP, 1 LP internal)
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (1 LP), 1 PCI-E 3.0 x16 (internal LP) - SYS-6019U-TR25M
  • Networking Options:
    • SYS-6019U-TR4 - 4x 1GbE ports
    • SYS-6019U-TR4T - 4x 10GBase-T ports
    • SYS-6019U-TRT - 2x 10GBase-T ports
    • SYS-6019U-TRTP - 2x 10G SFP+ ports
    • SYS-6019U-TRTP2 - 2x 10G SFP+ ports + 2x 1GbE ports
    • SYS-6019U-TR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
  • 3 USB 3.0 (2 rear, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029U-TN24R4T
SYS-2029U-TN24R4T
24 NVMe support • 4x 10GBase-T
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays; 24 NVMe (4 hybrid ports - SAS3 via AOC), 2 rear Hot-swap 2.5" drive bays; 2 internal M.2 (1 SATA3, 1 NVMe)
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (LP)
  • 4x 10GBase-T ports, 1 Dedicated IPMI port
  • 2 VGA (1 rear, 1 onboard), 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm PWM fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029U-TR4T
SYS-2029U-TR4T

 / SYS-2029U-TR4 / SYS-2029U-TRT / SYS-2029U-TRTP / SYS-2029U-TR25M

24x 2.5" Drive Bays • Opt. 20 SAS3 + 4 NVMe/SAS3 • Flexible Network Opt.
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays; 14 SATA (opt. 20 SAS3 + 4 NVMe/SAS3)
  • Expansion Slots:
    • 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
    • 7 PCI-E Slots (SYS-2029U-TR4T): 2 PCI-E 3.0 x16, 5 PCI-E 3.0 x8
  • Networking Options:
    • SYS-2029U-TR4 - 4x 1GbE ports
    • SYS-2029U-TR4T - 4x 10GBase-T ports
    • SYS-2029U-TRT - 2x 10GBase-T ports
    • SYS-2029U-TRTP - 2x 10G SFP+ ports
    • SYS-2029U-TR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
  • 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm PWM fans
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029U-E1CR4T
SYS-2029U-E1CR4T

 / SYS-2029U-E1CR4 / SYS-2029U-E1CRT / SYS-2029U-E1CRTP / SYS-2029U-E1CR25M

24x 2.5" SAS3 Opt. 4 NVMe • Flexible Network Opt.
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays; optional 20 SAS3 + 4 NVMe/SAS3, 2 rear Hot-swap 2.5" drive bays
  • Expansion Slots:
    • 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
    • 7 PCI-E Slots (SYS-2029U-E1CR4T): 2 PCI-E 3.0 x16, 5 PCI-E 3.0 x8
  • Networking Options:
    • SYS-2029U-E1CR4 - 4x 1GbE ports
    • SYS-2029U-E1CR4T - 4x 10GBase-T ports
    • SYS-2029U-E1CRT - 2x 10GBase-T ports
    • SYS-2029U-E1CRTP - 2x 10G SFP+ ports
    • SYS-2029U-E1CR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port
  • 2 VGA (1 rear, 1 onboard), 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm PWM fans
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6029U-TR4T
SYS-6029U-TR4T

 / SYS-6029U-TR4 / SYS-6029U-TRT / SYS-6029U-TRTP / SYS-6029U-TR25M

12x 3.5" SATA3 Opt. 4 NVMe • Flexible Network Opt.
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 12 Hot-swap 3.5" drive bays; Optional 8 SAS3 + 4 SAS3/NVMe and 2 Rear Hot-swap 2.5" drive bays
  • Expansion Slots:
    • 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
    • 7 PCI-E Slots (SYS-6029U-TR4T): 2 PCI-E 3.0 x16, 5 PCI-E 3.0 x8
  • Networking Options:
    • SYS-6029U-TR4 - 4x 1GbE ports
    • SYS-6029U-TR4T - 4x 10GBase-T ports
    • SYS-6029U-TRT - 2x 10GBase-T ports
    • SYS-6029U-TRTP - 2x 10G SFP+ ports
    • SYS-6029U-TR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
  • 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6029U-E1CR4T
SYS-6029U-E1CR4T

 / SYS-6029U-E1CR4 / SYS-6029U-E1CRT / SYS-6029U-E1CRTP / SYS-6029U-E1CR25M

12x 3.5" SAS3 opt. 4 NVMe • Flexible Network Opt.
  • Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 12 Hot-swap 3.5" drive bays; 12 SAS3 via opt. AOC (4 hybrid ports - 4 NVMe opt.)
  • Expansion Slots:
    • 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
    • 7 PCI-E Slots (SYS-6029U-E1CR4T): 2 PCI-E 3.0 x16, 5 PCI-E 3.0 x8
  • Networking Options:
    • SYS-6029U-E1CR4 - 4x 1GbE ports
    • SYS-6029U-E1CR4T - 4x 10GBase-T ports
    • SYS-6029U-E1CRT - 2x 10GBase-T ports
    • SYS-6029U-E1CRTP - 2x 10G SFP+ ports
    • SYS-6029U-E1CR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
  • 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm PWM fans
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2049U-TR4
SYS-2049U-TR4
2U Ultra 4-Way • 112 Cores per System • 48 DDR4 DIMMs
  • High End Enterprise Server, in-memory database, Business Intelligence, High Performance Computer Cluster, Virtualization, ERP, CRM
  • Quad Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 11 PCI-E 3.0 total: 5 PCI-E 3.0 x8 and 6 PCI-E 3.0 x16 slots
  • 48 DIMMs; up to 12TB 3DS ECC DDR4-2399 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays: 4 U.2 NVMe + 20 SAS3 opt. via AOC
  • 4 GbE via AOC, 1 dedicated IPMI
  • 1 VGA, 1 COM, 2 USB 3.0 (rear)
  • 4 heavy duty 8cm PWM fans
  • 1600W (1+1) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-5028TK-HTR
SYS-5028TK-HTR
  • HPC/Cluster, Financial Analysis, oil & gas simulation
  • 4 Hot-plug System Nodes in 2U, each Node:
  • Single Socket P (LGA 3647) support: Intel® Coprocessor x200; optional integrated Intel® Omni-Path fabric
  • 3 Hot-swap 3.5" SATA3 Drive Bays
  • 6 DIMM slots; up to 384GB ECC LRDIMM or 192GB RDIMM, DDR4-2400MHz
  • 2 PCI-E 3.0 x16 (Low-profile) slots
  • 2 GbE, 1 Video, 1 COM, 2 USB 3.0 (rear)
  • System management: Built-in Server management tool(IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy-duty 8cm PWM fans w/ optimal fan speed control
  • 2000W Redundant Titanium Level Power Supplies
SYS-5038K-i
SYS-5038K-i
  • Development Box, Financial Analysis, Oil and Gas Simulation, Code Optimization
  • Single socket P (LGA 3647) supports: Intel® Coprocessor x200
  • Removable 3.5" and 2.5" HDD/SSD cages with tool-less trays for up to 10 drives, 2x 5.25" Peripheral Drive Bays
  • 6 DIMM slots; up to 384GB ECC LRDIMM or 192GB RDIMM, DDR4-2400MHz
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x4 slots
  • 2 GbE, 1 Video, 1 COM, 6 USB 3.0 (4 rear, 2 front)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 750W Multi-output Power Supply
SYS-1029GP-TR
SYS-1029GP-TR
Up to 3 NVIDIA GPUs
  • 2D/3D and CAD Applications, Astrophysics, Chemistry, Cloud and Virtualization
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 Hot-swap 2.5" SAS/SATA drive bays, 2 Hot-swap 2.5" SAS/SATA/NVMe drive bays
  • 4 PCI-E 3.0 x16 (FHFL) and 1 PCI-E 3.0 x8 (in x16, LP) slots
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0 (rear)
  • 10x 4cm heavy duty counter-rotating fans with air shroud
  • 1600W Redundant Platinum Level (94%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-1029P-NEL32R
SSG-1029P-NEL32R
  • High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 32 Hot-swap EDSFF Long drive slots
  • 24 DIMMs; up to 6TB 3DS ECC DDR4 2933MHz RDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 Low-profile slots
  • 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0, 1 TPM header
  • 8x 40x56mm PWM fans
  • 1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-1029P-NES32R
SSG-1029P-NES32R
  • IOPS Intensive Storage App., DB App. (MySQL, Casandra), Hyper-converged Infrastructure / Scale-out Architectures
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 32 Hot-swap EDSFF Short drive bays
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x4
  • 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0, 1 TPM header
  • 8x 4cm counter-rotating cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-1029P-NMR36L
SSG-1029P-NMR36L
  • IOPS Intensive Storage App., DB App. (MySQL, Casandra), Hyperconverged Infrastructure / Scale-out Architectures
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 32 Hot-swap NF1 drive bays, 4 hybrid PCI-E NF1 or SATA3 M.2 drive bays
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x4
  • 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0, 1 TPM header
  • 8x 4cm counter-rotating cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-2029P-ACR24H
SSG-2029P-ACR24H

 / SSG-2029P-ACR24L

24 Hot-swap 2.5" SAS3/SATA3
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 Hot-swap 2.5" SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
  • Storage Options:
    • SSG-2029P-ACR24H - SAS3 via Broadcom 3108 AOC
    • SSG-2029P-ACR24L - SAS3 via Broadcom 3008 AOC
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 3 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-2029P-DN2R24L
SSG-2029P-DN2R24L
  • 2U 2-Node Mission critical storage server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 Low-profile slots
  • 1 SIOM card support for flexible networking options
  • Dual port 10GBase-T (Intel® X557-AT2), 1 Dedicated IPMI port.
  • 1 VGA, 2 USB 3.0, 1 Type A,1x TPM header
  • 5x 8cm high-performance PWM fans w/ optimal fan speed control.
  • Lowest latency:
    • 24 U.2 Hot-swap dual-port NVMe drive bays
    • Omni-Path SIOM support
  • Robust Data Availability:
    • Shared storage between redundant controllers
    • Node to node heartbeat/ NTB connectivity
    • Dual 10G private Ethernet between nodes
    • Redundant power supply and cooling system
  • Greener Storage:
    • Titanium Level (96%+) efficiency 2000W redundant power supplies
    • 90%+ VRM power efficiency

*Contact your Supermicro sales rep for more info.

SSG-2029P-E1CR24H
SSG-2029P-E1CR24H

 / SSG-2029P-E1CR24L

24 Hot-swap 2.5" SAS3/SATA3 • Dual JBOD Exp. Ports
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 Hot-swap 2.5" SAS3/SATA3 drive bays
  • Storage Options:
    • SSG-2029P-E1CR24H - SAS3 via Broadcom 3108 AOC
    • SSG-2029P-E1CR24L - SAS3 via Broadcom 3008 AOC
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 3 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-2029P-E1CR48H
SSG-2029P-E1CR48H

/ SSG-2029P-E1CR48L

48 Hot-swap 2.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 48 Hot-swap 2.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear)
  • Storage Options:
    • SSG-2029P-E1CR48H – SAS3 via Broadcom 3108 AOC
    • SSG-2029P-E1CR48L – SAS3 via Broadcom 3008 AOC
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 1 Type A
  • 5 Hot-swap 80mm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-5029P-E1CTR12L
SSG-5029P-E1CTR12L
12 Hot-swap 3.5" SAS3/SATA3
  • Application and data serving, Connectivity/Storage Compute Nodes, High Availability Storage Appliance Platform
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 12 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional NVMe/SATA (rear)
  • SAS3 via Broadcom 3008 controller
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • 2x 10GBase-T ports via X557, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0, 2 USB 2.0
  • 3 High-performance 80mm PWM fans
  • 800W Redundant Titanium Level (96%) Power Supplies
SSG-5049P-E1CR45H
SSG-5049P-E1CR45H

/ SSG-5049P-E1CR45L

  • Backup Storage, Cold Storage; Database Applications; Data Warehousing, Archiving
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays (NVMe/SATA optional)
  • Storage Options:
    • SSG-5049P-E1CR45H – SAS3 via Broadcom 3108 AOC
    • SSG-5049P-E1CR45L – SAS3 via Broadcom 3008 AOC
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x8 (in x16), 4 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • 2 GbE LAN ports via Intel i210, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0, 2 USB 2.0
  • 5 Hot-swap 8cm redundant PWM fans
  • 1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-5049P-E1CTR36L
SSG-5049P-E1CTR36L
36 Hot-swap 3.5" SAS3/SATA3
  • Connectivity/Storage Compute Nodes, Database Processing & Storage Appliance Platform
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 36 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional NVMe/SATA (rear)
  • SAS3 via Broadcom 3008 controller
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • 2x 10GBase-T ports via Intel X722 + X557, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0, 2 USB 2.0
  • 7 High-performance 80mm PWM fans
  • 1200W Redundant Titanium Level (96%) Power Supplies
SSG-6019P-ACR12L
SSG-6019P-ACR12L
12 Hot-swap 3.5" SAS3/SATA3 + 4 Hot-swap 2.5" NVMe/SATA
  • High Density Storage, Object Storage 1U, Ceph / Hadoop, Scale-out Storage, Big Data Analytics
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 Hot-swap 3.5" SAS3/SATA3 drive bays, 4 Hot-swap 2.5" NVMe/SATA drive bays
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0, 1 TPM header
  • 6x 4cm 20.5K RPM cooling fans
  • 600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6019P-ACR12L+
SSG-6019P-ACR12L+
12 Hot-swap 3.5" SAS3/SATA3 + 4 Hot-swap 2.5" NVMe/SATA
  • High Density Storage, Object Storage 1U, Ceph / Hadoop, Scale-out Storage, Big Data Analytics
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 Hot-swap 3.5" SAS3/SATA3 drive bays, 4 Hot-swap 2.5" 7mm NVMe/SATA drive bays
  • 12 DIMMs; up to 3TB 3DS ECC DDR4 2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 PCI-E 3.0 x16, 1 PCI-E 3.0 x16 for AOM
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0, 1 TPM header
  • 6x 4cm 20.5K RPM cooling fans
  • 800W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6029P-E1CR12H
SSG-6029P-E1CR12H

 / SSG-6029P-E1CR12L

12 Hot-swap 3.5" SAS3/SATA3 • Dual JBOD Exp. Ports
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 12 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
  • Storage Options:
    • SSG-6029P-E1CR12H - SAS3 via Broadcom 3108 AOC
    • SSG-6029P-E1CR12L - SAS3 via Broadcom 3008 AOC
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 3 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6029P-E1CR12T
SSG-6029P-E1CR12T
12 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 12 Hot-swap 3.5" SAS3 (via Broadcom 3108)/SATA3 drive bays, 2 Optional onboard NVMe M.2
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 1 occupied by controller)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 3 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6029P-E1CR16T
SSG-6029P-E1CR16T
16 Hot-swap 3.5" SAS3/SATA3 • SAS3 via Broadcom 3108
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 16 Hot-swap 3.5" SAS3 (via Broadcom 3108)/SATA3 drive bays
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 1 occupied by controller)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 3 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6029P-E1CR24H
SSG-6029P-E1CR24H

/ SSG-6029P-E1CR24L

24 Hot-swap 3.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear)
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear)
  • Storage Options:
    • SSG-6029P-E1CR24H – SAS3 via Broadcom 3108 AOC
    • SSG-6029P-E1CR24L – SAS3 via Broadcom 3008 AOC
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 1 Type A
  • 5 Hot-swap 80mm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6039P-E1CR16H
SSG-6039P-E1CR16H

/ SSG-6039P-E1CR16L

16 Hot-swap 3.5" SAS3/SATA3 • Dual JBOD Exp. Ports
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 16 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
  • Storage Options:
    • SSG-6039P-E1CR16H - SAS3 via Broadcom 3108 AOC
    • SSG-6039P-E1CR16L - SAS3 via Broadcom 3008 AOC
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 3 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6049P-E1CR24H
SSG-6049P-E1CR24H

/ SSG-6049P-E1CR24L

24 Hot-swap 3.5" SAS3/SATA3 • Dual JBOD Exp. Ports
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24" Hot-swap 3.5 SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
  • Storage Options:
    • SSG-6049P-E1CR24H - SAS3 via Broadcom 3108 AOC
    • SSG-6049P-E1CR24L - SAS3 via Broadcom 3008 AOC
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 4 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6049P-E1CR36H
SSG-6049P-E1CR36H

 / SSG-6049P-E1CR36L

36 Hot-swap 3.5" SAS3/SATA3 • Dual JBOD Exp. Ports
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 36 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Optional onboard NVMe M.2
  • Storage Options:
    • SSG-6049P-E1CR36H - SAS3 via Broadcom 3108 AOC
    • SSG-6049P-E1CR36L - SAS3 via Broadcom 3008 AOC
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8; Dual JBOD Expansion ports (slot 2 & 3 occupied by controller and JBOD expansion port)
  • 2x 10GBase-T ports via Intel X722 + PHY Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 4 USB 3.0, 1 Type A
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6049P-E1CR45H
SSG-6049P-E1CR45H

/ SSG-6049P-E1CR45L

  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays, 6 optional NVMe bays
  • Storage Options:
    • SSG-6049P-E1CR45H – SAS3 via Broadcom 3108 AOM
    • SSG-6049P-E1CR45L – SAS3 via Broadcom 3008 AOM
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card slot
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 1 Type A
  • 5 Hot-swap 8cm rear exhaust PWM cooling fans
  • 1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6049P-E1CR45L+
SSG-6049P-E1CR45L+
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays, 6 optional NVMe bays
  • Storage Options:
    • SSG-6049P-E1CR45L+ – SAS3 via Broadcom 3616 AOM
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card slot
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 1 Type A
  • 5 Hot-swap 8cm rear exhaust PWM cooling fans
  • 1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

6049P-E1CR60H
SSG-6049P-E1CR60H

/ SSG-6049P-E1CR60L

  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 60 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays
  • Storage Options:
    • SSG-6049P-E1CR60H – SAS3 via Broadcom 3108 AOM
    • SSG-6049P-E1CR60L – SAS3 via Broadcom 3008 AOM
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 1 Type A
  • 5 Hot-swap 8cm rear exhaust PWM cooling fans
  • 2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SSG-6049P-E1CR60L+
SSG-6049P-E1CR60L+
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 60 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5” drive bays
  • Storage Options:
    • SSG-6049P-E1CR60L+ – SAS3 via Broadcom 3616 AOM
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 1 Type A
  • 5 Hot-swap 8cm rear exhaust PWM cooling fans
  • 2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1019GP-TT
SYS-1019GP-TT
Up to 2 NVIDIA GPUs in 1U
  • HPC cluster computer nodes
  • Single Socket P (LGA 3647) supports: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 6 Hot-swap 2.5" SAS/SATA drive bays
  • 2 PCI-E 3.0 x16 (right riser) and 1 PCI-E x16 (left riser) slots
  • 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0 (rear)
  • 8 heavy duty 4cm counter-rotating fans with air shroud
  • 1400W Platinum Level (94%) Power Supply

*Contact your Supermicro sales rep for more info.

SYS-1019P-WTR
SYS-1019P-WTR
WIO, Flexible I/O, UP • 10 Hot-swap 2.5" bays • 2 NVMe w/ AOC opt.
  • Database Processing and Storage, Data Center Applications
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 10 Hot-swap 2.5" drive bays, M.2 mini-PCI-e support
  • 2 PCI-E 3.0 x16 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
  • 2x 10GBase-T ports via Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
  • 5 Counter-rotating 4cm PWM cooling fans
  • 500W Redundant Platinum Level Power Supplies
SYS-1029GQ-TNRT
SYS-1029GQ-TNRT
Up to 4 GPUs in 1U
  • High-performance Computing, Big Data Analytics, Business Intelligence, Research Lab, Astrophysics
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 Hot-swap 2.5" drive bays, 2 Internal 2.5" drive bays
  • 4 PCI-E 3.0 x16 (FHFL), 1 PCI-E x16 (LP), and 1 PCI-E 3.0 x8 (LP) slots
  • 2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0 (rear)
  • 9x 4cm heavy duty counter-rotating fans with air shroud
  • 2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029GQ-TRT
SYS-1029GQ-TRT
Up to 4 NVIDIA GPUs in 1U
  • GPU Server, Mission-critical app., enterprise server, oil & gas, financial, 3D rendering, chemistry, HPC
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2x Hot-swap 2.5" drive bays, 2 Internal 2.5" drive bays
  • 4 PCI-E 3.0 x16 (FHFL) and 2 PCI-E x16 (LP) slots
  • 2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0 (rear)
  • 9x 4cm heavy duty counter-rotating fans with air shroud
  • 2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029GQ-TVRT
SYS-1029GQ-TVRT
Up to 4 NVIDIA Tesla • V100 SXM2 GPUs • Up to 300 GB/s • GPU-to-GPU NVLINK
  • HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 Hot-swap 2.5" drive bays, 2 Internal 2.5" drive bays
  • 4 PCI-E 3.0 x16 slots
  • 2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0 (rear)
  • 7x 4cm heavy duty counter-rotating fans with air shroud
  • 2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029GQ-TXRT
SYS-1029GQ-TXRT
Up to 4 NVIDIA Tesla P100 SXM2 GPUs
  • HPC, Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, Business Intelligence
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 Hot-swap 2.5" drive bays, 2 Internal 2.5" drive bays
  • 4 PCI-E 3.0 x16 slots
  • 2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0 (rear)
  • 7x 4cm heavy duty counter-rotating fans with air shroud
  • 2000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029P-MT
SYS-1029P-MT
Short Depth (19.98") • Data Center Optimized
  • 1U Data Center Optimized Server, Short-Depth
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
  • 8 Hot-swap 2.5" SATA3 drive bays
  • 1 PCI-E 3.0 x8 (FHHL) slot
  • 2x 1GbE ports, 1 Dedicated IPMI port, 1 VGA, 2 USB 2.0
  • 4x 4cm 22.5K RPM middle cooling fans
  • 600W Platinum Level Power Supply
SYS-1029P-MTR
SYS-1029P-MTR
Short Depth (19.98") • Data Center Optimized
  • 1U Data Center Optimized Server, Short-Depth
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
  • 8 Hot-swap 2.5" SATA3 drive bays
  • 1 PCI-E 3.0 x8 (FHHL) slot
  • 2x 1GbE ports, 1 Dedicated IPMI port, 1 VGA, 2 USB 2.0
  • 4x 4cm 22.5K RPM middle cooling fans
  • 800W Redundant Platinum Level Power Supplies
SYS-1029P-N32R
SYS-1029P-N32R
32 NVMe Support • (2 sleds with 16 drives per sled)
  • High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
  • Dual socket P (LGA 3647) supports 2nd Gen. Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  • 32 Hot-swap 2.5" NVMe SSDs (2 sleds with 16 drives per sled), 2 M.2 boot drives
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 slots
  • 2x 10GBase-T LAN ports, 1 dedicated IPMI Port
  • 1 VGA, 2 USB 3.0, 1 COM, 2 SuperDOM
  • Built-in Intel® QAT for Crypto/Compression
  • 8 Hot-swap 40mm cooling fans
  • 1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029P-NR32R
SYS-1029P-NR32R
32 NVMe Ruler SSDs
  • High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage
  • Dual socket P (LGA 3647) supports 2nd Gen. Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  • 32 Hot-swap NVMe Ruler SSDs, 2 M.2 boot drives
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 slots
  • 2x 10GBase-T LAN ports, 1 dedicated IPMI Port
  • 1 VGA, 2 USB 3.0, 1 COM, 2 SuperDOM
  • Built-in Intel® QAT for Crypto/Compression
  • 8 Hot-swap 40mm cooling fans
  • 1600W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029P-WT
SYS-1029P-WT
WIO, Flexible I/O • 8 Hot-swap 2.5" bays • 1 Slim DVD-ROM (Opt.)
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 2.5" drive bays; 1 slim DVD-ROM bay (option)
  • 2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
  • 1 VGA, 6 USB 3.0 (4 rear, 2 via header)
  • 4 Counter-rotating 4cm PWM cooling fans
  • 600W Multi Output Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

SYS-1029P-WTR
SYS-1029P-WTR
WIO, Flexible I/O • 8 Hot-swap 2.5" bays • 1 Slim DVD-ROM (Opt.)
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 2.5" drive bays; 1 slim DVD-ROM bay (option)
  • 2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
  • 1 VGA, 6 USB 3.0 (4 rear, 2 via header)
  • 4 Counter-rotating 4cm PWM cooling fans
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029P-WTRT
SYS-1029P-WTRT
WIO, Flexible I/O • 10 Hot-swap 2.5" bays • 2 NVMe support
  • Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 10 Hot-swap 2.5" drive bays; 8 SATA3 + 2 NVMe/SATA3 hybrid ports
  • 2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 6 USB 3.0 (4 rear, 2 front via header)
  • 4 Counter-rotating 4cm PWM cooling fans
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-1029TP-DTR
SYS-1029TP-DTR

/ SYS-1029TP-DC0R / SYS-1029TP-DC1R

TwinPro • 2 Hot-swappable DP nodes in 1U
  • 2 Hot-swappable DP nodes in 1U; Each Node (x2 nodes) supports:
  • Dual 2nd Gen. Intel® Xeon® Scalable processors
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz L/RDIMM
  • 2 PCI-E 3.0 x16 slots and 1 SIOM slot for flexible Networking options (SIOM must bundle 1 per node)
  • Storage Drive Options:
    • SYS-1029TP-DTR - 4 Hot-swap 2.5" SATA3 (Intel C621)
    • SYS-1029TP-DC0R - 4 Hot-swap 2.5" SAS3 (Broadcom 3008)
    • SYS-1029TP-DC1R - 4 Hot-swap 2.5" SAS3 (Broadcom 3108)
  • 1 Video, 2 USB 3.0, 2 SuperDOM, 2 SATA M.2 or 1 NVMe M.2 (optional carrier card AOC-SMG3-2H8M2, support 1029TR-DTR/DC0R)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3 heavy duty counter rotating fans with air shroud
  • 1000W Redundant Titanium Level (96%) Power Supplies
SYS-2029BR-HER
SYS-2029BR-HER (Coming Soon)
BigTwin™ • 10 EDSFF (E1.S) per Node
  • 4 DP nodes in 2U; depth 28.75", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4 2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 10 EDSFF (E1.S) drive bays and 2 SATA M.2 drive bays per node.
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 Heavy duty 8cm PWM fans w/ optimal fan speed control
  • 2600W Redundant Titanium Level (96%) Power Supplies

* Contact your Supermicro sales rep for more info.

SYS-2029BT-DNC0R
SYS-2029BT-DNC0R
BigTwin™ • 4 NVMe/SAS3 + • 8 SAS3 per Node
  • 2 DP nodes in 2U; depth 28.5", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 NVMe/SAS3 + 8 SAS3 Hot-swap 2.5" drive bays per node
  • SAS3 (12Gbps) support via Broadcom 3216; IT mode
  • 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029BT-HNC0R
SYS-2029BT-HNC0R
BigTwin™ • 4 NVMe/SAS3/SATA3 + • 2 SAS3/SATA3 per Node
  • 4 DP nodes in 2U; depth 28.5", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays per node
  • SAS3 support via Broadcom 3008; IT mode
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029BT-HNC1R
SYS-2029BT-HNC1R
BigTwin™ • 4 NVMe/SAS3/SATA3 + 2 SAS3/SATA3 per Node
  • 4 DP nodes in 2U; depth 28.5", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays per node
  • SAS3 support via Broadcom 3108; RAID 0, 1, 5, 6, 10, 50, 60
  • 1 PCI-E 3.0 x16 Low-profile slot, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029BT-HNR
SYS-2029BT-HNR
BigTwin™ • 6 NVMe per Node
  • 4 DP nodes in 2U; depth 28.5", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 6 Hot-swap 2.5" NVMe drive bays per node
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029BT-HNTR
SYS-2029BT-HNTR
BigTwin™ • 4 NVMe/SATA3 + • 2 SATA3 per Node
  • 4 DP nodes in 2U; depth 28.5", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 Hot-swap 2.5" NVMe/SATA3 + 2 Hot-swap 2.5" SATA3 drive bays per node
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029BT-HTR
SYS-2029BT-HTR
BigTwin™ • 6 SATA3 per Node
  • 4 DP nodes in 2U; depth 28.5", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 6 Hot-swap 2.5" SATA3 drive bays per node
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029BZ-HNR
SYS-2029BZ-HNR
BigTwin™ • 6 NVMe per Node • N+1 Cooling
  • 4 DP nodes in 2U; depth 28.75", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 6 Hot-swap 2.5" NVMe drive bays per node; 2 M.2 SATA3 or NVMe support
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 16 Heavy duty 40x56mm fans w/ optimal fan speed control (4 fans per node)
  • 2600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029GP-TR
SYS-2029GP-TR
Up to 6 NVIDIA GPUs
  • GPU Server, Mission-critical app., enterprise server, oil & gas, large database, e-business, on-line transaction processing, medical
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 2.5" SAS/SATA drive bays, 2 Hot-swap 2.5" SAS/SATA/NVMe drive bays
  • 6 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 (in x16) slots
  • 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0 (rear)
  • 5 heavy duty fans w/ optimal fan speed control
  • 2000W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029P-C1RT
SYS-2029P-C1RT

 / SYS-2029P-C1R

8 2.5" + 8 2.5" • SAS3 via Broadcom 3108
  • Compute Intensive Application/Storage, Big Data Analytics, DB Application/Processing, Mission-critical Application, Simulation and Automation
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 2.5" SAS3 drives (via Broadcom 3108), 8 Hot-swap 2.5" SATA3 drives (via Intel C620 series chipset)
  • 4 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots
  • 2x 10GBase-T (-C1RT) / 1GbE (-C1R), 1 Dedicated IPMI port
  • 1 Video, 2 COM, 2 USB 3.0, 4 USB 2.0, 1 Type A, 1 M.2 support
  • 3 Hot-swap 80mm PWM cooling fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029P-TXRT
SYS-2029P-TXRT
11 PCI-E Slots • 16 Hot-swap 2.5", 1 Peripheral 5.25"
  • 2U Max I/O Server - Expansion / Performance / Flexibility
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 16 Hot-swap 2.5" drive bays and 1 peripheral 5.25" bay
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 (HSSI), 2 PCI-E 3.0 x16 (or 4 PCI-E x8), 4 PCI-E 3.0 x8 , 1 PCI-E 3.0 x4 (in x8 slot)
  • 1 PCI-E 3.0 x4 M.2 2280 slot from PCH
  • 2 GbE, 1 Video, 2 COM, 2 USB 3.0 (rear), 4 USB 2.0 (rear), 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4x 80mm 7K RPM middle fans
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-2029TP-HTR
SYS-2029TP-HTR

 / SYS-2029TP-HC0R / SYS-2029TP-HC1R / SYS-6029TP-HTR / SYS-6029TP-HC0R / SYS-6029TP-HC1R

TwinPro² (SIOM) • Flexible Storage Options
  • 4 DP nodes in 2U; depth 28.5" (2029TP) / 30.5" (6029TP), Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • Storage Drive Options:
    • SYS-2029TP-HTR - 6 Hot-swap 2.5" SATA3
    • SYS-2029TP-HC0R - 6 Hot-swap 2.5" SAS3 (Broadcom 3008)
    • SYS-2029TP-HC1R - 6 Hot-swap 2.5" SAS3 (Broadcom 3108)
    • SYS-6029TP-HTR - 3 Hot-swap 3.5" SATA3
    • SYS-6029TP-HC0R - 3 Hot-swap 3.5" SAS3 (Broadcom 3008)
    • SYS-6029TP-HC1R - 3 Hot-swap 3.5" SAS3 (Broadcom 3108)
  • 2 PCI-E 3.0 x16 Low-profile slots
  • 1 SIOM card support for flexible networking options
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 2 SuperDOM
  • 4 Heavy duty 8cm fans with optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-4029GP-TRT
SYS-4029GP-TRT
Up to 8 NVIDIA GPUs
  • 3D rendering, Astrophysics, Chemistry, Cloud Computing, Virtualization, Compute intensive application
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • Up to 24 Hot-swap 2.5" Drive Bays, 8x 2.5” drives supported natively
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 PCI-E 3.0 x16 (double-width), 2 PCI-E 3.0 x8 slots, 1 PCI-E 3.0 x4 slot
  • I/O ports: 2x 10GBase-T, 1 Video, 1 COM, 4 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8x 92mm RPM Hot-Swappable Cooling Fans
  • 2000W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-4029GP-TRT2
SYS-4029GP-TRT2
Up to 8 GPUs
  • Artificial Intelligence, Big Data Analytics, High-performance Computing, Research Lab/National Lab, Astrophysics, Business Intelligence
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays (8x 2.5" drives supported natively)
  • 11 PCI-E 3.0 x16 (FH, FL) and 1 PCI-E 3.0 x8 (in x16) slots
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 4 USB 3.0
  • 8x 92mm Hot-swap cooling fans
  • 2000W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-4029GP-TRT3
SYS-4029GP-TRT3
Up to 8 NVIDIA GPUs
  • Artificial Intelligence, Big Data Analytics, High-performance Computing, Research Lab/National Lab, Astrophysics, Business Intelligence
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays (8x 2.5" drives supported natively)
  • 11 PCI-E 3.0 x16 (FH, FL) and 1 PCI-E 3.0 x8 (in x16) slots
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 4 USB 3.0
  • 8x 92mm Hot-swap cooling fans
  • 2000W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-4029GP-TVRT
SYS-4029GP-TVRT
Up to 8 NVIDIA Tesla • V100 SXM2 GPUs • Up to 300 GB/s • GPU-to-GPU NVLINK
  • Artificial Intelligence, Big Data Analytics, High-performance Computing, Research Lab/National Lab, Astrophysics, Business Intelligence
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 16 Hot-swap 2.5" drive bays (support 8 NVMe drives)
  • 4 PCI-E 3.0 x16 (LP, GPU tray for GPUDirect RDMA), 2 PCI-E 3.0 x16 (LP, CPU tray)
  • 2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0 (front)
  • 8x 92mm cooling fans, 4x 80mm cooling fans
  • 2200W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-5019GP-TT
SYS-5019GP-TT
Up to 2 NVIDIA GPUs in 1U
  • HPC cluster computer nodes
  • Single Socket P (LGA 3647) supports: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 Hot-swap 3.5" SAS/SATA drive bays
  • 1 slim DVD-ROM bay or 1 USB + COM port tray
  • 2 PCI-E 3.0 x16 (right riser) and 1 PCI-E x16 (left riser) slots
  • 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0 (rear)
  • 8 heavy duty 4cm counter-rotating fans with air shroud
  • 1400W Platinum Level (94%) Power Supply

*Contact your Supermicro sales rep for more info.

SYS-5019P-M
SYS-5019P-M
Mainstream, UP
  • Web Hosting, VM, Compact Network Appliance
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 Hot-swap 3.5" SATA3 drive bays, M.2 PCIe 3.0 x4
  • 1 PCI-E 3.0 x16 slot
  • 2x 1GbE ports, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 4 USB 3.0 (front/rear), 2 USB 2.0
  • 4x 40mm mid-fan
  • 350W Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

SYS-5019P-MR
SYS-5019P-MR
Mainstream, UP
  • Web Hosting, VM, Compact Network Appliance
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 Hot-swap 3.5" SATA3 drive bays, M.2 PCIe 3.0 x4
  • 1 PCI-E 3.0 x16 slot
  • 2x 1GbE ports, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 4 USB 3.0 (front/rear), 2 USB 2.0
  • 4x 40mm mid-fan
  • 400W Redundant Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

SYS-5019P-MT
SYS-5019P-MT
Mainstream, UP
  • Web Hosting, VM, Application and Data Serving, DB Applications
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 4 Hot-swap 3.5" SATA3 drive bays, M.2 mini-PCI-e support
  • 1 PCI-E 3.0 x16 slot
  • 2x 10GBase-T ports, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 4 USB 3.0 (front/rear), 2 USB 2.0
  • 4x 40mm mid-fan
  • 350W Platinum Level Power Supply
SYS-5019P-MTR
SYS-5019P-MTR
Mainstream, UP
  • Web Hosting, VM, Application and Data Serving, DB Applications, Mission-critical Applications
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 4 Hot-swap 3.5" SATA3 drive bays, M.2 mini-PCI-e support
  • 1 PCI-E 3.0 x16 slot
  • 2x 10GBase-T ports, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 4 USB 3.0 (front/rear), 2 USB 2.0
  • 4x 40mm mid-fan
  • 400W Redundant Platinum Level Power Supplies
SYS-5019P-WT
SYS-5019P-WT
WIO, Flexible I/O, UP • 4 Hot-swap 3.5" bays
  • Database Processing and Storage, Data Center / Firewall Applications
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 4 Hot-swap 3.5" drive bays, 1 slim DVD-ROM bay, M.2 mini-PCI-e support
  • 2 PCI-E 3.0 x16 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
  • 2x 10GBase-T ports via Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
  • 5 Counter-rotating 4cm PWM cooling fans
  • 600W Multi Output Platinum Level Power Supply
SYS-5019P-WTR
SYS-5019P-WTR
WIO, Flexible I/O, UP • 4 Hot-swap 3.5" bays
  • Database Processing and Storage, Data Center / Firewall Applications
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 4 Hot-swap 3.5" drive bays, M.2 mini-PCI-e support
  • 2 PCI-E 3.0 x16 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
  • 2x 10GBase-T ports via Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
  • 5 Counter-rotating 4cm PWM cooling fans
  • 500W Redundant Platinum Level Power Supplies
SYS-5029P-WTR
SYS-5029P-WTR
WIO, Flexible I/O, UP • 8 Hot-swap 3.5" bays
  • Database Processing and Storage, Connectivity/Storage Computer Nodes, Data Warehouse
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • 8 Hot-swap 3.5" drive bays, 1 Slim DVD-ROM bay, M.2 mini-PCI-e support
  • 4 PCI-E 3.0 x8 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
  • 2x 10GBase-T ports via Intel X557, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
  • 3 Hot-swap 8cm PWM cooling fans
  • 500W Redundant Platinum Level Power Supplies
SYS-5049A-T
SYS-5049A-T
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 by default) with SGPIO
  • 4 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 (in x16) slots
  • 1x 10GBase-T and 1x 1GbE port, 1 dedicated IPMI port
  • 1 VGA, 1 COM, 6 USB 3.1 Gen1, 4 USB 3.1 Gen2, M.2, 7.1 HD Audio
  • 2 Super quiet PWM fans and 1 Super quiet rear fan
  • 1200W Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

SYS-6019P-MT
SYS-6019P-MT
Short Depth (19.98") • Data Center Optimized
  • 1U Data Center Optimized Server, Short-Depth
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
  • 4 Hot-swap 3.5" SATA3 drive bays
  • 1 PCI-E 3.0 x8 (FHHL) slot
  • 2x 1GbE ports, 1 Dedicated IPMI port, 1 VGA, 2 USB 2.0
  • 4x 4cm 22.5K RPM middle cooling fans
  • 500W Platinum Level Power Supply
SYS-6019P-MTR
SYS-6019P-MTR
Short Depth (19.98") • Data Center Optimized
  • 1U Data Center Optimized Server, Short-Depth
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
  • 4 Hot-swap 3.5" SATA3 drive bays
  • 1 PCI-E 3.0 x8 (FHHL) slot
  • 2x 1GbE ports, 1 Dedicated IPMI port, 1 VGA, 2 USB 2.0
  • 4x 4cm 22.5K RPM middle cooling fans
  • 800W Redundant Platinum Level Power Supplies
SYS-6019P-WT
SYS-6019P-WT
WIO, Flexible I/O • 4 Hot-swap 3.5" bays
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 Hot-swap 3.5" drive bays
  • 2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0 (rear)
  • 4 Counter-rotating 4cm PWM cooling fans
  • 600W Multi Output Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

SYS-6019P-WT8
SYS-6019P-WT8
WIO, Flexible I/O • 8x 3.5" + 2x 2.5" bays
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Fixed 3.5" + 2 Fixed 2.5" drive bays
  • 2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E NVMe M.2 SSD
  • 2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0 (rear)
  • 6 Counter-rotating 4cm PWM cooling fans
  • 650W/600W Multi-output Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

SYS-6019P-WTR
SYS-6019P-WTR
WIO, Flexible I/O • 4 Hot-swap 3.5" bays
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 Hot-swap 3.5" drive bays
  • 2 PCI-E 3.0 x16 (FHHL), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0 (rear)
  • 4 Counter-rotating 4cm PWM cooling fans
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6029BT-DNC0R
SYS-6029BT-DNC0R
BigTwin™ • 3 NVMe/SAS3 + 3 SAS3 per Node
  • 2 DP nodes in 2U; depth 30.11", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processor; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 NVMe/SAS3 + 3 SAS3 Hot-swap 3.5" drive bays per node, 2 Internal M.2 NVMe/SATA slots
  • SAS3 support via Broadcom 3008; IT mode
  • 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6029BT-HNC0R
SYS-6029BT-HNC0R
BigTwin™ • 3 NVMe/SAS3 per Node
  • 4 DP nodes in 2U; depth 30.11", Each Node:
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 Hot-swap NVMe/SAS3 drive bays per node
  • SAS3 support via Broadcom 3008; IT mode
  • 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
  • 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
  • 4 heavy duty 80mm fans w/ optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6029P-TRT
SYS-6029P-TRT

 / SYS-6029P-TR

Mainstream • Cost Effective
  • Cloud, Virtualization, Compute Intensive App, DB Processing/Storage, High Availability Storage, Hosting & Application Delivery
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 3.5" SATA3 drive bays, 2 Optional fixed NVMe drives
  • 4 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 Low-profile slots
  • 2x 10GBase-T (-TRT) / 1GbE (-TR) ports, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 2 USB 3.0, 4 USB 2.0, 1 Type A, 1 M.2 support
  • 3 heavy duty 80mm fans with PWM fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6029P-WTR
SYS-6029P-WTR
WIO, Flexible I/O • 8 Hot-swap 3.5" and • 2 Fixed 3.5" bays
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 3.5" drive bays with SGPIO, 2 Fixed 3.5" drive bays
  • 4 PCI-E 3.0 x8 (FHHL), 2 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 1GbE ports via Intel C621, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0 (rear)
  • 3 high-performance 8cm heavy duty PWM fans
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6029P-WTRT
SYS-6029P-WTRT
WIO, Flexible I/O • 12 Hot-swap 3.5" bays
  • Web Server, FireWall Applications, DNS, Print, Login, Gateway, Compact Network Appliance, Cloud Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 12 Hot-swap 3.5" drive bays with SES2 and Mini-i-Pass: 8 SATA3 + 4 NVMe/SATA3 hybrid ports
  • 1 PCI-E 3.0 x16 (FHHL), 2 PCI-E 3.0 x8 (FHHL), 2 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 for AOM, 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 4 USB 3.0 (rear)
  • 3 high-performance 8cm heavy duty PWM fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6029TR-DTR
SYS-6029TR-DTR
  • 2 DP nodes in 2U; depth 28.5", Each Node (x2 nodes):
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; Dual UPI up to 10.4GT/s
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
  • 2 PCI-E 3.0 x8 (FHHL) or 1 PCI-E 3.0 x8 (FHHL) + 1 PCI-E 3.0 x4 (FHHL) + 1 PCI-E 3.0 x4 (LP) (8/8/0 or 8/4/4)
  • 6 Hot-swap 3.5" SATA3 drive bays
  • 2x 1GbE LAN ports, 1 dedicated IPMI port
  • I/O ports: 2 USB 3.0, 1 VGA, 1 COM, TPM 2.0 header
  • 4 heavy duty fans w/ optimal fan speed control
  • 1200W Redundant Titanium Level (96%) Power Supplies
SYS-6029TR-HTR
SYS-6029TR-HTR
  • 4 DP nodes in 2U, depth 28.5", Each Node (x4 nodes):
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; Dual UPI up to 10.4GT/s
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933 MHz L/RDIMM
  • 1 PCI-E 3.0 x16 (LP) slot
  • 3 Hot-swap 3.5" SATA3 drive bays
  • 2x 1GbE LAN ports, 1 dedicated IPMI port
  • I/O ports: 2 USB 3.0, 1 VGA, 1 COM, TPM 2.0 header
  • 4 heavy duty fans w/ optimal fan speed control
  • 1600W Redundant Titanium Level (96%) Power Supplies
SYS-6039P-TXRT
SYS-6039P-TXRT
11 PCI-E Slots • 8 Hot-swap 3.5", 2 Peripheral 5.25"
  • 3U Max I/O Server - Expansion / Performance / Flexibility
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 8 Hot-swap 3.5" SATA3 drive bays and 2 Peripheral 5.25" bays
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 PCI-E 3.0 x16 (HSSI), 2 PCI-E 3.0 x16 (or 4 PCI-E x8), 4 PCI-E 3.0 x8 , 1 PCI-E 3.0 x4 (in x8 slot)
  • 1 PCI-E 3.0 x4 M.2 2280 slot from PCH
  • 2 GbE, 1 Video, 2 COM, 4 USB 3.0 (2 rear, 2 via header), 4 USB 2.0 (2 rear, 2 via header), 1 Type A
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 3x 80mm middle fans and 1x 80mm fear exhaust fan
  • 980W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6049GP-TRT
SYS-6049GP-TRT
Up to 20 single-width GPUs
  • AI/Deep Learning, Video Transcoding
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 3.5" drive bays, 2 optional 2.5" U.2 NVMe drives
  • 20 PCI-E 3.0 x16 slots, 1 PCI-E 3.0 x8 (FHFL, in x16 slot)
  • 2x 10GBase-T ports via Intel C622, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 4 USB 3.0 (rear)
  • 8x 92mm RPM Hot-Swappable Cooling Fans
  • 2000W (2+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-7039A-i
SYS-7039A-i
Up to 2 GPUs • 7.1 HD Audio
  • CAD/CAM/CAE, 3D Rendering, Digital Content Creation, Oil and Gas Simulation, Research lab/National Lab
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4x 3.5" drive bays supported by 90° rotating hard drive cage
  • Optional 4x 2.5" internal drive bays (supports 2 NVMe via opt. cables)
  • 2x 5.25" Peripheral drive bays
  • 4 PCI-E 3.0 x16, 2 PCI-E x8
  • 2x 1GbE, 1 shared IPMI port
  • 1 VGA, 1 COM, 6 USB 3.0, 2 USB 3.1, M.2, 7.1 HD Audio
  • 1 rear 12cm exhaust fan, 1 front 12cm cooling fan
  • 1200W Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

SYS-7049A-T
SYS-7049A-T
Up to 2 GPUs • 7.1 HD Audio
  • CAD/CAM/CAE, 3D Rendering, Digital Content Creation, Oil and Gas Simulation, Research lab/National Lab
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 3.5" drive bays (SATA3 by default, SAS3 via opt. AOC, 2 NVMe support with optional cables)
  • 4 PCI-E 3.0 x16, 2 PCI-E x8
  • 2x 1GbE ports, 1 shared IPMI port
  • 1 VGA, 1 COM, 6 USB 3.0, 2 USB 3.1, M.2, 7.1 HD Audio
  • 2 Super quiet PWM fans and 1 Super quiet rear fan
  • 1200W Platinum Level Power Supply

*Contact your Supermicro sales rep for more info.

SYS-7049GP-TRT
SYS-7049GP-TRT
Up to 4 GPUs
  • GPU Server, Mission-critical app., enterprise server, large database, e-business, on-line transaction processing, oil & gas, medical app.
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 3.5" drive bays (2 SATA3 ports by default)
  • 4 PCI-E 3.0 x16 (double-width), 2 PCI-E 3.0 x16 (single-width), 1 PCI-E x4 (in x8) slots
  • 2x 10GBase-T ports via Intel X550, 1 Dedicated IPMI port
  • 1 VGA, 2 COM, 4 USB 3.0 (front/rear), 2 USB 2.0, 7.1 HD Audio
  • 4 heavy duty fans, 4 exhaust fans, 2 active heat sinks with optimal fan speed control
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-7049P-TRT
SYS-7049P-TRT

 / SYS-7049P-TR

8 Hot-swap 3.5" Bays • 3 Peripheral 5.25" bays • Cost Effective
  • 4U Mainstream Server for Virtualization and Multi Tasking
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 8 Hot-swap 3.5" SATA3 drive bays, 3 Peripheral 5.25" bays, 2 opt. fixed 2.5" SATA, SSD/NVMe
  • 4 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots
  • 2x 10GBase-T (-TRT) / 1GbE (-TR) ports, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0, 4 USB 2.0, 1 Type A, 1 M.2 support
  • 3 Hot-swap PWM cooling fans and 2 Hot-swap rear fans
  • 1280W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-7089P-TR4T
SYS-7089P-TR4T
7U 8-Way • 224 Cores per System • 96 DDR4 DIMMs
  • In-Memory Database Application, Research lab/National Lab, Scale-up HPC, Virtualization, ERP, CRM
  • Octa Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 8S-3 UPI up to 10.4GT/s
  • Up to 23 or 39 (OEM) PCI-E 3.0 slots, 32 U.2 NVMe support opt. available
  • 96 DIMMs; up to 24TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM using 8x X11OPi-CPU modules
  • Supports Intel® Optane™ DCPMM*
  • 16 Hot-swap 2.5" SAS3 drive bays (w/ RAID cards); 8x 2.5" or 6x 3.5" internal drive bays (w/ RAID cards)
  • 4x 10GBase-T via SIOM, 1 dedicated IPMI
  • 1 VGA, 1 COM, 2 USB 2.0 (rear)
  • 8x 9cm 10.5K-10.8K RPM Hot-Swap Counter-rotating Rear Fans
  • 5x 1600W (N+2) Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-8049U-E1CR4T
SYS-8049U-E1CR4T
4-Way MP • 112 Cores per System • 48 DDR4 DIMMs
  • High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack
  • Quad Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 6 PCI-E 3.0 x16 slots, 10 PCI-E 3.0 x8 slots (Up to 6 double width passive GPUs)
  • 48 DIMMs; up to 12TB 3DS ECC DDR4 2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 3.5" SAS3/SATA3 drive bays via opt. RAID card; 8 Hybrid ports with NVMe support via opt. AOC
  • 4x 10GBase-T via AOC, 1 dedicated IPMI
  • 1 VGA, 1 COM, 2 USB 3.0 (rear)
  • 8x 9cm heavy duty fans with speed control
  • 1600W (3+1) Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-9029GP-TNVRT
SYS-9029GP-TNVRT
Up to 16 V100 SXM3 GPUs
  • AI/Deep Learning, High-performance Computing
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 16 Hot-swap 2.5" NVMe drive bays, 6 Hot-swap 2.5" SATA3 drive bays
  • 16 PCI-E 3.0 x16 slots for RDMA via IB EDR, 2 PCI-E 3.0 x16 on board
  • 2x 10GBase-T ports via Intel X540, 1 Dedicated IPMI port
  • 1 VGA, 1 COM, 2 USB 3.0 (front)
  • 6x 80mm hot-swap PWM Fans, 8x 92mm Hot-swap Fans
  • 6x 3000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-F619P2-FT
SYS-F619P2-FT
Front I/O, 8-Node, • Each: 2/4 Fixed 2.5" SATA3/ NVMe
  • FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 or 4 Fixed 2.5" SATA3/NVMe drive bays
  • 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 (SIOM)
  • SIOM flexible Network card, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0, 2 M.2 support
  • 8x 8cm 13.5k RPM rear fans
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-F619P2-RT
SYS-F619P2-RT

 / SYS-F619P2-RTN / SYS-F619P2-RC0 / SYS-F619P2-RC1

Rear I/O, 8-Node, Each: • 6 Hot-swap 2.5" SAS3/SATA3/NVMe opt.
  • FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • Storage Options (all Hot-swap):
    • SYS-F619P2-RT – 6x 2.5" SATA3
    • SYS-F619P2-RTN – 6x 2.5" SATA3 or 2 SATA3 + 4 NVMe U.2
    • SYS-F619P2-RC0 – 6x 2.5" SAS3 or 2 SAS3 + 4 opt. NVMe U.2; SAS3 with Broadcom 3008
    • SYS-F619P2-RC1 – 6x 2.5" SAS3 or 2 SAS3 + 4 opt. NVMe U.2; SAS3 with Broadcom 3108
  • 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x16 (SIOM)
  • SIOM flexible Network card, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0, 1 M.2 support
  • 3x 4cm 20k RPM middle fans
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-F619P2-RTN
SYS-F619P2-RTN

/ SYS-F619P2-RC0 / SYS-F619P2-RC1

Rear I/O, 8-Node, Each: • 6 Hot-swap 2.5"
  • FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
  • Dual Socket P (LGA 3647) support:
  • 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz L/RDIMM, Up to 2TB Intel® DCPMM (Optane™)
  • Supports Intel® Optane™ DCPMM*
  • Storage Options (all Hot-swap):
    • SYS-F619P2-RTN – 6x 2.5" SATA3 or 2 SATA3 + 4 NVMe U.2
    • SYS-F619P2-RC0 – 6x 2.5" SAS3 or 2 SAS3 + 4 opt. NVMe U.2; SAS3 with Broadcom 3008
    • SYS-F619P2-RC1 – 6x 2.5" SAS3 or 2 SAS3 + 4 opt. NVMe U.2; SAS3 with Broadcom 3108
  • 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x16 (SIOM)
  • SIOM flexible Network card, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0, 1 M.2 support
  • 3x 4cm 20k RPM middle fans
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-F619P3-FT
SYS-F619P3-FT
Front I/O, 8-Node, • Each: 2 Fixed 3.5" SATA3
  • FatTwin™ Server; EACH NODE (x8 Hot-plug System Nodes):
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 Fixed 3.5" SATA3 drive bays
  • 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 (SIOM)
  • SIOM flexible Network card, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0, 2 M.2 support
  • 8x 8cm 13.5k RPM rear fans
  • 2200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-F629P3-RTB
SYS-F629P3-RTB

 / SYS-F629P3-RTBN / SYS-F629P3-RC0B / SYS-F629P3-RC1B

Rear I/O, 4-Node, Each: • 8 Hot-swap 3.5" SAS3/SATA3/NVMe opt.
  • FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • Storage Options (all Hot-swap):
    • SYS-F629P3-RTB – 8x 3.5" SATA3
    • SYS-F629P3-RTBN – 8x 3.5" SATA3 or 6 SATA3 + 2 NVMe U.2
    • SYS-F629P3-RC0B – 8x 3.5" SAS3 or 6 SAS3 + 2 opt. NVMe U.2; SAS3 with Broadcom 3008
    • SYS-F629P3-RC1B – 8x 3.5" SAS3 or 6 SAS3 + 2 opt. NVMe U.2; SAS3 with Broadcom 3108
  • 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x16 (SIOM)
  • SIOM flexible Network card, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0, 1 M.2 support
  • 2x 8cm 14k RPM middle fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-F629P3-RTBN
SYS-F629P3-RTBN

/ SYS-F629P3-RC0B / SYS-F629P3-RC1B

Rear I/O, 4-Node, Each: • 8 Hot-swap 3.5"
  • FatTwin™ Server; EACH NODE (x4 Hot-plug System Nodes):
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • Storage Options (all Hot-swap):
    • SYS-F629P3-RTBN – 8x 3.5" SATA3 or 6 SATA3 + 2 NVMe U.2
    • SYS-F629P3-RC0B – 8x 3.5" SAS3 or 6 SAS3 + 2 opt. NVMe U.2; SAS3 with Broadcom 3008
    • SYS-F629P3-RC1B – 8x 3.5" SAS3 or 6 SAS3 + 2 opt. NVMe U.2; SAS3 with Broadcom 3108
  • 1 PCI-E 3.0 x16 (LP), 1 PCI-E 3.0 x16 (SIOM)
  • SIOM flexible Network card, 1 Dedicated IPMI port
  • 1 VGA, 2 USB 3.0, 1 M.2 support
  • 2x 8cm 14k RPM middle fans
  • 1200W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

SYS-6027TR-D70RF
SYS-6027TR-D70RF
X9DRT-HF • + SC827HD-R1K28B
  • 2U Twin Server; EACH NODE (x2 nodes):
  • Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
  • 6 Hot-swap 3.5" HDD Bays: SAS via Broadcom 2008
  • 8 DIMMs support up to 256GB DDR3 1600MHz reg. ECC memory
  • 3 (x8) PCI-E 3.0 slots (1x LP and 2x FH FL)
  • I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 3 USB 2.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • Mellanox ConnectX QDR (QRF) / FDR (FRF) InfiniBand Controller
  • 4 heavy duty fans w/ optimal fan speed control
  • 1280W Redundant Platinum Level Power Supplies

Certain products may not be available in your region
