SuperServer 1028GR-TR

  Products  Systems   GPU   [ 1028GR-TR ]





Integrated Board
X10DRG-H

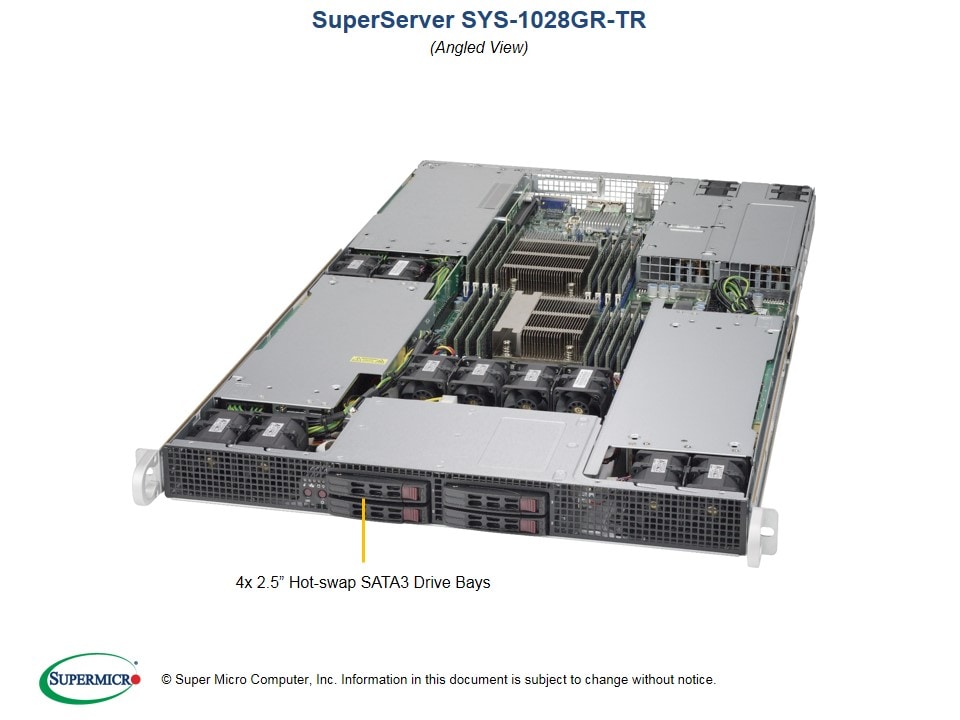

Views: | Angled View | Top View |

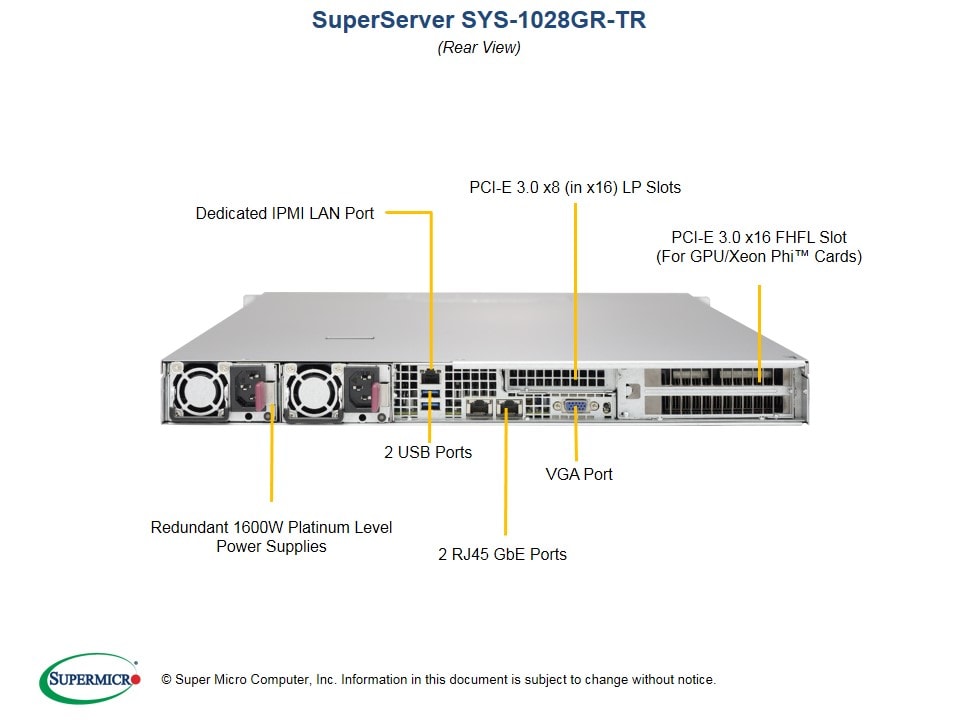

| Front View | Rear View |


Key Features
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB† ECC 3DS LRDIMM , up to
    DDR4- 2400†MHz ; 16 DIMM slots
3. 4 PCI-E 3.0 x16 slots (3 GPU/MIC
    cards optional), 1 PCI-E 3.0 x8 LP slot
4. Intel i350-AM2 Dual port GbE LAN
5. 4 Hot-swap 2.5" SATA3 Drive Bays
6. 1600W Redundant Power Supplies
    Platinum Level (94%+)
7. 10 Counter rotating fans w/ optimal
    fan speed control
8. Smart server management tools

Available Color: Black

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Compatible GPU List  Quick-References Guide  Drive Options

Product SKUs
SYS-1028GR-TR
  • SuperServer 1028GR-TR (Black)

Motherboard

Super X10DRG-H

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores† / Up to 55MB† Cache
System Bus
  • QPI up to 9.6 GT/s
Note † BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
GPU/Xeon Phi Support
  • NVIDIA® Tesla® K1/K2/K10/K40/K80/M40/M60/Xeon Phi

System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i350-AM2 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 10x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 4x USB 3.0 ports (2 rear, 2 via header)
  • 2x USB 2.0 ports (2 via headers)
Video
  • 1x VGA Connector
Serial Port
  • 1x Serial header

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-118GH-R1K66B

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 30.6" (777mm)
Package
  • 24" (H) x 8" (W) x 40" (D)
Weight
  • Net Weight: 35 lbs (15.9 kg)
  • Gross Weight: 48 lbs (21.8 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED

Expansion Slots
PCI-Express
  • 4x PCI-E 3.0 x16 slots
    (3x GPU/Xeon Phi cards optional)
  • 1x PCI-E 3.0 x8 (in x16) low-profile slot

Drive Bays
Hot-swap
  • 4x 2.5" Hot-swap drive bays

System Cooling
Fans
  • 10x counter-rotating fans with optimal fan speed control

Power Supply
1600W 1U Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 – 127Vac
  • 1600W: 200 – 240Vac
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-127Vac / 12.9A Max / 50-60Hz
  • 200-240Vac / 9.5A Max / 50-60Hz
+12V
  • Max: 82A / Min: 0.1A (100-127Vac)
  • Max: 132A / Min: 0.1A (200-240Vac)
12V SB
  • Max: 2A / Min: 0.2A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Platinum Level Certified94%+  Platinum Level
  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
  • 5 Phase-switching voltage regulator
FAN
  • Total of ten 4-pin PWM fans
  • 10x fans with tachometer monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 10x Fan Connectors
  • PSU I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • Power Fail / Overheat LED
  • Suspend-state Indicator LED
  • UID LED
Other Features
  • SDDC Support

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X10DRG-H
CSE-118GH-R1K66B 		1
1		 Super X10DRG-H Motherboard
CSE-118GH-R1K66B Chassis
Air Shroud MCP-310-11803-0N 1 Air Shroud for Air X9DRG/X10DRG boards in CSE-118GH-R1K66B
Backplane BPN-SAS-118G-4 1 4-port 1U direct-attached backplane, support up to 4x 2.5-inch SAS/SATA HDD/SSD
Cable 1 CBL-0296L 5 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Cable 2 CBL-0157L-02 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,27CM,28AWG
Cable 3 CBL-PWEX-0582 3 8 pin to two 6+2 pin 12V GPU power cable, 30 cm 16/20 AWG, 10A/pin(16AWG), 6A/pin(20AWG), -25~85C, RoHS/REACH
Cable 4 CBL-0460L 1 8 Pin to Two 4 Pin Backplane Power Ext. 28/22cm. 18AWG
Cable 5 CBL-0484L 4 SATA,INT,ROUND,ST-ST,55CM,30AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1625-QRG 1 SYS-1028GR-TR(T) QRG,HF,RoHS/REACH
Riser Card RSC-R1UG-E16AR+II 1 RSC-R1UG-E16AR+II
Riser Card RSC-G-A66-X 1 1U LHS Active GPU Riser Card with 2 PCI-Ex16 for X10 MBs
Riser Card RSC-R1UG-E16R+II 1 RSC-R1UG-E16R+II
Riser Card RSC-R1UG-E16-X9 1 RSC-R1UG-E16-X9
Heatsink / Retention SNK-P0047PSC 1 1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB
Heatsink / Retention SNK-P0047PS 1 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-1K66P-1R 2 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF
Optional Parts List
  Part Number Qty Description
Cable CBL-PWEX-0665 - PCIe 8 pin female(black) to CPU 8 pin female(white), M60/M40 GPU power cable, 30cm, 18AWG
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
