SuperServer SYS-120GQ-TNRT (Complete System Only)

DP Intel System with 4 GPUs

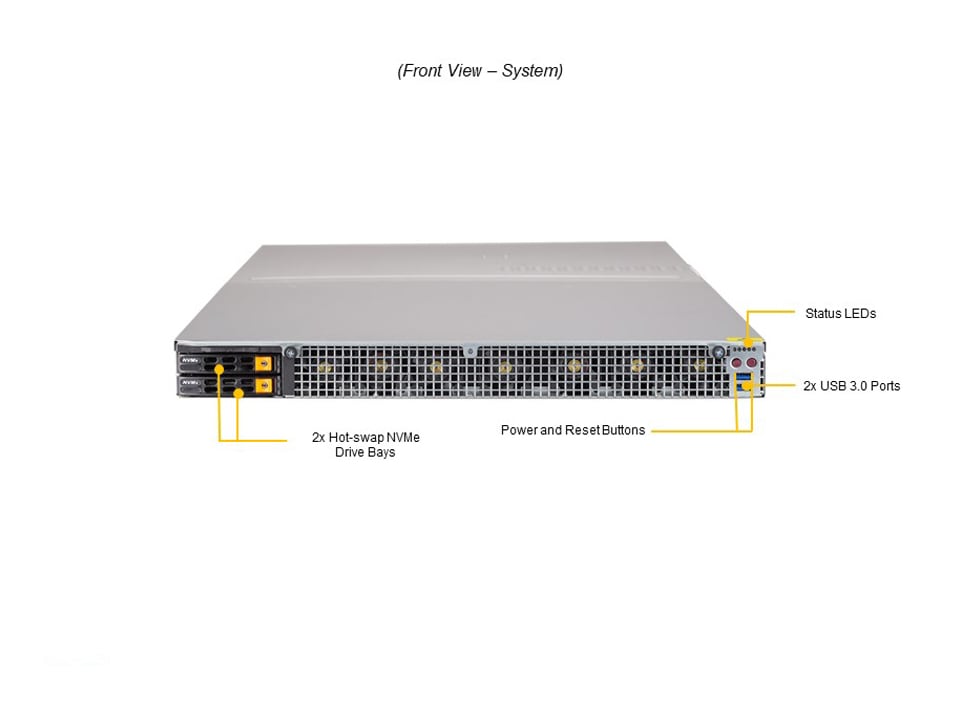

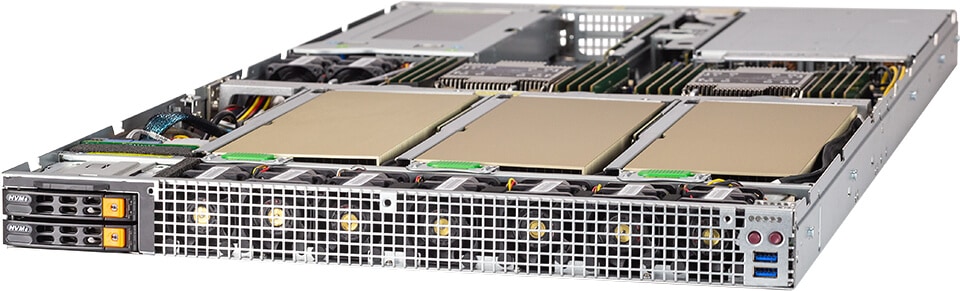

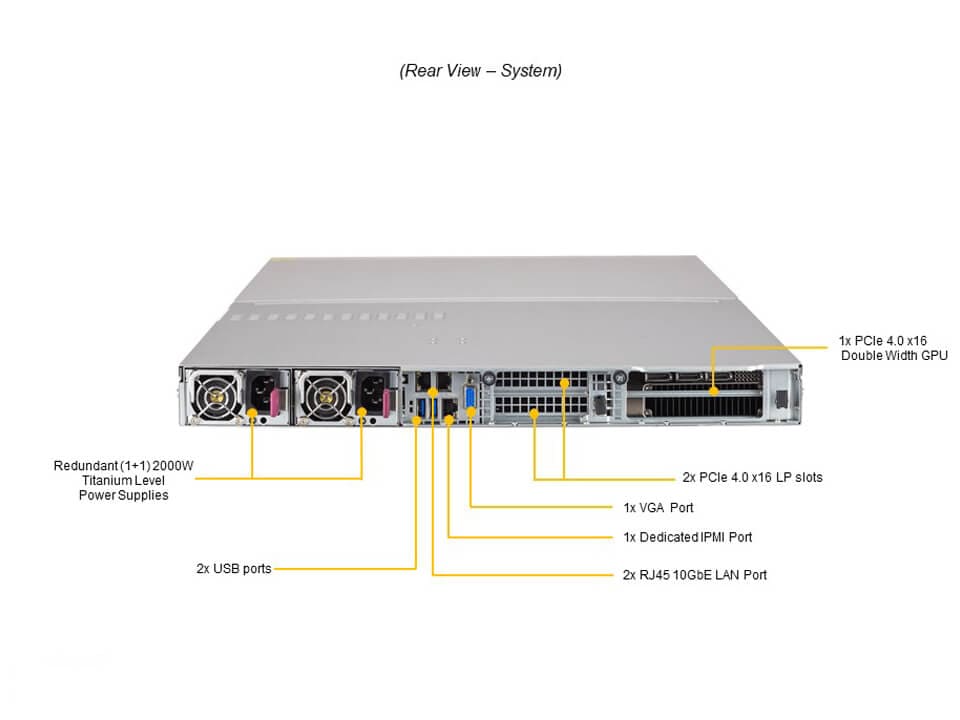

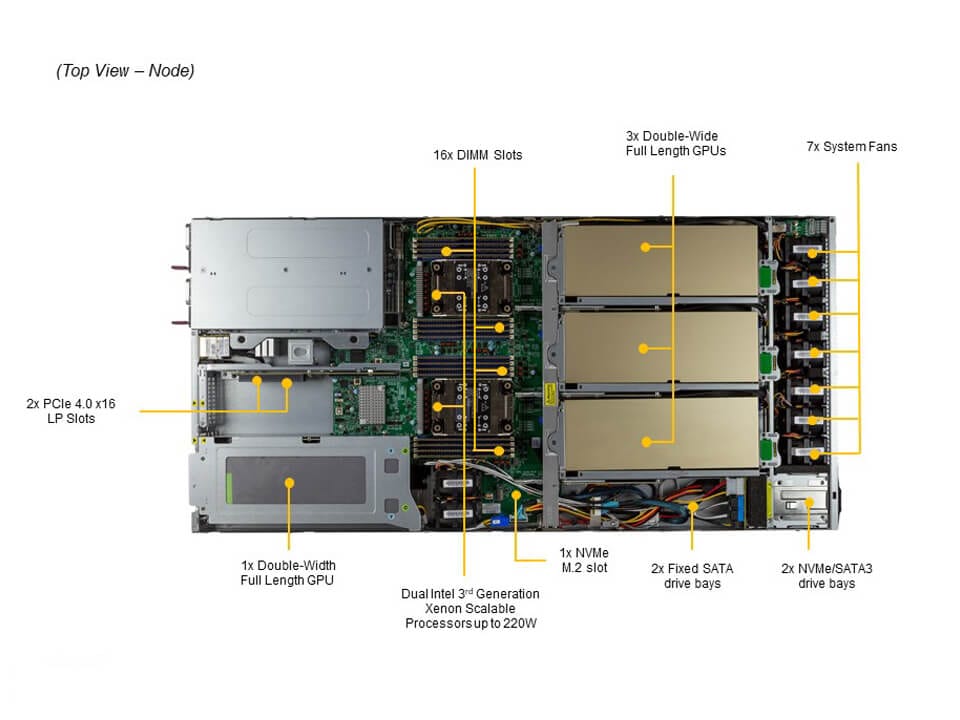

SYS-120GQ-TNRT Main SYS-120GQ-TNRT Angle SYS-120GQ-TNRT Top SYS-120GQ-TNRT Front SYS-120GQ-TNRT Rear
Integrated Board: X12DGQ-R
Learn more

Key Applications

  • Scientific Virtualization
  • High Performance Computing
  • Rendering
  • AI/Deep Learning Training

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 16 DIMM Slots; Up to 4TB DRAM; Up to 4TB Intel® Optane™ Persistent Memory (up to 6TB with DRAM) ; 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  4. 6 PCIe Gen 4.0 x16 (4 FHFL & 2 LP)
  5. 2x 2.5" SATA Internal Fixed drive bays
    1 M.2 NVMe for boot drive only
    2x 2.5" NVMe/SATA Hot-swap drive bays
  6. 9 counter rotating fans w/ Optimal Fan Speed Control
  7. 2x 2000W redundant Titanium level power supplies
...
...
SYS-120GQ-TNRT
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-120GQ-TNRT
Motherboard
Super X12DGQ-R
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 235W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width or 4 single-width GPUs
Supported GPU
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
Certification
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-118GQE2TS-R2K05P
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 35.2" (894 mm)
Package
  • 8" (H) x 24" (W) x 46" (D)
Weight
  • Gross Weight: 58 lbs (26.31 kg)
  • Net Weight: 45 lbs (20.4 kg)
Available Color
  • Black Front & Silver Body
Front Panel
Buttons
  • 2 USB 3.0
  • Power On/Off button
  • System Reset button
LED
  • Fan fail LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • UID LED
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
M.2
System Cooling
Fans
  • 9 heavy duty fans with optimal fan speed control
Power Supply
1x 2000W
1x 2000W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)73.5 x 40 x 265 mm
Input1000W: 100-120Vac / 50-60Hz
100-127Vac
1800W: 200-220Vac / 50-60Hz
200-240Vac
2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
1980W: 220-230Vac / 50-60Hz
2000W: 230-240Vdc
2000W: 230-240Vac / 50-60Hz
+12VMax: 83.3A / Min: 0A (100Vac-120Vac)
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 166.7A / Min: 0A (200Vac-240Vac)
Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166.7A / Min: 0A (230Vac-240Vac)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Intel VROC RAID Key AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Storage Control Card and Cable(s) AOC-S3908L-H8iR-16DD & 1x CBL-SAST-1275A-100 - 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
AOC-S3108L-H8IR • & 1x CBL-SAST-0699 • - Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD,RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG
Super Cap for LSI 3108 1x BTR-TFM8G-LSICVM02 • & 1x BKT-BBU-BRACKET-05 - Supercap mounting bracket for PCIe location
TPM Security Module AOM-TPM-9670V 1 SPI capable vertical TPM 2.0 provisioned for client,RoHS

GPU SuperServer SYS-120GQ-TNRT (Complete System Only )

Certain products may not be available in your region
