Visión general

Destacados

  • 2U2N or 2U4N designs with 12 or 16 DIMMs per node
  • Opciones de E/S frontales o traseras con diseño modular para aumentar la flexibilidad y reducir los costes
  • Facilidad de servicio en el pasillo frontal/frío con fácil acceso al nodo frontal

Innovaciones

  • Flexible storage options with new support for EDSFF E1.S drives
  • Resource Saving for Best Efficiency and TCO

Optimizado para:

  • Virtualización
  • Nube
  • Hosting y entrega de contenidos
  • Hyperscale / Hyperconverged
  • HPC
  • GPU Virtualization
  • Scale-out Object Storage
  • Telco Edge Cloud
  • Cluster Node

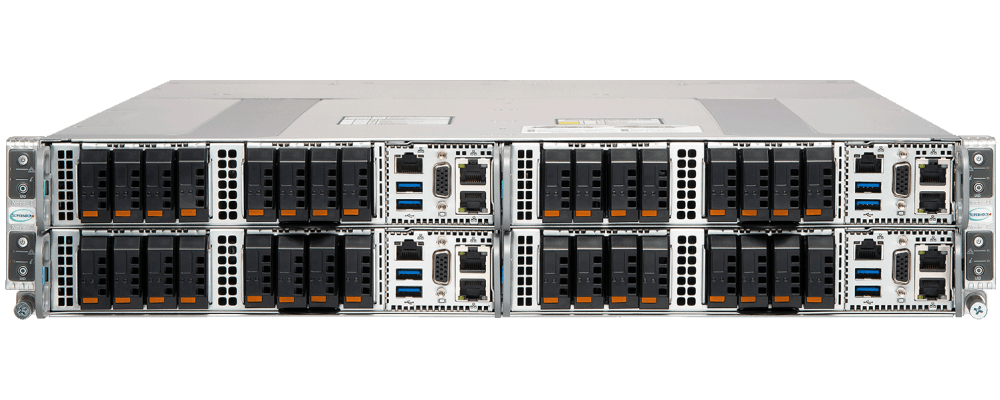

X14 2U2N GrandTwin® with Intel® Xeon® 6

X14 2U2N GrandTwin® with Intel® Xeon® 6

Purpose-Built Single-Socket Architecture with Front I/O and Modular Components

  • CPU: Single Intel® Xeon® 6900 series processor with P-cores per node
  • Memory: Up to 12 DIMMs per node, 3TB DDR5/MRDIMM
  • Drives: Up to 4 hot-swap 2.5" NVMe drives per node
  • PCIe: Up to 2 PCIe 5.0 x16 (in x16) FH/10.5"L slots per node
Show Models
X14/H14 GrandTwin® with PCIe 5.0

X14/H14 GrandTwin® with PCIe 5.0

Purpose-Built Single-Socket Architecture with Front or Rear I/O and Modular Components

  • CPU: Single Intel® Xeon® 6700 series processor with E-cores or AMD EPYC™ 9005/9004 series processor per node
  • Memory: Up to 16 DIMMs per node, 6TB DDR5
  • Drives: Up to 8 hot-swap EDSFF E1.S or 6 hot-swap 2.5" NVMe/SATA drives per node
  • PCIe: Up to 1 PCIe 5.0 slot or 2 PCIe 5.0 x16 AIOM slots per node
Show Models
X13/H13 GrandTwin® with PCIe 5.0

X13/H13 GrandTwin® with PCIe 5.0

Purpose-Built Single-Socket Architecture with Front or Rear I/O and Modular Components (X13/H13)

  • CPU: Single 5th/4th Gen Intel® Xeon® Scalable Processor or AMD EPYC™ 9004 Series Processor per node
  • Memory: Up to 16 DIMMs per node, 4TB DDR5
  • Drives: Up to 6x hot-swap 2.5" NVMe/SAS/SATA per node
  • PCIe: Up to 2x PCIe 5.0 x16 AIOM per node
Show Models

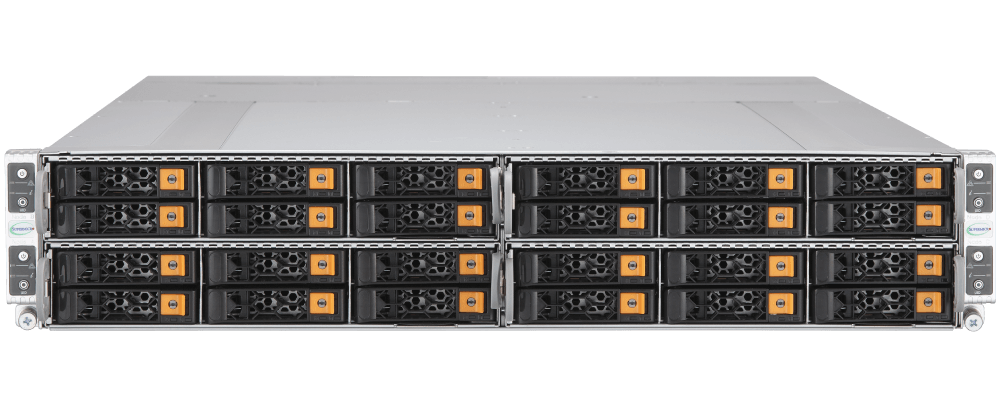

2U4N GrandTwin® with PCIe 4.0

2U4N GrandTwin® with PCIe 4.0

Purpose-Built Single-Socket Architecture with Front or Rear I/O and Modular Components (X12)

  • CPU: Single 3rd Gen Intel® Xeon® Scalable Processor per node
  • Memory: Up to 16 DIMMs per node, 4TB DDR4, support for Intel® Optane® Persistent Memory
  • Drives: Up to 4x hot-swap 2.5" NVMe/SAS/SATA per node
  • PCIe: 1x PCIe 4.0 x16 per node
Show Models
Recursos

X14 GrandTwin Datasheet

New X14 GrandTwin multi-node systems featuring Intel Xeon 6700 series processors with E-cores

View the datasheet

New Levels of Optimization Are Now Available with Supermicro X14 Servers for AI, HPC, Enterprise, and Edge Workloads, Incorporating Intel® Xeon® 6 Series Processors

Supermicro X14 Servers Give Users the Flexibility to Match Systems and Processors to Workloads

View the white paper

A+ Server Solutions

World's Most Versatile Portfolio of AMD Processor-Based Systems Supporting the Latest AMD EPYC™ Series Processors

View the brochure

This Server CANNOT Lose Data

By Linus Tech Tips -

Check out the latest video with Linus Tech Tips, featuring Supermicro's high-density multi-node GrandTwin™ servers running a high-performance clustered storage solution powered by AMD EPYC™ 9004 Series CPUs.

See the product review

Absolute Hosting Delivers Class-Leading VPS Servers with Supermicro Servers with AMD EPYC™ CPUS

Performance and rack density for powerful VPS servers

View the success story

Supermicro's GrandTwin® Excels at OpenSSL for Cryptography Workloads

Supermicro GrandTwin with Intel® QuickAssist Technology Demonstrates Tremendous Performance Increase for Cryptography Algorithms

View the solution brief

New Supermicro GrandTwin 2U4N 1P Platform at Intel Vision 2022

By Patrick Kennedy -

Below is a Supermicro BigTwin that we have seen for generations. On top though, is a new platform Supermicro is calling the “GrandTwin”. This is a new line of 2U4N servers from Supermicro and not a one-off platform.

See the product review

Construct Optimized IT Solutions With The Supermicro X12 Twin Family Of Multi-Node Servers

Select From the Twin Family of Multi-Node Servers to Exactly Match Workload Requirements with Superior Functionality and Efficiency

View the product brief

Modelos

Card View List View
{"subgroup_0_1":["SYS-212GT-DNAF||0"]}
X14 2U2N GrandTwin® with Intel® Xeon® 62
Loading Data
{"subgroup_1_1":["SYS-212GT-HNF||1"],"subgroup_1_2":["SYS-212GT-HNR||10"],"subgroup_1_3":["AS -2116GT-HNTF||11"]}
X14/H14 GrandTwin® with PCIe 5.03
Loading Data
{"subgroup_2_1":["SYS-211GT-HNTF||2"],"subgroup_2_2":["SYS-211GT-HNTR||3"],"subgroup_2_3":["SYS-211GT-HNC8F||4"],"subgroup_2_4":["SYS-211GT-HNC8R||5"],"subgroup_2_5":["AS -2115GT-HNTF||6"],"subgroup_2_6":["AS -2115GT-HNTR||7"]}
X13/H13 GrandTwin® with PCIe 5.06
Loading Data
{"subgroup_3_1":["SYS-210GT-HNTF||8"],"subgroup_3_2":["SYS-210GT-HNC8F||9"]}
2U4N GrandTwin® with PCIe 4.010
Loading Data
System List
