SuperServer SYS-442B-NR

4U 4-socket system with 64 DIMMs and 24 NVMe/SAS/SATA drive bays

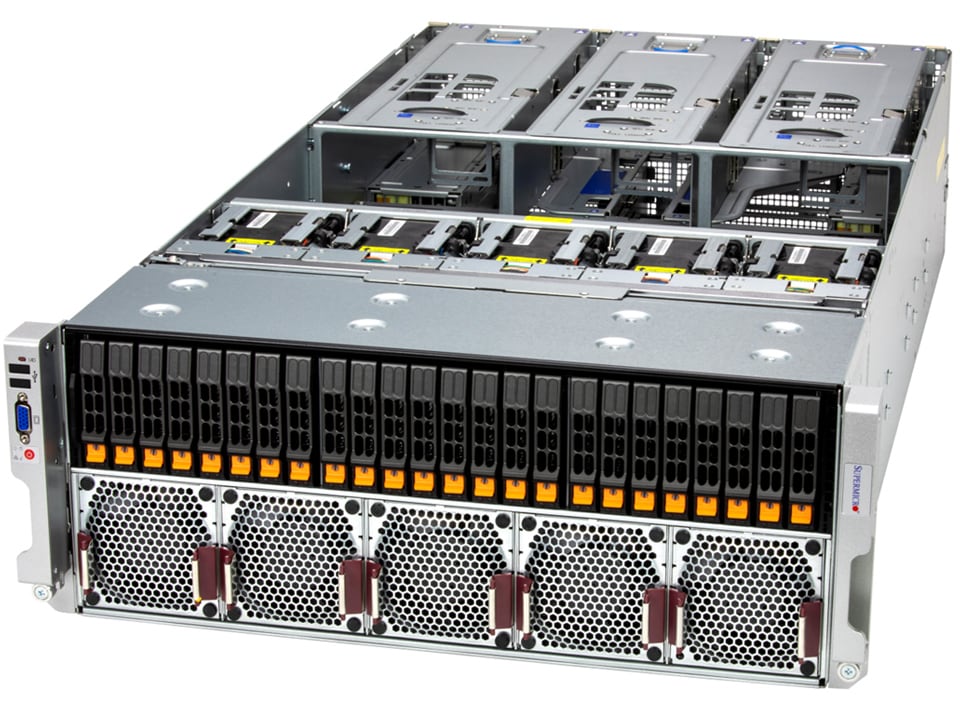

SYS-442B-NR Main SYS-442B-NR Angle SYS-442B-NR Top SYS-442B-NR Front SYS-442B-NR Rear
Integrated Board: X14QBH+

Key Applications

  • Business Intelligence
  • ERP, CRM
  • Scientific Virtualization
  • In-Memory Database
  • HCI
  • SAP HANA

Key Features

  1. Quad E2 (LGA-4710) Intel® Xeon® 6700 series processors with P-cores (4S/8S) up to 350W with air cooling
  2. Support for up to 6 double-width GPU accelerator cards
  3. Up to 64 DIMMs supporting up to 8TB DDR5 in 2DPC
  4. Flexible networking with up to 2 OCP 3.0 compatible AIOM slots
  5. Up to 4 PCIe 5.0 x8 FHHL + 2 PCIe 5.0 x16 FHHL + 8 PCIe 5.0 x8 FHFL + 4 PCIe 5.0 x16 FHFL + 2 PCIe 5.0 x16 AIOM
  6. Up to 24 front hot-swap 2.5" NVMe/SATA/SAS drive bays
  7. 4 Redundant 2700W Titanium Level Hot-plug power supplies
...
...
SYS-442B-NR
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-442B-NR
Motherboard
Super X14QBH+
Processor
CPU
Core Count
  • Up to 86C/172T; Up to 336MB Cache per CPU
Note
  • Supports 165W - 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 6 double-width GPUs
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 64 DIMM slots
  • Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port(Front)
  • 1 DisplayPort port(Rear)
Serial
  • 1 COM port(Rear)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-418H2TS-R5K4AWP
Dimensions and Weight
Height
  • 7" (177 mm)
Width
  • 17.3" (438.4 mm)
Depth
  • 33.4" (848.7 mm)
Package
  • 15.94" (H) x 27.32" (W) x 49.41" (D)
Weight
  • Gross Weight: 158.9 lbs (72.1 kg)
  • Net Weight: 120.4 lbs (54.6 kg)
Available Color
  • No Paint
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 4 PCIe 5.0 x8 FHHL slots
    • 2 PCIe 5.0 x16 FHHL slots
    • 8 PCIe 5.0 x8 FHFL slots
    • 4 PCIe 5.0 x16 FHFL slots
    • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • Option A*
    • 6 PCIe 5.0 x16 FHFL double-width slots
    • 2 PCIe 5.0 x16 FHHL slots
    • 4 PCIe 5.0 x8 FHHL slots
    • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 24 bays
    • 24 front hot-swap 2.5" PCIe 5.0 NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables)
  • View Drive Options
M.2
  • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280; VROC required for RAID)
  • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110; VROC required for RAID)
System Cooling
Fans
  • 10 Heavy duty counter-rotating 8cm Fan(s)
Air Shroud
  • 4 Air Shrouds
Power Supply
4x 2700W
4x 2700W Redundant (3 + 1) Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
Input2700W: 200-240Vac
2700W: 200-240Vac / 50-60Hz
2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12VMax: 225A / Min: 0A (200Vac-240Vac)
Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SBMax: 3.5A / Min: 0A
Max: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
CPU Carrier (Require 4pcs of one PN only) SKT-1543H-0000-FXC 4 Intel GNR-SP Socket E2 LGA4710, E2A XCC carrier, DG 1.0 (Brand FOXCONN)
SKT-1543H-0000-LTS 4 Intel GNR-SP Socket E2 LGA4710, E2A XCC carrier, DG 1.0 (Brand LOTES)
GPU Power Cable(s) CBL-PWEX-0962Y-30 1/GPU 16-pin power cable (Example H100) (GPU in slots 7, 9, 15 or 17)
CBL-PWEX-0962Y-50 • 1/GPU 16-pin power cable (Example H100) (GPU in slots 11 or 13)
NVMe Intel VROC Controller AOC-VROCPREMOD • 1 Intel VROC Premium, RAID 0, 1, 5, 10
AOC-VROCSTNMOD 1 Intel VROC HW key (RSTe) standard upgrade module
Power Supply PWS-2K70A-1R • 1 ~ 4 1U 2700W Redundant Titanium w/PMBus power supply, W73.5xH39/40xL203 mm, C20 inlet
RAID Controller CacheVault(s) BTR-CVPM05 1 ~ 2 CacheVault for Broadcom RAID Controller (Ex. S3908/S3916)
MCP-240-00203-0N • 1 BTR-CVPM05 Supercap mounting bracket for PCIe location (Support up to 2 BTR)
SATA3/SAS RAID Controller - 16 Drives AOC-S3916L-H16IR-32DD 1 16 int 12Gb/s ports, x8 Gen4, ROC - LP
CBL-SAST-1281-100 2 Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM
SATA3/SAS RAID Controller - 8 Drives AOC-S3908L-H8IR-16DD 1 8 int 12Gb/s ports, x8 Gen4, ROC - LP
CBL-SAST-1281-100 1 Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM
TPM Security Module AOM-TPM-9672V-FIPS 1 TPM 2.0 with 10 pins SPI support FIPS 140,RoHS (Vertical)
AOM-TPM-9672V 1 TPM 2.0 with 10 pins SPI,RoHS (Vertical)

MP SuperServer SYS-442B-NR Coming Soon

Certain products may not be available in your region
