SuperServer SYS-222BT-HNC8R

DatasheetShare IconShare

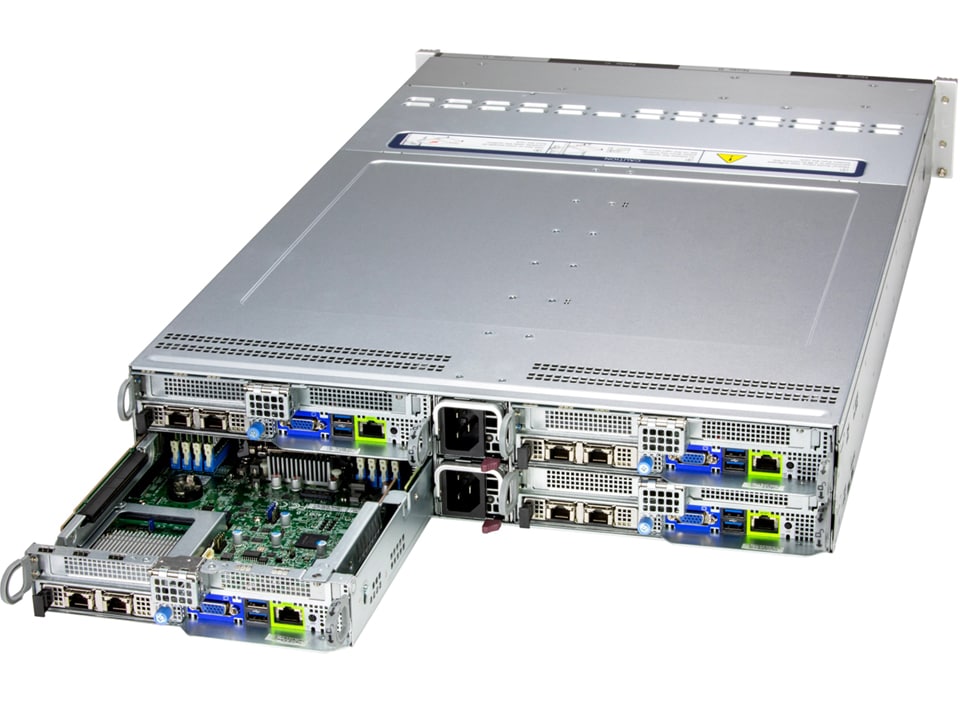

2U 4-Node BigTwin with 6 hot-swap 2.5" NVMe/SAS/SATA drives per node

Integrated Board: X14DBT-B
Learn more

Key Applications

  • Container-as-a-Service; Application Accelerator
  • Diskless HPC Clusters
  • All-Flash Hyperconverged Infrastructure

Key Features

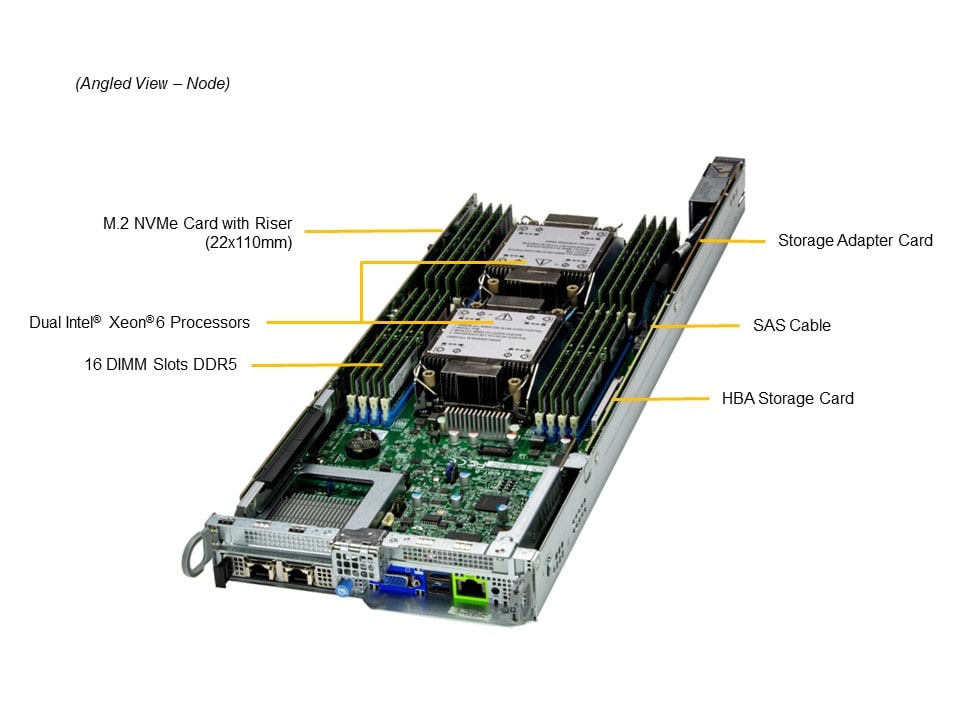

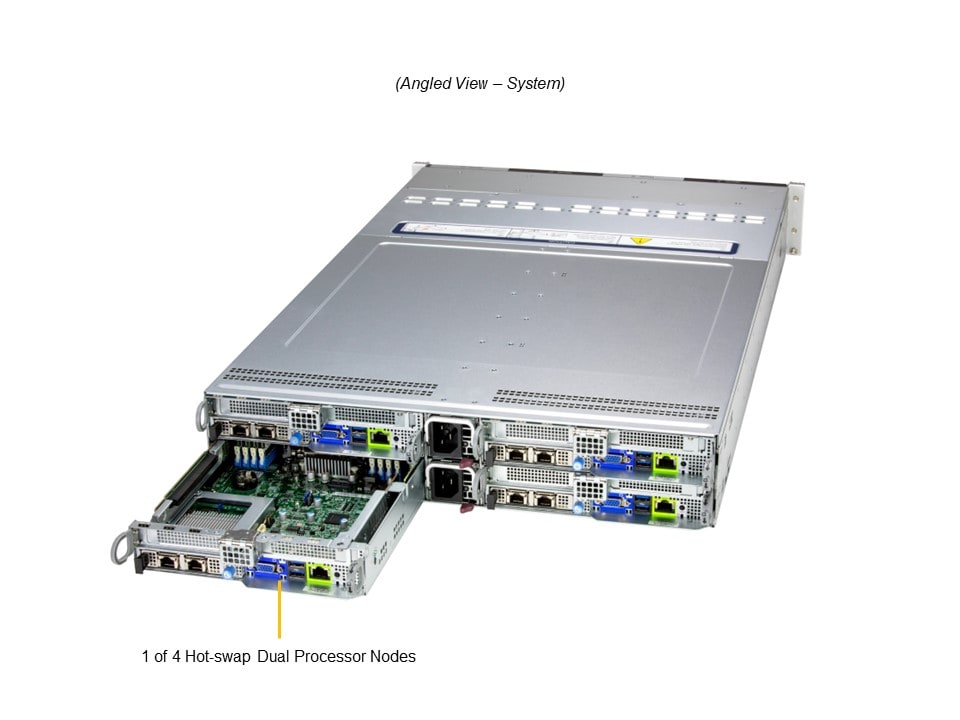

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

    • Dual Socket E2 Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores up to 205W with air cooling or 350W with liquid cooling
    • Single CPU configurations supported while maintaining all expansion slot functionality; see Option A for drive support limitations
  2. Up to 16 DIMMs supporting up to 4TB DDR5-6400 in 1DPC
  3. Flexible networking with OCP 3.0 AIOM slot
    • Up to 2 PCIe 5.0 x16 LP slots
    • Internal PCIe 5.0 for 2x NVMe M.2 support onboard
    • Optional 4x NVMe M.2 support onboard with built-in HW RAID1 feature via SCC-A2NM2241GH-B1
    • Up to 6 front hot-swap 2.5" NVMe/SAS drive bays
    • Built-in SAS3 Support via Broadcom 3808; IT Mode
...
...
SYS-222BT-HNC8R
Specifications Free Remote Testing Parts List
Specifications
Product SKUs
SuperServer SYS-222BT-HNC8R
Motherboard
Super X14DBT-B
Processor (per Node)
CPU
Core Count
  • P-cores: Up to 86C/172T; Up to 336MB Cache per CPU
  • E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
Note
  • Supports up to 300W TDP CPUs (Air Cooled)*
  • Supports up to 350W TDP CPUs (Liquid Cooled)​
  • *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices (per Node)
SAS
  • SAS (12Gbps) via Broadcom® 3808; (IT mode)
Chipset
  • System on Chip
Network Connectivity
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 Gen2 Type-A ports(Rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB Flash ROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 8+4 Phase-switching voltage regulator
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-217BQ2-R3K60P
Dimensions and Weight
Height
  • 3.47" (88 mm)
Width
  • 17.68" (449 mm)
Depth
  • 28.75" (730 mm)
Package
  • 9.76" (H) x 24.65" (W) x 45.28" (D)
Weight
  • Gross Weight: 96.6 lbs (43.8 kg)
  • Net Weight: 66.1 lbs (30 kg)
Available Color
  • Black front & silver body
Front Panel
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Buttons
  • Power On/Off button
  • UID button

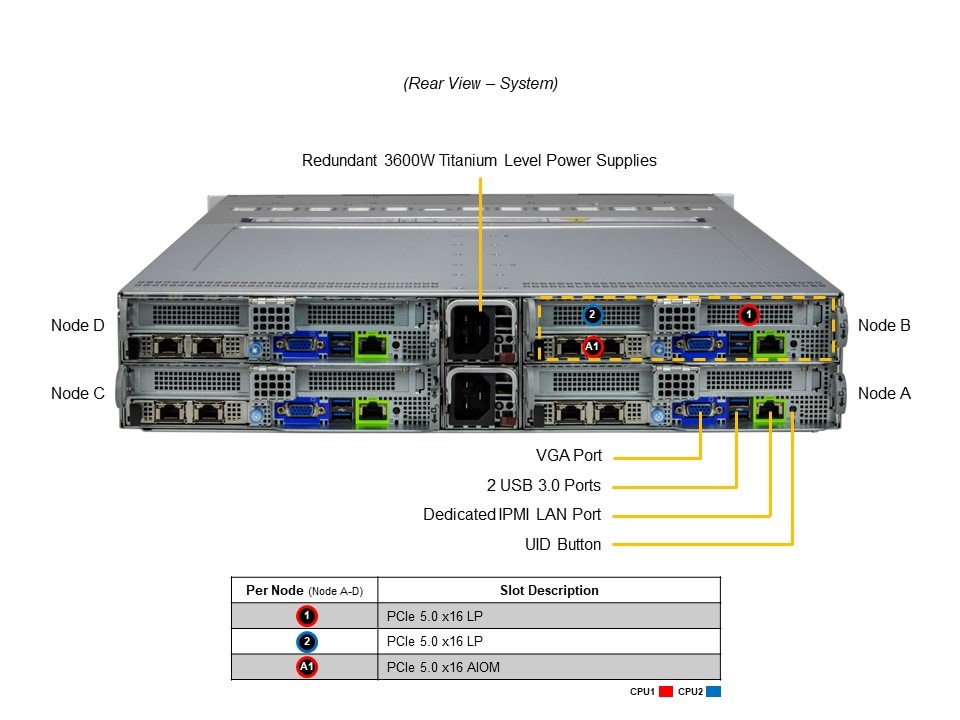

Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 5.0 x16 LP slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • View AOC Options

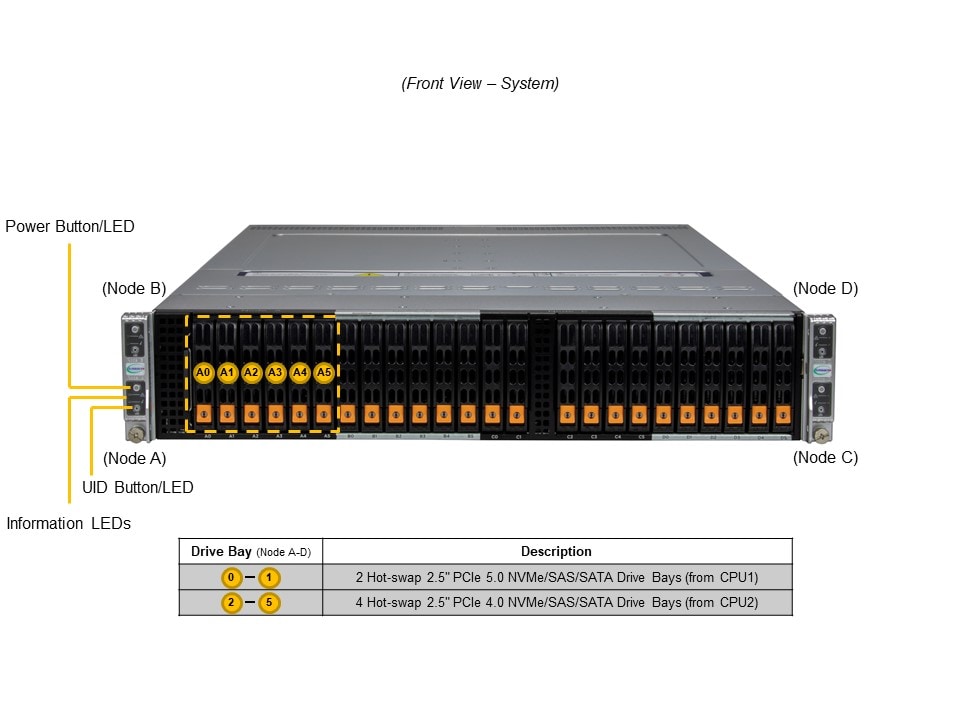

Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 6 bays
    • 2 front hot-swap 2.5" PCIe 5.0 NVMe/SAS drive bays
    • 4 front hot-swap 2.5" PCIe 4.0 NVMe/SAS drive bays
  • Option A: Total 6 bays
    • 2 front hot-swap 2.5" PCIe 5.0 NVMe/SAS drive bays
    • 4 front hot-swap 2.5" SAS drive bays
  • View NVMe Options
  • View Drive Options
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default); VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • 4x 16K RPM Counter Rotating 80x80x56mm Fan(s)
Air Shroud
  • 4 Air Shrouds
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
2x 3600W
2x 3600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)45 x 40 x 480 mm
Input3600W: 0240Vdc / 50-60Hz (for CQC only)
1400W: 100-127Vac / 50-60Hz
3000W: 200-207.9Vac / 50-60Hz
3100W: 208-219.9Vac / 50-60Hz
3250W: 220-229.9Vac / 50-60Hz
3450W: 230-237.9Vac / 50-60Hz
3600W: 238-240Vac / 50-60Hz
+12VMax: 112A / Min: 0A (100Vac-127Vac)
Max: 240A / Min: 0A (200Vac-207.9Vac)
Max: 248A / Min: 0A (208Vac-219.9Vac)
Max: 260A / Min: 0A (220Vac-229.9Vac)
Max: 276A / Min: 0A (230Vac-237.9Vac)
Max: 288A / Min: 0A (238Vac-240Vac)
12V SBMax: 4.5A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
2.5" Tool-less NVMe Tray MCP-220-00167-0B - Black gen 8 hot-swap 2.5" Tool-less NVMe tray, orange tab (Qty as Needed)
2.5" Tool-less SAS/SATA Tray MCP-220-00147-0B - Black gen 3 hot-swap 2.5" Tool-less HDD tray, red tab (Qty as Needed)
Cold Plate Module SNK-P3050-ABT 1 2x Supermicro Cold Plates for Attachment to CPUs (Qty per Node)
SNK-P3042 1 2x CoolIT Cold Plates for Attachment to CPUs (Qty per Node)
Coolant Distribution Manifolds SRK-00AS-CLIT-MF84SV-02 1 CoolIT 48U, 82S Dual Rack Coolant Manifolds (Qty per Rack)
SRK-00AS-CLIT-MF42SV-02 1 CoolIT 48U, 42S Single Rack Coolant Manifolds (Qty per Rack)
LCS-SCDM-076V42001-ABT 1 Supermicro Coolant Manifolds (Qty per Rack)
Coolant Distribution Unit SRK-00AS-CLIT-CH80V2-01 1 CoolIT 4U DLC CHx80V2 Coolant Distribution Unit (Qty per Rack)
LCS-SCDU-080L4001-ABT 1 Supermicro Rack Mounted Coolant Distribution Unit (Qty per Rack)
HDD Dummy Tray MCP-220-00185-0N - 2.5" HDD tray dummy cover for 2 slot (Qty as Needed)
M.2 NVMe RAID Controller SCC-A2NM2241GH-B1 1 2x Gen3 Marvell2241 NVMe M.2 RAID and 2x Gen5 Direct-from-CPU NVMe M.2 with 1x PCIEx16 Gen5. Supports 4x 22x110mm M.2 (Qty per Node)
SCC-A2NM2241G3-B1E 1 2x Gen3 Marvell2241 NVMe M.2 RAID with 1x PCIEx16 Gen5. Supports only 2x 22x110mm M.2 (Qty per Node)
SPI Capable TPM Options AOM-TPM-9670H-FIPS 1 SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node)
AOM-TPM-9670H-S 1 SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node)
SuperCloud Composer License SFT-SDDC-SINGLE - SDDC Monitor License - Single License per Monitored host
System Management Suite SFT-DCMS-Single - Supermicro System Management Software Suite node
VROC Options AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node)
AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10 (Qty per Node)
Optional Parts List
2.5" Tool-less NVMe Tray
Part NumberMCP-220-00167-0B
Qty-
DescriptionBlack gen 8 hot-swap 2.5" Tool-less NVMe tray, orange tab (Qty as Needed)
2.5" Tool-less SAS/SATA Tray
Part NumberMCP-220-00147-0B
Qty-
DescriptionBlack gen 3 hot-swap 2.5" Tool-less HDD tray, red tab (Qty as Needed)
Cold Plate Module
Part NumberSNK-P3050-ABTSNK-P3042
Qty11
Description2x Supermicro Cold Plates for Attachment to CPUs (Qty per Node)2x CoolIT Cold Plates for Attachment to CPUs (Qty per Node)
Coolant Distribution Manifolds
Part NumberSRK-00AS-CLIT-MF84SV-02SRK-00AS-CLIT-MF42SV-02LCS-SCDM-076V42001-ABT
Qty111
DescriptionCoolIT 48U, 82S Dual Rack Coolant Manifolds (Qty per Rack)CoolIT 48U, 42S Single Rack Coolant Manifolds (Qty per Rack)Supermicro Coolant Manifolds (Qty per Rack)
Coolant Distribution Unit
Part NumberSRK-00AS-CLIT-CH80V2-01LCS-SCDU-080L4001-ABT
Qty11
DescriptionCoolIT 4U DLC CHx80V2 Coolant Distribution Unit (Qty per Rack)Supermicro Rack Mounted Coolant Distribution Unit (Qty per Rack)
HDD Dummy Tray
Part NumberMCP-220-00185-0N
Qty-
Description2.5" HDD tray dummy cover for 2 slot (Qty as Needed)
M.2 NVMe RAID Controller
Part NumberSCC-A2NM2241GH-B1SCC-A2NM2241G3-B1E
Qty11
Description2x Gen3 Marvell2241 NVMe M.2 RAID and 2x Gen5 Direct-from-CPU NVMe M.2 with 1x PCIEx16 Gen5. Supports 4x 22x110mm M.2 (Qty per Node)2x Gen3 Marvell2241 NVMe M.2 RAID with 1x PCIEx16 Gen5. Supports only 2x 22x110mm M.2 (Qty per Node)
SPI Capable TPM Options
Part NumberAOM-TPM-9670H-FIPSAOM-TPM-9670H-S
Qty11
DescriptionSPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node)SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node)
SuperCloud Composer License
Part NumberSFT-SDDC-SINGLE
Qty-
DescriptionSDDC Monitor License - Single License per Monitored host
System Management Suite
Part NumberSFT-DCMS-Single
Qty-
DescriptionSupermicro System Management Software Suite node
VROC Options
Part NumberAOC-VROCPREMODAOC-VROCSTNMOD
Qty11
DescriptionIntel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node)Intel VROC Standard, RAID 0, 1, 10 (Qty per Node)
