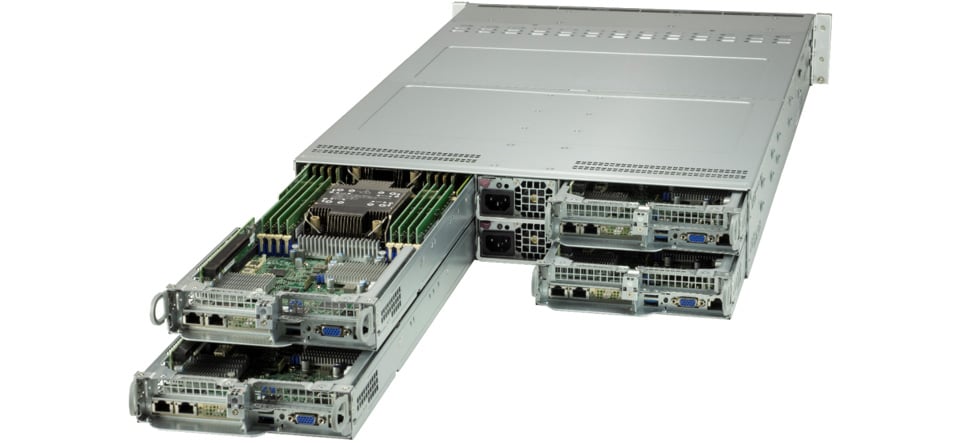

SuperServer SYS-620TP-HC9TR

DatasheetShare IconShare

2U 4-node TwinPro with 3 3.5" SAS/SATA (HW RAID) drives per node and dual 10GbE

Integrated Board: X12DPT-PT6
Learn more

Key Applications

  • High Performance Computing
  • Hyper-Converged Infrastructure
  • Big Data / Big Science

Key Features

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

  1. Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
  4. 1 PCIe 4.0 x16 (LP), 1 PCIe 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22x80 mm)
  5. Intel® X710 Dual port 10GBase-T LAN onboard
  6. 3x 3.5" hot-swap SATA/SAS drive bays
  7. 4 heavy duty 8cm PWM fans with optimal fan speed control (Per System)
  8. Two 2200W redundant power supplies with PMBus
    • ASPEED AST2600 BMC, 2 USB, VGA. RoT
    • Broadcom® 3908 SAS (12Gbps); 3 slots per node; RAID 0, 1, 5 support.
Get Pricing
SYS-620TP-HC9TR
Specifications Parts List
Specifications
Product SKUs
SuperServer SYS-620TP-HC9TR
Motherboard
Super X12DPT-PT6
Processor (per Node)
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 32C/64T; Up to 48MB Cache per CPU
Note
  • Supports up to 185W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices (per Node)
Chipset
  • Intel® C621A
Network Connectivity
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 5 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSV-827HQ+-R2K20BP4
Dimensions and Weight
Height
  • 3.47" (88 mm)
Width
  • 17.25" (438 mm)
Depth
  • 30.5" (774 mm)
Package
  • 10" (H) x 24.5" (W) x 45" (D)
Weight
  • Gross Weight: 90 lbs (40.9 kg)
  • Net Weight: 72 lbs (32.7 kg)
Available Color
  • Black front & silver body
Front Panel
LED
  • Network activity LED
  • Power status LED
  • System information (overheat/UID) LED
Buttons
  • Power On/Off button
  • UID button
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
Drive Bays / Storage (per Node)
Drive Bays Configuration
M.2
System Cooling
Fans
  • 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 4 Air Shrouds
Power Supply
1x 2200W
1x 2200W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)76 x 40 x 336 mm
Total Output Power(for CCC only)
(for UL/cUL use only)
Input1200W: 100-127Vac
1200W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
1980W: 220-230Vac / 50-60Hz
2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
2200W: 230-240Vac
2090W: 230-240Vac / 50-60Hz
2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12VMax: 100A / Min: 0A (100Vdc-127Vdc)
Max: 100A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
Max: 183.3A / Min: 0A (220Vac-240Vac)
Max: 174.17A / Min: 0A (230Vac-240Vac)
Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
Max: 183.33A / Min: 0A (230Vdc-240Vdc)
5V SBMax: 1A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DPT-PT6

CSV-827HQ+-R2K20BP4 		4

1 		Super X12DPT-PT6 Motherboard

2U Chassis
Add-on Card / Module AOC-S3908L-H8IR-16DD-P 4 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDDw/ exp,RoHS
Backplane BPN-SAS3-827HQ3 1 2U 12-Slot 4-Node TwinPro Backplane Supports up to 3x3.5" SA
Cable CBL-PWCD-0900 2 PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
CBL-SAST-1334-100 4 [NR] SlimSAS x8 (STR to STR),34CM,100 OHM,RoHS
Air Shroud MCP-310-21732-0B 4 TwinPro 2U4N plastic air shroud for X12DPT-PT6(2pcs)
Riser Card RSC-P-6G4 4 1U LHS TwinPro Riser card with one PCIe 4.0x16lotH,RoHS
RSC-PR-6-X2 4 1U RHS TwinPro Riser card with one PCIe 4.0 x16 slot,HF,RoH
Storage Controller Card SCC-P2N2M2-P2 4 2x NVMe M.2 carrier up to 2280 for X12 Twinpro
SCC-P6SG4-P1 4 1U Passive Gen4 6x SAS/SATA connecting to AOC 3808/3908
Software SFT-OOB-LIC 4 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077PM 4 X12 ICX/CPX 1U Passive CPU Heatsink (78x113x24.7mm), w/ Center Air channel
SNK-P0077V 4 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
*Power Supply PWS-2K20A-1R 2 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
*Power Distributor PDB-PT217-H2412 1 2U support redundancy input powers up to 2.6KW for Twin seri
*Fan FAN-0162L4 4 80x80x38 mm, 13.5K RPM, HCP, LMV, and LPC Cooling Fan,RoHS/REACH
*Drive Tray(s) MCP-220-00075-0B 12 Black gen 5.5 hot-swap 3.5" HDD tray
*Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2"W
*Fan Holder MCP-320-21701-0N 2 Twin Pro fan holder (hold 2 80x38 fans),RoHS/REACH
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
CacheVault for RAID Controller BTR-CVPM05 • 1 Broadcom CacheVault
MCP-240-00203-0N • 1 Mounting Bracket
TPM security module (optional, not included) AOM-TPM-9670H-O • 1 SPI capable TPM 2.0 with Infineon 9670 controller with Horizontal form factor
AOM-TPM-9671H-O 1 SPI capable TPM 1.2 with Infineon 9670 controller with Horizontal form factor
VROC Premium AOC-VROCPREMOD • 1 Intel VROC Premium, RAID 0, 1, 5, 10
VROC Standard AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
Standard Parts (Parts Included)
Motherboard / Chassis
Part NumberMBD-X12DPT-PT6 CSV-827HQ+-R2K20BP4
Qty4 1
DescriptionSuper X12DPT-PT6 Motherboard 2U Chassis
Add-on Card / Module
Part NumberAOC-S3908L-H8IR-16DD-P
Qty4
Description8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDDw/ exp,RoHS
Backplane
Part NumberBPN-SAS3-827HQ3
Qty1
Description2U 12-Slot 4-Node TwinPro Backplane Supports up to 3x3.5" SA
Cable
Part NumberCBL-PWCD-0900CBL-SAST-1334-100
Qty24
DescriptionPWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17[NR] SlimSAS x8 (STR to STR),34CM,100 OHM,RoHS
Air Shroud
Part NumberMCP-310-21732-0B
Qty4
DescriptionTwinPro 2U4N plastic air shroud for X12DPT-PT6(2pcs)
Riser Card
Part NumberRSC-P-6G4RSC-PR-6-X2
Qty44
Description1U LHS TwinPro Riser card with one PCIe 4.0x16lotH,RoHS1U RHS TwinPro Riser card with one PCIe 4.0 x16 slot,HF,RoH
Storage Controller Card
Part NumberSCC-P2N2M2-P2SCC-P6SG4-P1
Qty44
Description2x NVMe M.2 carrier up to 2280 for X12 Twinpro1U Passive Gen4 6x SAS/SATA connecting to AOC 3808/3908
Software
Part NumberSFT-OOB-LIC
Qty4
DescriptionLicense key for enabling OOB BIOS management
Heatsink / Retention
Part NumberSNK-P0077PMSNK-P0077V
Qty44
DescriptionX12 ICX/CPX 1U Passive CPU Heatsink (78x113x24.7mm), w/ Center Air channelX12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
*Power Supply
Part NumberPWS-2K20A-1R
Qty2
Description1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
*Power Distributor
Part NumberPDB-PT217-H2412
Qty1
Description2U support redundancy input powers up to 2.6KW for Twin seri
*Fan
Part NumberFAN-0162L4
Qty4
Description80x80x38 mm, 13.5K RPM, HCP, LMV, and LPC Cooling Fan,RoHS/REACH
*Drive Tray(s)
Part NumberMCP-220-00075-0B
Qty12
DescriptionBlack gen 5.5 hot-swap 3.5" HDD tray
*Rail Set
Part NumberMCP-290-00053-0N
Qty1
DescriptionRail set, quick/quick, default for 2,3U 17.2"W
*Fan Holder
Part NumberMCP-320-21701-0N
Qty2
DescriptionTwin Pro fan holder (hold 2 80x38 fans),RoHS/REACH
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
CacheVault for RAID Controller
Part NumberBTR-CVPM05 •MCP-240-00203-0N •
Qty11
DescriptionBroadcom CacheVaultMounting Bracket
TPM security module (optional, not included)
Part NumberAOM-TPM-9670H-O •AOM-TPM-9671H-O
Qty11
DescriptionSPI capable TPM 2.0 with Infineon 9670 controller with Horizontal form factorSPI capable TPM 1.2 with Infineon 9670 controller with Horizontal form factor
VROC Premium
Part NumberAOC-VROCPREMOD •
Qty1
DescriptionIntel VROC Premium, RAID 0, 1, 5, 10
VROC Standard
Part NumberAOC-VROCSTNMOD
Qty1
DescriptionIntel VROC Standard, RAID 0, 1, 10
