SuperServer 7088B-TR4FT (Complete System Only)

  Products  Systems   Multi-processor Server Systems   [ 7088B-TR4FT ]







Integrated Board




8 X10OBi-CPU

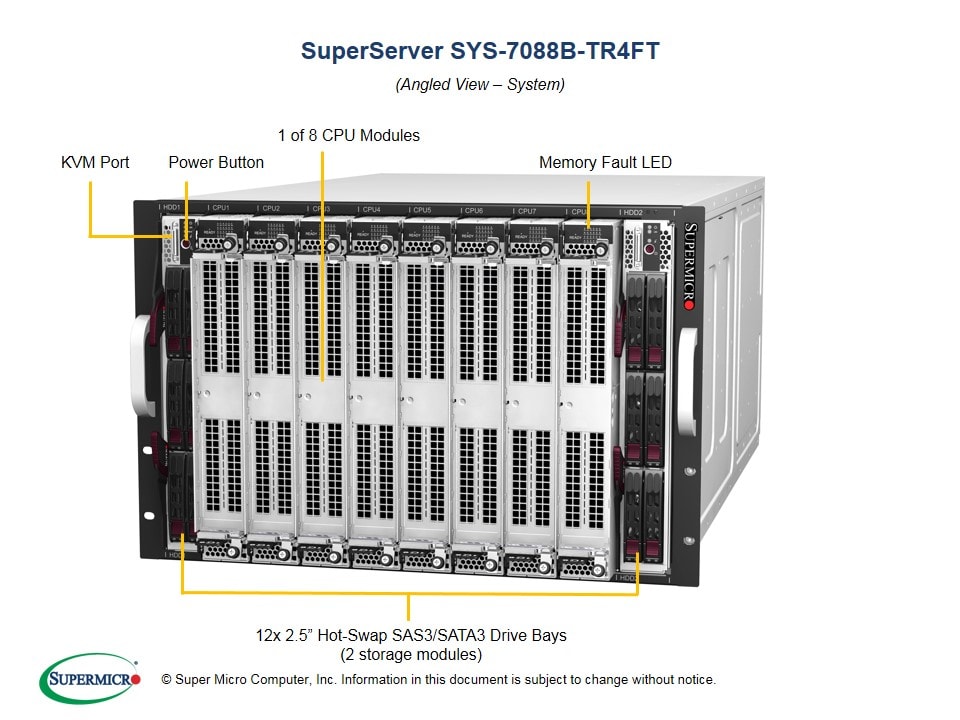

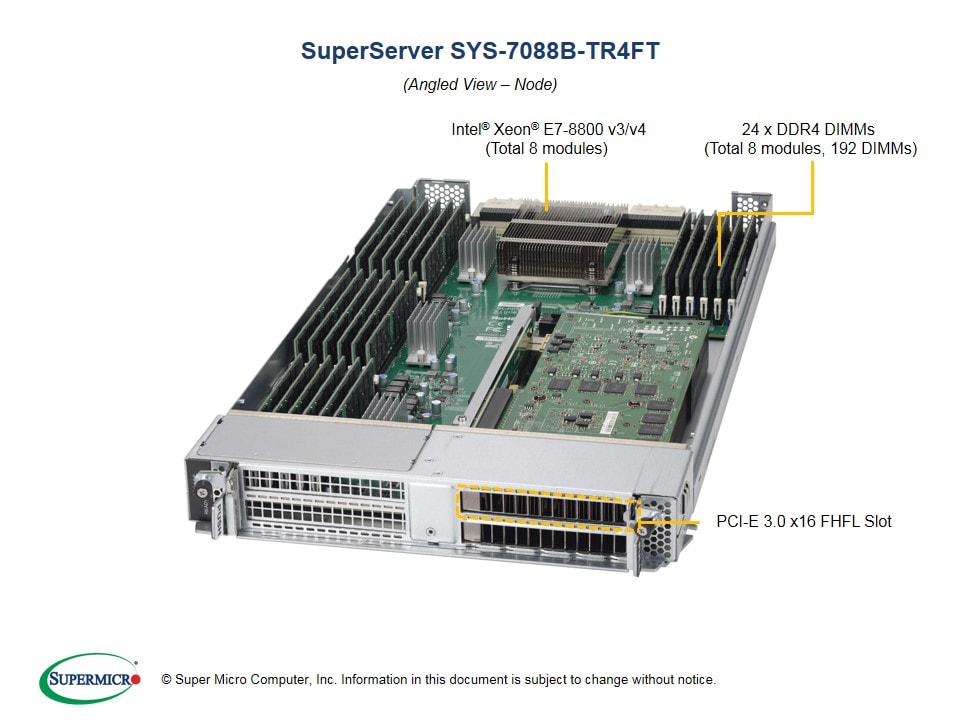

Views: | Angled View | Node View |

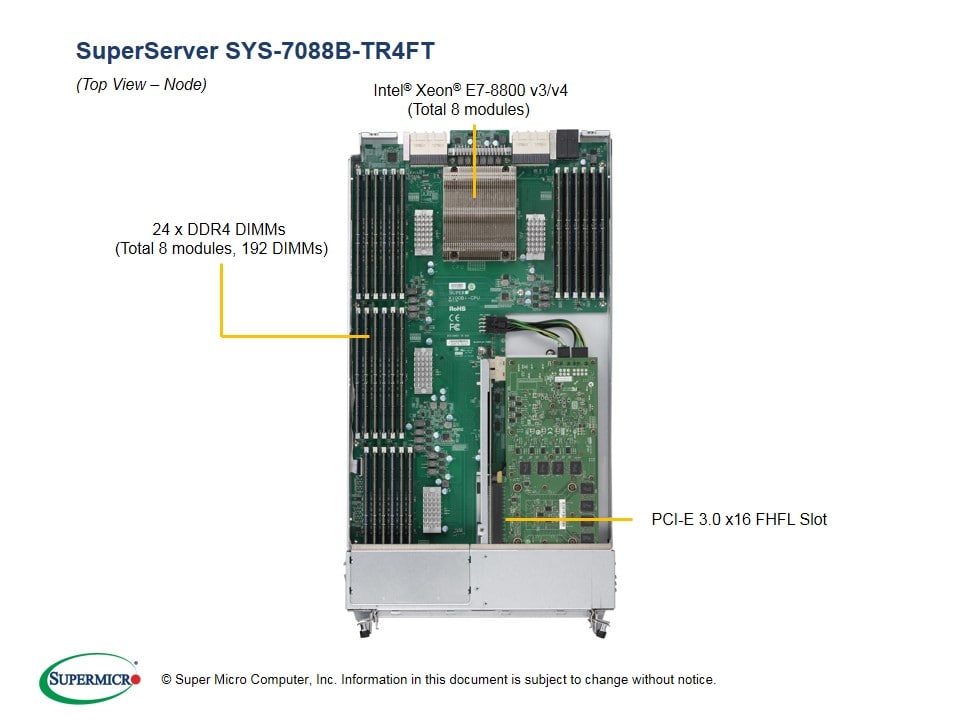

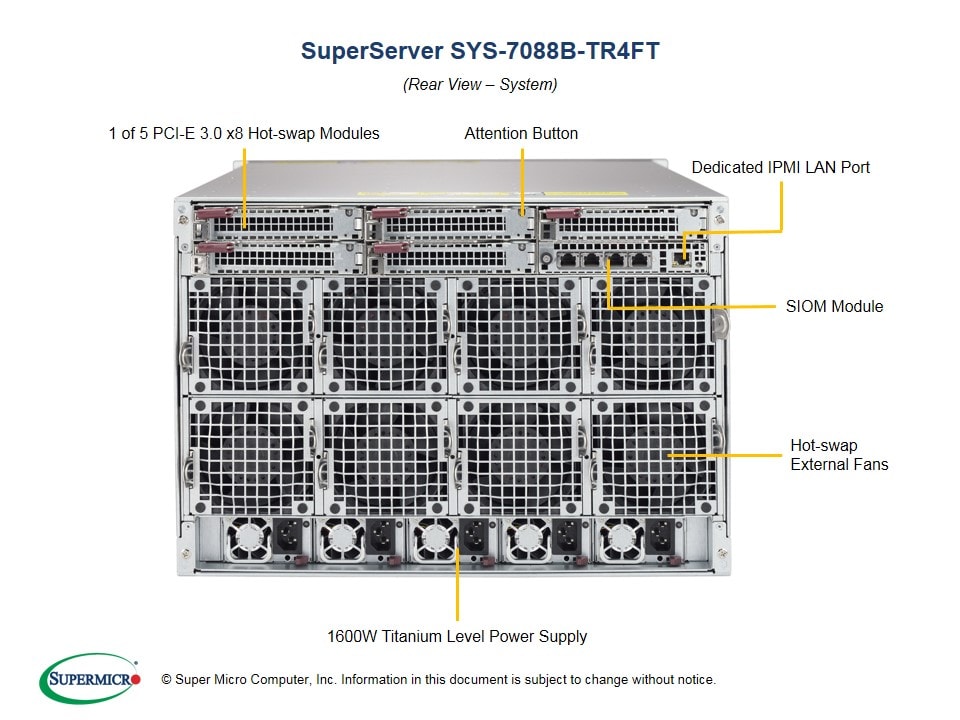

| Top View | Rear View |

Key Features

1. Eight Socket R1 (LGA 2011) support

    Intel® Xeon® processor E7-8800 v4/v3

    family (up to 24-Core)
2. Up to 24TB in 192 DDR4 DIMM slots
3. Up to 15 PCI-E 3.0 slots

    (8 x16, 7 x8 in x16)
4. 4 10Gb LAN (SIOM), 1 dedicated LAN for

    IPMI Remote Management, 1 VGA,

    2 USB 2.0, 1 COM via KVM
5. Up to 12 Hot-swap 2.5" SAS3 HDDs

    (w/ RAID cards), 20x 2.5" or 6x 3.5"

    internal HDDs (w/ RAID cards)
6. 8x 9cm Hot-swap counter-rotating

    rear fans
7. 5x 1600W Redundant (N+1) Power

    Supplies, Titanium Level (96%)




    Supermicro 8-Way Server
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (8 CPU with 192/96 DIMMs are the recommended configurations for the best performance.) Please contact your Supermicro sales rep for special 4 CPU with 96/48 DIMMs requirements with fees.


192/128/64 DIMMs are the recommended memory population configurations for the best performance.


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Drive Options   Tested SIOM


Product SKUs
SYS-7088B-TR4FT
  • SuperServer 7088B-TR4FT (Black)

Motherboard


Super X10OBi-CPU

Processor/Cache
CPU
  • Intel® Xeon® processor E7-8800 v4/v3 family (up to 24 Cores and 165W TDP)
  • Socket R1 (LGA 2011)
Cache
  • Up to 60 MB
System Bus
  • QPI up to 9.6 GT/s

System Memory
Memory Capacity
  • 192x 288-pin DDR4 DIMM slots
  • Supports up to 24TB DDR4 ECC 3DS LRDIMM in 192 DIMM slots
Memory Type
  • 2400*/2133*/1866*/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs



    * Run up to 1600MHz depend on setting.
DIMM Sizes
  • 128GB, 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C602J chipset
Storage
  • Intel C602J including 2 SATA3 (6Gbps, for SATA DOM) + 4 SATA2 (3Gbps, 2 for M.2, 2 for HDD) with RAID 0, 1, 5, 10
Network Controllers

(via AOM)
  • 4-port 10GBase-T Ethernet SIOM (Intel® X550 controller)
IPMI

(via AOM)
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED 2400
Graphics
  • ASPEED AST2400 BMC

Input / Output
Storage
  • 2 SATA2 (HDD) ports
  • 2 SATA2 (M.2) ports
  • 2 SATA3 (SATADOM) ports
LAN
  • 4 10GBase-T ports via SIOM
  • 1 dedicated LAN port for IPMI
USB
  • 2 USB 2.0 ports via KVM port
Serial Port / Header
  • 1 Fast UART 16550 ports: 1 front via KVM port

System BIOS
BIOS Type
  • 16MB SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.2
  • ACPI up to 3.0
  • USB Keyboard support
Chassis
Form Factor
  • 7U Rackmountable
  • Rackmount Kit: Comes with the system
Model
  • CSE-718TQC-R4800B

Dimensions and Weight
Height
  • 12.2" (310mm)
Width
  • 17.63" (448mm)
Depth
  • 28.87" (733mm)
Weight
  • Gross Weight: 208 lbs (93.35 kg)
Available Colors
  • Black

Drive Bays
Hot-swap
  • 12 Hot-swap 2.5" SAS3 drive bays (w/ RAID cards)
  • 20x 2.5" or 6x 3.5" internal drive bays (w/ RAID cards)

Expansion Slots
PCI-Express
  • 15 PCI-E 3.0 FH slots total
  • 8 PCIE 3.0 x16 + 7 PCIE 3.0 x8 (in x16) slots
  • Up to 16 U.2 NVMe option available

Backplane
2x 6-port 12G backplane supports 6x 2.5" SAS3/SATA3 HDD/SSD

System Cooling
Fans
  • 8x 9cm Hot-Swap Counter-rotating Rear Fans

Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power
  • 1600W/1000W
Dimension

(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level

  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages.
  • 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
FAN
  • 4-pin fan headers with tachometer status monitoring
  • Low noise fan speed control mode
Temperature
  • Monitoring for CPU and system environment
  • Thermal Control for 9x fan connectors
Other Features
  • Chassis intrusion detection

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:

       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)


 Part Number

 Qty

 Description
Chassis CSE-718TQC-R4800B 1 CSE-718TQC-R4800B 7U Chassis
Motherboard X10OBi-CPU-CPU 8 Super X10OBi-CPU-CPU Motherboard
Add-on Card / Module AOM-X10OBI-PCH-P 1 PCH and BMC add on module for X10OBI series MB
Add-on Card / Module AOM-X10OBI-PCIE-P 5 PCI-E add on module for X10 7U 8-way server
Add-on Card / Module AOM-X10OBI-HDD-P 2 Storage add-on module for X10OBI series MB
Add-on Card / Module AOC-MTG-I4TM-P 1 [NR]AOC-MTG-I4TM-P
Backplane BPN-SAS3-718TQ 2 6-port SC718TQC SAS3 12Gbps TQ backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD
Backplane BPN-X10OBI 1 Midplane for X10 8-way server
Cable 1 CBL-0218L 1 USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG
Cable 2 CBL-0484L 2 SATA,INT,ROUND,ST-ST,55CM,30AWG
Cable 3 CBL-PWEX-0651 1 8 pin female to 2x RA(Right Angle) big 4 pin female power, 40/50CM, 18AWG,RoHS/REACH
Riser Card RSC-R1UF-E16R 2 RSC-R1UF-E16R
Riser Card RSC-BLG-E16R 8 RSC-BLG-E16R
Heatsink / Retention SNK-P0047PS 8 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-1K62A-1R 5 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH




Optional Parts List


 Part Number

 Qty

 Description
Battery Backup Kit

Cache Vault (s) for 1x 3108		 BTR-TFM8G-LSICVM02

MCP-240-00127-0N

MCP-220-00137-0N		 1

1

1		 Broadcom Supercap w/ 8GB CV + 24'' cable (whole kit)

Broadcom SuperCap Bracket, Include Screw, Same Size as 2.5" HDD

HDD bkt for 2x 2.5"HDD (use std 2.5" HDD hole)
Storage Options See Details - SAS3 and NVMe Options
GPU Power Cable CBL-PWEX-0665 - PCIe 8 pin female(black) to CPU 8 pin female(white), K80/M60/M40 GPU power cable, 30cm, 18AWG,RoHS/REACH
Global Services & Support OS4HR3/2/1

OSNBD3/2/1		 -

-		 3/2/1-year onsite 24x7x4 service

3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
