SuperServer 8048B-TR4FT (Complete System Only)

Print
Integrated Board
Super X10QBi

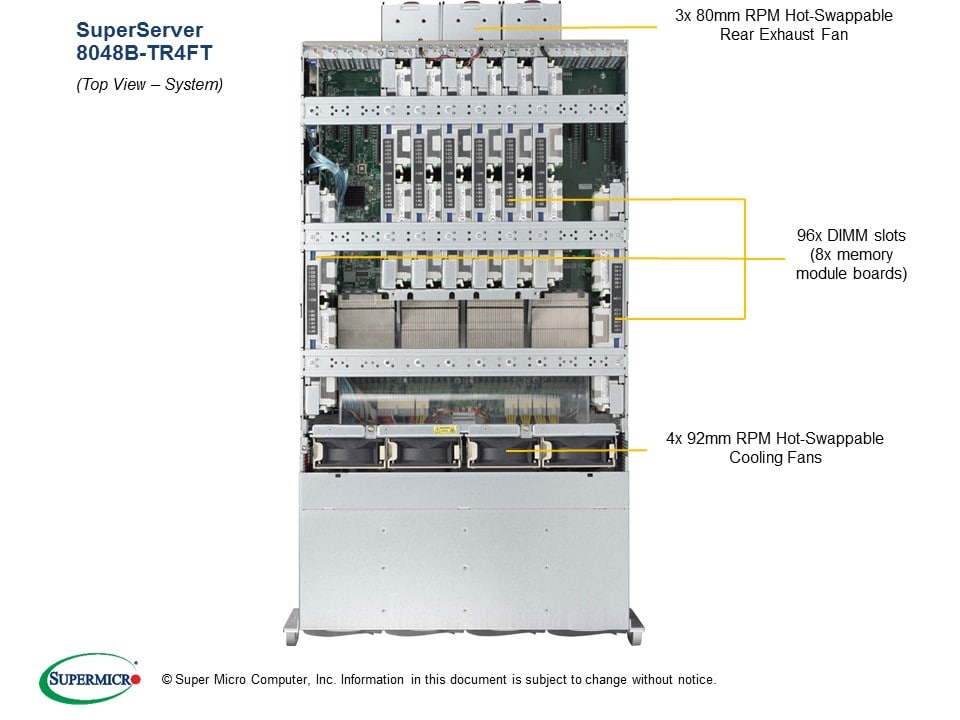

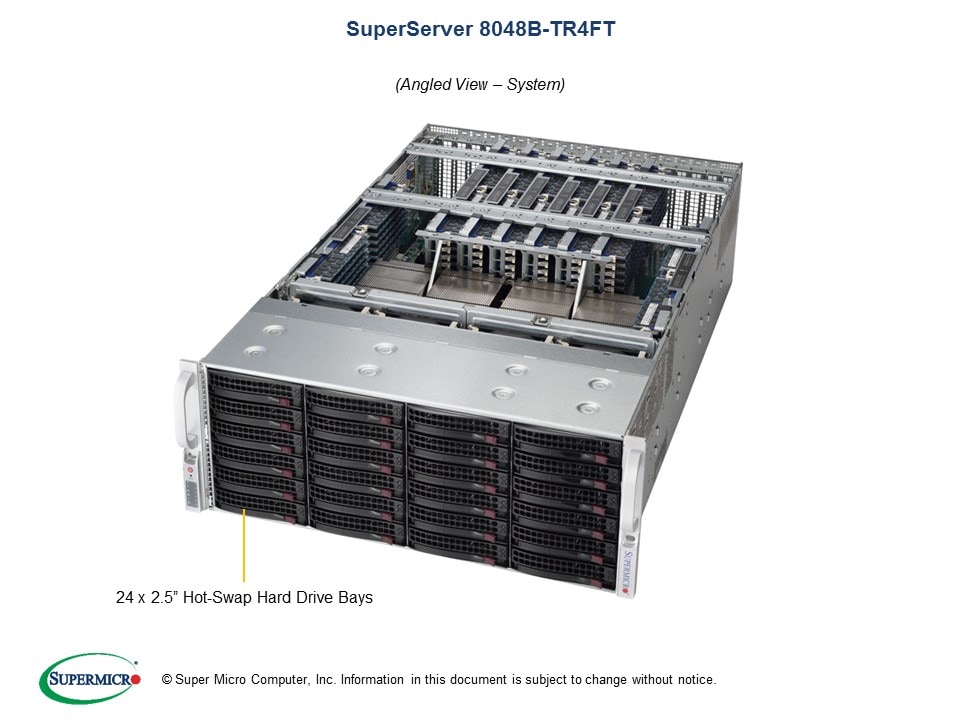

Views: | Angled View | Top View |

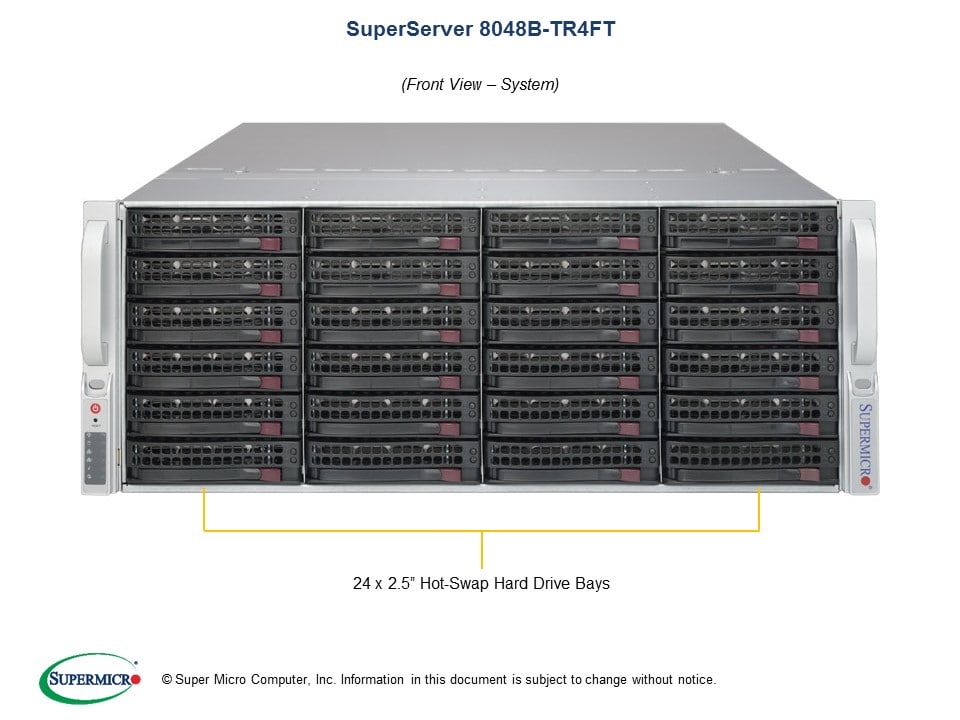

| Front View | Rear View |

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 4 CPUs, 32 DIMMs, 1 HDD installed).
96/64/32 DIMMs are the recommended memory population configurations for the best performance.
 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Drive Options
Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.

Key Features
1. Quad socket R1 (LGA 2011) supports
    Intel® Xeon® processor E7-8800 v4/v3,
    E7-4800 v4/v3 family (up to 24-Core)
2. Up to 12TB DDR4 (128GB 3DS
    LRDIMM); 96x DIMM slots (8x memory
    module boards: X10QBi-MEM2)
3. Up to 11x PCI-E 3.0 slots (4 x16, 7 x8)
4. I/O ports via Add-on Card:
    2x 10Gb LAN, 1x Dedicated LAN for
    IPMI Remote Management, 1x VGA
5. Up to 24x 3.5" Hot-swap drive bays
6. 4x 92mm Hot-swap cooling fans,
    3x 80mm Hot-swap rear exhaust fans,
    2x 80mm rear exhaust fans (option)
7. 1620W Redundant (N+1) Power
    Supplies, Platinum Level (94%)



       Product Review


Specifications
Product SKUs
SYS-8048B-TR4FT
  • SuperServer 8048B-TR4FT (Black)

Motherboard

Super X10QBi

Processor/Cache
CPU
  • Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24 Cores and 165W TDP)
  • Quad Socket R1 (LGA 2011)
Cache
  • Up to 60 MB
System Bus
  • QPI up to 9.6 GT/s

System Memory
Memory Capacity
  • 96x 288-pin DDR4 DIMM slots
  • Supports up to 12TB DDR4 ECC 3DS LRDIMM in 96 DIMM slots
Memory Type
  • 1866/1600/1333/1066/800MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs
DIMM Sizes
  • 128GB, 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C602J chipset
AHCI SATA
  • SATA3 (6Gbps) with RAID 0, 1
  • SATA2 (3Gbps) with RAID 0, 1, 5, 10
Network Controllers
(via AOM)
  • Intel® X540 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBase-T , 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
IPMI
(via AOM)
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED 2400
Graphics
  • ASPEED 2400

Input / Output
AHCI SATA
  • 2x SATA3 (6Gbps) ports
  • 4x SATA2 (3Gbps) ports
LAN
  • 2x RJ45 10GBase-T ports on AOM
  • 1x dedicated LAN port for IPMI on AOM
USB
  • 2x USB 2.0 ports
Serial Port / Header
  • 2x Fast UART 16550 ports: 1 rear and 1 header
DOM
  • 1x DOM (Disk on Module) power connector

System BIOS
BIOS Type
  • 16MB SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.2
  • ACPI up to 3.0
  • USB Keyboard support
Chassis
Form Factor
  • 4U Rackmountable
  • Rackmount Kit: Comes with the system
Model
  • CSE-848XA-R3240B

Dimensions and Weight
Height
  • 7.0" (178mm)
Width
  • 17.2" (437mm)
Depth
  • 32.1" (815mm)
Package
  • 15" (H) x 27" (W) x 43.7" (D)
Weight
  • Net Weight: 74.5 lbs (33.79 kg)
  • Gross Weight: 115 lbs (52.16 kg)
Available Colors
  • Black

Drive Bays
Hot-swap
  • 24x 3.5" drive bays
  • BPN-SAS-846A direct attached backplane, system supports up to 24 HDDs by using selected RAID/HBA card and default HDD connection is onboard C602J chipset 2 SATA3 + 4 SATA2

Expansion Slots
PCI-Express
  • 11x PCI-E 3.0 slots w/ 48 memory slots
    (4x PCI-E 3.0 x16 and 7x PCI-E 3.0 x8)
  • 8x PCI-E 3.0 slots w/ 96 memory slots
    (4x PCI-E 3.0 x16 and 4x PCI-E 3.0 x8)

Backplane
SAS/SATA HDD Backplane

System Cooling
Fans
  • 4x 92mm RPM Hot-Swappable Cooling Fans
  • 3x 80mm RPM Hot-Swappable Rear Exhaust Fans
  • 2x 80mm Rear Exhaust Fans (optional)

Power Supply
1620W high-efficiency redundant power supply w/ PMBus
AC Input
  • 1000W Output @ 100-120V, 12-10A, 50-60Hz
  • 1200W Output @ 120-140V, 12-10A, 50-60Hz
  • 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
  • 1000W: +12V/84A; +5Vsb/4A
  • 1200W: +12V/100A; +5Vsb/4A
  • 1620W: +12V/150A; +5Vsb/4A
Certification Platinum Level Certified94%+    Platinum Certified
  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages.
  • 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
FAN
  • 4-pin fan headers with tachometer status monitoring
  • Low noise fan speed control mode
Temperature
  • Monitoring for CPU and system environment
  • Thermal Control for 9x fan connectors
Other Features
  • Chassis intrusion detection

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
Parts List
SuperServer 8048B-TR4FT (Complete System Only)
