SuperStorage 6049P-E1CR60H (Complete System Only)

  Products  Systems   SuperStorage   [ 6049P-E1CR60H ]




Integrated Board
Super X11DSC+

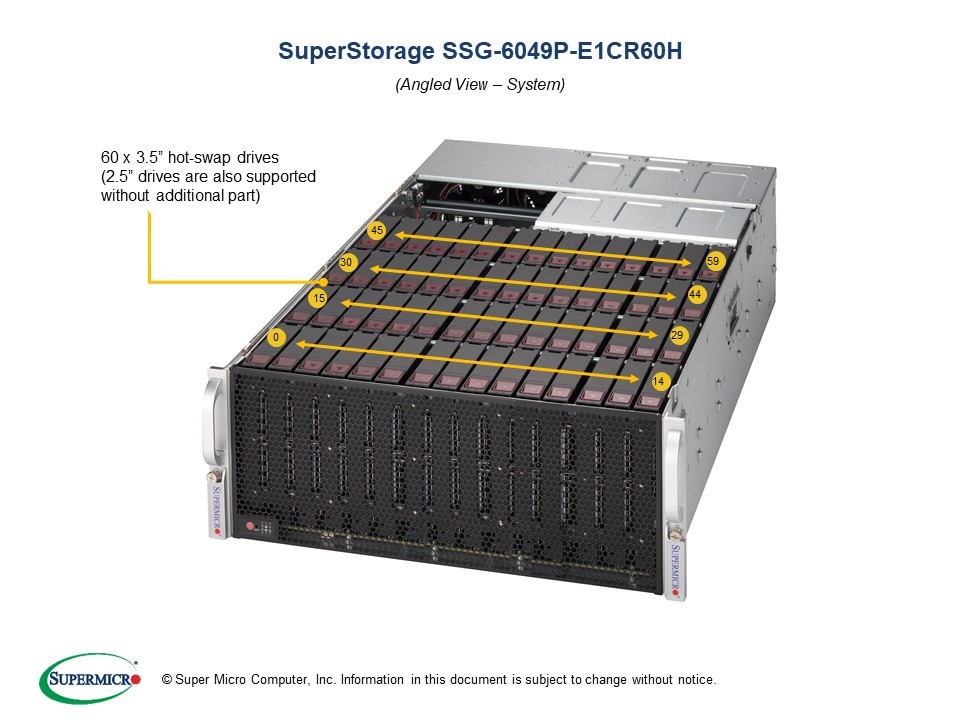

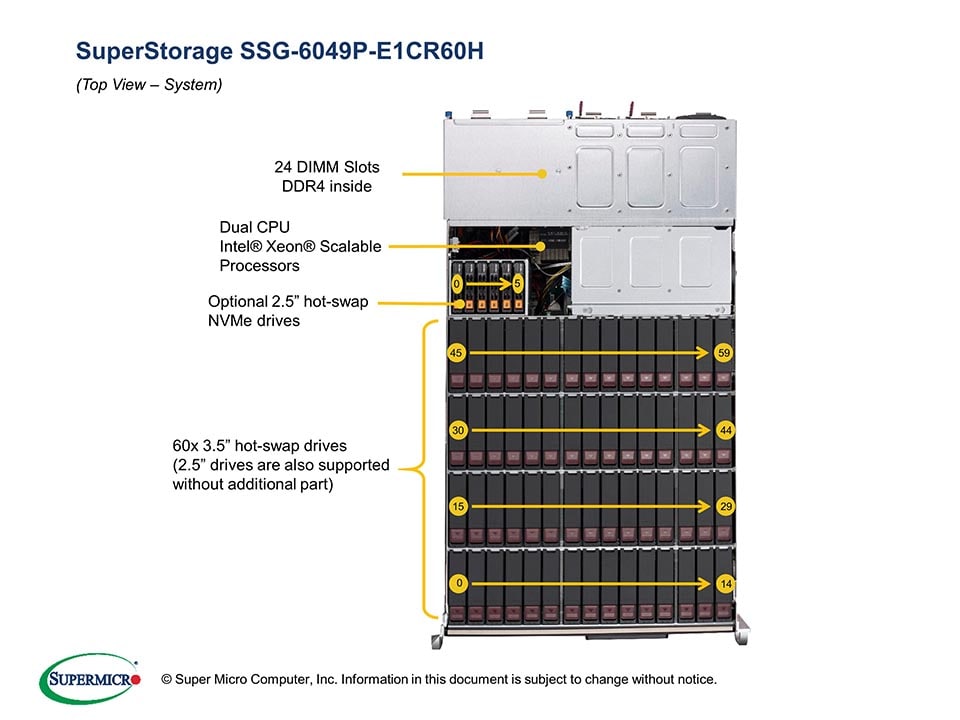

Views: | Angled View | Top View |

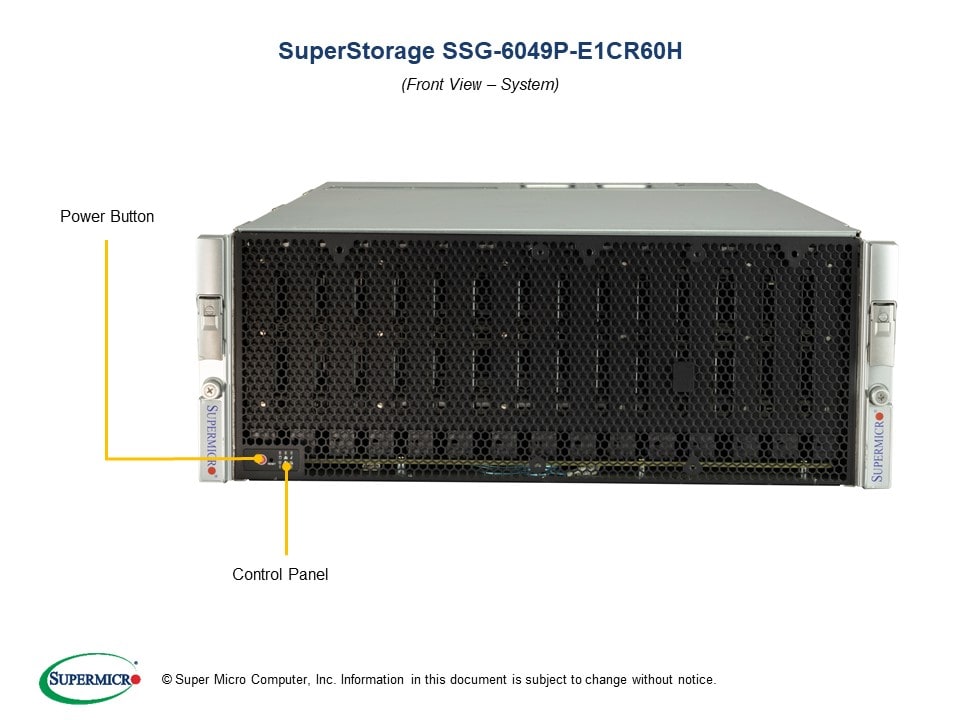

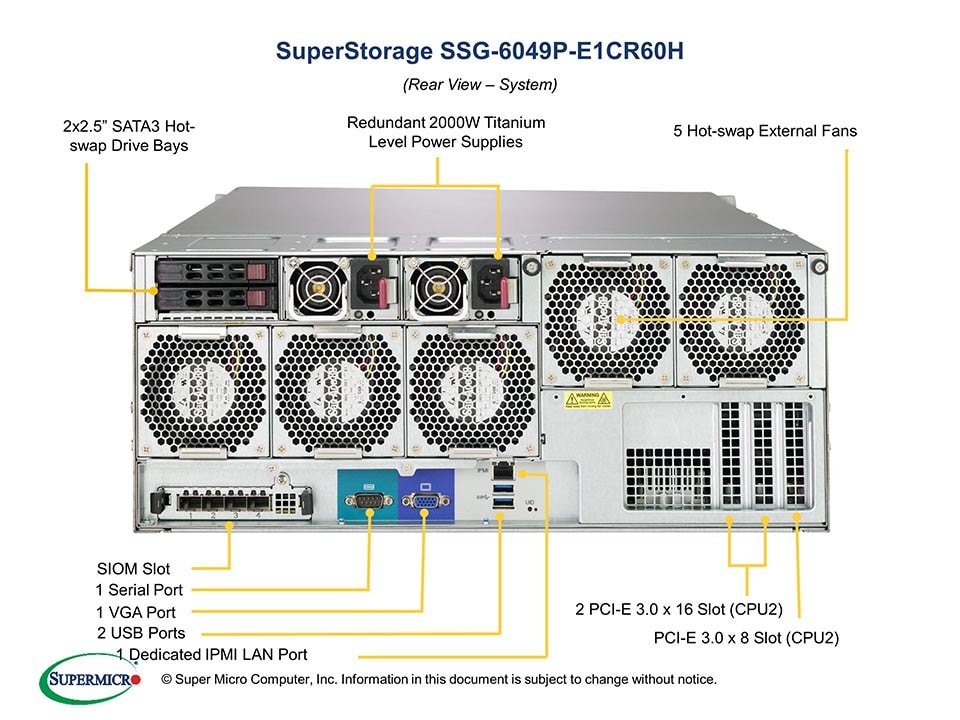

| Front View | Rear View |
Key Features
  - Corporate Database
  - Database Processing & Storage
  - Enterprise Server
  - HPC, Data Center
  - iSCSI SAN

1. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)‡
2. 24 DIMMs; up to 6TB 3DS ECC
    DDR4-2933MHz† RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM
    card support (flexible networking)
    Note: must bundle with Network card
4. 60 Hot-swap 3.5" SAS3/SATA3 drive
    bays with SES3 (can support 2.5"
    without converter tray); 2 rear
    Hot-swap 2.5" drive bays;
    optional 6 NVMe bays
5. Broadcom 3108 SAS3, HW RAID
6. Server remote management: IPMI 2.0
    / KVM over LAN / Media over LAN
7. 5 Hot-swap 8cm rear exhaust PWM fans
8. 2000W Redundant Power Supplies
    Titanium Level (96%)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, 15 HDDs and 1 NIC or SIOM card).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  NVMe Options   Manuals    OS Certification Matrix    Drive Options   Tested SIOM

Product SKUs
SSG-6049P-E1CR60H
  • SuperStorage 6049P-E1CR60H (Black)

Motherboard

Super X11DSC+

Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C621 chipset
SAS
  • SAS3 (12Gbps) via Broadcom 3108; HW RAID
  • RAID 0, 1, 5, 6, 10, 50, 60
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
Serial ATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 1 Type A
VGA
  • 1 VGA D-Sub connector port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header

System BIOS
BIOS Type
  • AMI UEFI

Management
Software

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-946STS-R2K05P

Dimensions
Width
  • 17.2" (437mm)
Height
  • 7" (178mm)
Depth
  • 30.2" (767mm)
Weight
  • Gross Weight: 170.5 lbs (77.3kg)
  • Net Weight: 118 lbs (53.5 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
  • Power fail LED

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 slots
  • 1 PCI-E 3.0 x8 slot
  • 1 SIOM card support
    (must bundle with network card)

Drive Bays
Hot-swap
  • 60 Hot-swap 3.5" SAS3/SATA3 drive bays
  • 2 Rear Hot-swap 2.5" SATA drive bays
Optional
  • 6 NVMe bays (optional)

Backplane
SAS3/SATA3 single expander per backplane

System Cooling
Fans
  • 5 Hot-swap 8cm rear exhaust PWM fans

Power Supply
2000W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 – 120Vac
  • 1800W: 200 – 220Vac
  • 1980W: 220 – 230Vac
  • 2000W: 230 – 240Vac
  • 2000W: 200 – 240Vac (UL/CUL only)
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-120Vac / 12.5-9.5A / 50-60Hz
  • 200-220Vac / 10-9.5A / 50-60Hz
  • 220-230Vac / 10-9.8A / 50-60Hz
  • 230-240Vac / 10-9.8A / 50-60Hz
  • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100-120Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 166.7A / Min: 0A (230-240Vac)
  • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X11DSC+
CSE-946STS-R2K05P 		1
1		 Super X11DSC+ Motherboard
4U Chassis
Rear Window MCP-240-94601-0N - SC946S rear window w/ 3x LP slots for X10DSC+
Rear Window MCP-290-00132-0N - SIOM dummy cover for 226S/826S/946S
Add-on Card / Module AOM-S3108M-H8L-P 1 sas3 roc mez for X10dsc
Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Backplane BPN-SAS3-946SEL1 2 30-port 4U 946S Top-load SAS3 12Gbps single-expander midplane, support up to 30x 3.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-0481L 2 SATA,INT,ROUND,ST-ST,81CM,30AWG
Cable 2 CBL-CDAT-0728 2 4 Pin to 4 Pin I2C cable, 65cm, 26AWG, 4 wires, pinout 1-1, for vpp header(jnvi2c1),RoHS/REACH
Cable 3 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Cable 4 CBL-PWEX-0861 1 Powerlug to 5.7 Radsok, black 12AWG, 32cm for SC946S
Cable 5 CBL-PWEX-0862 1 Powerlug to 5.7 Radsok, black 12AWG, 53cm for SC946S
Cable 6 CBL-PWEX-0863 1 Powerlug to 5.7 Radsok, yel 12AWG, 32cm for SC946S
Cable 7 CBL-PWEX-0864 1 Powerlug to 5.7 Radsok, yel 12AWG, 53cm for SC946S
Cable 8 CBL-SAST-0833 2 SLIMLINE SAS, INT, 55MM, 32AWG
Cable 9 CBL-SAST-0855 2 SLIMLINE SAS, INT, 60CM, 15D-30F-15D, 32AWG
Front Panel MCP-210-94602-0B 1 3.5"; LCD display kit for SC946S
Heatsink / Retention SNK-P0068PS 2 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
* Power Supply PWS-2K05A-1R 2 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
* Power Distributor PDB-PT946S-824 1 standard 24pin output
* Cable 10 CBL-0087 1 CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
* Cable 11 CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
* Cable 12 CBL-0303L 1 4 pin to 4 pin power cable, S-RA, 40CM. 20AWG
* Cable 13 CBL-0459L 2 LATCH CLAMP,AC POWER CORD
* Cable 14 CBL-0481L 2 SATA,INT,ROUND,ST-ST,81CM,30AWG
* Cable 15 CBL-CDAT-0841 1 8 pin to 8 pin round SGPIO cable, 81cm, 28AWG, pinout 1-1
* FAN 1 FAN-0184L4 5 80x80x38 mm, 14.4K RPM, Rear Exhaust Fan for SC946S Chassis (60-bay)
* Front Panel FPB-FP829H 1 Front Control Board for SC829H chassis
* Drive Tray(s) MCP-220-00117-0B 2 Black gen-3 hot-swap tool-less 2.5- inch HDD tray
* Drive Tray(s) MCP-220-94601-0N 60 SC946ED 3.5\" / 2.5\" tool-less HDD tray
* Rail Set MCP-290-00137-0N 1 Rail set, Auto-latch, quick/quick, default 4U 17.2";W
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List
  Part Number Qty Description
3108 Cache Protection BTR-CV3108-U1 - Broadcom 3108 CacheVault kit (ROHS, Reach)
NVME kit (Full kit needed) AOC-SLG3-2E4R-O
MCP-220-94607-0N

CBL-SAST-0818
CBL-SAST-0850
 		 1
1

4
2
 		 NVMe AOC
SC946S NVMe kits w/ cage, tray, cable, BPN (no NVMe cable)OCuLink v.91,INT,PCIe NVMe SSD, 55CM,34AWG
55cm OCuLink to OCuLink Cable
OCuLink to MiniSAS HD V.91, INT, PCIe NVMe SSD, 37CM, 15D15F7D, 34AWG
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
SIOM Network Card(s) AOC-MGP-I2
AOC-MGP-I4
AOC-MTG-I2T
AOC-MTG-I4T
AOC-MTGN-I2S
AOC-MTG-I4S		 -
-
-
-
-
-		 SIOM 2-port GbE, Intel i350-AM2
SIOM 4-port GbE, Intel i350-AM4
SIOM 2-port 10GBase-T, Intel X550
SIOM 4-port 10GBase-T, Intel X550
SIOM 2-port 10G SFP+, Intel 82599ES
SIOM 4-port 10G SFP+, Intel XL710
Hide Parts List
