SuperServer 5038MR-H8TRF

  Products  Systems   MicroCloud   [ 5038MR-H8TRF ]









Integrated Board
Super X10SRD-F

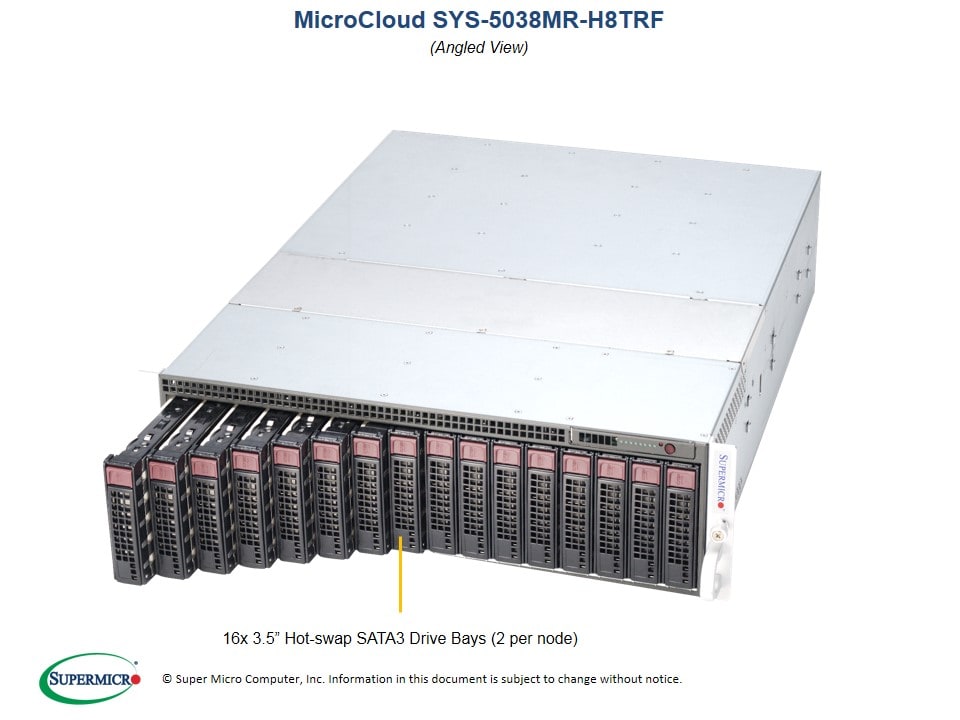

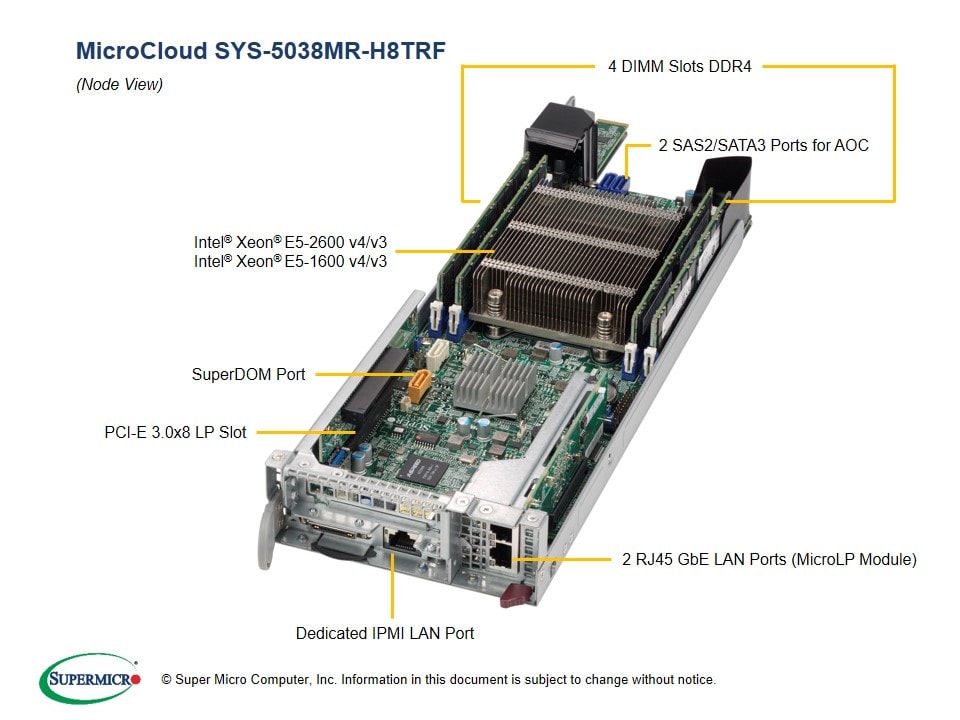

Views: | Angled View | Node View |

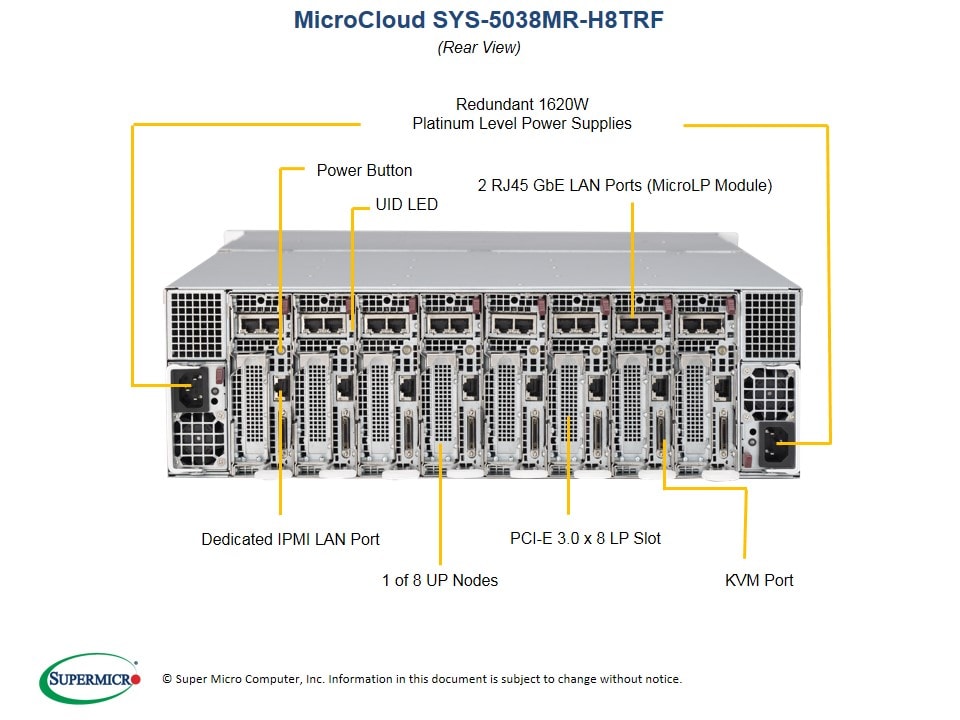

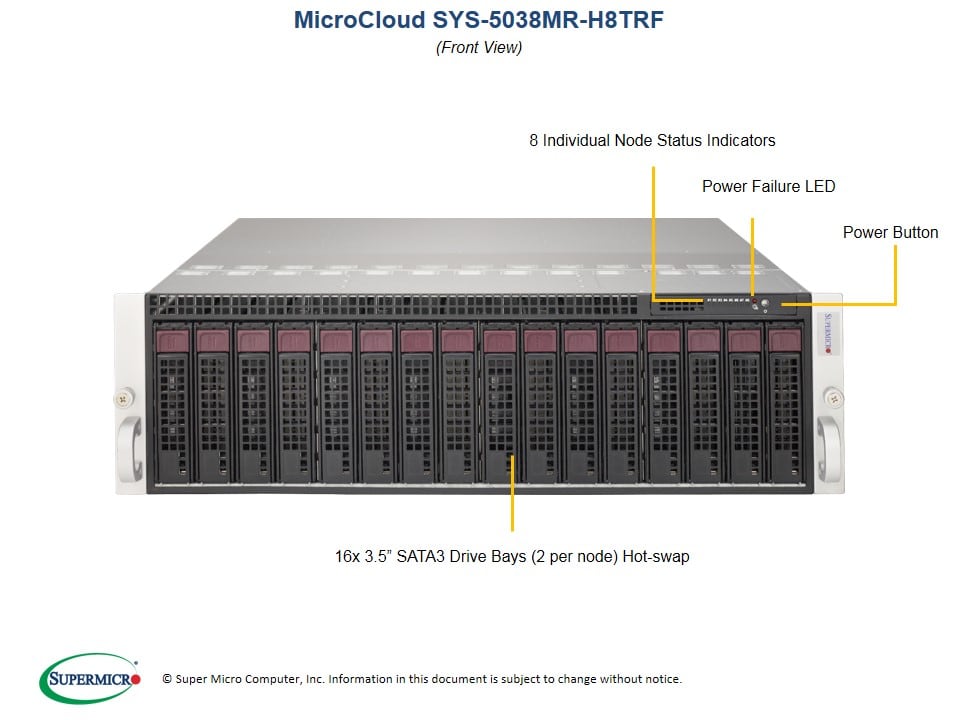

| Front View | Rear View |



 Key Features (per node)

1. Single socket R3 (LGA 2011) supports

    Intel® Xeon® processor E5-2600

    v4†/ v3 & E5-1600 v4†/ v3* family
2. 2x 3.5" Hot-swap SATA3/SAS drive

    bays by default; or 2x 2.5" SATA3

    HDD Bays w/ optional kits (SAS

    requires RAID/HBA AOC)
3. 1x PCI-E 3.0 x8 and 1x Micro-LP
4. Up to 512GB† ECC 3DS LRDIMM , up to

    DDR4- 2400†MHz ; 4x DIMM slots
5. 2x GbE LAN ports via Intel® i350
6. 1x Dedicated LAN for IPMI Remote

    Management
7. 4x 8cm heavy duty hot-swap fans with

    optimal cooling zone (per system)
8. 1620W Redundantpower supplies

    Platinum Level Certified

    (per system)




 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Drive Options


Product SKUs
SuperServer
  • SYS-5038MR-H8TRF (Black)

Motherboard
Super X10SRD-F

Processor
CPU
  • Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†*/ v3* family (up to 145W TDP)
  • Single Socket R3 (LGA 2011)
Core / Cache
  • Up to 22 Cores† / Up to 55MB† Cache
Note † BIOS version 2.0 or above is required
Note * Ambient temperature should be no higher than 25°C

System Memory
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Up to 512GB ECC 3DS LRDIMM
  • Up to 256GB ECC LRDIMM
  • Up to 128GB ECC RDIMM
Memory Type
  • 2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes
  • 3DS LRDIMM: 128GB
  • LRDIMM: 64GB, 32GB
  • RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices (per node)
Chipset
  • Intel® C612 chipset
SATA
  • 1x SATA DOM
  • SATA 3.0 (6Gbps) with RAID 0, 1
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM over LAN support
  • Aspeed AST2400 BMC
Headers
  • 1x USB Type A 3.0, TPM ready
Graphics
  • Aspeed AST2400 BMC

Network Devices (per node)
MicroLP NIC
  • Intel® i350, 2x Gigabit LAN ports
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel® I/OAT 3 support for fast, scaleable, and reliable networking
  • VMDq support for better performance of virtualization
  • MicroLP Adapter Matrix (Networking options)

Input / Output (per node)
Serial ATA
  • 2x SATA 3.0 ports (6Gbps)
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
KVM
  • 1x VGA, 1x COM, and 2x USB 2.0 (with KVM dongle) ports

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • RTC (Real Time Clock) Wakeup

Rear Window (each node)
Switch
  • Power / UID
Chassis
Form Factor
  • 3U
Model
  • CSE-938BH-R1620B

Dimensions
Height
  • 5.21" (132.5 mm)
Width
  • 17.26" (438.4 mm)
Depth
  • 23.2" (589 mm)
Package
  • 11.65" (H) x 26.26" (W) x 34" (D)
Weight
  • Net Weight: 62.2 lbs (28.21 kg)
  • Gross Weight: 88 lbs (39.92 kg)
Color
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Node status LED

Expansion Slots (per node)
PCI-Express
  • 1 (x8) PCI-E 3.0 Low-profile slot
  • 1x Micro-LP for Dual GbE (pre-installed), 10GbE or IB AOC option; MicroLP Adapter Matrix (Networking options)

Drive Bays (per node)
Hot-swap
  • 2x 3.5" hot-swap SATA3 (6Gbps) HDDs per node (or 2x 2.5" SATA3 with optional kits); up to 16 HDDs total
  • Enterprise SATA HDD only recommended

System Cooling
Fans
  • 4x 8cm 11K RPM, 4-pin PWM cooling fans

Power Supply
1620W high-efficiency redundant power supply w/ PMBus
AC Input
  • 1000W Output @ 100-120V, 12-10A, 50-60Hz
  • 1200W Output @ 120-140V, 12-10A, 50-60Hz
  • 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
  • 1000W: +12V/84A; +5Vsb/4A
  • 1200W: +12V/100A; +5Vsb/4A
  • 1620W: +12V/150A; +5Vsb/4A
Certification Platinum Level Certified94%+    Platinum Certified

  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
  • Cooling zone
Temperature
  • Monitoring for CPU and chassis environment

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:

       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)


 Part Number

 Qty

 Description
Motherboard / Chassis MBD-X10SRD-F

CSE-938BH-R1620B 		8

1		 Super X10SRD-F Motherboard

3U Chassis
Add-on Card / Module AOC-CGP-I2-P 8 AOC-CGP-I2-O-P
Air Shroud MCP-310-93803-0B 8 Mylar air shroud portion-1 for SC938, X9SRD
Backplane BPN-SAS-938H 1 16-port 3U (CSE-938) MicroCloud 6Gbps backplane, support up to 16x 3.5-inch SAS/SATA HDD
Cable 1 CBL-0218L 1 USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG
Cable 2 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Riser Card RSC-RR1U-E8 8 RSC-RR1U-E8
Heatsink / Retention SNK-P0047PS 8 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-1K62P-1R 2 1620W REDUNDANT POWER MODULE




Optional Parts List
  Part Number Qty Description
Cable CBL-SAST-0616

CBL-0118L-03

CBL-0476L		 - For AOC-S3008L-L8i/AOC-SAS3-9361-4I

For AOC-S2308L-L8i

For AOC-SAS2LP-H8iR
Storage Controller Card(s) AOC-S3008L-L8i

AOC-SAS3-9361-4I

AOC-S2308L-L8i

AOC-SAS2LP-H8iR		 - Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/10

Std LP, 4 ports, 12Gb/s Gen3, RAID 0/1/5/6/10/50/60

Std LP, 8 ports, 6Gb/s Gen3, RAID 0/1/10

Std LP, 8 ports, 6Gb/s Gen3, RAID 0/1/5/6/10/50/60

NOTE: SYS-5038MR-H8TRF is designed to support max 6GB/s

Heatsink SNK-P0047PSM is required for AOC HBA card
Network Card(s) AOC-CTGS-i2T

AOC-CTG-i1S

AOC-CTG-i2S

AOC-CIBF-m1

AOC-CIBQ-m1

AOC-S40G-i2Q

AOC-SGP-i2

AOC-SGP-i4

AOC-STG-i2

AOC-STG-i2T

AOC-STGN-i1S

AOC-STGN-i2S		 - MicroLP, 2x 10GbE Base-T, PCI-E 3.0 x4, Intel® X550

MicroLP, 1 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN

MicroLP, 2 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN

MicroLP, 1x QSFP PCI-E 3.0 x8, Mellanox® ConnectX-3 FDR

MicroLP, 1x QSFP PCI-E 3.0 x8, Mellanox® ConnectX-3 QDR

Standard LP 2-port 40GbE controller, Intel Fortville XL710

Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2

Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350

Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB

Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540

Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN

Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
Drive Tray(s) MCP-220-93801-0B - Black gen 6 hot-swap 3.5-to-2.5 HDD tray
Drive Tray(s) MCP-220-00158-0B - Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive tray
Global Services & Support OS4HR3/2/1

OSNBD3/2/1		 -

-		 3/2/1-year onsite 24x7x4 service

3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
