SuperServer 6028R-WTRT

  Products  Systems   WIO   [ 6028R-WTRT ]




Integrated Board
Super X10DRW-iT

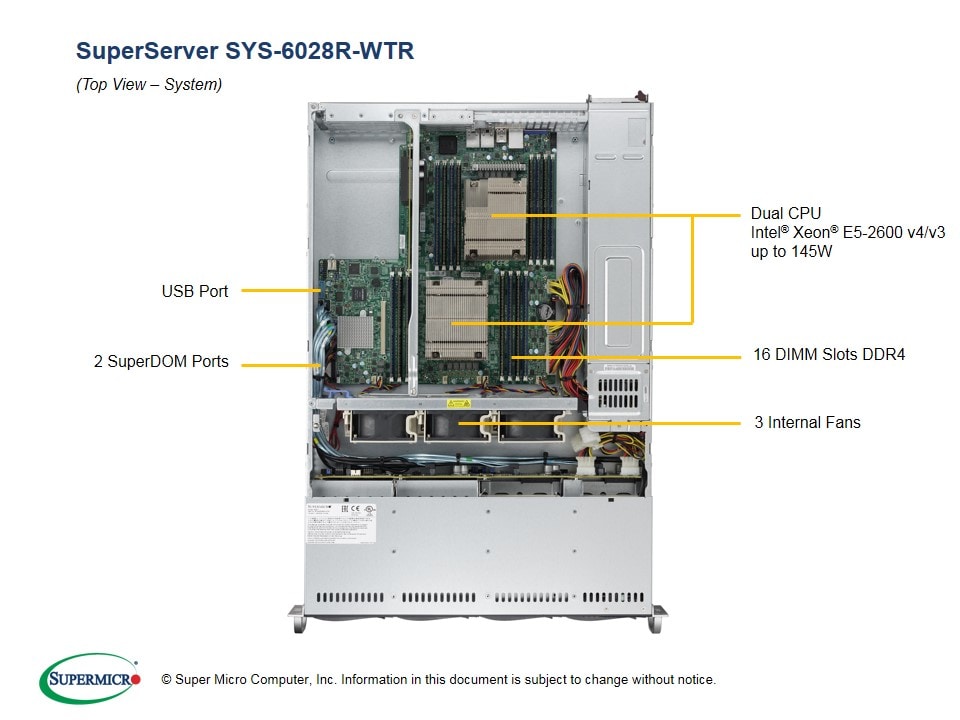

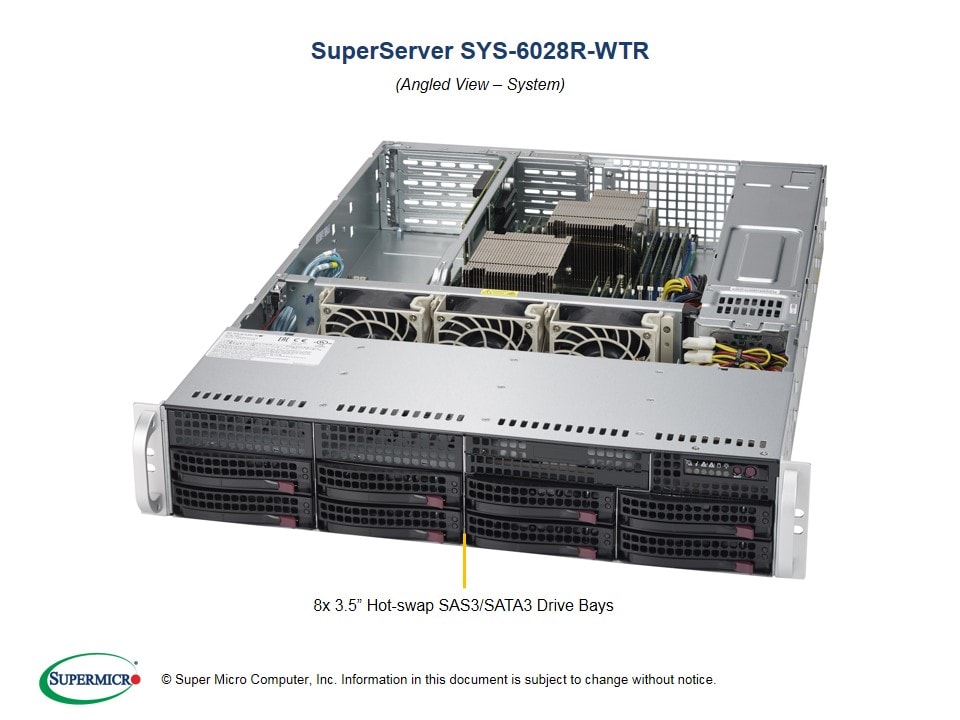

Views: | Angled View | Top View |

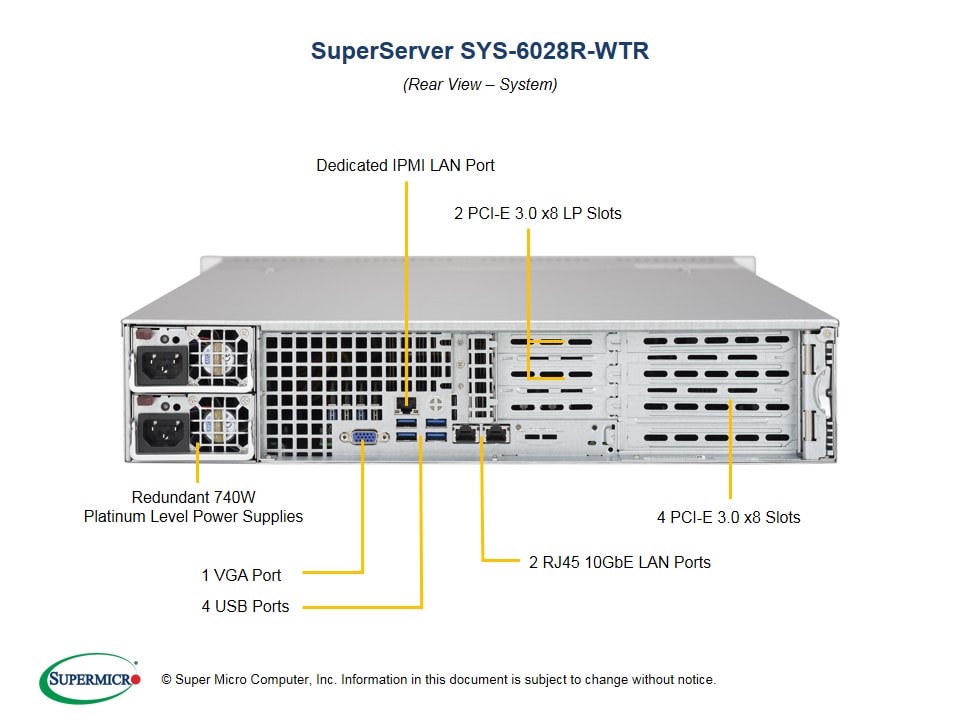

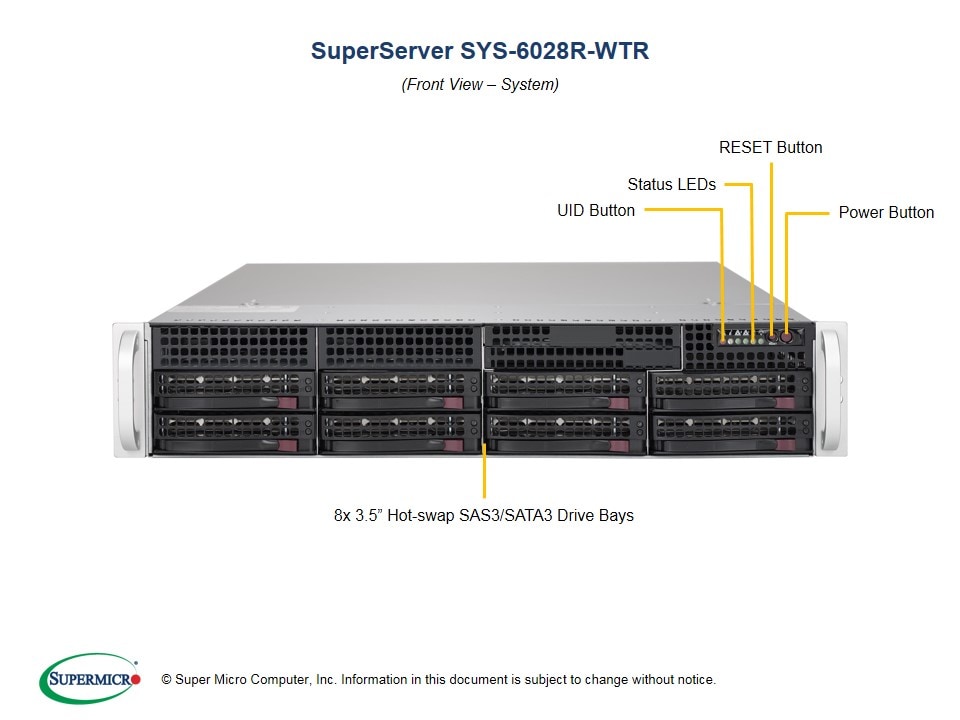

| Front View | Rear View |
Key Features
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB† ECC 3DS LRDIMM , up to
    DDR4- 2400†MHz ; 16x DIMM slots
3. 8x 3.5" Hot-swap SAS/SATA HDD
    bays for Customizable Storage
4. Riser card support up to:
    4x PCI-E 3.0 x8 (2 FHFL, 2 FHHL)
    2x PCI-E 3.0 (Low-profile) slots
5. Intel® X540 Dual port 10GBase-T
6. Integrated IPMI 2.0 and KVM with
    Dedicated LAN
7. I/O ports: 2x SuperDOM, 1x VGA,
    2x COM, TPM 1.2, 6x USB 3.0 (4 rear,
    2 via header)
8. 740W Redundant Power Supplies
    Platinum Level (94%+)

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs
SYS-6028R-WTRT
  • SuperServer 6028R-WTRT (Black)

Motherboard

Super X10DRW-iT

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores† / Up to 55MB† Cache
System Bus
  • QPI up to 9.6 GT/s
Note † BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB† ECC 3DS LRDIMM/RDIMM
Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® X540 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Video
  • ASPEED AST2400 BMC

Input / Output
SAS/SATA
  • Customizable storage
LAN
  • 2x RJ45 10GBase-T ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 6x USB 3.0 ports (4 rear + 2 via header)
Video
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 port / 1 Header
DOM
  • 2x SuperDOM (Disk on Module) ports
Chassis
Form Factor
  • 2U Rackmount
Model

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 25.5" (648mm)
Weight
  • Net Weight: 35 lbs (15.9 kg)
  • Gross Weight: 62 lbs (28.1 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • 2x Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots
PCI-Express
  • 4x PCI-E 3.0 x8 slots (2x Full-height Full-length, 2x Full-height Half-length)
  • 2x PCI-E 3.0 slots (Low-profile)
  • UIO AOC Compatibility Matrix


    • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot-swap
  • 8x 3.5" Hot-swap SAS / SATA HDD trays (ready for PCI-E storage controller card)

Backplane
1x 2U SAS backplane w/ Enclosure Management
(SAS support requires optional SAS controller)

Peripheral Drives
DVD-ROM
  • Slim DVD-ROM drive (optional)

System Cooling
Fans
  • 3x 80mm 7,000 RPM 4-pin PWM fans

Power Supply with Power Distributor
740W (1+1) Redundant high-efficiency power supply with PMBus
AC Input
  • 100-240 V, 50-60 Hz, 9-3.5 Amp
DC Output
  •   4 Amp @ +5V standby
  •   61.7 Amp @ +12V
Certification Platinum Level Certified
  Platinum Certified
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • BIOS resuce hot keys
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X10DRW-iT
CSE-825TQ-R740WB		 1
1		 Super X10DRW-iT Motherboard
2U Chassis
Backplane BPN-SAS-825TQ 1 8-port 2U TQ (W/ AMI 9072) backplane, support up to 8x 3.5-inch SAS/SATA HDD
Cable 1 CBL-CDAT-0661 2 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
Cable 2 CBL-0186L 2 SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1636-QRG 1 6028R-WTR(T) QRG,HF
Parts MCP-160-81504-0B 1 Add-on Card (AOC) Mylar Sheet for SC815
Riser Card RSC-R2UW-4E8 1 2U LHS WIO Riser card with four PCI-E x4 slots
Riser Card RSC-R2UW-2E8R 1 2U RHS WIO Riser card with two PCI-E x8 slots
Heatsink / Retention SNK-P0048PSC 1 2U Passive CPU Heat Sink for X9, X10 2U WIO/WIO+ Series Servers
Heatsink / Retention SNK-P0048PS 1 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-741P-1R 2 1U740W Platinum Redundant Single Output
Rail Set MCP-290-00053-0N 1 set Rail set, quick/quick, default for 2,3U 17.2"W

Optional Parts List
  Part Number Qty Description
3.5" to 2.5" Converter Tray MCP-220-00043-0N - Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT4

DVM-TEAC-DVDRW-SBT4
DVM-PLDS-DVDRW-SBT5		 1

1

1
 		 TEAC SLIM DVD ROM SATA DRIVE, HF, RoHS/REACH

TEAC SLIM DVD-RW SATA DRIVE, RoHS

PHILIPS SLIM BLACK DVD-RW SATA DRIVE, HF, RoHS/REACH

DVD-ROM Accessory MCP-220-81502-0N 1 Slim SATA DVD mounting kit
Internal 2.5" HDD Tray
(COM slot) Included		 MCP-220-00023-01 1 Black USB dummy tray support 1x 2.5" slim HDD
Internal 2.5" HDD Tray
(DVD Slot)		 MCP-290-00036-0B 1 Black DVD dummy tray support 1x 2.5" slim HDD
USB/COM Port Tray
(DVD Slot)		 MCP-220-00114-0N 1 Black 2x USB 3.0/COM port tray in slim DVD bay
Cable for internal HDD CBL-0489L
CBL-0082L		 2
1		 SATA,INT,ROUND,ST-RA,70CM,30AWG
Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
CacheVault(s) BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05
BTR-TFM8G-LSICVM02 & MCP-240-00127-0N		 -
-
 CacheVault for Broadcom 3108; SuperCap mounting bracket for PCI-E location
CacheVault for Broadcom 3108; SuperCap mounting bracket for 2.5" HDD location
SuperCap for
AOC-S2208L-H8IR		 BTR-0024LH-LSI00297 & BKT-BBU-BRACKET-05
BTR-0024LH-LSI00297 & MCP-240-00127-0N		 -
-
 SuperCap TFM to be used w/ Supermicro AOC-S2208L-H8IR; SuperCap mounting bracket for PCI-E location
SuperCap TFM to be used w/ Supermicro AOC-S2208L-H8IR; SuperCap mounting bracket for 2.5" HDD location
Storage Controller
Card(s) & Cables(s)		 AOM-S3108M-H8 &
2x CBL-SAST-0556
AOC-S3108L-H8IR-16DD
& 2x CBL-SAST-0556
AOC-S3008L-L8i &
2x CBL-SAST-0556
AOC-S3008L-L8e &
2x CBL-SAST-0556
AOC-S2308L-L8e &
2x CBL-SAST-0388L-02
AOC-S2308L-L8i &
2x CBL-SAST-0388L-02
AOC-S2208L-H8iR &
2x CBL-SAST-0388L-02 		- Supermicro Low Profile 12Gb/s Eight-Port SAS Internal Mezzanine RAID Adapter; RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 internal ports (12Gb/s) Gen-3, 16HDD;
RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 internal ports (12Gb/s) Gen-3, 63HDD;
RAID 0, 1, 10
Standard LP, 8 internal ports (12Gb/s) Gen-3, 122HDD;
HBA
Standard LP, 8 internal ports (6Gb/s) Gen-3, 122HDD;
HBA
Standard LP, 8 internal ports (6Gb/s) Gen-3, 63HDD;
RAID 0, 1, 10
Standard LP, 8 internal ports (6Gb/s) Gen-3, 240HDD;
RAID 0, 1, 5, 6, 10, 50, 60
Network Card(s) AOC-SGP-i2
AOC-SGP-i4
AOC-SG-i2
AOC-SG-i4
AOC-STG-b4S
AOC-STGN-i2S
AOC-STG-i2T
AOC-STG-i2 		- Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350
Standard LP, 2x GbE RJ45, PCI-E x4, Intel® 82575EB
Standard LP, 4x GbE RJ45, PCI-E x8, Intel® 82576EB
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom® BCM57840S
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel® X540
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel® 82598EB
Front Bezel MCP-210-82503-0B 1 Black SC825 front bezel
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
