SuperServer 6028BT-HNC0R+ (Complete System Only)

  Products  Systems   BigTwin   [ 6028BT-HNC0R+ ]




Integrated Board
Super X10DRT-B+

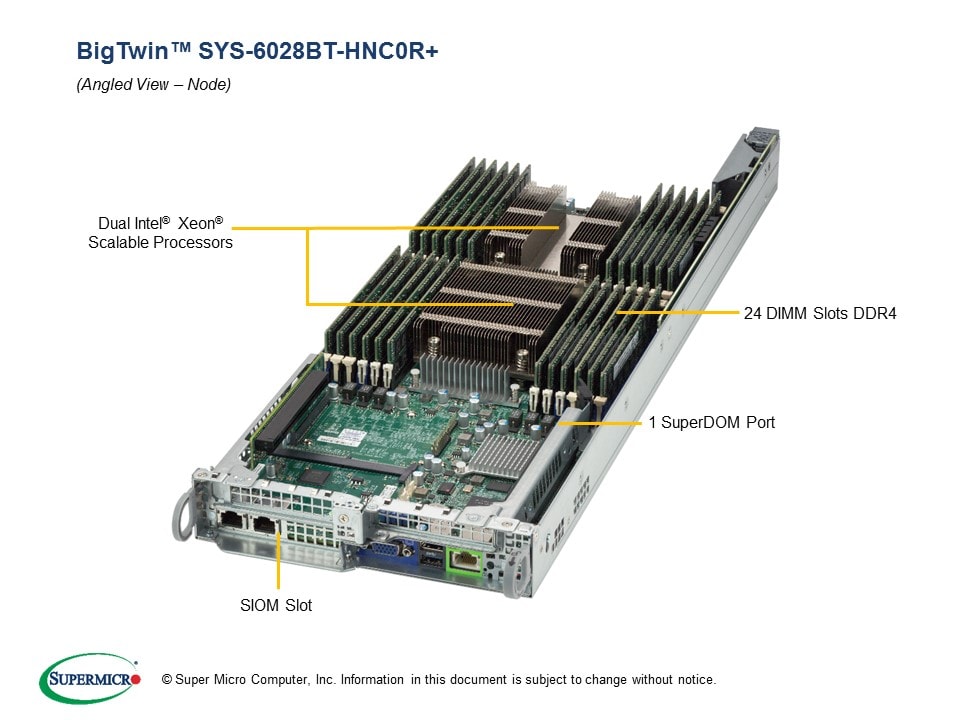

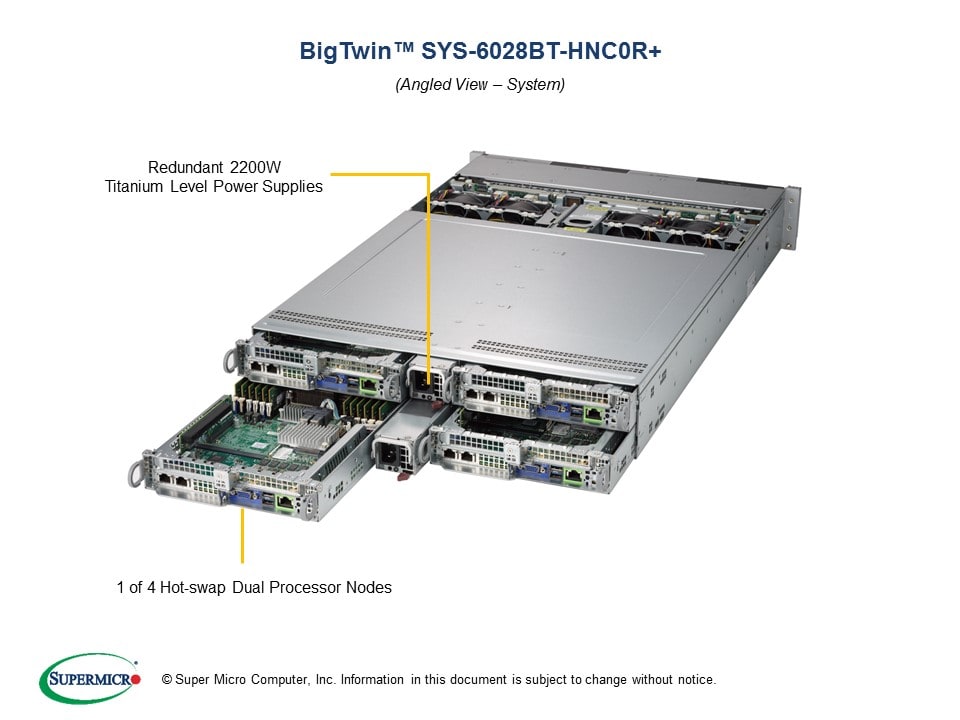

Views: | Angled View | Node View |

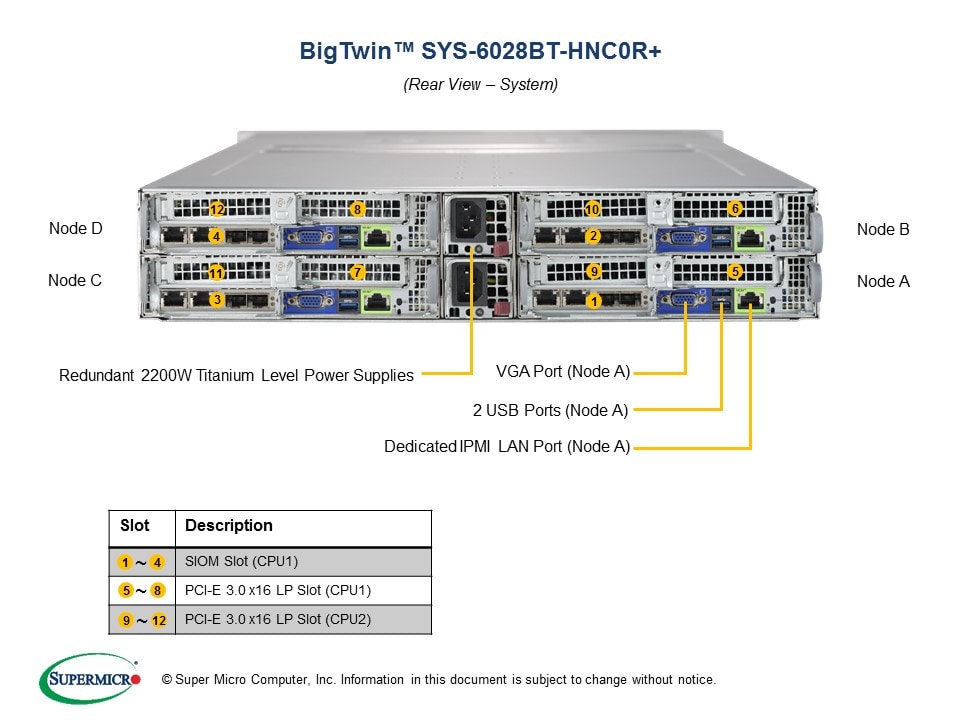

| Front View | Rear View |

 Key Features
  - Hyperscale and Hyperconverged
    Solutions
  - Compute Intensive Application
  - HPC, Data Center
  - Enterprise Server

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 3TB† ECC 3DS LRDIMM , up to
    DDR4- 2400†MHz ; 24 DIMM slots
3. 2 PCI-E 3.0 x16 (LP) slots; 1 SIOM
    card support (flexible networking)
    Note: must bundle with Network card
4. 3 Hot-swap 3.5" NVMe/SAS3 drive bays
5. SAS3 support via Broadcom 3008;
    IT mode
6. IPMI 2.0 + KVM with dedicated LAN
7. Video via Aspeed AST2400 BMC
8. 4 heavy duty 8cm PWM fans with
    air shroud
9. 2200W Redundant Power Supplies
    Titanium Level (96%)
10. 2 M.2 SATA3 or NVMe support

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (including but not limited to CPU, memory, and HDDs).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   NVMe Options   Manuals   Drive Options

Product SKUs
SYS-6028BT-HNC0R+
  • SuperServer 6028BT-HNC0R+ (Black)

Motherboard

Super X10DRT-B+

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores† / Up to 55MB† Cache
System Bus
  • QPI up to 9.6 GT/s
Note † BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB† ECC 3DS LRDIMM, 768GB ECC RDIMM
Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices (per Node)
Chipset
  • Intel® C612 chipset
SAS
  • SAS3 (12Gbps) via Broadcom 3008; IT mode
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network
  • Must bundle with at least one SIOM network card
Video
  • ASPEED AST2400 BMC

Input / Output (per Node)
SAS
  • 3 SAS3 (12Gbps) ports
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
Others
  • M.2 and SATA DOM for boot drive only
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-827BHQ+-R2K22BP

Dimensions and Weight
Width
  • 17.6" (447mm)
Height
  • 3.47" (88mm)
Depth
  • 30.5" (775mm)
Package
  • 9.76" (H) x 24.65" (W) x 45.28" (D)
Weight
  • Gross Weight: 86.5 lbs (39.24 kg)
  • Net Weight: 56 lbs (25.4 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • 2 Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots (per Node)
PCI-Express
  • 2 PCI-E 3.0 (x16) Low-profile slots
  • 1 SIOM card (must bundle with network card)

Drive Bays (per Node)
Hot-swap
  • 3 Hot-swap 3.5" NVMe/SAS3 drive bays

    Please contact Supermicro Technical Support for additional information about HDD and SSD if mixed. Some restrictions and configuration rules that apply to SSD are different from HDD.

System Cooling
Fans
  • 4 heavy duty 8cm PWM fans with air shroud

Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power
  • 1200W/1800W/1980W/2090/2200W
Dimension
(W x H x L)
  • 45 x 40 x 480 mm
Input
  • 1200W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2090W: 230-240Vac / 50-60Hz
  • 2090W: 180-220Vac (for UL/cUL only)
  • 2200W: 220-240Vac (for UL/cUL only)
  • 2090W: 230-240Vdc (for CCC only)
+12V
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
  • Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
  • Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • Gold Finger
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X10DRT-B+
CSE-827BHQ+-R2K22BP 		4
1		 Super X10DRT-B+ Motherboard
2U Chassis
Backplane BPN-ADP-6S3008N4-1UB 4 Big Twin 1U hybrid ADP supporting 6x SAS3 and 4x NVMe
Backplane BPN-SAS3-827BHQ-N3 1 2U 12-Port 4-Node Hybrid Backplane Supports 3x3.5
Cable 1 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Drive Tray(s) MCP-220-00133-0B-BULK 12 Black gen 8 hot-swap 3.5
Parts MCP-240-82718-0N 1 SC827B BigTwin type I (Impact) BPN retention bkt assy
Air Shroud MCP-310-21718-0B 4 Bigtwin air box for X11DPT-B(4pcs/set)
Riser Card RSC-P-6 4 RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS
Riser Card RSC-R1UTP-E16R 4 1U RHS TwinPro Riser card with one PCI-E x16 slot
Heatsink / Retention SNK-P0057PS 4 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Heatsink / Retention SNK-P0057PSM 4 1U High Performance Passive CPU Heat Sink w/ a Middle Air Channel for X9 and X10 Systems w/ Narrow ILM
Power Supply PWS-2K22A-1R 2 1U 2200W Redundant Power Supply Titanium, 45(W) X 40(H) X 48


Optional Parts List
  Part Number Qty Description
Carrier card BPN-ADP-2M2-1UB - Carrier card for NVMe/SATA M.2 SSDs support, connect up to 2 M.2 SSD (up to 22x80 mm length SSDs are supported)
3.5" to 2.5" Converter Tray MCP-220-00140-0B-BULK - Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
SuperDOM - - Supermicro SATA DOM Solutions [Details]
Network Card(s) AOC-STG-i2
AOC-SGP-i2
AOC-SGP-i4
AOC-STG-b4S
AOC-STGN-i2S
AOC-STGN-i1S
AOC-STG-i2T
AOC-STG-i4T
AOC-STGF-i2S
AOC-STG-i4S
AOC-STGS-i1T
AOC-STGS-i2T
AOC-S25G-b2S
AOC-S25G-m2S
AOC-S40G-i1Q
AOC-S40G-i2Q
AOC-S100G-m2C
 		 -
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
 		 Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 4x 10G SFP+, PCI-E x8, Broadcom BCM57840S
Standard LP, 2x 10G SFP+, PCI-E x8, Intel 82599ES
Standard LP, 1x 10G SFP+, PCI-E x8, Intel 82599EN
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710 + X557-AT4
Standard LP, 2x 10G SFP+, PCI-E x8, Intel XL710-BM1
Standard LP, 4x 10G SFP+, PCI-E x8, Intel XL710-BM1
Standard LP, 1x 10GbE RJ45, PCI-E x4, Intel X550-AT2
Standard LP, 2x 10GbE RJ45, PCI-E x4, Intel X550-AT2
Standard LP, 2x 25G SFP28, PCI-E x8, Broadcom BCM57414
Standard LP, 2x 25G SFP28, PCI-E x8, Mellanox ConnectX-4 LX EN
Standard LP, 1x 40GbE QSFP+, PCI-E x8, Intel XL710
Standard LP, 2x 40GbE QSFP+, PCI-E x8, Intel XL710
Standard LP, 2x 100GbE QSFP28, PCI-E x16, Mellanox ConnectX-4 EN
Hide Parts List
