SuperServer 2049U-TR4 (Complete System Only)

  Products  Systems   Multi-processor Server Systems   [ 2049U-TR4 ]








Integrated Board
Super X11QPH+

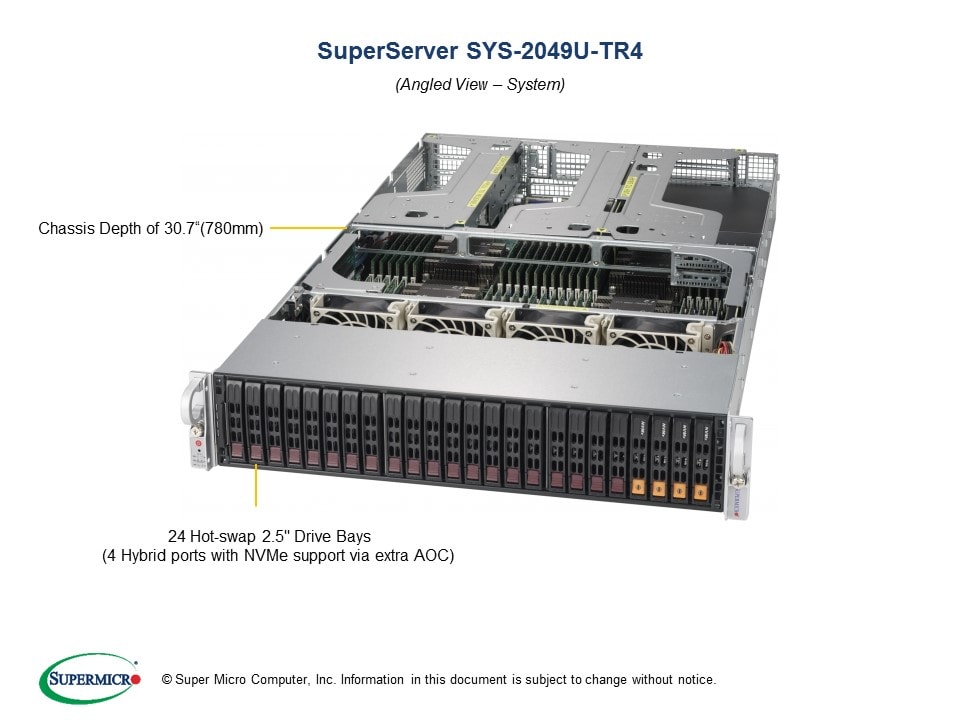

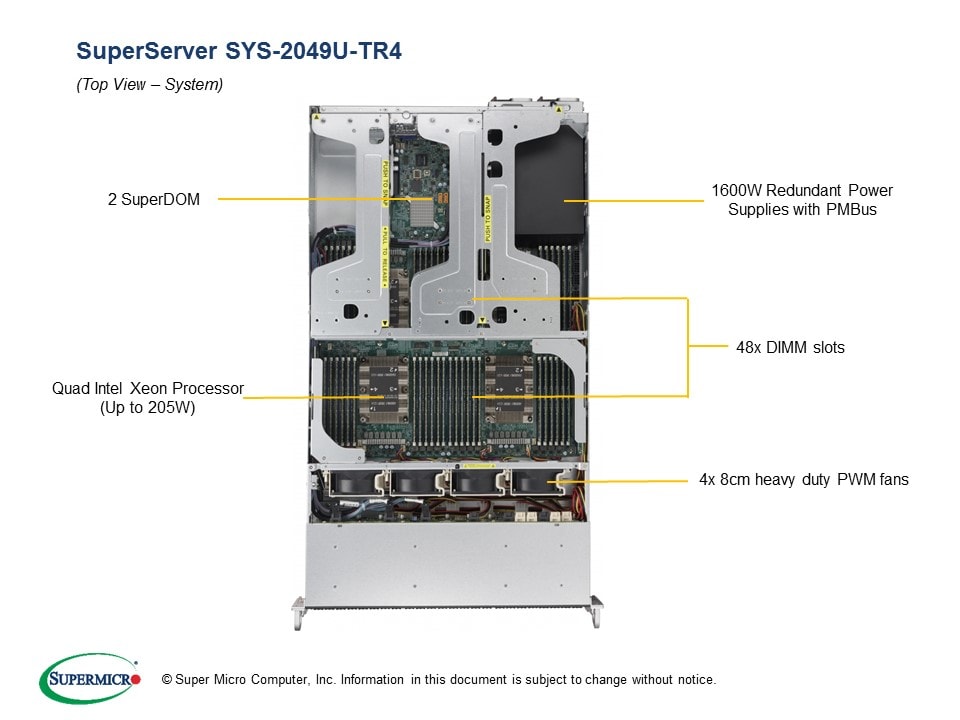

Views: | Angled View | Top View |

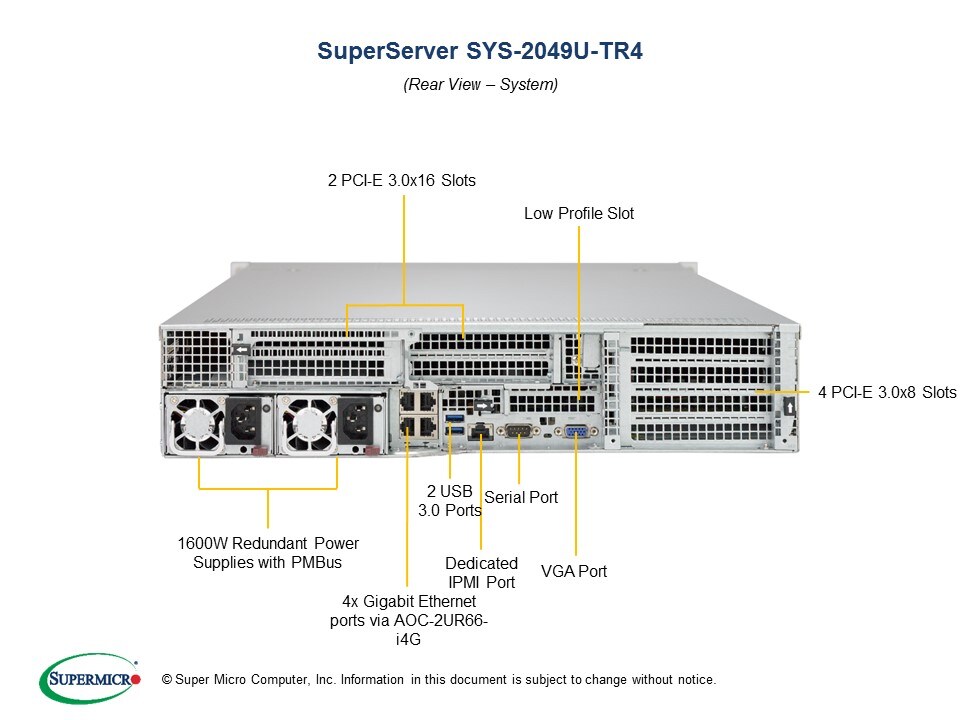

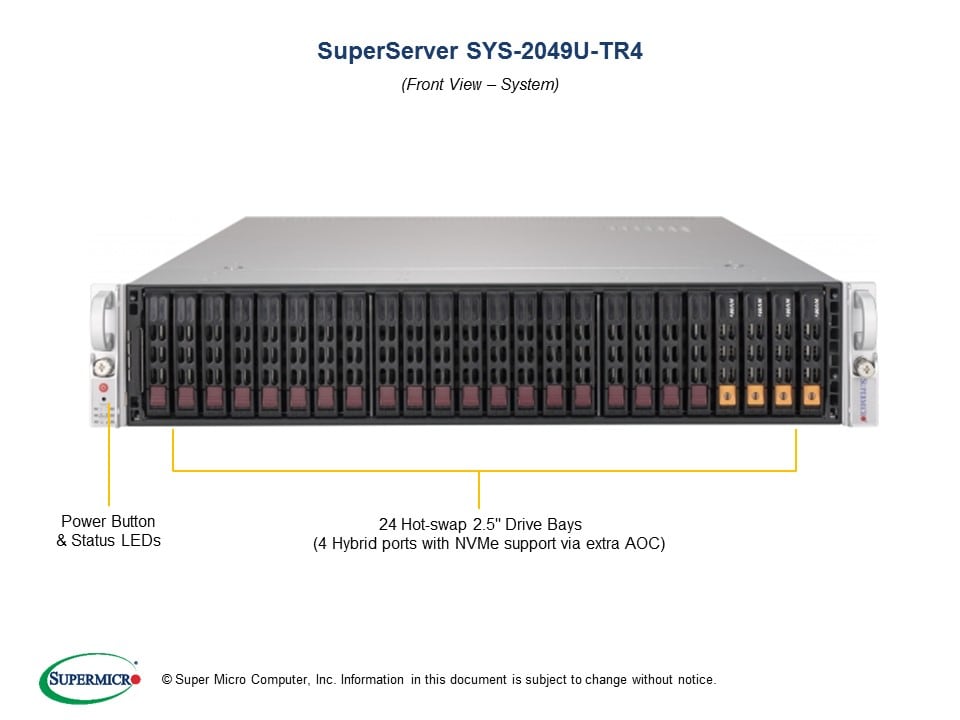

| Front View | Rear View |



 Key Features

• 48 DDR4 DIMM Slots, up to 6TB

• Up to 11 PCI-E 3.0 slots

• 4 Hot-Swap NVMe Bays support

   via optional NVMe AOC

• Flexible Connectivity Options

1. Quad Socket P (LGA 3647) support

    2nd Gen Intel® Xeon® Scalable

    processors (Cascade Lake/Skylake)‡
2. 48 DIMMs; up to 12TB 3DS ECC

    DDR4-2933MHz† RDIMM/LRDIMM,

    Supports Intel® Optane™ DCPMM††
3. 5 PCI-E 3.0 x8 slots,

    6 PCI-E 3.0 x16 slots
4. 4 GbE LAN ports via AOC-2UR66-i4G

    1 dedicated IPMI LAN port
5. 24 Hot-swap 2.5" SAS3/SATA3 drive bays

    supported via optional Add-on RAID

    controller card; 4 Hybrid ports with

    NVMe support via extra AOC
6. Optional up to 2 Active Cooling GPUs
7. 4x 8cm heavy duty fans
8. 1600W Redundant Power Supplies

    Titanium Level (96%)


Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 4 CPUs, 4 DIMMs and 1 HDD recommended). Please contact your Supermicro sales rep for special 2 CPUs with 2 DIMMs requirements with fees.


 Drivers & Utilities   BIOS   IPMI   Tested Memory  NVMe Options   Manuals    OS Certification Matrix    Quick-References Guide  Drive Options


Product SKUs
SYS-2049U-TR4
  • SuperServer 2049U-TR4 (Black)

Motherboard


Super X11QPH+

Processor/Cache
CPU
  • Quad Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,

    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-165W with IVR, 205W supported with optional kit
Cores
  • Up to 28 Cores
Note ‡ BIOS version 3.0 or above is required to support 2nd Gen. Intel® Xeon® Scalable processors

System Memory
Memory Capacity
  • 48 DIMM slots
  • Up to 12TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 via Intel C621; RAID 0, 1, 5, 10
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 12 SATA3 (6Gbps) ports
SAS
  • 24 SAS3 ports support via optional Add-on Cards
NVMe
  • 4 Hybrid ports with NVMe support via AOC
LAN
  • 4 RJ45 GbE LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA Connector
Serial Port / Header
  • 1 COM port (rear)
DOM
  • 2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS

Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-218UTS-R1K62P

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 30.7" (780mm)
Weight
  • Net Weight: 43 lbs (19.4 kg)
  • Gross Weight: 69 lbs (31.2 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • System information (overheat/UID) LED

Expansion Slots
PCI-Express
  • 5 PCI-E 3.0 x8 slots
  • 6 PCI-E 3.0 x16 slots



    (4 CPUs need to be installed for full access to PCI-E slots and onboard controllers. See AOC Support for details.)

Drive Bays
Hot-swap
  • 24 Hot-swap 2.5" SAS3/SATA3 drive bays
  • Optional 24 SAS3 ports via AOC
  • Optional 20 SAS3 ports via AOC + 4 NVMe ports via AOC

System Cooling
Fans
  • 4x 8cm heavy duty PWM fans

Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power
  • 1600W/*1000W
Dimension

(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • *100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level

  [ Test Report ]
* Supported with certain configuration and operating temperature limitations.

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:

       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)


See Parts List
Parts List - (Items Included)


 Part Number

 Qty

 Description
Motherboard / Chassis MBD-X11QPH+

CSE-218UTS-R1K62P		 1

1		 Super X11QPH+ Motherboard

2U Chassis
Add-on Card / Module AOC-2UR66-I4G 1 2U Ultra Riser with 4 GbE ports and 2 PCI-E x16 3.0, Intel i350
Backplane BPN-SAS3-216A-N4 1 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-PWEX-0673 3 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH
Cable 2 CBL-SAST-0701 3 MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,85CM,SB,30AWG,Ro
Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
Riser Card RSC-R2UW-4E8 1 2U LHS WIO Riser card with four PCI-E x8 slots
Riser Card RSC-S2-66 2 2U Passive Standard Riser Card with two PCI-E 3.0 x16 Slots,
Heatsink / Retention SNK-P0067PS 2 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Heatsink / Retention SNK-P0067PSMB 2 1U Passive High Performance Front CPU Heat Sink w/ an 18-mm Wide Middle Air Channel for X11 Purley Platform Equipped w/ a Narrow Retention Mechanism/Bolster
Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
FAN 1 FAN-0166L4 4 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4)


Optional Parts List


 Part Number

 Qty

 Description
2.5" NVMe Drive Trays MCP-220-00167-0B

MCP-220-00127-0B		 1 ~ 4 Tool-less black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design)

Black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock)
Add-on Card AOC-VROCPREMOD

AOC-VROCSTNMOD		 -

-		 Intel VROC Premium, RAID 0, 1, 5, 10

Intel VROC HW key (RSTe) standard upgrade module
Frequency optimized and 205 watt CPU option kit MCP-240-21904-0N-OEM

SNK-P0068PS		 1

2		 RSC bkt set (left, Mid/Right) for SC829/219U (LP),Tool-less

2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
2000w power supply kit MCP-250-21802-0N

PWS-2K03P-1R		 -

-		 Power adapter bracket for 2K03P in SC218U,HF,RoHS/REACH

1U 2000W Redundant Power Supply Platinum 73.5mm width
Active Cooling GPU







GPU power cable





 		 GPU-NVK40C

GPU-NVQM6000

GPU-NVQM6000-24

GPU-NVQGV100

CBL-PWEX-1042

CBL-PWEX-1040



 		 -

-

-

-

1/GPU

1/GPU



 		 NVIDIA Tesla K40 PCI-E 12GB GDDR5 Active Cooling

NVIDIA PNY Quadro M6000 12GB GDDR5 PCIe 3.0

NVIDIA PNY Quadro M6000 24GB GDDR5 PCIe3.0-ActiveCooling

NVIDIA PNY Quadro GV100 32GB HBM2 PCIe 3.0- Active Cool

GPU, 2x4F/CPU to 2x4F/CPU, P4.2, 50CM, 16AWG, 10A/pin, -40~105C

GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AWG, 10.5A/pin(16AWG), 8A/pin(20AWG), -25~85C,RoHS
CacheVault(s) BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05

BTR-TFM8G-LSICVM02 & MCP-240-00127-0N		 -



-

 		 CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location

CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location
Network Card(s) AOC-S40G-i2Q

AOC-SGP-i2

AOC-SGP-i4

AOC-STG-b4S

AOC-STGN-i2S

AOC-STGN-i1S

AOC-STG-i2T		 -

-

-

-

-

-

-		 Standard LP 2-port 40GbE controller, based on Intel Fortville XL710

Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2

Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350

Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S

Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES

Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN

Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Global Services & Support OS4HR3/2/1

OSNBD3/2/1		 -

-		 3/2/1-year onsite 24x7x4 service

3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)


Storage Options List
Cases

 AOC

 Cable

 Connection
For 8 SAS3 HDD AOC-S3008L-L8i x1 or

AOC-S3108L-H8iR x1 or

AOC-S3108L-H8iR-16DD x1		 CBL-SAST-0532 x2 PCI-E slot 8
For 16 SAS3 HDD AOC-S3008L-L8i x2 or

AOC-S3108L-H8iR x2 or

AOC-S3108L-H8iR-16DD x2		 CBL-SAST-0532 x2

CBL-SAST-0593 x2		 PCI-E slot 8

PCI-E slot 9
For 24 SAS3 HDD AOC-S3008L-L8i x3 or

AOC-S3108L-H8iR x3 or

AOC-S3108L-H8iR-16DD x3		 CBL-SAST-0532 x2

CBL-SAST-0593 x2

CBL-SAST-0568 x2		 PCI-E slot 8

PCI-E slot 9

PCI-E slot 11
For 24 SAS3 HDD

including 4 NVMe		 AOC-S3008L-L8i x3 + AOC-SLG3-4E4T x1 or

AOC-S3108L-H8iR x3 + AOC-SLG3-4E4T x1 or

AOC-S3108L-H8iR-16DD x 3 + AOC-SLG3-4E4T x1		 CBL-SAST-0532 x2

CBL-SAST-0593 x2

CBL-SAST-0568 x2

CBL-SAST-0926 x4

(NVMe cable)		 PCI-E slot 8

PCI-E slot 9

PCI-E slot 11

PCIE Slot 10

(AOC-SLG3-4E4T)
TPM security module

(optional, not included)		 AOM-TPM-9670V
AOM-TPM-9671V		 1 TPM module (Vertical) TPM 2.0
TPM module (Vertical) TPM 1.2.
Hide Parts List


Note: Active Cooling GPU

1. CPU must be 165W or less

2. Up to 2 x Active Cooling GPU

3. Ambient temperature must be 25C or below

4. Fan speed must be set up at Full Fan Speed
