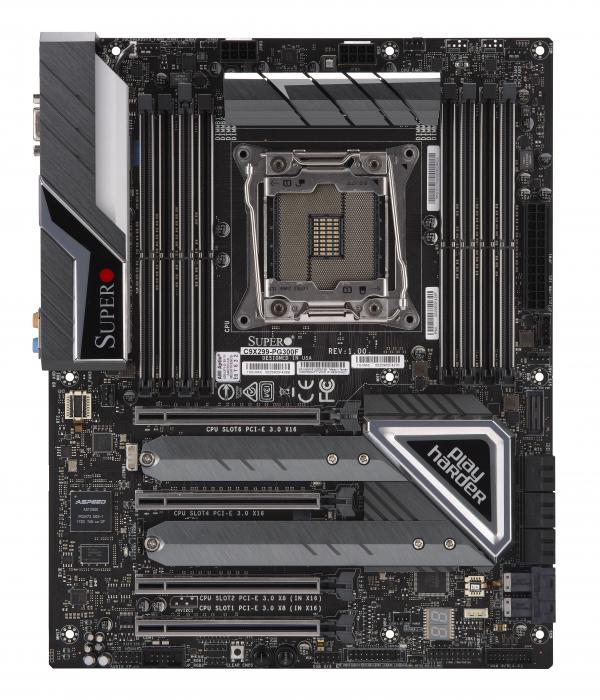

Supermicro Motherboard Xeon Boards C9X299-PG300F

Desktop
Overclock
IPMI
Key Features

  1. Intel® 10th Generation Core™ i9 Extreme X-series, Intel® 7th Generation Core™ i7 X-series, Intel® 9th Generation Core™ i7 X-series, Intel® 9th Generation Core™ i9 X-series, Intel® Core™ i9 Extreme X-series Processor
    Single Socket LGA-2066 (Socket R4) supported, CPU TDP support Up to 165W TDP
  2. Intel® X299
  3. 256GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 8 DIMM slots
  4. 4 PCI-E 3.0 x16
    ***4xPCI-E3.0 x16 Slots(8/NA/16/16 or 8/8/8/16(Core i9) or NA/4/8/16(Core i7)***
    M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1
    M.2 Form Factor: 2280
    M.2 Key: M-Key
    M-Key for SSD and Optane
    U.2 Interface: 2 PCI-E 3.0 x4
  5. 1 VGA port
  6. 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  7. Single LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Aquantia® AQC107 10G Ethernet Controller

Links & Resources

Specifications
Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
MBD-C9X299-PG300F
  • C9X299-PG300F

Physical Stats
Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.48cm x 24.38cm)

Processor/Cache
CPU
  • Intel® 10th Generation Core™ i9 Extreme X-series, Intel® 7th Generation Core™ i7 X-series, Intel® 9th Generation Core™ i7 X-series, Intel® 9th Generation Core™ i9 X-series, Intel® Core™ i9 Extreme X-series Processor
  • Single Socket LGA-2066 (Socket R4) supported, CPU TDP support Up to 165W TDP
  • Support Intel Skylake-X refresh CPU

System Memory
Memory Capacity
  • 256GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 8 DIMM slots
Memory Type
  • 2933/2666/2400/2133/1866/1600MHz ECC/Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM [nid:11707]
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V

On-Board Devices
Chipset
  • Intel® X299
SATA
  • 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
  • OOB BIOS refresh function is not supported
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Aquantia® AQC107 10G Ethernet Controller
Audio
  • ALC 1220 HD Audio
Graphics
  • ASPEED AST2500 BMC

Input / Output
LAN
  • 1 RJ45 GbE port (IPMI Shared LAN)
  • 1 RJ45 10GBase-T ports
USB
  • 4 USB 2.0 ports (2 rear + 2 via headers)
  • 4 USB 3.2 Gen1 ports (2 rear + 2 via headers)
  • 2 USB 3.2 Gen2 ports (1 Type A, 1 Type C)
Video Output
  • 1 VGA port
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 4 PCI-E 3.0 x16
  • ***4xPCI-E3.0 x16 Slots(8/NA/16/16 or 8/8/8/16(Core i9) or NA/4/8/16(Core i7)***
M.2
  • M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1
  • Form Factor: 2280
  • Key: M-Key
  • M-Key for SSD and Optane

System BIOS
BIOS Type
  • UEFI 128Mb

Management
Software
  • IPMI2.0, SuperDoctor® 5, Watchdog

PC Health Monitoring
Voltage
  • +12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT
FAN
  • 6x 4-pin fan headers (up to 6 fans), Fan speed control, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors
Temperature
  • N/A
LED
  • N/A
Other Features
  • ACPI power management, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, Voltage and Frequency Overclocking, WOL
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-C9X299-PG300F 1 C9X299-PG300F Motherboard
--

Parts List (Retail Package)
Name Part Number Qty Description
MotherboardMBD-C9X299-PG300F1C9X299-PG300F Motherboard
SATA cableCBL-0044L457.5CM SATA FLAT S-S PBF
I/O ShieldMCP-260-00140-0N1C9X299-PG300F IO Shield
Quick Reference GuideMNL-2117-QRG1C9X299-PG300F QRG
Driver CD1C9 Driver CD
Metal badge1SuperO metal badge
Cable sticker1SuperO cable sticker

Chassis (Optimized for

C9X299-PG300F

)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SCGS5A-754K
SCGS5A-753B
SC732D3-1200B
SC732D3-903B
4U Heatsink:SNK-P0050AP4

= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU


Server (Optimized for C9X299-PG300F)
Server Name
C9X299-PG300F
