Add-on Card AOC-ATG-i2T2SM
Products Accessories [ AOC-ATG-i2T2SM ]
Add-on Card

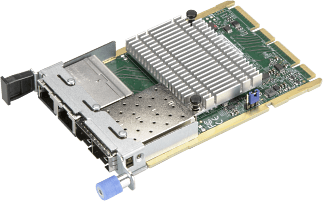

Supermicro® Advanced I/O Modules (AIOM) are the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The AOC-ATG-i2T2SM is one of the most flexible and scalable 4-port 10Gb network solutions in the market. Based on the Intel® X710-TM4 controller, it is designed to support a mixed network interface 2x RJ45 and 2x SFP+ connectors, with performance-enhancing features and power management technologies.


To order, contact your distributor. This product is only available through Supermicro.
Key Features
  • Advanced I/O Module (AIOM) Form Factor
  • Intel® X710-TM4 Ethernet Controller
  • 2x RJ45 and 2x SFP+ connectors
  • Support for 1GbE and 10 GbE speed
  • Network Virtualization: VXLAN and NVGRE
  • Energy Efficient Ethernet (EEE)
  • Intel® Ethernet Flow Director
  • Data Plane Developer Kit for efficient packet processing (DPDK)
  • Asset Management Features
  • NC-SI for Remote Management
  • Supports RJ-45 Category 6 and 6A cables
  • Supports both Direct Attach Copper and Fiber Cables
Compliance
RoHS
  • RoHS Compliant 6/6


Downloads
User's Guide [ Download ]
Datasheet [ Download ]
Driver Choose the latest CDR-NIC folder, and then click on Intel folder for driver [ Download ]
Driver CD Click on the latest CDR-NIC ISO file to download [ Download ]

Specifications
  • General
    • Advanced I/O Module (AIOM) Form Factor
    • Intel® X710-TM4 controller
    • 2x RJ45 and 2x SFP+ connectors with speed up to 10Gbps per port
  • Networking Features
    • IEEE 802.3ad, 802.1AX Link Aggregation
    • IEEE 802.1Q VLAN
    • MSI and MSI-X support
    • Intel® Flow Director
    • Jumbo Frames (up to 9.5KB)
    • IEEE 802.3x Flow Control
    • Teaming support
    • Checksum Offload (IPv4/IPv6, SCTP, TCP, UDP, Tx/Rx)
  • Virtualization Features
    • Virtual Machine Devices queues (VMDq)
    • Single-Root I/O Virtualization (SR-IOV)
    • VLAN
    • VXN and NVGRE
    • GENEVE
  • Management Features
    • Asset Management support with thermal sensor
    • NC-SI for remote management
    • Preboot eXecution Environment (PXE)
    • iSCSI remote boot
  • Power Savings
    • ACPI compliant power management
    • PCI Express Active State Power Management (ASPM)
    • Energy Efficient Ethernet (IEEE 802.3az)
  • OS Support
    • Windows®
    • Linux RHEL
    • Linux SLES
    • Linux Ubuntu
    • Linux CentOS
    • FreeBSD
    • VMware
  • Cable Support
    • SFP+ direct attach twin-axial copper cables up to 5m
    • Fiber-optic cables (with required optional SFP+ transceivers)
    • RJ-45 Category-6 up to 55m; Category-6A up to 100m
  • Power Consumption
    • Maximum: 10W
  • Operating Conditions
    • Storage temperature: -40°C to 70°C (-40°F to 158°F)
    • Storage humidity: 90% non-condensing relative humidity at 35°C
  • Physical Dimensions
    • Card PCB dimensions: 76mm x 115mm (W x D)

Please note that this product is sold only as part of an integrated solution with Supermicro server systems.


Available SKUs
SKUs Bracket Included Description
AOC-ATG-i2T2SM BKT-0176L 4-port 10 Gigabit Ethernet Adapter with a 0.5U height bracket
Information in this document is subject to change without notice.
Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
