SuperServer ARS-221GL-NHIR (Complete System Only)

DP NVIDIA GH200 Grace Hopper Superchip system supporting NVIDIA BlueField-3 or NVIDIA ConnectX-7

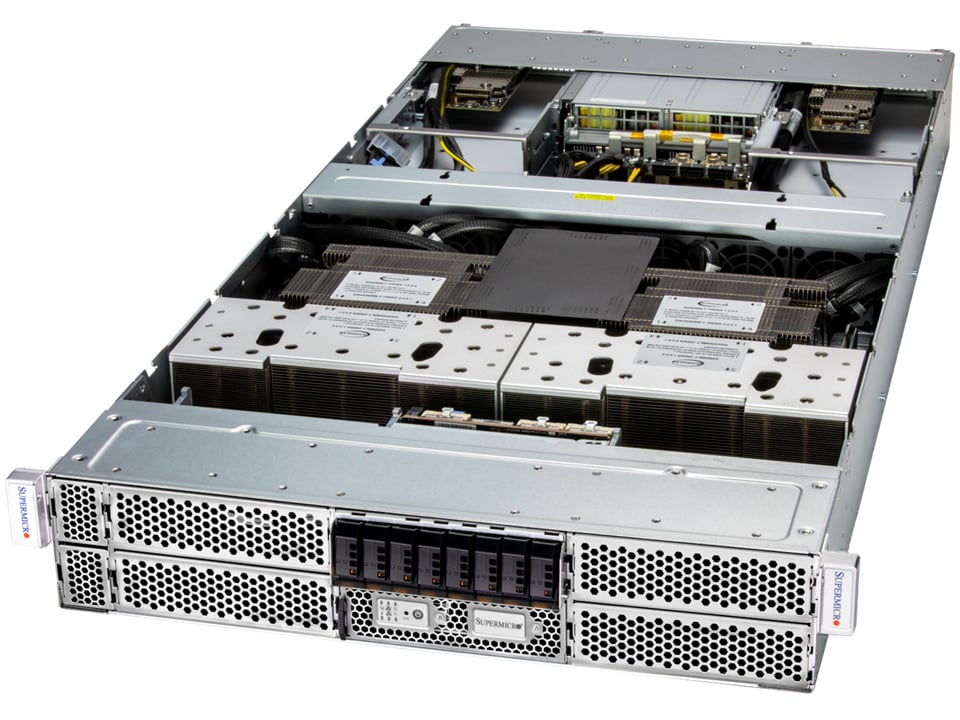

ARS-221GL-NHIR Main ARS-221GL-NHIR Angle ARS-221GL-NHIR Top ARS-221GL-NHIR Front ARS-221GL-NHIR Rear
Integrated Board: G2DMH-GI
Learn more

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training and Inference
  • Large Language Model (LLM) and Generative AI

Key Features

  1. High density 2U 1-node GPU system with two Integrated NVIDIA H100 GPUs and two 72-core Arm Neoverse V2 CPUs
    NVIDIA® NVLink® high speed interconnect between both GH200 Super Chips
  2. NVIDIA Grace™ Hopper Superchip (Grace CPU and H100 GPU)
  3. NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and GPU at 900GB/s
  4. Up to 624GB of coherent memory per node including 480GB LPDDR5X and 144GB of HBM3e for LLM applications
  5. 4x PCIe 5.0 X16 supporting one NVIDIA Bluefield 3 and two connectX-7 cards
  6. 6 Heavy Duty Fans with Optional Speed Control
...
...
ARS-221GL-NHIR
Specifications Resources & Downloads
Specifications
Product SKUs
ARS-221GL-NHIR
Motherboard
Super G2DMH-GI
Processor
CPU
  • NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip
Note
  • Supports up to 300W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 onboard GPUs
Supported GPU
  • NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Air-cooled)
  • View GPU Options
CPU-GPU Interconnect
  • NVLink®-C2C
GPU-GPU Interconnect
  • NVIDIA® NVLink®
System Memory
Memory
  • Slot Count: Onboard Memory
  • Max Memory: Up to 480GB ECC LPDDR5X
  • Additional GPU Memory: Up to 144GB ECC HBM3e
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 1 port(Rear)
Video
  • 1 mini-DP port
System BIOS
BIOS Type
  • AMI 64MB UEFI
Management
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-MG202TS-R000NDFP
Dimensions and Weight
Height
  • 3.43" (87 mm)
Width
  • 17.3" (438.4 mm)
Depth
  • 35.43" (900 mm)
Package
  • 11.02" (H) x 27.56" (W) x 47.24" (D)
Weight
  • Gross Weight: 103 lbs (46.8 kg)
  • Net Weight: 88 lbs (40 kg)
Available Color
  • Silver
Front Panel
LED
  • HDD activity
Buttons
  • Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 2 bays
    • 2 front fixed E1.S NVMe drive bays
M.2
  • 2 M.2 NVMe slots (M-key)
System Cooling
Fans
  • 6 Removable heavy-duty 6cm Fan(s)
Power Supply
4x 2000W
4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 185 mm
Input1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SBMax: 3.5A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
