SuperServer AS -1115SV-WTNRT

DatasheetShare IconShare

1U UP WIO with 10 hot-swap 2.5" NVMe/SAS/SATA (6 NVMe hybrid) bays and 3 PCIe 5.0 x16 slots

Integrated Board: H13SVW-NT
Learn more

Key Applications

  • Virtualization
  • Data Center Optimized
  • Firewall Applications
  • Database/Storage
  • Edge/Cloud Computing Services

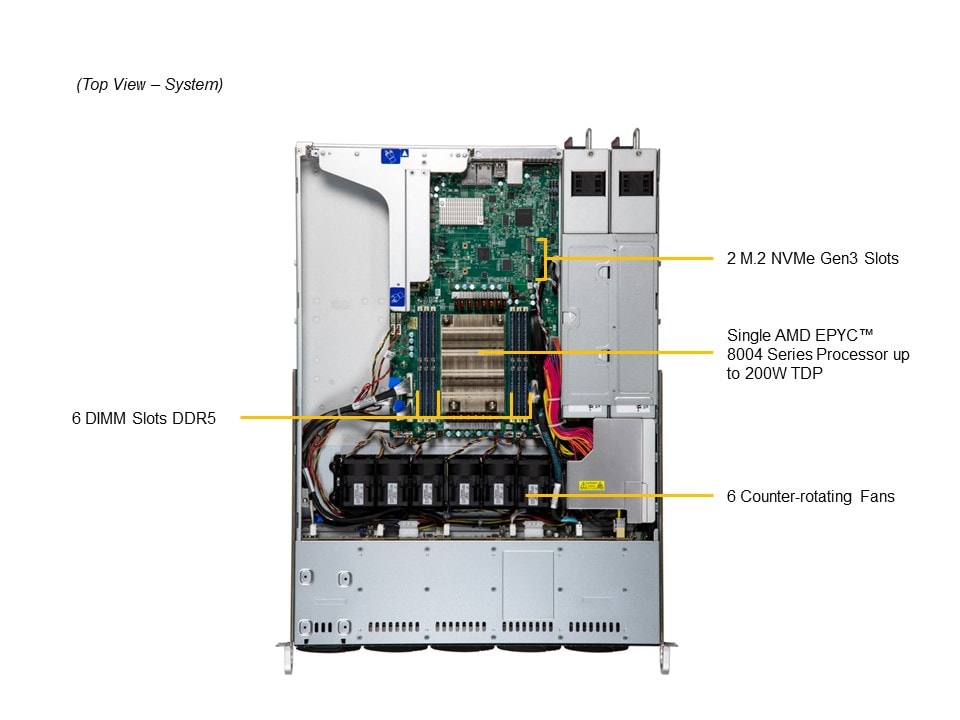

Key Features

  1. Single Socket AMD EPYC™ 8004 Series Processor
  2. 6 DIMM slots, DDR5-4800MHz memory, support up to 768GB
  3. 2 PCIe 5.0 x16 FHFL;
    1 PCIe 5.0 x16 LP
  4. Single dedicated IPMI LAN, dual 10GbE BaseT LAN ports via Broadcom BCM57416 Controller
  5. 10 Hot-swap 2.5" SATA(default)/NVMe/SAS drive bays or 6 SATA/NVMe hybrid + 4 SATA drive bays (optional cables or SAS controller card for NVMe and SAS drive bays)
...
...
Configure & Buy
AS-1115SV-WTNRT
Specifications Parts List
Specifications
Product SKUs
A+ Server AS -1115SV-WTNRT
Motherboard
Super H13SVW-NT
Processor
CPU
  • Single processor(s)
  • AMD EPYC™ 8004 Series Processor
Core Count
  • Up to 64C/128T
Note
  • Supports up to 225W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 2 single-width GPUs
Supported GPU
System Memory
Memory
  • Slot Count: 6 DIMM slots
  • Max Memory (1DPC): Up to 768GB 4800MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity

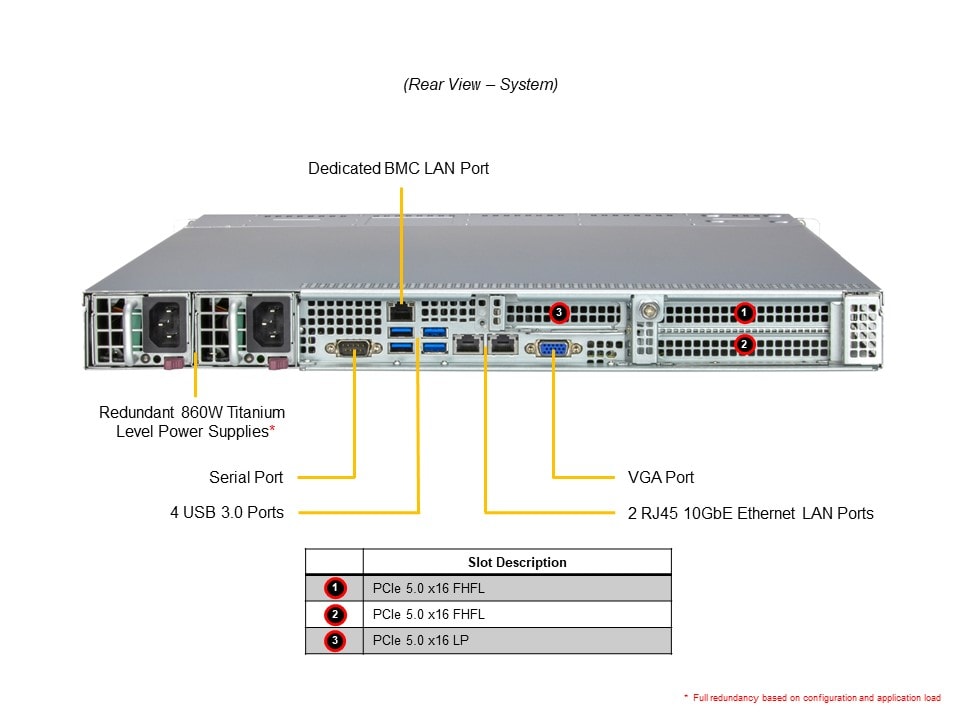

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports
USB
  • 2 ports(front)
  • 4 ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
Power configurations
  • 1U redundant 800/860W Titanium AC power supply
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U
Model
  • CSE-116BTS-R000WNP
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 23.5" (597 mm)
Package
  • 7.75" (H) x 23.5" (W) x 31.5" (D)
Weight
  • Gross Weight: 33.5 lbs (15.2 kg)
  • Net Weight: 21 lbs (9.53 kg)
Available Color
  • Black

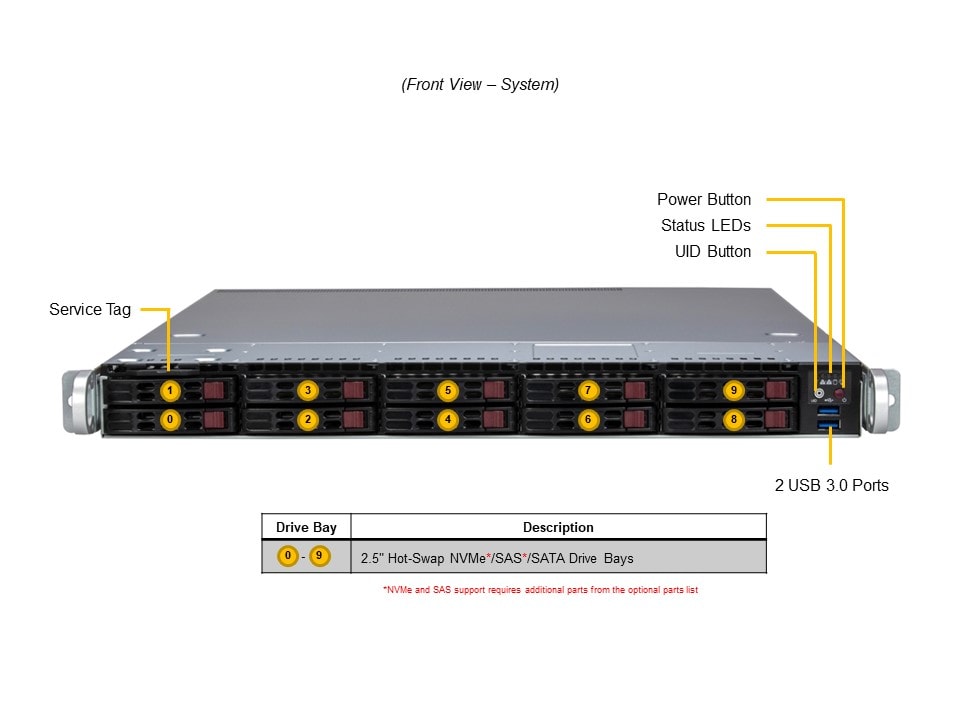

Front Panel
LED
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Network Activity LEDs
  • Power status LED
Buttons
  • Power On/Off button
  • Unit Identification (UID) button
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 10 bays
    • 10 front hot-swap 2.5" NVMe*/SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 6 Heavy duty counter-rotating 40x40x56mm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
2x 860W
2x 860W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)54.5 x 40.25 x 322 mm
Input800W: 100-127Vac / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz
+12VMax: 66.67A / Min: 0A (100Vac-127Vac)
Max: 71.67A / Min: 0A (200Vac-240Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-H13SVW-NT

CSE-116BTS-R000WNP 		1

1 		Super H13SVW-NT Motherboard

1U Chassis
Backplane BPN-NVME5-LB16A-S10 1 1U 10-port hybrid backplane for SAS3/SATA3/NVME5 storage
Cable CBL-CDAT-0728 1 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
CBL-MCIO-1227EQS4 1 MCIO X8/STR+pTab to SlimSAS X4/STR+pTab,27CM,32AWG,RoHS
CBL-MCIO-1243S4Y 1 (MCIO x8 to 2 SlimSAS x4), STR, 43cm, 85Ohm, RoHS,RoHS
CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Fan FAN-0163L4 6 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
Front Panel MCP-280-00033-0N 1 Universal Thermal sensor kit with 80cm I2C cable
FPB-FP116-DU3 1 Front control board with two USB 3.0 for SC116/SC119X
Power Supply PWS-861A-1R 2 1U redundant 800/860W Titanium AC power supply 54.5x40x322mm
MCP-250-00009-0N 1 SC113 Redundant Power Distributor Cover
Riser Card RSC-W-66G5 1 1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R
RSC-WR-6G5H 1 1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0062P-1 1 1U Passive CPU Heat Sink for AMD Socket SP6 Processors
*Power Distributor PDB-PT116-SL8824 1 Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths
*Drive Tray(s) MCP-220-00047-0B 10 Black gen 3rd hot-swap 2.5inch HDD tray
*Rear Window MCP-240-00202-0N 1 1U WIO rear window to support top-load riser bracket for SC815B,SC116B
*Rail Set MCP-290-00016-0N 1 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
MCP-290-00063-0N 1set Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
MCP-290-00102-0N 1 set Outer rail, quick-release type, 25.6
MCP-290-00108-0N 1 set Inner rail, front, short, quick-release type
MCP-290-00112-0N 1 set Inner rail, extension, long (quick) for 1U 17.2W chassis
*Air Shroud MCP-310-11606-0B 1 Air block for 1U WIO SC116B with X13SEW
*Fan Holder MCP-320-00027-0B 24 Plastic pin for 40x28, 40x56 fan
MCP-320-00028-0B 1 Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116
MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Cable Management Arm MCP-290-00152-0N • 1 1U Supermicro Cable Management Arm 2nd Gen
Front Bezel MCP-210-11601-0B 1 Black Front Bezel
NVMe Cable (Drive Bay 0-1) CBL-MCIO-1326M5 • 1 MCIO (x8 to x8), STR, 26cm,G5,32AWG
NVMe Cable (Drive Bay 2-3) CBL-MCIO-1340M5-1 • 1 MCIO x8 (STR to STR), semi-flat, 40cm,32AWG
NVMe Cable (Drive Bay 4-5) CBL-MCIO-1340M5-1 • 1 MCIO x8 (STR to STR), semi-flat, 40cm,32AWG
NVMe Cable (Drive Bay 6-7) CBL-MCIO-1326M5 • 1 MCIO (x8 to x8), STR, 26cm,G5,32AWG
NVMe Cable (Drive Bay 8-9) CBL-MCIO-1218M5 • 1 MCIO x8 (STR to STR),18CM,85OHM
Standard Parts (Parts Included)
Motherboard / Chassis
Part NumberMBD-H13SVW-NT CSE-116BTS-R000WNP
Qty1 1
DescriptionSuper H13SVW-NT Motherboard 1U Chassis
Backplane
Part NumberBPN-NVME5-LB16A-S10
Qty1
Description1U 10-port hybrid backplane for SAS3/SATA3/NVME5 storage
Cable
Part NumberCBL-CDAT-0728CBL-MCIO-1227EQS4CBL-MCIO-1243S4YCBL-0335LCBL-PWCD-0160-IS
Qty11112
Description4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1MCIO X8/STR+pTab to SlimSAS X4/STR+pTab,27CM,32AWG,RoHS(MCIO x8 to 2 SlimSAS x4), STR, 43cm, 85Ohm, RoHS,RoHSFRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBFPWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Fan
Part NumberFAN-0163L4
Qty6
Description40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
Front Panel
Part NumberMCP-280-00033-0NFPB-FP116-DU3
Qty11
DescriptionUniversal Thermal sensor kit with 80cm I2C cableFront control board with two USB 3.0 for SC116/SC119X
Power Supply
Part NumberPWS-861A-1RMCP-250-00009-0N
Qty21
Description1U redundant 800/860W Titanium AC power supply 54.5x40x322mmSC113 Redundant Power Distributor Cover
Riser Card
Part NumberRSC-W-66G5RSC-WR-6G5H
Qty11
Description1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoHS
Software
Part NumberSFT-OOB-LIC
Qty1
DescriptionLicense key for enabling OOB BIOS management
Heatsink / Retention
Part NumberSNK-P0062P-1
Qty1
Description1U Passive CPU Heat Sink for AMD Socket SP6 Processors
*Power Distributor
Part NumberPDB-PT116-SL8824
Qty1
DescriptionBased on PDB-PT116-L8824 to optimize 24Pin etc cable lengths
*Drive Tray(s)
Part NumberMCP-220-00047-0B
Qty10
DescriptionBlack gen 3rd hot-swap 2.5inch HDD tray
*Rear Window
Part NumberMCP-240-00202-0N
Qty1
Description1U WIO rear window to support top-load riser bracket for SC815B,SC116B
*Rail Set
Part NumberMCP-290-00016-0NMCP-290-00063-0NMCP-290-00102-0NMCP-290-00108-0NMCP-290-00112-0N
Qty11set1 set1 set1 set
Description1U open rack bracket set for CSE-PT51L,MCP-290-00054-0NRail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACHOuter rail, quick-release type, 25.6Inner rail, front, short, quick-release typeInner rail, extension, long (quick) for 1U 17.2W chassis
*Air Shroud
Part NumberMCP-310-11606-0B
Qty1
DescriptionAir block for 1U WIO SC116B with X13SEW
*Fan Holder
Part NumberMCP-320-00027-0BMCP-320-00028-0BMCP-340-00035-0B
Qty2412
DescriptionPlastic pin for 40x28, 40x56 fanFan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Cable Management Arm
Part NumberMCP-290-00152-0N •
Qty1
Description1U Supermicro Cable Management Arm 2nd Gen
Front Bezel
Part NumberMCP-210-11601-0B
Qty1
DescriptionBlack Front Bezel
NVMe Cable (Drive Bay 0-1)
Part NumberCBL-MCIO-1326M5 •
Qty1
DescriptionMCIO (x8 to x8), STR, 26cm,G5,32AWG
NVMe Cable (Drive Bay 2-3)
Part NumberCBL-MCIO-1340M5-1 •
Qty1
DescriptionMCIO x8 (STR to STR), semi-flat, 40cm,32AWG
NVMe Cable (Drive Bay 4-5)
Part NumberCBL-MCIO-1340M5-1 •
Qty1
DescriptionMCIO x8 (STR to STR), semi-flat, 40cm,32AWG
NVMe Cable (Drive Bay 6-7)
Part NumberCBL-MCIO-1326M5 •
Qty1
DescriptionMCIO (x8 to x8), STR, 26cm,G5,32AWG
NVMe Cable (Drive Bay 8-9)
Part NumberCBL-MCIO-1218M5 •
Qty1
DescriptionMCIO x8 (STR to STR),18CM,85OHM
