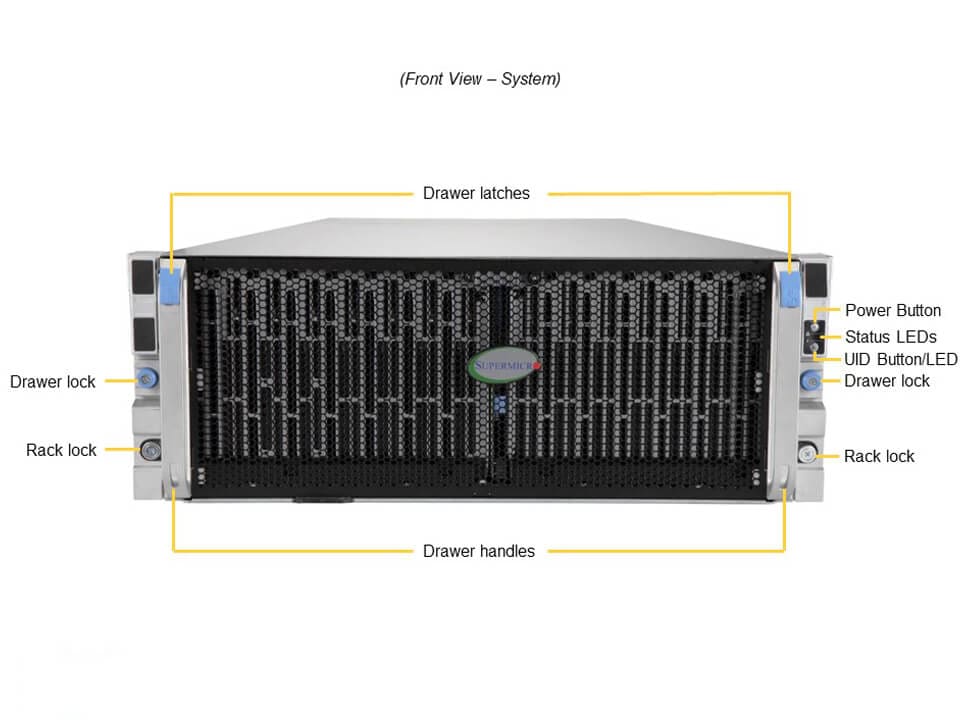

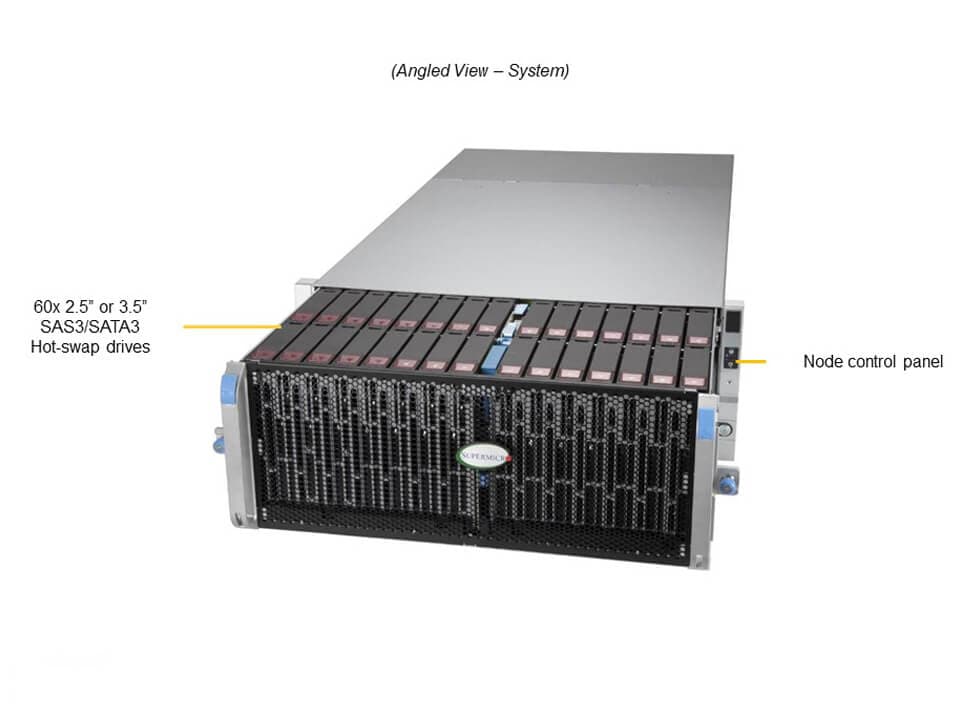

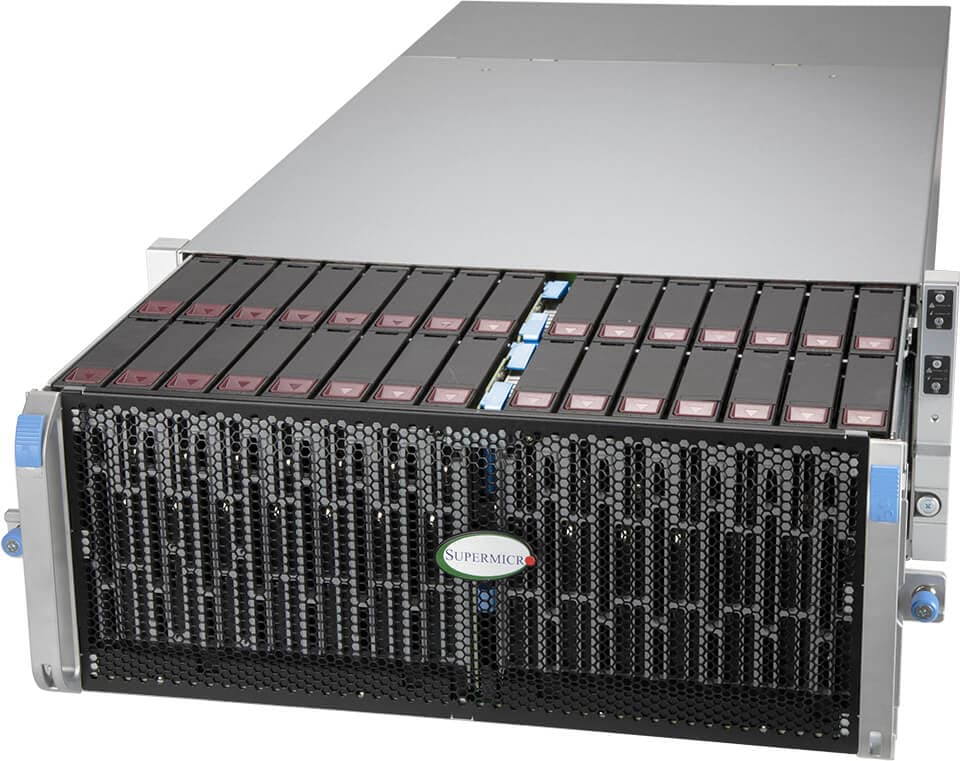

SuperServer SSG-640SP-E1CR60 (Complete System Only)

4U top-loading storage server with 60 hot-swap 3.5" SAS/SATA bays and PCIe 4.0

Key Applications

  • Big Data & Analytics, Data Lake
  • HPC and AI/ML Workloads
  • Telco & Cloud Service Providers
  • Financial Services & Healthcare Image Archives
  • Content Repositories
  • Government Data Protection

Key Features

  1. Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores
  2. 16 ECC DDR4-3200: LRDIMM/RDIMM
  3. 3 x PCIe 4.0 x16 HHHL PCIe slots

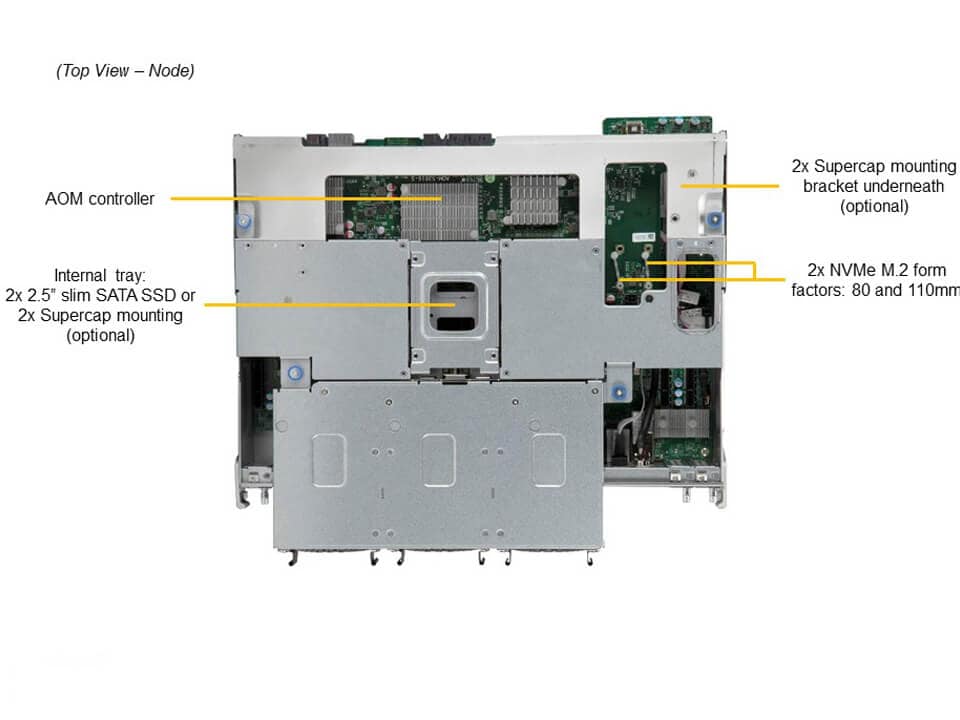

  4. 60 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Fixed slim SATA SSD, 2x NVMe M.2 (form factor: 2280 and 22110)

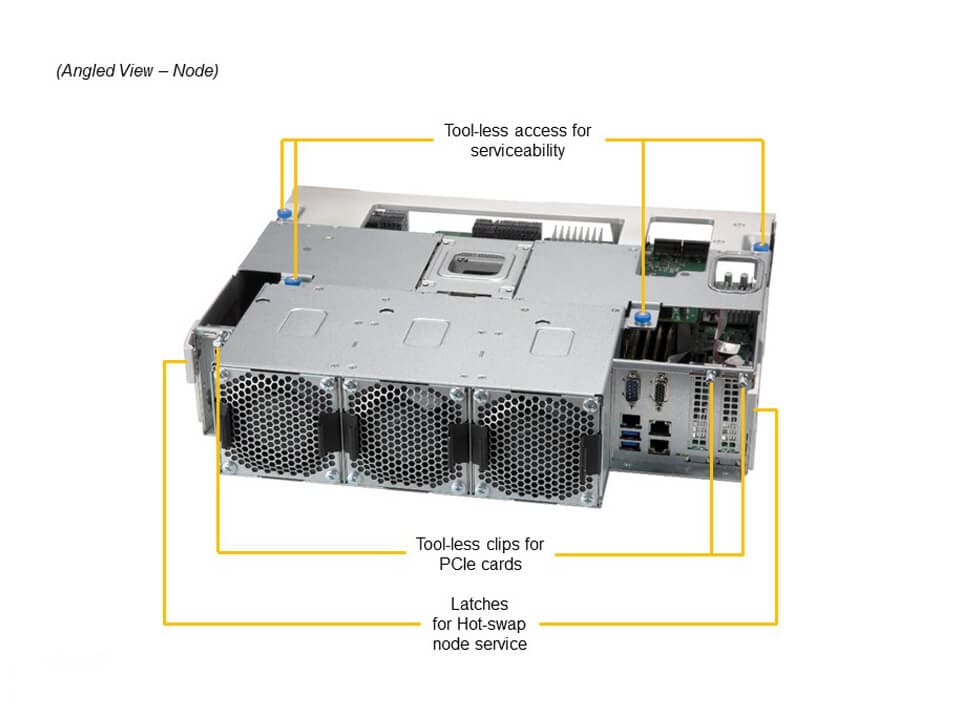

  5. 6x 8cm hot-swap counter-rotate redundant PWM cooling fans
  6. 2000W Redundant Power Supplies Titanium Level (96%)
  7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
    Drive Controller support via Broadcom® 3916 or 3616
...
...
SSG-640SP-E1CR60
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SSG-640SP-E1CR60
Motherboard
Super X12DSC-6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 54MB Cache per CPU
Note
  • Supports 120W - 205W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSV-947STS-R2K05P
Dimensions and Weight
Height
  • 7"
Width
  • 17.6"
Depth
  • 34.1"
Package
  • 29.92" (H) x 31.89" (W) x 44.88" (D)
Weight
  • Gross Weight: 170.5 lbs (77.3 kg)
  • Net Weight: 118 lbs (53.5 kg)
Available Color
  • Black
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 66 bays
    • 2 rear hot-swap 2.5" SATA drive bays
    • 4 rear hot-swap 2.5" NVMe* drive bays

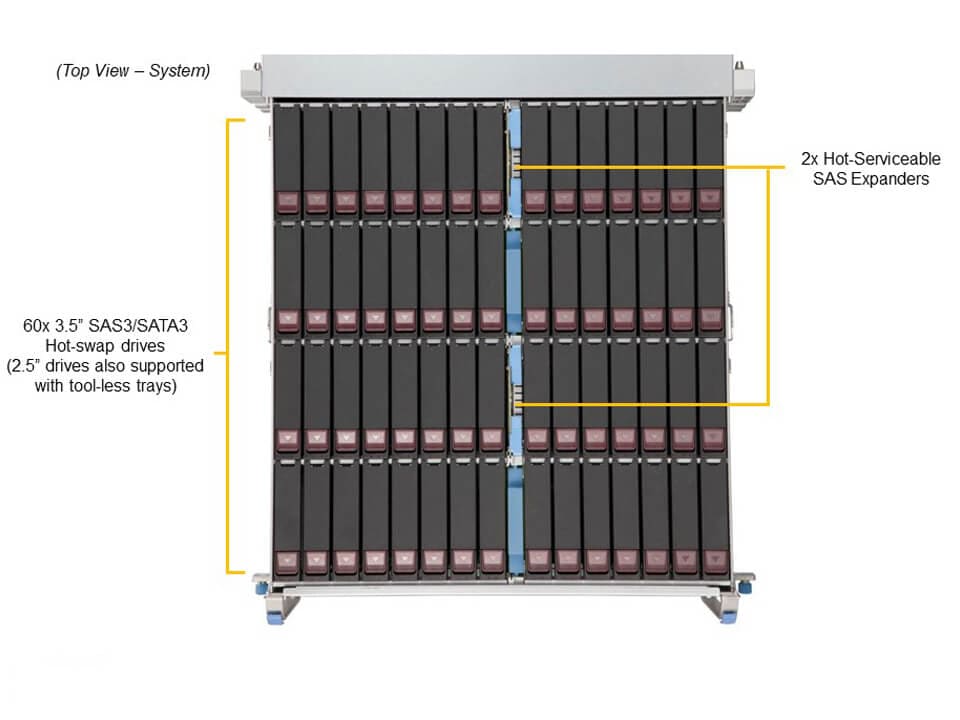

    • 60 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays
  • (*NVMe support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 6 Heavy Duty 8cm Fan(s)
Power Supply
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% ()
  • Non-operating Relative Humidity: 5% to 95% ()
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
HBA option AOM-S3816-S-O 1 SAS3816 mezzanine controller for serviceable 60/90 bay systems
HW RAID option AOC-S3916L-H16IR 1 AOC with SAS3916 controller (U3) and 240PD RAID Key (U39)
AOM-SADPT-S 1 Bypass card for 60/90 bay systems
CBL-SAST-1213-100 2 Slimline x8 (STR) to Slimline x8 (STR),14CM,100 OHM,RoHS (One per Node)
Network Cards AOC-S25G-M2S - Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
AOC-S40G-I2Q - Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC-SGP-I2 - Standard LP 2-port GbE, Intel 82575
More - AOC Compatibility Matrix (Select Storage & Generation)
NVME kit (only 1 is needed) BPN-NVMe4-228N-S4 1 2U 4-Slot SFF BPN supports 4x NVMe Storage Devices
MCP-220-00178-0B 4 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
CBL-PWEX-1093-26 1 [NR]MicroFit,2x2, PH3.0,F to MicroFit,2x2,PH3.0,F,26CM,10A/p
CBL-SAST-1049 2 [NR] SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 30.2CM,85 OHM,R
SuperCap Kit (Need Both items) MCP-240-94711-0N 1 SC947 MB Node Supercap holder module,RoHS (Optional)
BTR-CVPM05 1 Broadcom 05-50039-00 CacheVault w/ 24" Remote Extender(Optional)
TPM AOM-TPM-9670V-O 1 TPM 2.0, vertical form factor, provisioned for server
AOM-TPM-9671V-O 1 TPM 1.2, vertical form factor, provisioned for server

Storage SuperServer SSG-640SP-E1CR60 (Complete System Only )
