Certain products may not be available in your region

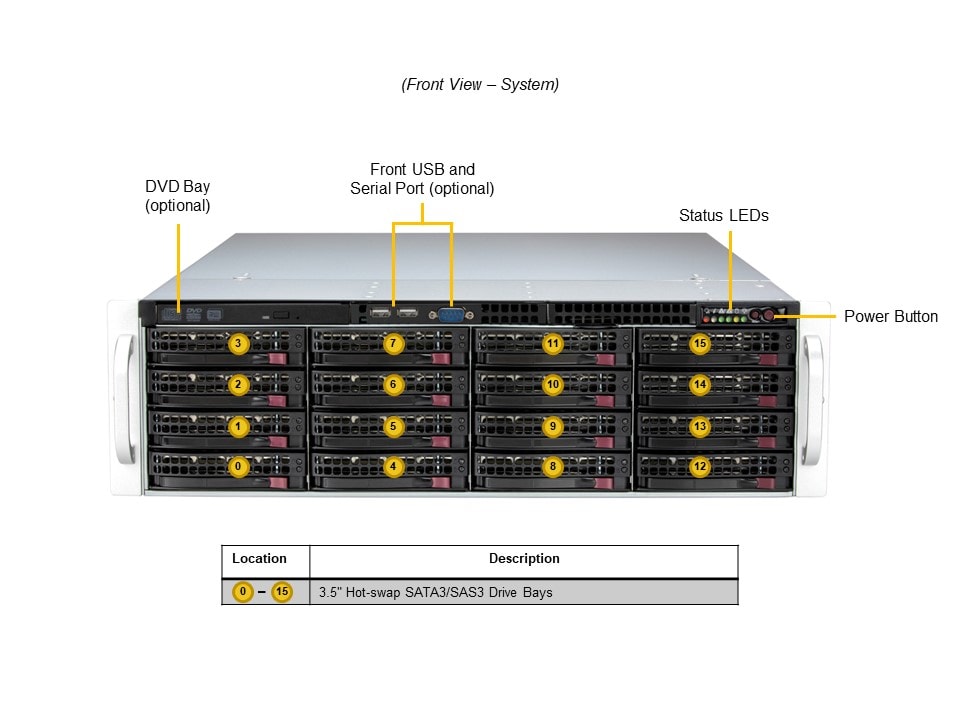

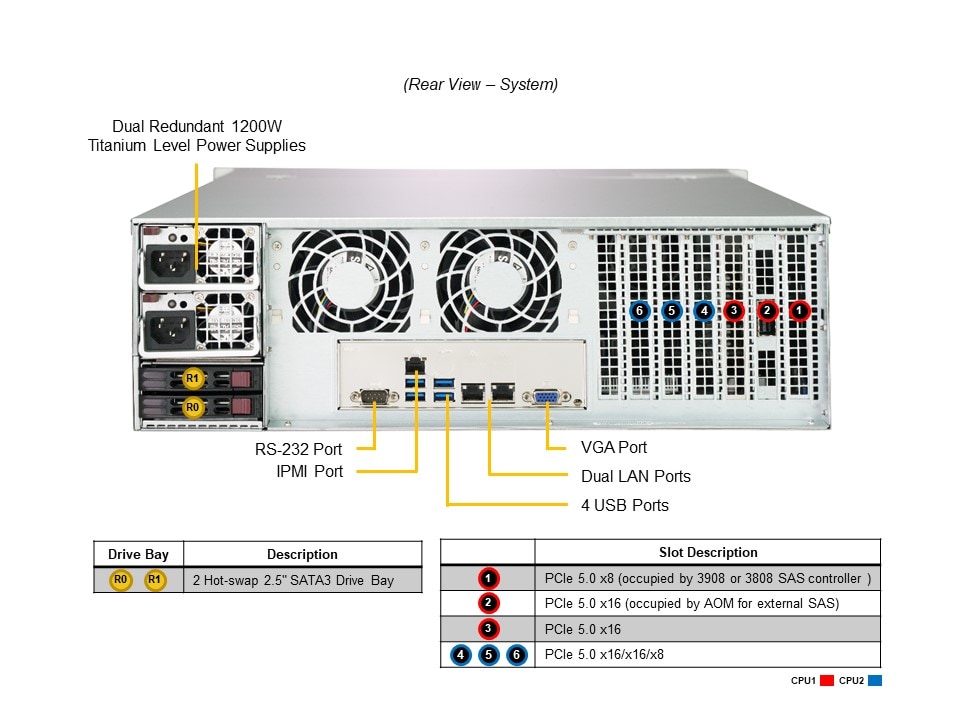

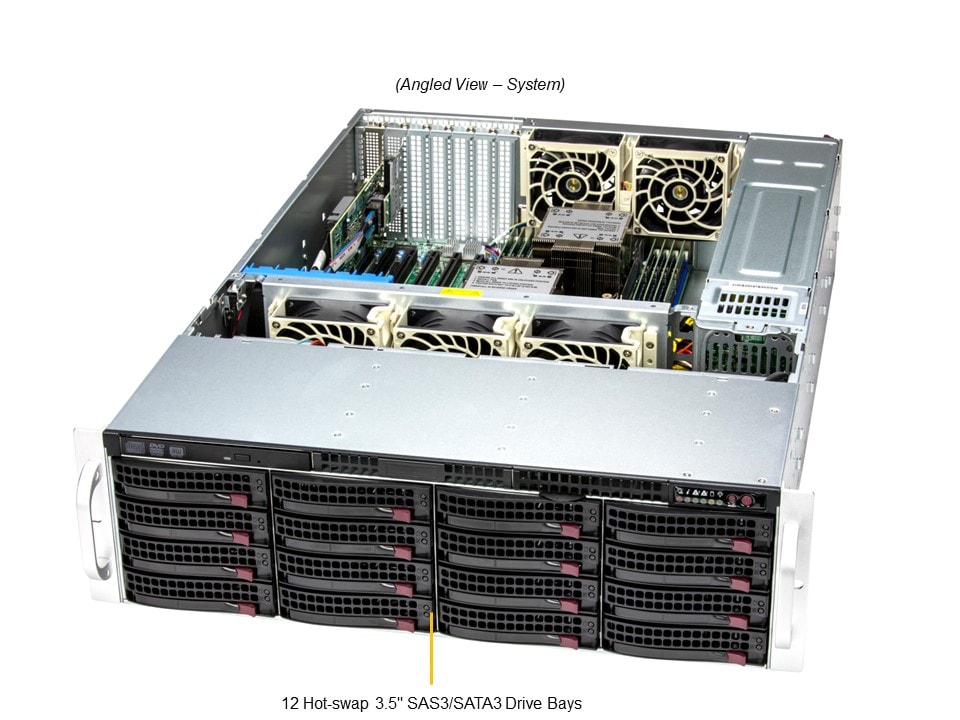

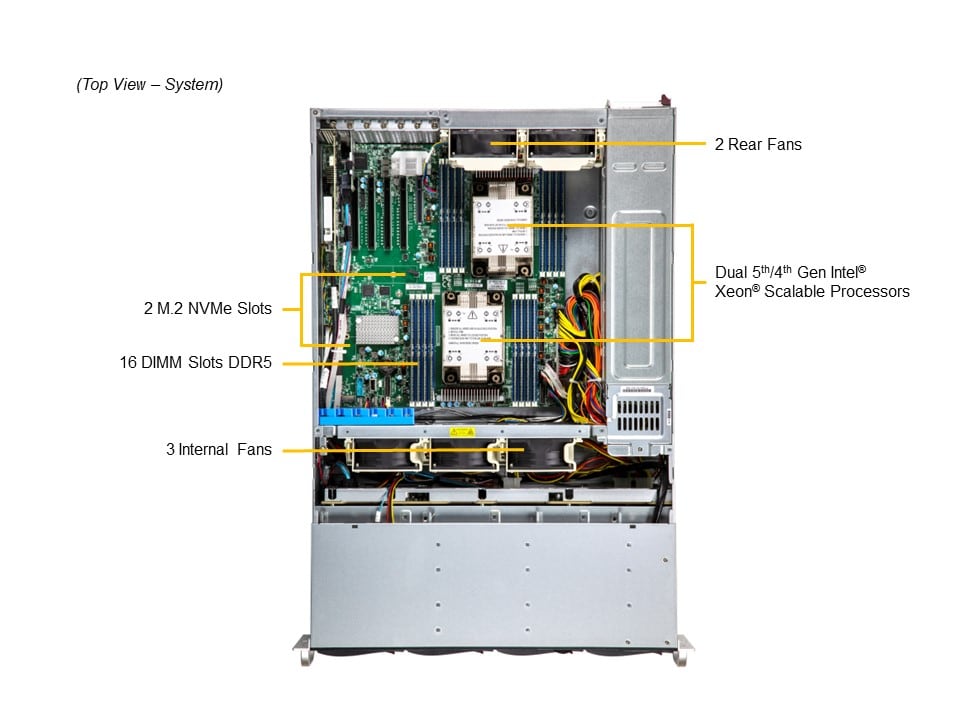

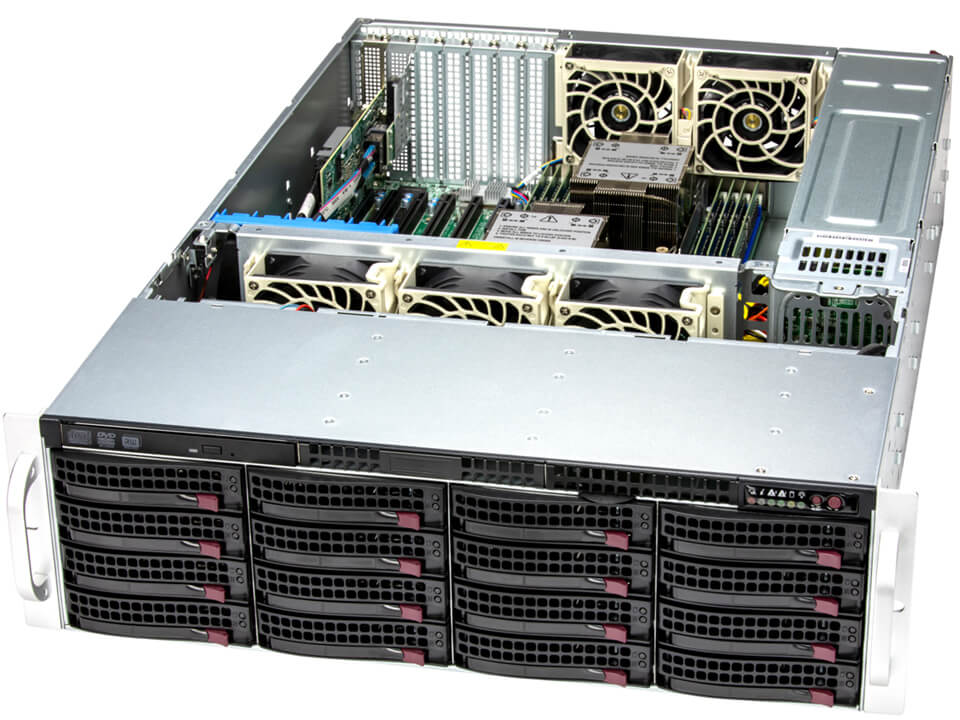

Key Applications
Key Features
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.
Schedule Access| Standard Parts (Parts Included) | |||
| Part Number | Qty | Description | |
| Motherboard / Chassis |
MBD-X13DEI-T CSE-836BTS-R1K23BP2 |
1 1 |
Super X13DEI-T Motherboard 3U Chassis |
| Add-on Card / Module | AOC-S3808L-L8IT-P | 1 | 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP,122HDDw/exp,R |
| AOM-SAS3-8I8E | 1 | 8-port Mini SAS HD Int-to-Ext Cable Adapter w/FH Bracket | |
| Backplane | BPN-SAS3-836EL1 | 1 | (EOL)SAS3 12Gb/s Single Expander backplane with 16 SAS3 3.5" |
| Cable | CBL-SAST-0532 | 2 | Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s |
| CBL-SAST-1264-100 | 1 | Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS | |
| CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF | |
| CBL-PWEX-1069 | 1 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS | |
| CBL-PWEX-1078 | 4 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS | |
| Parts | MCP-260-00042-3N | 1 | STD I/O shield for X13 server MB with venting holes |
| MCP-290-83601-0V | 2 | Silver chassis handles (left and right) for SC836/835 | |
| Front Panel | MCP-280-00033-0N | 1 | Universal Thermal sensor kit with 80cm I2C cable |
| FPB-FP836-D | 1 | Front control board Dual color LED(FP836-D)forSC823M,825,825 | |
| Air Shroud | MCP-310-83601-0B | 1 | Mylar air block for SC836(X11DPH-T),RoHS |
| MCP-310-83602-0B | 1 | Mylar air shroud for SC836(X13DEI-T) | |
| MCP-310-39001-0N | 1 | SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management |
| Heatsink / Retention | SNK-P0088P | 2 | 2U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems |
| *Power Supply | PWS-1K23A-1R | 2 | AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH |
| *Power Distributor | PDB-PT826-8824 | 1 | PDB with longer 24pin for SC826B |
| *Fan | FAN-0206L4 | 3 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers |
| FAN-0212L4 | 2 | 80x80x32 mm, 9.7K RPM Rear Exhaust Fan for SC836B and SC846B | |
| *Drive Tray(s) | MCP-220-00023-01 | 1 | Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836 |
| MCP-220-00075-0B | 16 | Black gen 5.5 hot-swap 3.5" HDD tray | |
| *Rear Window | MCP-240-83605-0N | 1 | 836B chassis rear window (to support the optional MCP-220-83605-0N) |
| *Peripheral Drive | MCP-290-00007-01 | 1 | Black DVD dummy cover for SC825, 836 |
| *Rail Set | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W |
| MCP-410-00007-0N | 1 | Rail screw bag | |
Notes:
|
|||
| Optional Parts List | |||
| Part Number | Qty | Description | |
| Cable Management Arm | MCP-290-00073-0N • |
1 | Supermicro Cable Management Arm |
| Converter Tray | MCP-220-00043-0N • |
1 | 2.5" HDD TRAY IN 4TH GENERATION 3.5" HOT SWAP TRAY |
| DVD Drive | MCP-220-81502-0N • |
1 | Slim SATA DVD mounting kit |
| CBL-SAST-1251-100 | 1 | Slimline x8 (STR) to 4x SATA,60/50/50/60CM,SB 5CM,100 OH | |
| DVM-TEAC-DVDRW-SBT5 | 1 | BLACK TEAC SLIM DVD-RW SATA DRIVE,HF,RoHS | |
| Front USB3.0 & COM Ports Tray | MCP-220-00129-0B | 1 | Black 2x USB3.0/COM port tray in slim FDD bay, with both side of rails/brackets |
| Network Cards | AOC-STGS-i2T-O | 1 | Std LP 2-port 10G RJ45, Intel X550 |
| AOC-STG-b2T-O | 1 | Standard LP 2-port 10Gbase-T, Broadcom 57416,HF,RoHS | |
| AOC-S25G-m2S-O | 1 | Std LP 2-port 25G SFP28, Mellanox ConnectX-4 LX EN | |
| AOC-S25G-i2S-O | 1 | Std. Low Profile 25G dual port SFP28, based on Intel XXV710 | |
| AOC-S25G-b2S-O | 1 | Std LP 2-port 25G SFP28, Broadcom BCM57414 | |
| Power Cord | CBL-PWCD-0300-IS | 1 | PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH |
| CBL-PWCD-0579 | 1 | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V | |
| CBL-PWCD-0579-1 | 1 | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V | |
| TPM | AOM-TPM-9670V-O • |
1 | TPM 2.0, vertical form factor, provisioned for server |
| VROC | AOC-VROCSTNMOD | 1 | Intel VROC HW key (RSTe) standard upgrade module,HF,RoHS |
| AOC-VROCPREMOD | 1 | Intel VROC Premium, RAID0,1,5,10,HF,RoHS | |
| Part Number | MBD-X13DEI-T | CSE-836BTS-R1K23BP2 |
| Qty | 1 | 1 |
| Description | Super X13DEI-T Motherboard | 3U Chassis |
| Part Number | AOC-S3808L-L8IT-P | AOM-SAS3-8I8E |
| Qty | 1 | 1 |
| Description | 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP,122HDDw/exp,R | 8-port Mini SAS HD Int-to-Ext Cable Adapter w/FH Bracket |
| Part Number | BPN-SAS3-836EL1 |
| Qty | 1 |
| Description | (EOL)SAS3 12Gb/s Single Expander backplane with 16 SAS3 3.5" |
| Part Number | CBL-SAST-0532 | CBL-SAST-1264-100 | CBL-0071L | CBL-PWEX-1069 | CBL-PWEX-1078 |
| Qty | 2 | 1 | 1 | 1 | 4 |
| Description | Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s | Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS |
| Part Number | MCP-260-00042-3N | MCP-290-83601-0V |
| Qty | 1 | 2 |
| Description | STD I/O shield for X13 server MB with venting holes | Silver chassis handles (left and right) for SC836/835 |
| Part Number | MCP-280-00033-0N | FPB-FP836-D |
| Qty | 1 | 1 |
| Description | Universal Thermal sensor kit with 80cm I2C cable | Front control board Dual color LED(FP836-D)forSC823M,825,825 |
| Part Number | MCP-310-83601-0B | MCP-310-83602-0B | MCP-310-39001-0N |
| Qty | 1 | 1 | 1 |
| Description | Mylar air block for SC836(X11DPH-T),RoHS | Mylar air shroud for SC836(X13DEI-T) | SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB |
| Part Number | SFT-OOB-LIC |
| Qty | 1 |
| Description | License key for enabling OOB BIOS management |
| Part Number | SNK-P0088P |
| Qty | 2 |
| Description | 2U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems |
| Part Number | PWS-1K23A-1R |
| Qty | 2 |
| Description | AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH |
| Part Number | PDB-PT826-8824 |
| Qty | 1 |
| Description | PDB with longer 24pin for SC826B |
| Part Number | FAN-0206L4 | FAN-0212L4 |
| Qty | 3 | 2 |
| Description | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers | 80x80x32 mm, 9.7K RPM Rear Exhaust Fan for SC836B and SC846B |
| Part Number | MCP-220-00023-01 | MCP-220-00075-0B |
| Qty | 1 | 16 |
| Description | Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836 | Black gen 5.5 hot-swap 3.5" HDD tray |
| Part Number | MCP-240-83605-0N |
| Qty | 1 |
| Description | 836B chassis rear window (to support the optional MCP-220-83605-0N) |
| Part Number | MCP-290-00007-01 |
| Qty | 1 |
| Description | Black DVD dummy cover for SC825, 836 |
| Part Number | MCP-290-00053-0N | MCP-410-00007-0N |
| Qty | 1 | 1 |
| Description | Rail set, quick/quick, default for 2,3U 17.2"W | Rail screw bag |
Notes:
| Part Number | MCP-290-00073-0N • |
| Qty | 1 |
| Description | Supermicro Cable Management Arm |
| Part Number | MCP-220-00043-0N • |
| Qty | 1 |
| Description | 2.5" HDD TRAY IN 4TH GENERATION 3.5" HOT SWAP TRAY |
| Part Number | MCP-220-81502-0N • | CBL-SAST-1251-100 | DVM-TEAC-DVDRW-SBT5 |
| Qty | 1 | 1 | 1 |
| Description | Slim SATA DVD mounting kit | Slimline x8 (STR) to 4x SATA,60/50/50/60CM,SB 5CM,100 OH | BLACK TEAC SLIM DVD-RW SATA DRIVE,HF,RoHS |
| Part Number | MCP-220-00129-0B |
| Qty | 1 |
| Description | Black 2x USB3.0/COM port tray in slim FDD bay, with both side of rails/brackets |
| Part Number | AOC-STGS-i2T-O | AOC-STG-b2T-O | AOC-S25G-m2S-O | AOC-S25G-i2S-O | AOC-S25G-b2S-O |
| Qty | 1 | 1 | 1 | 1 | 1 |
| Description | Std LP 2-port 10G RJ45, Intel X550 | Standard LP 2-port 10Gbase-T, Broadcom 57416,HF,RoHS | Std LP 2-port 25G SFP28, Mellanox ConnectX-4 LX EN | Std. Low Profile 25G dual port SFP28, based on Intel XXV710 | Std LP 2-port 25G SFP28, Broadcom BCM57414 |
| Part Number | CBL-PWCD-0300-IS | CBL-PWCD-0579 | CBL-PWCD-0579-1 |
| Qty | 1 | 1 | 1 |
| Description | PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V |
| Part Number | AOM-TPM-9670V-O • |
| Qty | 1 |
| Description | TPM 2.0, vertical form factor, provisioned for server |
| Part Number | AOC-VROCSTNMOD | AOC-VROCPREMOD |
| Qty | 1 | 1 |
| Description | Intel VROC HW key (RSTe) standard upgrade module,HF,RoHS | Intel VROC Premium, RAID0,1,5,10,HF,RoHS |
