SuperServer SSG-621E-ACR16H

2U front-loading storage server with 16 hot-swap 3.5" SAS/SATA bays (SAS hardware RAID) and PCIe 5.0

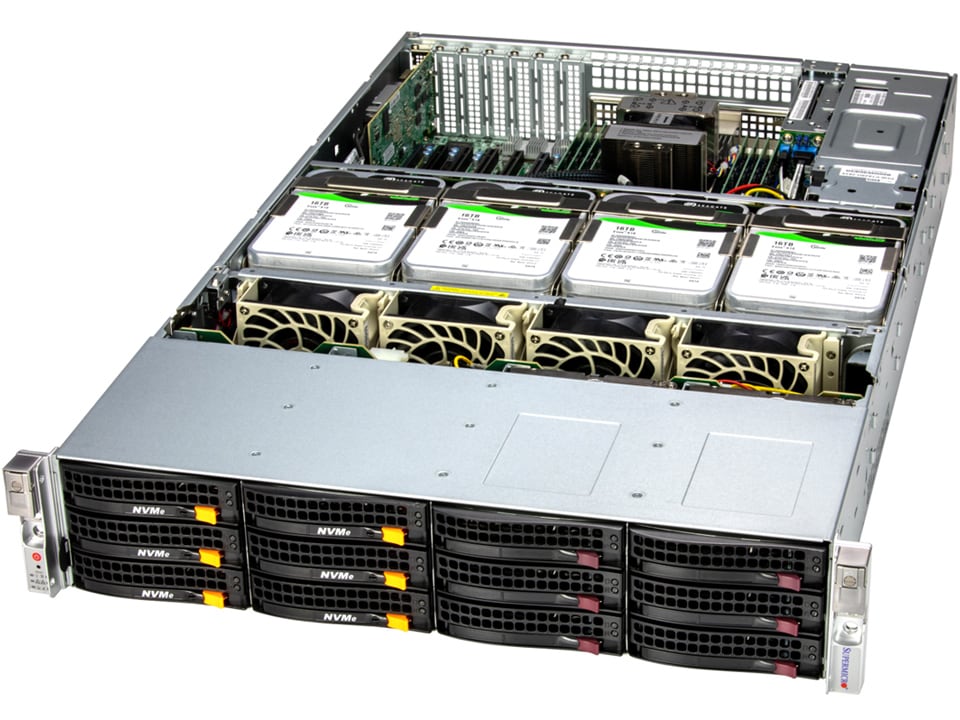

SSG-621E-ACR16H Main SSG-621E-ACR16H Angle SSG-621E-ACR16H Top SSG-621E-ACR16H Front SSG-621E-ACR16H Rear
Integrated Board: X13DEI-T
Learn more

Key Applications

  • Enterprise Server
  • iSCSI SAN
  • HPC, Data Center
  • Database Processing & Storage
  • Corporate Database
  • Appliance Optimized Storage Building Blocks

Key Features

  1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
  2. Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
  3. 2x 10 GbE onboard via Broadcom BCM57416
    1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  4. 16x 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear 2.5" SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110)
  5. 4x 8cm hot-swap counter-rotate redundant PWM cooling fans
  6. 1600W Redundant Power Supplies Titanium Level (96%)
  7. HW RAID support via Broadcom® 3916
...
...
SSG-621E-ACR16H
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SSG-621E-ACR16H
Motherboard
Super X13DEI-T
Processor
CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GbE LAN ports (Broadcom® BCM57416) (IPMI shared on LAN port 1)
USB
  • 4 USB 3.0 ports(rear)
Video
  • 1 VGA port(Rear)
Serial
  • 1 COM port(Rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-829HTS-R1K62LPBP2
Dimensions and Weight
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 27.75" (705 mm)
Package
  • 10.8" (H) x 25.9" (W) x 39.3" (D)
Weight
  • Gross Weight: 62 lbs (28.12 kg)
  • Net Weight: 41.5 lbs (18.82 kg)
Available Color
  • Silver
Front Panel
LED
  • HDD Fail LED
  • Network Activity LEDs
  • Power Fail LED
  • Power status LED
  • System Information LED
Buttons
  • Power On/Off button
  • System Reset button
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 4 PCIe 5.0 x16 (in x16) LP slots
    • 2 PCIe 5.0 x8 (in x8) LP slots
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 18 bays
    • 12 front hot-swap 3.5" SAS/SATA drive bays
    • 4 internal hot-swap 3.5" SAS/SATA drive bays
    • 2 rear hot-swap 2.5" SATA drive bays
  • Option A: Total 6 bays
    • 6 front hot-swap 3.5" PCIe 5.0 x4 NVMe* drive bays
  • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 4 Heavy Duty 8cm Fan(s)
Power Supply
2x 1600W
2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
+12VMax: 83.3A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
12V SBMax: 2.1A / Min: 0A
Output TypeBackplanes (gold finger)
CertificationTitanium Level94%+  Titanium Level

[ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X13DEI-T

CSE-829HTS-R1K62LPBP2 		1

1 		Super X13DEI-T Motherboard

2U Chassis
Add-on Card / Module AOC-S3916L-H16IR-32DD-O 1 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 32HDDw/exp,RoHS
Backplane BPN-NVME5-LA26A-S12 1 2U 12-Slot 3.5" SATA3/SAS3/NVMe5 Hybrid Backplane X13 Cl
BPN-SAS3-829HA-A4 1 4-Port 12Gbps Backplane for 4x3.5" Internal SAS3/SATA3 HDD/S
Cable CBL-0277L 1 HDD POWER CABLE (BIG 4 PIN; 32CM), PBF
CBL-CDAT-0728 1 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
CBL-SAST-1250A-100 1 SlimSAS (x8 ST to x4 STR and miniS)80/50CM,100OHM,RoHS
CBL-SAST-1281-100 1 Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM,
CBL-CDAT-0607 1 [NR] FRONT CNTL,20 TO 20 PIN, P0.5, FFC,FLAT, 23.5CM, STD,Ro
CBL-CDAT-0921-85 1 [NR] I2C,(1x4F to 1x4F)/P2.5,85CM,26AWG,RoHS
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CBL-PWEX-1078 4 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
Parts MCP-260-00042-3N 1 STD I/O shield for X13 server MB with venting holes
Air Shroud MCP-310-82619-0B 1 Sponge air Block sets for CSE-826B and LA26-AW
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0087V 1 1U Passive CPU VC HS for X13 Intel Eagle Stream Platform
SNK-P0088AP4 1 2U Active CPU Heat Sink for X13 Gen. Building Block Solution
*Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
*Power Distributor PDB-PT829H-2824 1 2U standard output with 24Pin PDB support up to
*Fan FAN-0209L4 4 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above
FAN-0166L4 OR 4 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4)
FAN-0206L4 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
*Front Panel FPB-TB826-T 1 Chassis transfer board for SC826
*Drive Tray(s) MCP-220-00075-0B 12 Black gen 5.5 hot-swap 3.5" HDD tray
MCP-220-82902-0N 1 Middle tray plate for SC829H
MCP-220-82903-0N 4 Internal mid tray with handle for SC829H
MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS
*Rail Set MCP-290-00053-0N-01 1 36"; Rail set for Auto-latch, quick/quick, 2, 3U 17.2";W
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Cable - for NVMe in main drive bay CBL-MCIO-1260M5 • 3 MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM,RoHS
Cable Management Arm MCP-290-00073-0N • 1 Supermicro Cable Management Arm
Converter Tray MCP-220-00043-0N • 1 2.5" HDD TRAY IN 4TH GENERATION 3.5" HOT SWAP TRAY
Converter Tray - orange NVMe tab MCP-220-00138-0B • 1 Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab
Network Cards AOC-S25G-b2S-O 1 Std LP 2-port 25G SFP28, Broadcom BCM57414
AOC-S25G-i2S-O 1 Std. Low Profile 25G dual port SFP28, based on Intel XXV710
AOC-S25G-M2S-O • 1 Std LP 2-port 25G SFP28, Mellanox ConnectX-4 LX EN
AOC-STG-b2T-O • 1 Standard LP 2-port 10Gbase-T, Broadcom 57416,HF,RoHS
AOC-STGS-i2T-O 1 Std LP 2-port 10G RJ45, Intel X550
Power Cord CBL-PWCD-0300-IS 1 PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
CBL-PWCD-0579-1 1 Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0579 1 Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
Supercap BTR-CVPM05 • 1 Cachevault supercap for storage controller
MCP-240-00203-0N • 1 PCIe plastic battery holder with FH/LP-bracket
TPM AOM-TPM-9670V-O • 1 TPM 2.0, vertical form factor, provisioned for server
VROC AOC-VROCSTNMOD 1 Intel VROC HW key (RSTe) standard upgrade module,HF,RoHS
AOC-VROCPREMOD 1 Intel VROC Premium, RAID0,1,5,10,HF,RoHS
