SuperServer SYS-620P-TRT

DatasheetShare IconShare

2U Mainstream with 8 hot-swap SATA bays,  6 PCIe 4.0 slots and 10GbE

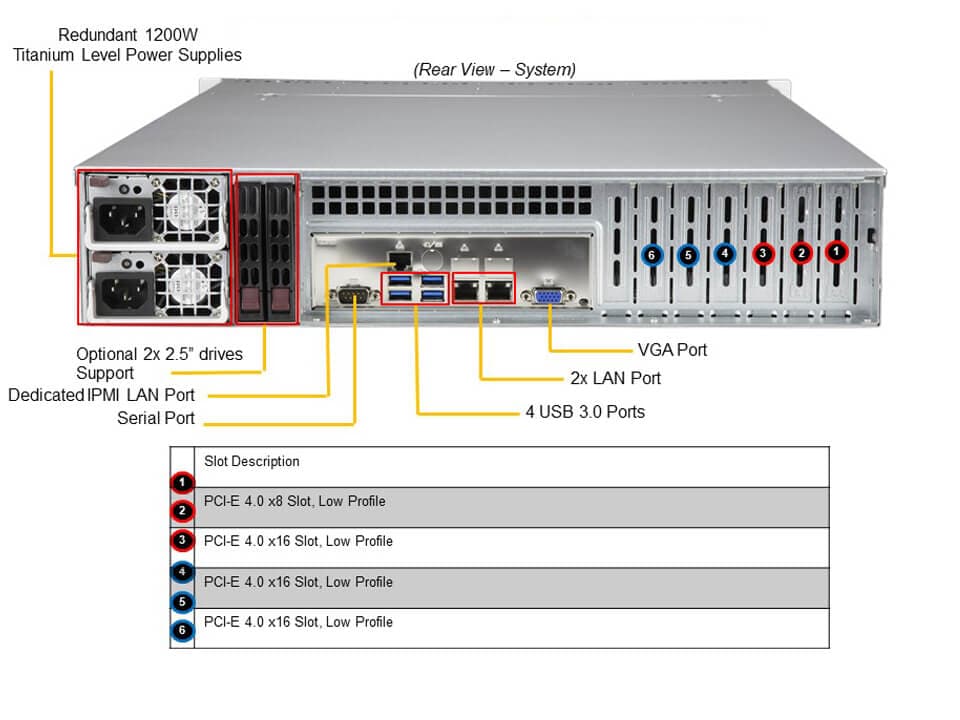

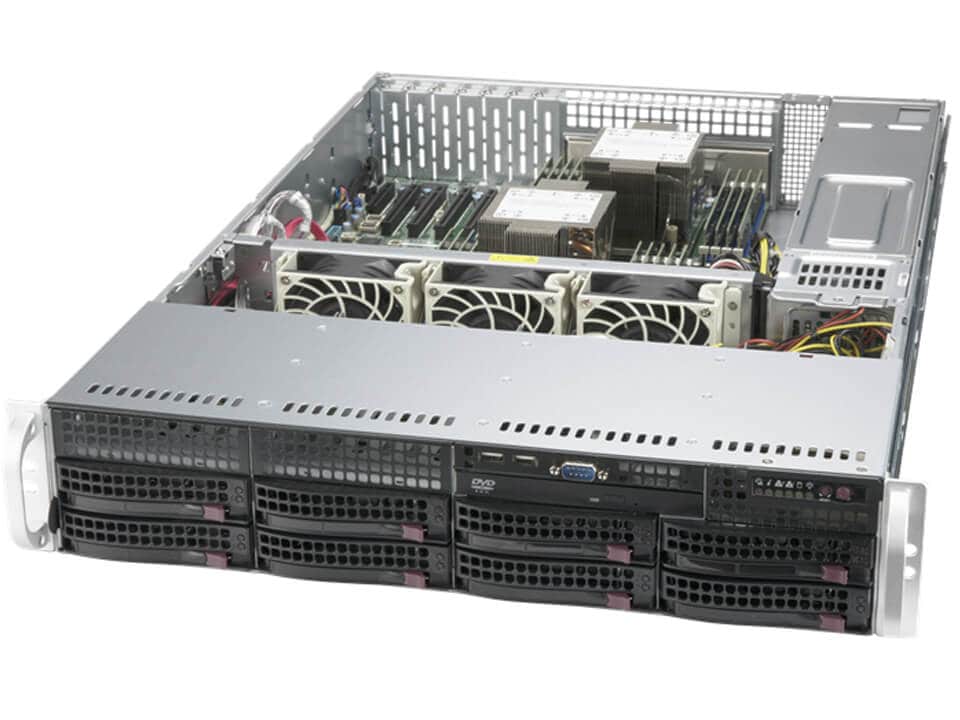

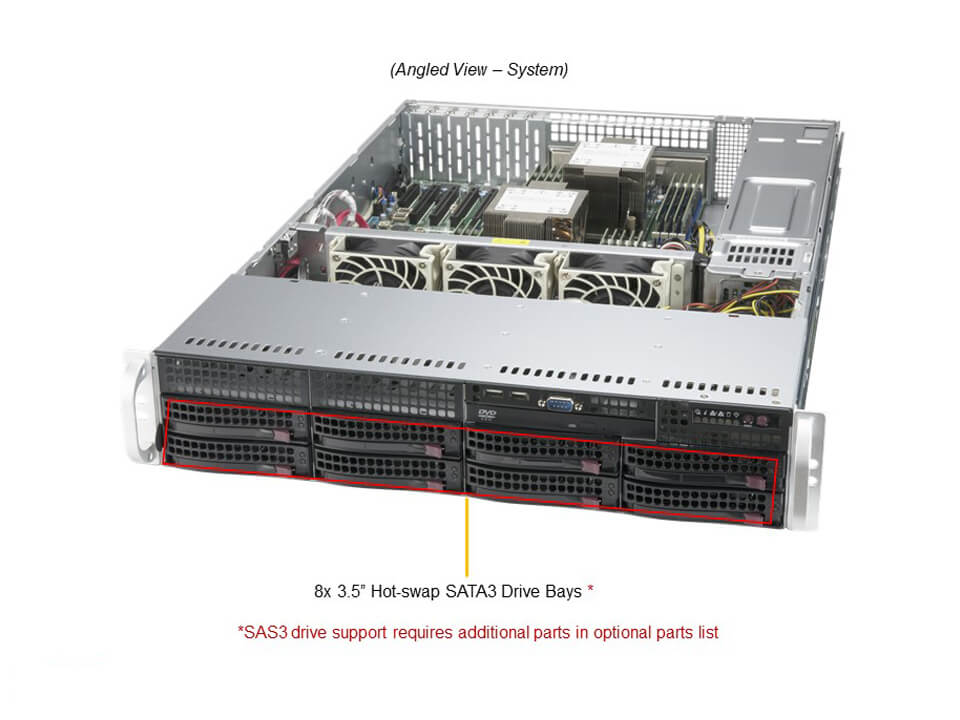

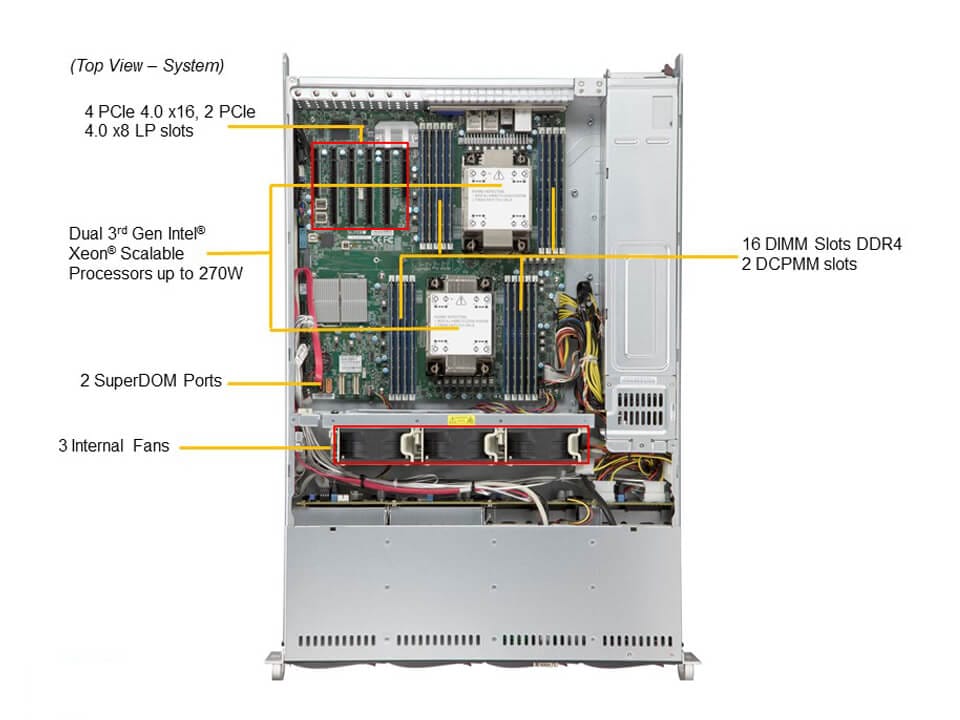

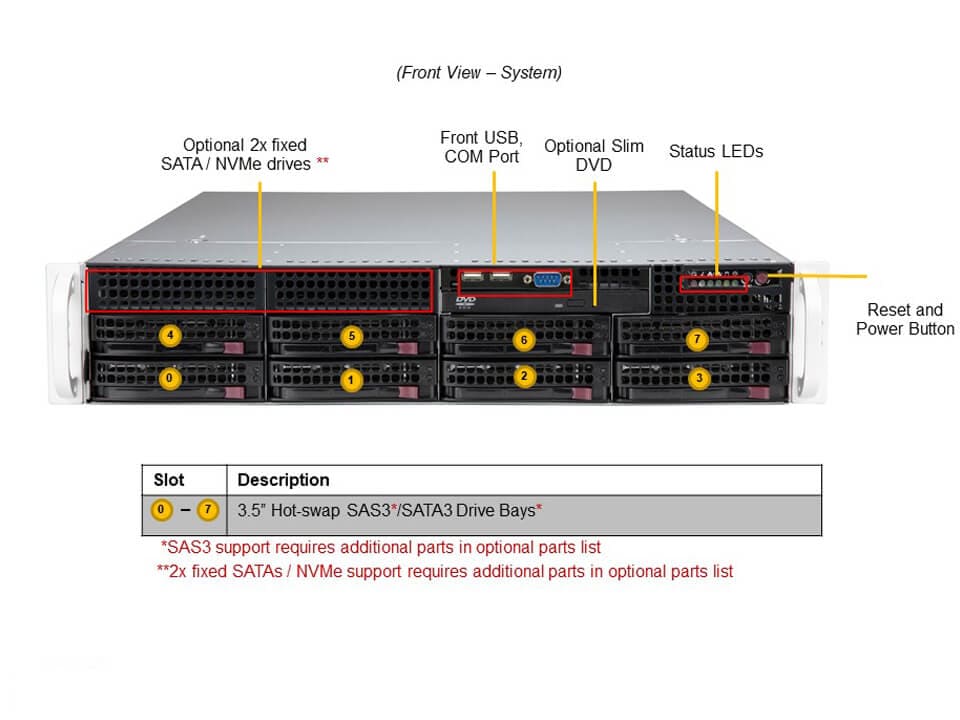

SYS-620P-TRT Main SYS-620P-TRT Angle SYS-620P-TRT Top SYS-620P-TRT Front SYS-620P-TRT Rear
Integrated Board: X12DPi-NT6
Learn more

Key Applications

  • Virtualization
  • Enterprise Server
  • Data Center Optimized
  • Application and data serving
  • Model analysis
  • Compute Intensive Applications

Key Features

  1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors CPU TDP supports Up to 270W TDP 3 UPI up to 11.2 GT/s
  2. Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz- Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)
  3. 4 PCIe 4.0 x16 Low Profile (LP) 2 PCIe 4.0 x8 Low Profile (LP)
  4. Dual  10GBase-T LAN with Intel® X550 Ethernet Controller
  5. 1200W Redundant Power Supplies Titanium level 100-240Vac and 200-240 Vdc
  6. 1 rear VGA, 1 Type A port, 2 COM Ports (1 front; 1 rear) and 6 USB ports (2 front USB 2.0 and 4 rear USB 3.0)
...
...
SYS-620P-TRT
Specifications Free Remote Testing Parts List
Specifications
Product SKUs
SuperServer SYS-620P-TRT
Motherboard
Super X12DPi-NT6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 2.0 ports(front)
  • 4 USB 3.0 ports(rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-825BTS-R1K23LPP1
Dimensions and Weight
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.5" (647 mm)
Package
  • 11.4" (H) x 26.7" (W) x 34.5" (D)
Weight
  • Gross Weight: 69 lbs (31.2 kg)
  • Net Weight: 36.38 lbs (16.5 kg)
Available Color
  • Black
Front Panel
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
  • System Reset
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front hot-swap 3.5" SAS*/SATA drive bays
  • Option A: Total 10 bays
    • 8 front hot-swap 3.5" SAS*/SATA drive bays
    • 2 front fixed 3.5" NVMe*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View Drive Options
M.2
Peripheral Bays
  • 1 slim DVD bay (optional)
System Cooling
Fans
  • 3 heavy duty fans with optimal fan speed control
Power Supply
2x 1200W
2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)76 x 40 x 336 mm
Input1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DPi-NT6

CSE-825BTS-R1K23LPP1 		1

1 		Super X12DPi-NT6 Motherboard

2U Chassis
Backplane BPN-SAS3-825TQ 1 2U 8-Slot 12G Backplane for 8x3.5" SAS/SATA HDD/SSD
Cable CBL-0343L-01 2 30AWG IPASS/4SATA 76/66/54/45CM W/SB
CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CBL-PWEX-1078 3 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
Drive Tray(s) MCP-220-00007-01 1 Black USB/COM port tray for SC825, 836
MCP-220-00023-01 1 Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
MCP-220-00075-0B 8 Black gen 5.5 hot-swap 3.5" HDD tray
MCP-220-82502-0B 2 Black fixed 3.5\" HDD tray or FDD dummy tray
MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
Manual MNL-2241-QRG 1 SYS-620P-TR(T) Quick Reference Guide
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0078P 1 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
SNK-P0078PC 1 2U Passive CPU Heat Sink w/ a Side Air Channel for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
*Power Distributor PDB-PT825-S8824 1 SC825 24PIN REDUNDANT PWR DISTRIBUTOR W/ SHORT CBL
*Fan FAN-0206L4 3 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
*Front Panel FPB-FP836-D 1 Front control board Dual color LED(FP836-D)forSC823M,825,825
*Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF
*Peripheral Drive MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836
*Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2"W
MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
*Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Optional Gen3 8-ports SAS Raid controller kit for SYS-620P-TRT 1x AOC-S3108L-H8IR or AOC-S3108L-H8IR-16DD + 2x CBL-SAST-0699 ( or 2x CBL-SAST-0556) 1 Convert 8x hotswap SATA drives to SAS drives
Optional Gen4 8-ports SAS Raid controller kit for SYS-620P-TRT 1x AOC-S3908L-H8IR-P or AOC-S3908L-H8IR-16DD-P or AOC-S3908L-H8IR-32DD-P + 1x CBL-SAST-1270S-100 1 Convert 8x hotswap SATA drives to SAS drives
Optional parts needed to support 2x fixed NVMe drives 1x CBL-SAST-0953 (Slimline x8 to PCIe 2x SFF-8639 Power) and 2x MCP-110-82501-0N 1 1x MCP-110-82501-0N can support 1x 2.5 inch NVMe fixed drives and 1x CBL-SAST-0953 can support 2x 2.5 inch NMVe drives
Optional parts needed to support 2x fixed SATA drives 2x CBL-0044L(SATA CABLE 61CM FLAT S-S PBF.26AWG flat)  and 1x CBL-0082L (Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG) 1 1x CBL-0044L can support 1x 2.5 inch SATA drives and 1x CBL-0082L can support 2x 2.5 inch SATA drives
Optional parts needed to support 2x Rear hotswap SATA drives 1x MCP-220-82616-0N, (2.5x2 Hot-swap 12G rear HDD kit w/ fail LED for 216B/826B/41) and 1x CBL-SAST-0388L-02, 30AWG Ipass to 4SATA (90/90/70/70CM W/ 90CM SB); 1 1x CBL-SAST-0388L-02 has 4 SATA ports, but the rear drive kit MCP-220-82616-0N can only support 2x 2.5 inch SATA drives, so two SATA ports are lost as a result
use 1x BTR-TFM8G-LSICVM02 and 1x BKT-BBU-BRACKET-05  with AOC-S3108L-H8IR-16DD or AOC-S3108L-H8IR use 1x BTR-TFM8G-LSICVM02 and 1x BKT-BBU-BRACKET-05  with AOC-S3108L-H8IR-16DD or AOC-S3108L-H8IR 1 SuperCap and mounting bracket used for SAS raid controllers
Standard Parts (Parts Included)
Motherboard / Chassis
Part NumberMBD-X12DPi-NT6 CSE-825BTS-R1K23LPP1
Qty1 1
DescriptionSuper X12DPi-NT6 Motherboard 2U Chassis
Backplane
Part NumberBPN-SAS3-825TQ
Qty1
Description2U 8-Slot 12G Backplane for 8x3.5" SAS/SATA HDD/SSD
Cable
Part NumberCBL-0343L-01CBL-0071LCBL-PWCD-0160-ISCBL-PWEX-1078
Qty2123
Description30AWG IPASS/4SATA 76/66/54/45CM W/SBROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LFPWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACHPWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
Drive Tray(s)
Part NumberMCP-220-00007-01MCP-220-00023-01MCP-220-00075-0BMCP-220-82502-0BMCP-290-82607-0N
Qty11821
DescriptionBlack USB/COM port tray for SC825, 836Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836Black gen 5.5 hot-swap 3.5" HDD trayBlack fixed 3.5\" HDD tray or FDD dummy tray826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS
Parts
Part NumberMCP-260-00042-0N
Qty1
DescriptionSTD I/O shield for X9 socket R server MB with Gasket.
Manual
Part NumberMNL-2241-QRG
Qty1
DescriptionSYS-620P-TR(T) Quick Reference Guide
Software
Part NumberSFT-OOB-LIC
Qty1
DescriptionLicense key for enabling OOB BIOS management
Heatsink / Retention
Part NumberSNK-P0078PSNK-P0078PC
Qty11
Description2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms2U Passive CPU Heat Sink w/ a Side Air Channel for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply
Part NumberPWS-1K23A-1R
Qty2
DescriptionAC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
*Power Distributor
Part NumberPDB-PT825-S8824
Qty1
DescriptionSC825 24PIN REDUNDANT PWR DISTRIBUTOR W/ SHORT CBL
*Fan
Part NumberFAN-0206L4
Qty3
Description80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
*Front Panel
Part NumberFPB-FP836-D
Qty1
DescriptionFront control board Dual color LED(FP836-D)forSC823M,825,825
*Rear Window
Part NumberMCP-240-82608-0N
Qty1
Description216B/826B LP rear window,RoHS/REACH,PBF
*Peripheral Drive
Part NumberMCP-290-00007-01
Qty1
DescriptionBlack DVD dummy cover for SC825, 836
*Rail Set
Part NumberMCP-290-00053-0NMCP-290-00060-0N
Qty11
DescriptionRail set, quick/quick, default for 2,3U 17.2"WThreaded rail adapter default for round hole rack
*Air Shroud
Part NumberMCP-310-29001-0N
Qty1
DescriptionSC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Optional Gen3 8-ports SAS Raid controller kit for SYS-620P-TRT
Part Number1x AOC-S3108L-H8IR or AOC-S3108L-H8IR-16DD + 2x CBL-SAST-0699 ( or 2x CBL-SAST-0556)
Qty1
DescriptionConvert 8x hotswap SATA drives to SAS drives
Optional Gen4 8-ports SAS Raid controller kit for SYS-620P-TRT
Part Number1x AOC-S3908L-H8IR-P or AOC-S3908L-H8IR-16DD-P or AOC-S3908L-H8IR-32DD-P + 1x CBL-SAST-1270S-100
Qty1
DescriptionConvert 8x hotswap SATA drives to SAS drives
Optional parts needed to support 2x fixed NVMe drives
Part Number1x CBL-SAST-0953 (Slimline x8 to PCIe 2x SFF-8639 Power) and 2x MCP-110-82501-0N
Qty1
Description1x MCP-110-82501-0N can support 1x 2.5 inch NVMe fixed drives and 1x CBL-SAST-0953 can support 2x 2.5 inch NMVe drives
Optional parts needed to support 2x fixed SATA drives
Part Number2x CBL-0044L(SATA CABLE 61CM FLAT S-S PBF.26AWG flat)  and 1x CBL-0082L (Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG)
Qty1
Description1x CBL-0044L can support 1x 2.5 inch SATA drives and 1x CBL-0082L can support 2x 2.5 inch SATA drives
Optional parts needed to support 2x Rear hotswap SATA drives
Part Number1x MCP-220-82616-0N, (2.5x2 Hot-swap 12G rear HDD kit w/ fail LED for 216B/826B/41) and 1x CBL-SAST-0388L-02, 30AWG Ipass to 4SATA (90/90/70/70CM W/ 90CM SB);
Qty1
Description1x CBL-SAST-0388L-02 has 4 SATA ports, but the rear drive kit MCP-220-82616-0N can only support 2x 2.5 inch SATA drives, so two SATA ports are lost as a result
use 1x BTR-TFM8G-LSICVM02 and 1x BKT-BBU-BRACKET-05  with AOC-S3108L-H8IR-16DD or AOC-S3108L-H8IR
Part Numberuse 1x BTR-TFM8G-LSICVM02 and 1x BKT-BBU-BRACKET-05  with AOC-S3108L-H8IR-16DD or AOC-S3108L-H8IR
Qty1
DescriptionSuperCap and mounting bracket used for SAS raid controllers
