SuperServer AS -2014S-TR

DatasheetShare IconShare

2U Mainstream with 7 low-profile PCIe 4.0 slots

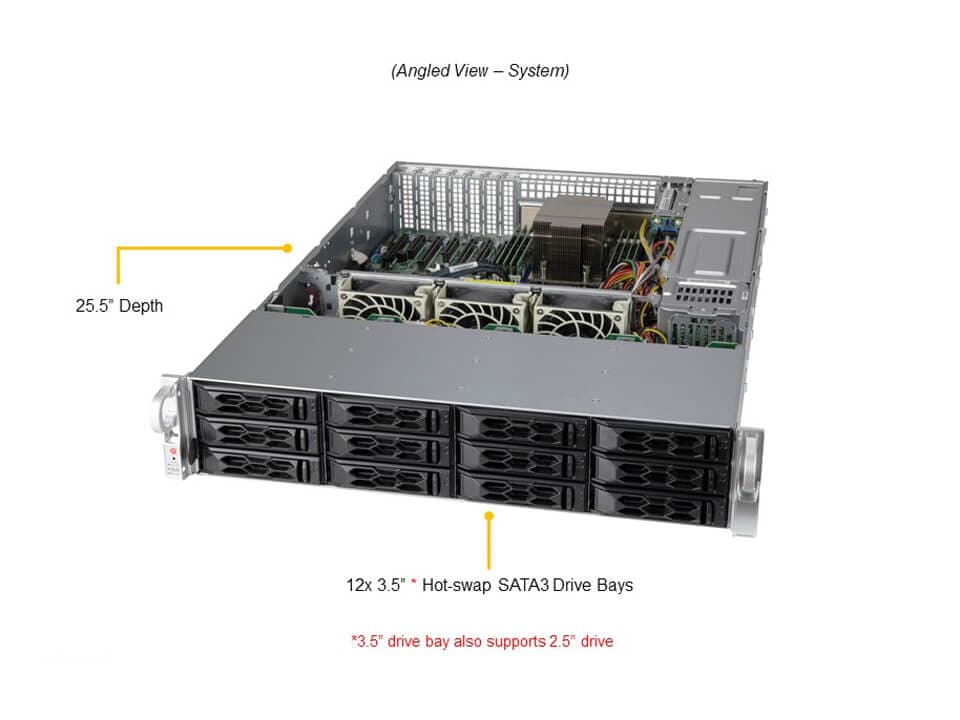

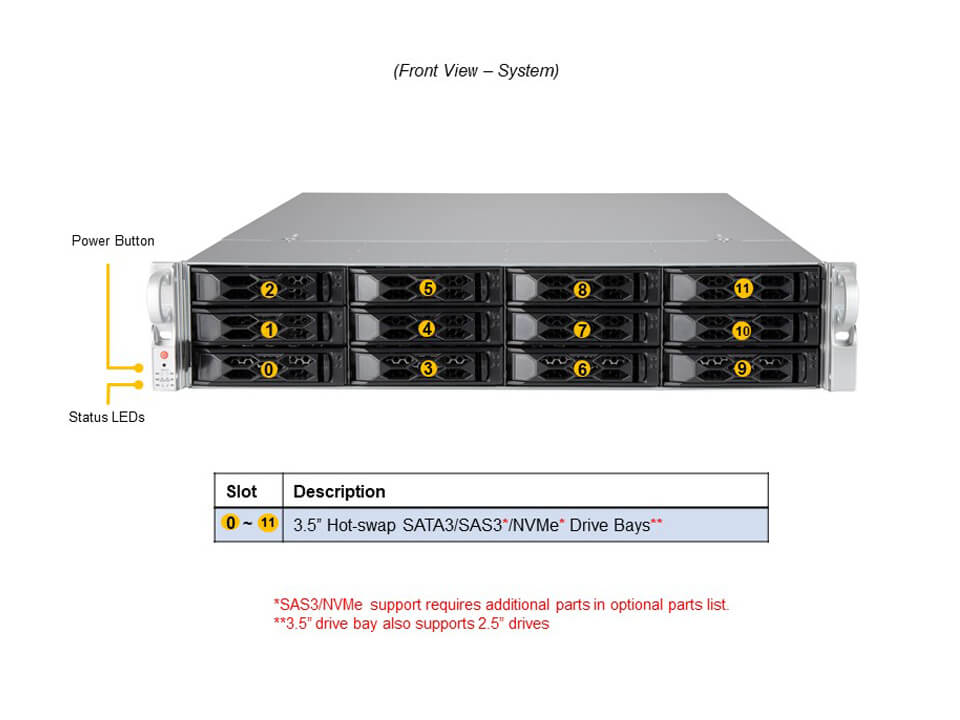

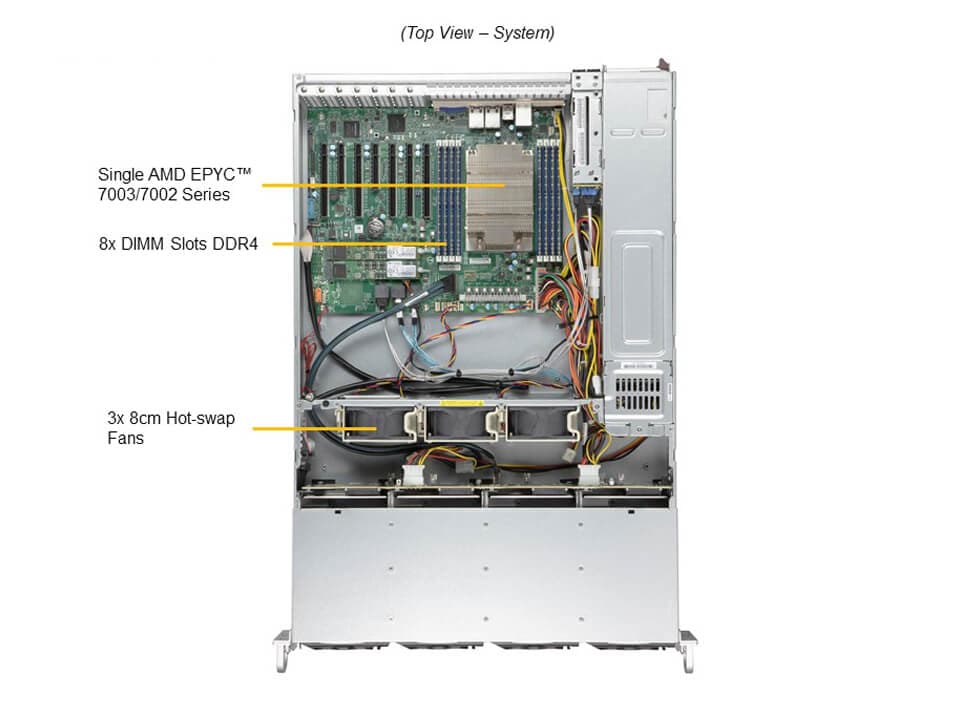

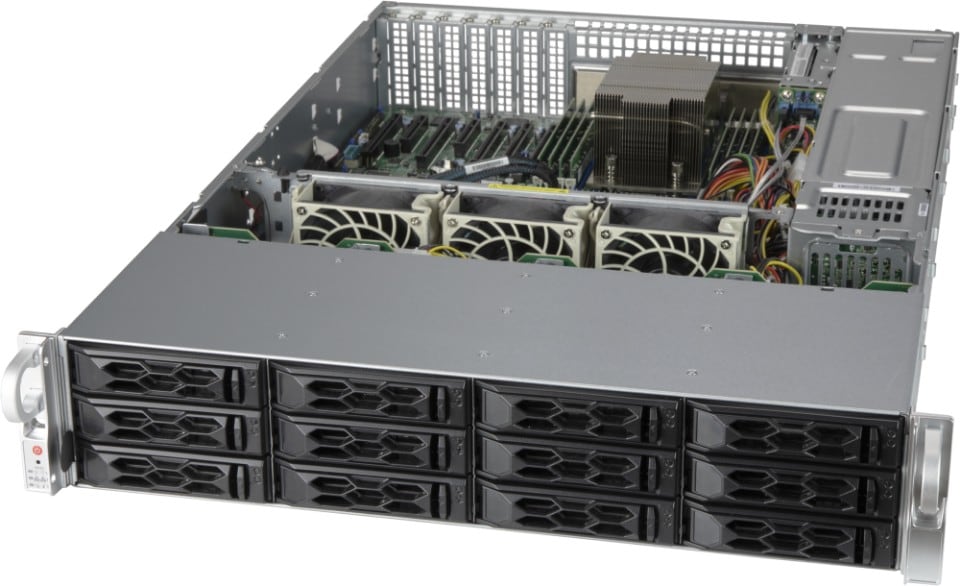

AS -2014S-TR Main AS -2014S-TR Angle AS -2014S-TR Top AS -2014S-TR Front AS -2014S-TR Rear
Integrated Board: H12SSL-i
Learn more

Key Applications

  • Backup storage
  • Compact Network Appliance
  • Web or Database Servers

Key Features

  1. Single AMD EPYC™ 7002/7003 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz
    RDIMM/LRDIMM
  3. 5 PCIe 4.0 x16 LP slots + 2 PCIe 4.0 x8 LP slots
  4. 12 Hot-swap 3.5" SATA3 drive bays,
    2 rear Hot-swap 2.5" SATA3 Drive bays via optional kit
    M.2 Interface: 2 PCIe 4.0 x4
    M.2 Form Factor: 2242, 2260, 2280, 22110
    M.2 Key: M-key
...
...
AS-2014S-TR
Specifications Free Remote Testing Parts List
Specifications
Product SKUs
A+ Server AS -2014S-TR
Motherboard
Super H12SSL-i
Processor
CPU
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 1 GbE LAN ports
USB
  • 6 USB 3.0 ports(Rear)
Video
  • 1 VGA port
Serial
  • 1 COM port
System BIOS
BIOS Type
  • AMI 256MB SPI Flash ROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LA26TS-R920LPP1
Dimensions and Weight
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.5" (648 mm)
Package
  • 11.4" (H) x 26.7" (W) x 34.5" (D)
Weight
  • Gross Weight: 60 lbs (27.2 kg)
  • Net Weight: 33.5 lbs (15.2 kg)
Available Color
  • Silver
Front Panel
LED
  • HDD activity LED
  • Information LED
  • Network activity LEDs
  • Power Fail LED
  • Power status LED
Buttons
  • Power On/Off button
  • Reset button
Expansion Slots
PCI-Express (PCIe) Configuration
M.2
  • 2 M.2 PCIe 4.0 x4 slots (M-key 2242/2260/2280/22110)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays
    • 12 front hot-swap 3.5" SATA drive bays
  • Option A: Total 14 bays
    • 12 front hot-swap 3.5" SATA drive bays
    • 2 rear hot-swap 2.5" SATA* drive bays
  • (*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View Drive Options
M.2
System Cooling
Fans
  • 3 x 80x80x38mm middle cooling Fan(s)
Power Supply
2x 920W
2x 920W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)76 x 40 x 336 mm
Input920W: 100-127Vac
920W: 100-127Vac / 50-60Hz
920W: 200-240Vac
920W: 200-240Vdc / 50-60Hz
920W: 200-240Vac / 50-60Hz
+12VMax: 75A / Min: 0A (100Vac-127Vac)
Max: 75A / Min: 0A (200Vac-240Vac)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-H12SSL-i

CSE-LA26TS-R920LPP1 		1

1 		Super H12SSL-i Motherboard

2U Chassis
Backplane BPN-SAS3-LA26A-N12 1 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Stor
Cable CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CBL-SAST-1234A-100 1 SlimSAS x4 (STR) to 4x SATA,65CM,100 OHM,RoHS
CBL-SAST-1261-100 1 Slimline x8 (STR) to 2x Slimline x4 (STR),60/60CM,100 O
CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2"W
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0063P 1 2U Passive CPU Heat Sink for AMD Socket SP3 Processors
*Power Supply PWS-920P-1R2 2 1U, platinum efficiency,920W,AC input:100-127/200-240Vac,HF,
*Power Distributor PDB-PT826-L8824 1 2U cost effective PDB support up to 1200W.,RoHS
*Fan FAN-0181L4 3 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis
*Drive Tray(s) MCP-220-00184-0B 12 Black gen-9 tool-less cost-effective 3.5
*Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Standard Parts (Parts Included)
Motherboard / Chassis
Part NumberMBD-H12SSL-i CSE-LA26TS-R920LPP1
Qty1 1
DescriptionSuper H12SSL-i Motherboard 2U Chassis
Backplane
Part NumberBPN-SAS3-LA26A-N12
Qty1
Description2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Stor
Cable
Part NumberCBL-PWCD-0160-ISCBL-SAST-1234A-100CBL-SAST-1261-100CBL-0071L
Qty2111
DescriptionPWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACHSlimSAS x4 (STR) to 4x SATA,65CM,100 OHM,RoHSSlimline x8 (STR) to 2x Slimline x4 (STR),60/60CM,100 OROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Parts
Part NumberMCP-260-00042-0N
Qty1
DescriptionSTD I/O shield for X9 socket R server MB with Gasket.
Rail Set
Part NumberMCP-290-00053-0N
Qty1
DescriptionRail set, quick/quick, default for 2,3U 17.2"W
Software
Part NumberSFT-OOB-LIC
Qty1
DescriptionLicense key for enabling OOB BIOS management
Heatsink / Retention
Part NumberSNK-P0063P
Qty1
Description2U Passive CPU Heat Sink for AMD Socket SP3 Processors
*Power Supply
Part NumberPWS-920P-1R2
Qty2
Description1U, platinum efficiency,920W,AC input:100-127/200-240Vac,HF,
*Power Distributor
Part NumberPDB-PT826-L8824
Qty1
Description2U cost effective PDB support up to 1200W.,RoHS
*Fan
Part NumberFAN-0181L4
Qty3
Description80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis
*Drive Tray(s)
Part NumberMCP-220-00184-0B
Qty12
DescriptionBlack gen-9 tool-less cost-effective 3.5
*Rear Window
Part NumberMCP-240-82608-0N
Qty1
Description216B/826B LP rear window,RoHS/REACH,PBF
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
