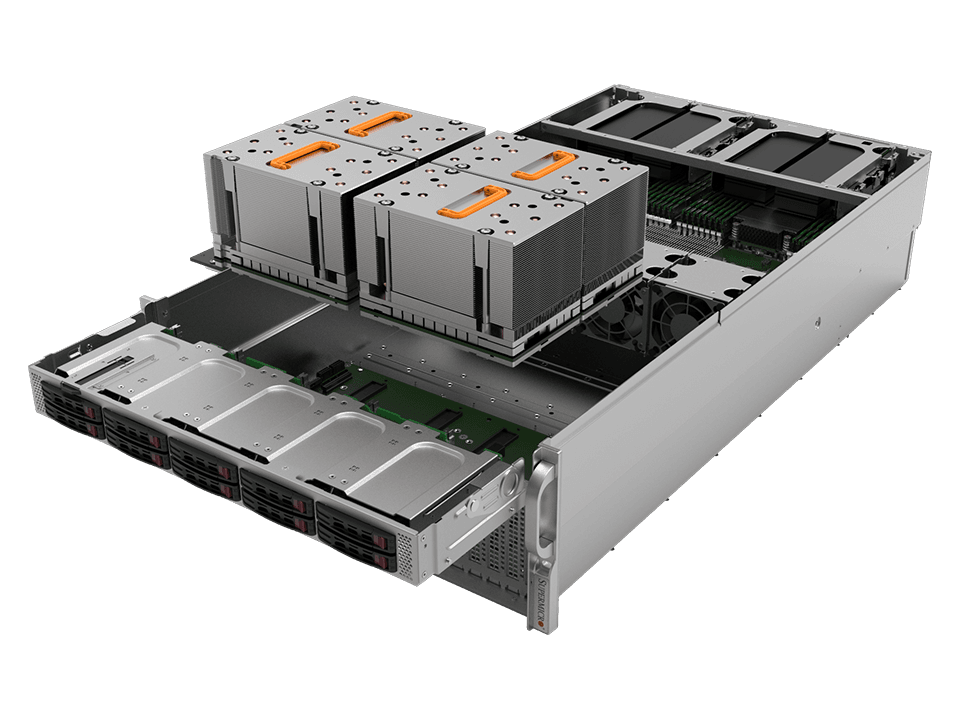

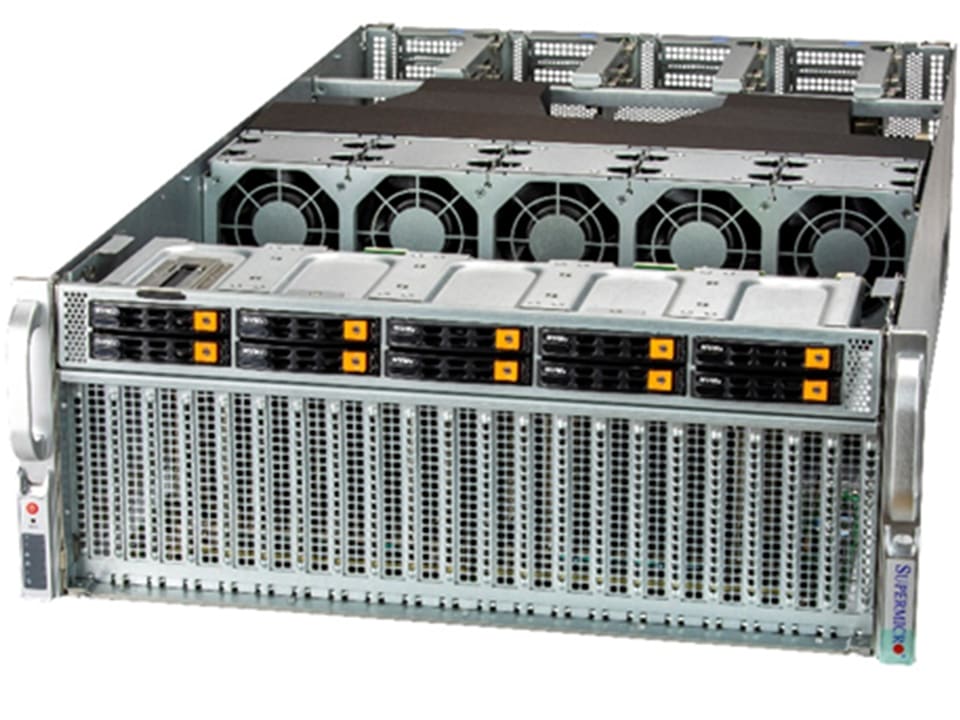

SuperServer AS -4124GQ-TNMI (Complete System Only)

DP AMD Universal GPU System with AMD Instinct MI250 OAM

Key Applications

High Performance Computing
AI/Deep Learning Training

Key Features

Supports AMD Instinct™ MI200 Series Accelerators with AMD Infinity™ Fabric™ GPU-GPU Interconnect, 1:1 GPU-to-NIC ratio
Dual AMD EPYC™ 7003 Series Processors
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
8 PCIe 4.0 x16 via PLX
2 PCIe 4.0 x16 LP via CPUs (for 5U SKU)

...

...

AS-4124GQ-TNMI

Compare

Specifications

Product SKUs
A+ Server AS -4124GQ-TNMI

Motherboard
Super H12DGQ-NT6

Processor
CPU	Dual Socket SP3 AMD EPYC™ 7003 Series
Core Count	Up to 128C/256T
Note	Supports up to 280W TDP CPUs (Air Cooled)

System Memory
Memory	Slot Count: 32 DIMM slots/8 Channels Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM View Memory Options

On-Board Devices
Chipset	System on Chip
Network Connectivity	Via AIOM View AIOM Options View AOC Options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(front)
Video	1 VGA port(Front)
Serial	1 COM port

System BIOS
BIOS Type	AMI 256MB SPI Flash ROM

Management
Software	Supermicro Server Manager (SSM) Supermicro Power Manager (SPM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) KVM with dedicated LAN IPMI 2.0 Watch Dog

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors

Chassis
Form Factor	4U Rackmount
Model	CSE-458GTS-R3K06P

Dimensions and Weight
Height	7" (175.6 mm)
Width	17.67" (449 mm)
Depth	32.79" (833 mm)
Package	14.57" (H) x 27.55" (W) x 49.6" (D)
Weight	Gross Weight: 140 lbs (64 kg) Net Weight: 105 lbs (48 kg)
Available Color	Black Front & Silver Body

Front Panel
LED	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED
Buttons	Power On/Off button System Reset button

Expansion Slots

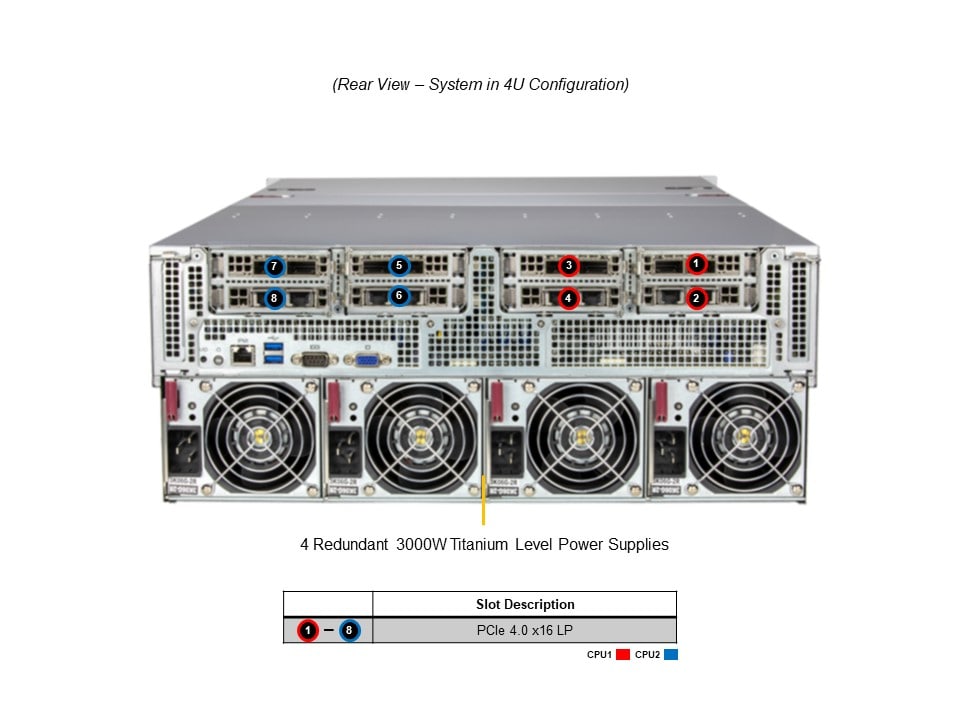

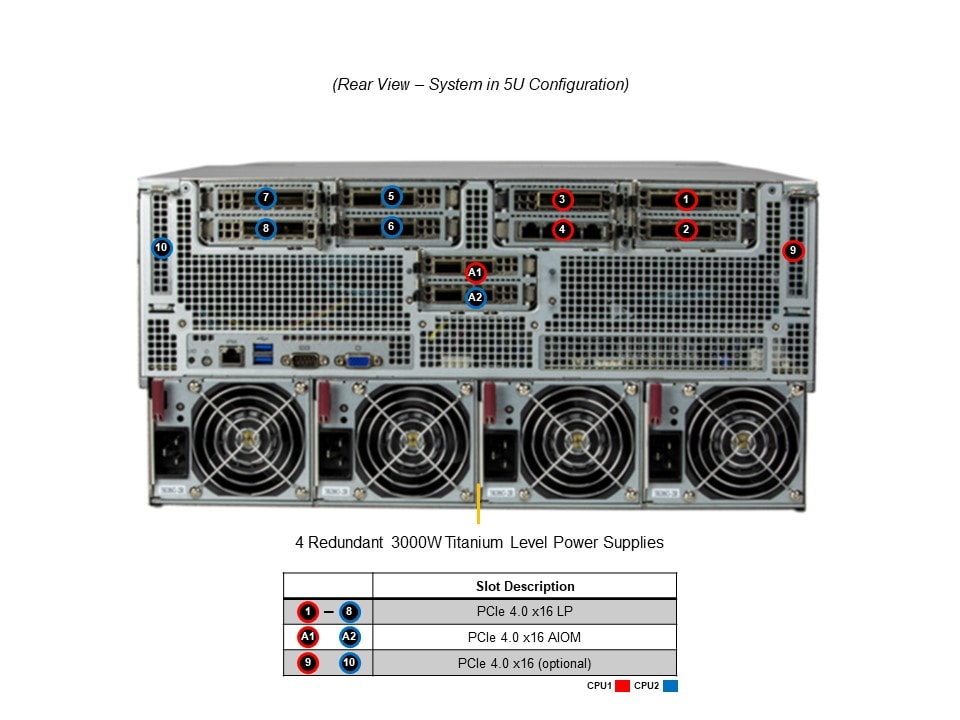

PCI-Express (PCIe) Configuration	Default 8 PCIe 4.0 x16 via PLX slots Option A* 8 PCIe 4.0 x16 via PLX slots 2 PCIe 4.0 x16 LP slots (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.) View AOC Options

Drive Bays / Storage

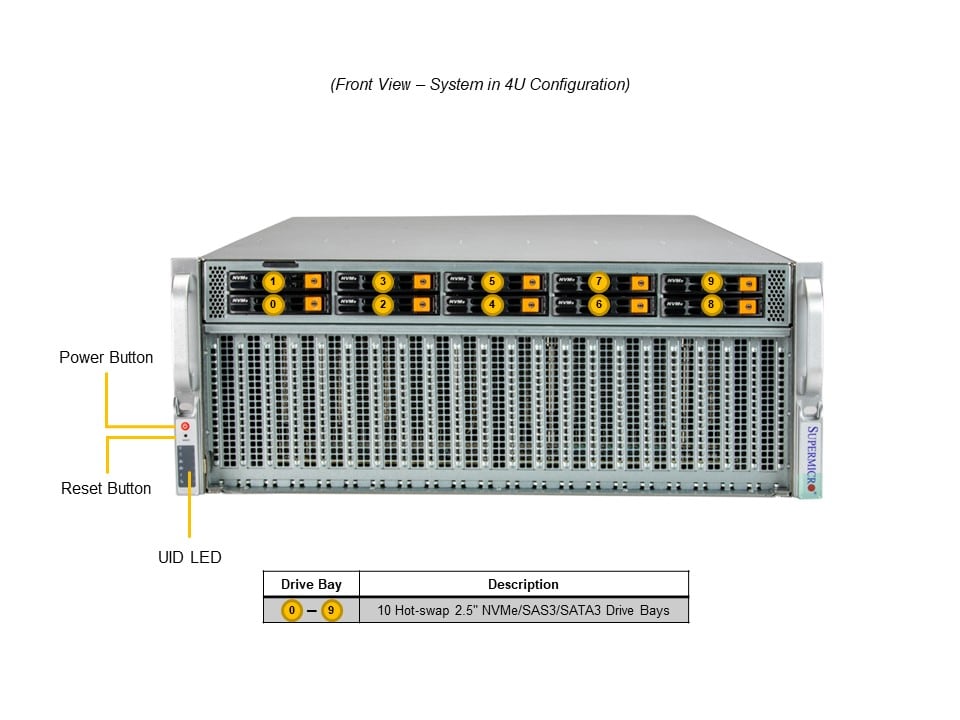

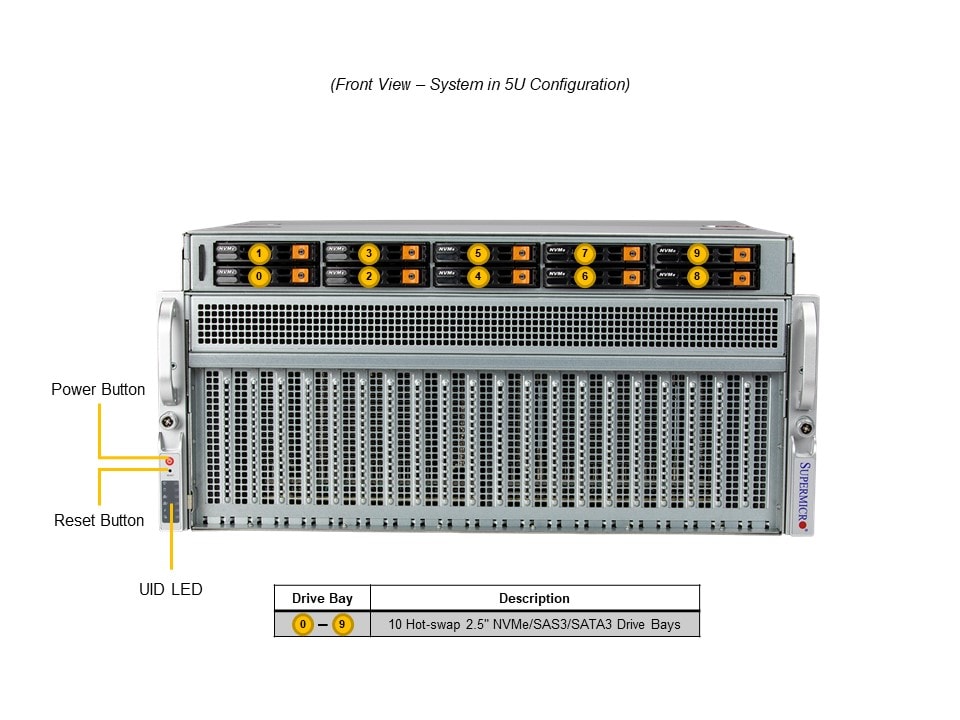

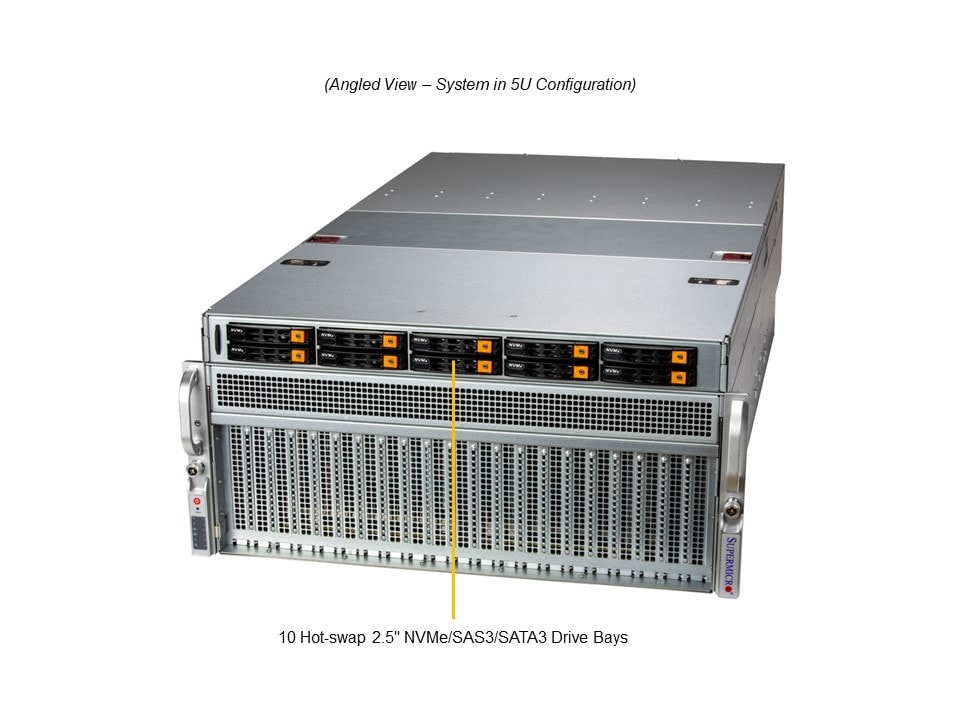

Drive Bays Configuration	Default: Total 10 bays 10 front hot-swap 2.5" NVMe/SAS/SATA drive bays View NVMe Options View Drive Options

System Cooling

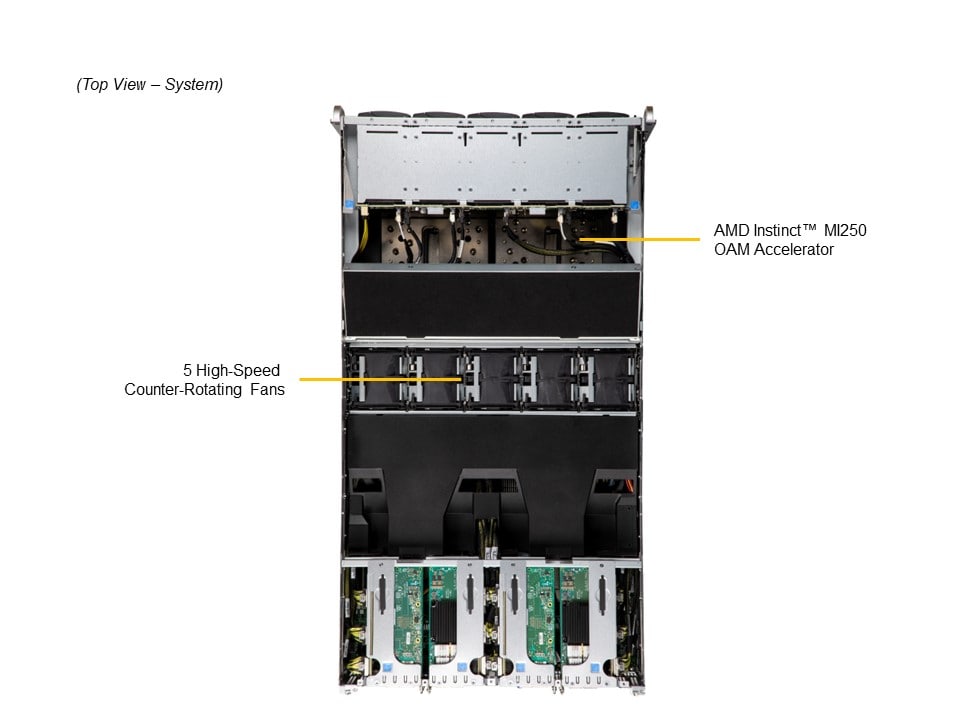

Fans	5 x hot-swap 11.5K RPM heavy duty Fan(s)

Power Supply

4x 3000W

4x 3000W Redundant (2 + 2) Titanium Level (96%) power supplies

Dimension (WxHxL)	106.5 x 82.1 x 245.5 mm
Input	3000W: 0240Vdc / 50-60Hz (for CQC only) 2880W: 200-207Vac / 50-60Hz 3000W: 207-240Vac / 50-60Hz 3000W:
DC Input
+12V	Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3A / Min: 0A
Output Type	Backplanes (gold finger)

Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
