SuperServer AS -2114GT-DNR (Complete System Only)

2U 2-Node System with UP AMD and Up to 3 GPUs per Node

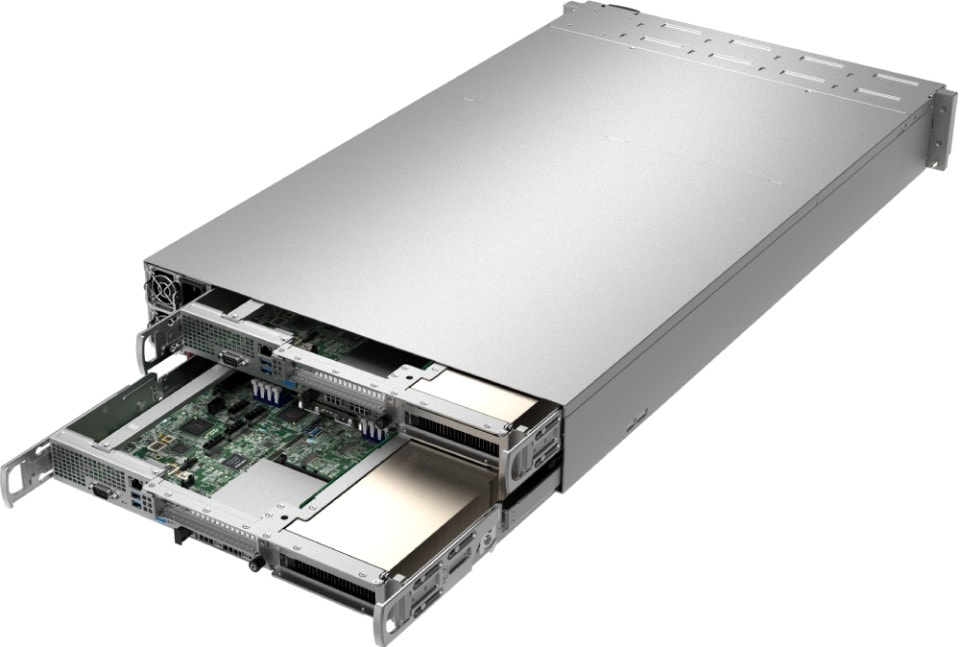

AS -2114GT-DNR Main AS -2114GT-DNR Angle AS -2114GT-DNR Front AS -2114GT-DNR Rear
Integrated Board: H12SSG-AN6
Learn more

Key Applications

  • AI Inference and Machine Learning
  • Media/Video Streaming
  • Industrial Automation, Retail
  • Cloud Gaming
  • Smart Medical Expert Systems

Key Features

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

  1. Single AMD EPYC™ 7003/7002 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
  3. Up to 6 PCIe 4.0 x16 (4 internal + 2 external) slots, 1 PCIe 4.0 x8 AIOM slot
    M.2 Interface: 2 PCIe 4.0 x4
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-key
  4. 2 Front hot-swap 2.5" PCIe 4.0 NVMe drive bays
...
...
AS-2114GT-DNR
Specifications Resources & Downloads
Specifications
Product SKUs
A+ Server AS -2114GT-DNR
Motherboard
Super H12SSG-AN6
Processor (per Node)
CPU
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count
  • Up to 2 double-width or 4 single-width GPUs
Supported GPU
  • NVIDIA PCIe: L40, RTX A6000, RTX A4500, RTX A4000, A40, A16, A2, A100, A10
  • AMD PCIe: Instinct MI210, Instinct MI100
  • View GPU Options
Certification
System Memory (per Node)
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
On-Board Devices (per Node)
SATA
  • SATA (6Gbps)
Chipset
  • System on Chip
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port(Rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 256MB SPI Flash ROM
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-227GTS-R2K63P
Dimensions and Weight
Height
  • 3.47" (88 mm)
Width
  • 17.6" (447 mm)
Depth
  • 29.9" (760 mm)
Package
  • 9.44" (H) x 23.62" (W) x 43.3" (D)
Weight
  • Gross Weight: 60 lbs (27.21 kg)
  • Net Weight: 55 lbs (24.94 kg)
Available Color
  • Black Front & Silver Body
Front Panel
LED
  • Hard drive activity LED
  • Information LED as manual description
  • Network activity LEDs
  • Power status LED
Buttons
  • Power On/Off button
  • System UID button/LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default
    • 4 PCIe 4.0 x16 INTERNAL slots
    • 1 PCIe 4.0 x16 FHHL slot
    • 1 PCIe 4.0 x16 FHFL slot
    • 1 PCIe 4.0 x8 AIOM slot (OCP 3.0 compatible)
  • View AOC Options
M.2
  • 2 M.2 PCIe 4.0 x4 slots (M-key 2280/22110)
Drive Bays / Storage (per Node)
Drive Bays Configuration
M.2
System Cooling
Fans
  • 4 Hot-swap heavy duty PWM 80mm Fan(s)
Power Supply
2x 2600W
2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
Input2600W: 200-240Vac
2600W: 200-240Vdc (For CQC Only)
2600W: 200-240Vac / 50-60Hz
2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
Max: 216A / Min: 0A (200Vac-240Vac)
12V SBMax: 3.5A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
