SuperServer SYS-510T-M

1U UP mainstream with 4 hot-swap 3.5" drive bays

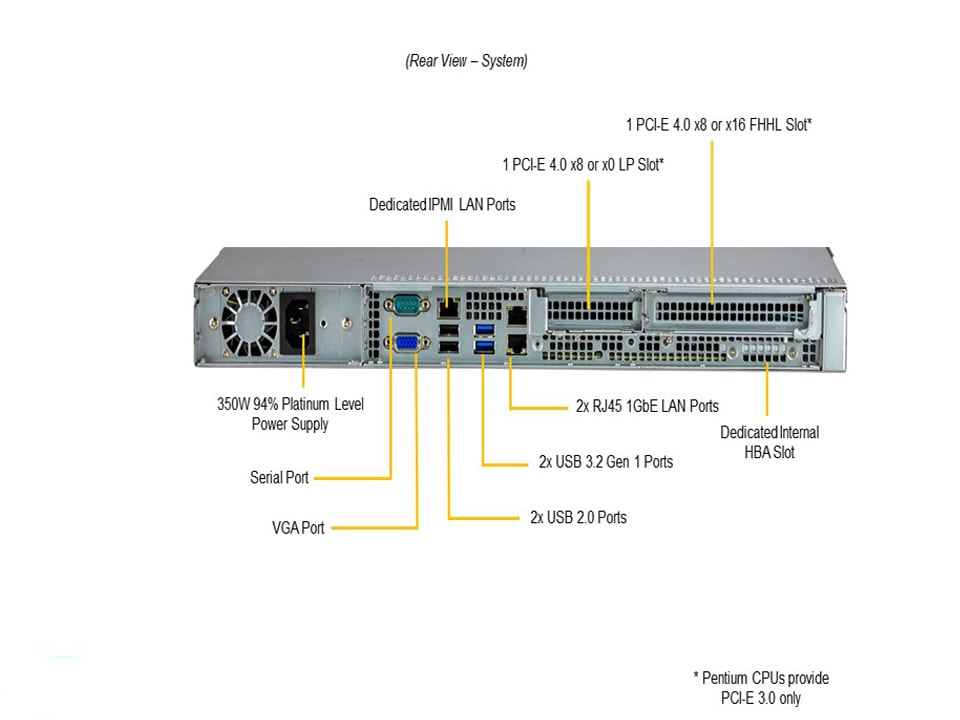

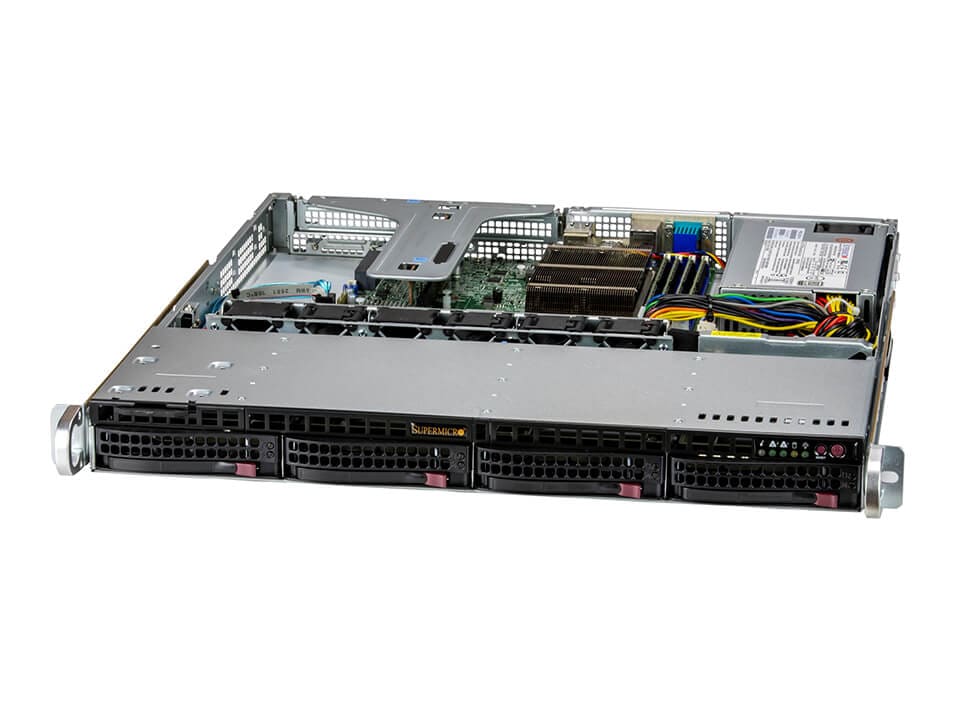

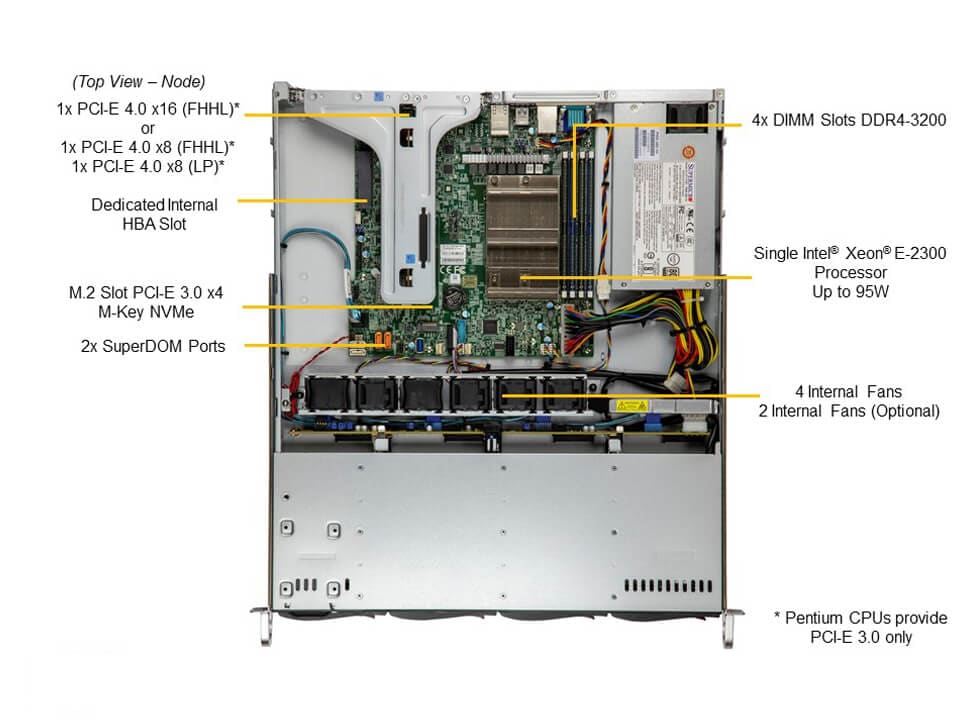

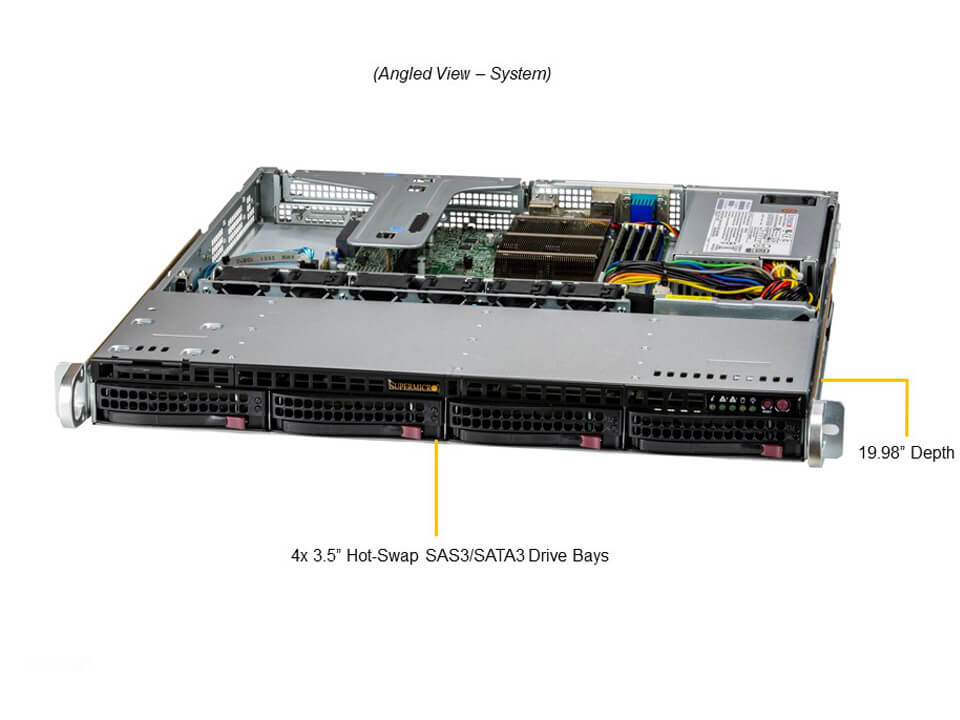

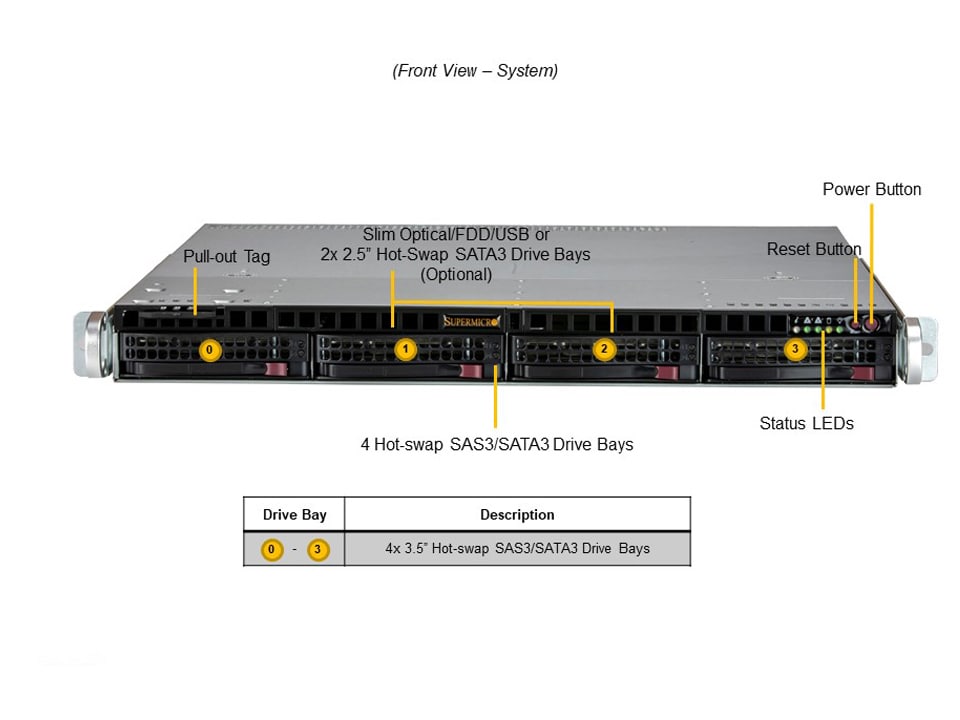

SYS-510T-M Main SYS-510T-M Angle SYS-510T-M Top SYS-510T-M Front SYS-510T-M Rear
Integrated Board: X12STH-SYS
Learn more

Key Applications

  • Web/Hosting Application
  • Email/Firewall/Print Server
  • General Purpose

Key Features

  1. Single Socket H5 (LGA-1200) supports Intel® Xeon® E-2300 series, Intel® Pentium® processors
  2. 4 DIMMs; Up to 128GB of DDR4 ECC UDIMM memory with speeds of up to 3200MHz
  3. 1 PCIe 4.0 x16 or 2 PCIe 4.0 x8 (FHHL);
    1 Dedicated Internal HBA slot
  4. Intel® Ethernet Controller i210 2x 1GbE RJ45
  5. Single Platinum 350W Power Supply
...
...
SYS-510T-M
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-510T-M
Motherboard
Super X12STH-SYS
Processor
CPU
  • Single Socket H5 (LGA-1200)
  • Intel® Xeon® E-2300 series Processors and 10th Gen. Pentium® Processors
Core Count
  • Up to 8C/16T; Up to 16MB Cache
Note
  • Supports up to 95W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 single-width GPU
Supported GPU
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset
  • Intel® C256
Network Connectivity
Input / Output
LAN
  • 2 RJ45 1 GbE LAN ports
  • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB
  • 4 USB 2.0 ports(header)
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 ports(Header)
  • 1 USB 3.2 Gen1 Type-A port(Header)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
  • 1 COM port(Header)
DOM
  • 2 SuperDOM (Disk on Module) portswith built-in power
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 6 + 2 + 1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-813MF2TS-350RCBP
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 19.98" (507 mm)
Package
  • 8.5" (H) x 24" (W) x 29.5" (D)
Weight
  • Gross Weight: 30.4 lbs (13.8 kg)
  • Net Weight: 17.6 lbs (8 kg)
Available Color
  • Black
Front Panel
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • System Reset
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 4.0 x8 FHFL slot
    • 1 PCIe 4.0 x8 LP slot
  • Option A
    • 1 PCIe 4.0 x16 FHFL slot
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
M.2
Peripheral Bays
  • 2 2.5" bays (optional)
System Cooling
Fans
  • 4 middle cooling PWM 40x40x28mm Fan(s)
  • 2 AOC cooling Fan(s) (optional)
Power Supply
1x 350W
1x 350W Platinum Level (93%) power supply
Dimension (WxHxL)100 x 40 x 180 mm
Total Output Power
Input350W: 100-240Vac
350W: 100-240Vac / 50-60Hz
+12VMax: 29A / Min: 0.5A (100Vac-240Vac)
Max: 29A / Min: 0.5A
5V SBMax: 3A / Min: 0A
Output Type24pin ATX
CertificationPlatinum Level Certified  Platinum Level

[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12STH-SYS

CSE-813MF2TS-350RCBP 		1

1 		Super X12STH-SYS Motherboard

1U Chassis
Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Supports 4x3.5" SAS/SATA HDD/SSD
Cable CBL-0296L 1 9" 4 PIN FAN PWS EXTENSION CORD, PBF
CBL-SAST-0811 1 MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG
CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
CBL-PWCD-0160-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Air Shroud MCP-310-81307-0B 1 Mylar Air Shroud for SC813MF2/SC113MF_RCB with X12STH
Manual MNL-2419-QRG 1 510T-M/MR Quick Reference Guide
Riser Card Proprietary Riser Card 1 1U RHS Standard Riser card with one PCIe 4.0 X16 and one PC
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention Proprietary Heatsink 1 Proprietary 1U Passive CPU HS, Rocket Lake (SKT-H5 LGA-1200)
*Power Supply PWS-350-1H 1 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
*Peripheral Drive CSE-PT93L-B 1 Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
*Fan FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
*Front Panel FPB-FP813-D 1 Front control board dual color for SC815,SC813M (C)
*Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5" HDD tray
*Rear Window MCP-240-00196-0N 1 Non-C Rear window Assy for SC813MF2_RCB Single PWS
*Rail Set MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6
MCP-290-00108-0N 1set Inner rail, front, short, quick-release type
MCP-290-00110-0N 1set Inner rail, extension (quick) for 1U 17.2
*Fan Holder MCP-320-00060-0N 1 Slim Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12"x10.15")
*Parts MCP-340-00001-01 2 Dummy fan 40x28mm
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
3.5" to 2.5" Converter Tray(s) MCP-220-00043-0N • - Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black
CacheVault BTR-L3-00099-02 + MCP-240-81305-0N (For S3908) 1 CacheVault for Broadcom 3908 with SuperCap mounting bracket for internal fixed location
BTR-CV3108-U1 + MCP-240-81305-0N (For S3108) 1 CacheVault for Broadcom 3108 with SuperCap mounting bracket for internal fixed location
Cooling Fan(s) FAN-0154L4 • - 40x40x28 mm, 22.5K RPM, Middle Cooling Fan
DVD-ROM / DVD-RW DVM-TEAC-DVDRW-SBT5 1 PHILPS slim DVD-RW SATA drive
DVM-TEAC-DVD-SBT5 1 TEAC slim DVD-ROM SATA drive
DVD-ROM Accessory MCP-220-81502-0N • 1 Slim SATA DVD mounting kit
Front Bezel CSE-PTFB-813-02B 1 Black Front Bezel w/ Round Venting Holes
CSE-PTFB-813LB 1 Black Front Bezel
Hot-swap 2.5" kit (DVD slot) MCP-220-81506-0N • 1 Single 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
Hot-swap 2.5" kit (FDD slot) MCP-220-81504-0N • 1 Single 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
Inlet Thermal Sensor MCP-280-00034-0N 1 Universal Thermal sensor kit with 40cm I2C cable
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Storage Control Card and Cable(s) AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1275A-100 1 Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3108L-H8IR-16DD • 1 Standard LP, 8 Internal ports (12Gb/s) PCIe 3.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
AOC-S3008L-L8I 1 Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 63HDD; RAID 0, 1, 10
Storage Control Card and Cable(s) (HBA) AOC-S3808L-L8IT + 1x CBL-SAST-1275A-100 1 Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
AOC-S3008L-L8E 1 Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 122HDD; HBA
TPM AOM-TPM-9670H-O • 1 TPM 2.0, horizontal form factor
AOM-TPM-9671H-O 1 TPM 1.2, horizontal form factor
