SuperServer SYS-210SE-31D

X12 SuperEdge 2U3-Node UP front I/O short-depth server

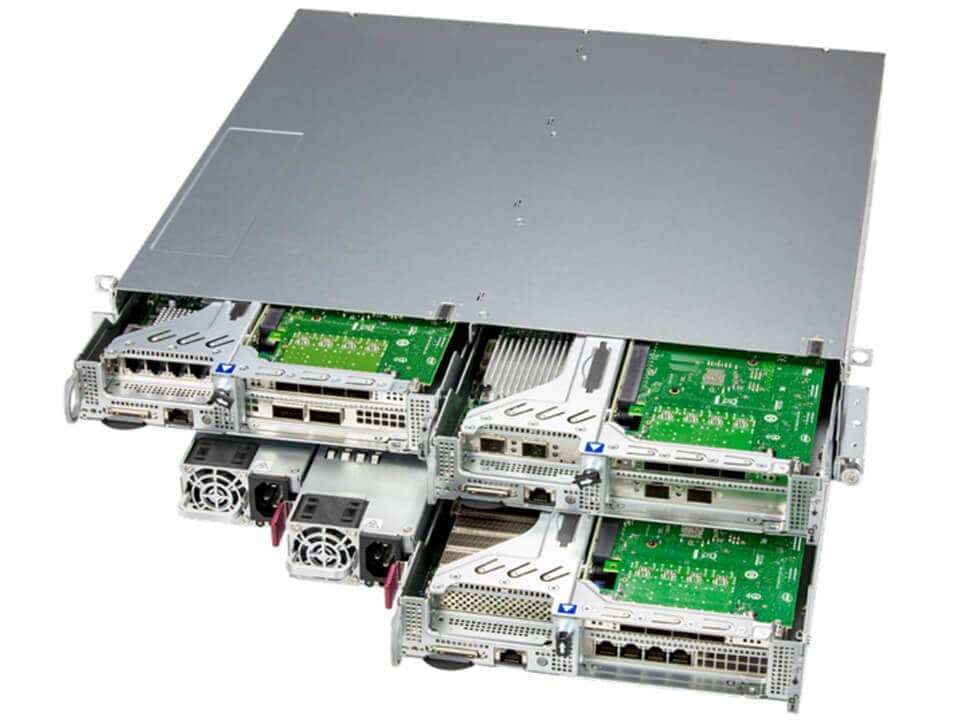

SYS-210SE-31D Main SYS-210SE-31D Angle SYS-210SE-31D Node SYS-210SE-31D Front SYS-210SE-31D Rear
Integrated Board: X12SPED-F
Learn more

Key Applications

  • Multi-Access Edge Computing
  • Flex-RAN, Open-RAN vBBU
  • Telecom DRAN, CRAN, and Edge Core Application
  • Enterprise Edge Computing

Key Features

Three hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processor (per node)
  2. 8 DIMMs; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM (per node)
  3. 2 PCIe Gen4 x16 FHHL slot and 1 PCIe Gen4 x16 HHHL slot (per node)
  4. 2 NVMe M.2 2280/22110 (per node)
  5. 4 counter-rotated fan speed control (per node); 1 Air Shroud (per node)
  6. Front-access 1+1 Redundant 2000W DC Power Supplies (per system)
...
...
SYS-210SE-31D
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-210SE-31D
Motherboard
Super X12SPED-F
Processor (per Node)
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 32C/64T; Up to 48MB Cache
Note
  • Supports 85W - 270W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices (per Node)
Chipset
  • Intel® C621A
Network Connectivity
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE LAN port (Intel® I210-AT) (IPMI shared on LAN port 1)
TPM
  • 1 TPM header
Others
  • 1 KVM dongle (output 1x VGA/1x COM/2x USB 2.0 via KVM cable) port
System BIOS
BIOS Type
  • AMI 32MB UEFI
BIOS Features
  • SMBIOS 2.8
  • Plug and Play (PnP)
  • PCI FW 3.2
  • ACPI 6.4
  • UEFI 2.8A
  • SMBIOS 2.8/3.5
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support, PEPI
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-SE201-R2K06P
Dimensions and Weight
Height
  • 3.5" (88 mm)
Width
  • 17.7" (449 mm)
Depth
  • 16.9" (430 mm)
Package
  • 9.5" (H) x 29.5" (W) x 23.2" (D)
Weight
  • Gross Weight: 70.6 lbs (32 kg)
  • Net Weight: 55.1 lbs (25 kg)
Available Color
  • Silver
Front Panel
LED
  • LAN1 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
Drive Bays / Storage (per Node)
M.2
  • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110; VROC required for RAID)
  • View M.2 Options
System Cooling
Air Shroud
  • 3 Air Shrouds
Fans
  • 12x 4cm heavy duty fans with optimal fan speed control 40x40x56mm Fan(s)
Power Supply
2x 2000W
2x 2000W Redundant (1 + 1) power supplies
Dimension (WxHxL)73.5 x 40 x 265 mm
Total Output Power
+12VMax: 166.6A
12V SBMax: 4A
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12SPED-F

CSE-SE201-R2K06P 		3

1 		Super X12SPED-F Motherboard

2U Chassis
Add-on Card / Module AOM-BPN-SE3N-P 1 Backplane for SuperEdge 2U3N,RoHS
Cable CBL-0218L 1 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
CBL-PWEX-1058 2 48VDC input power cable for PWS-2K03D-1R, 4M, 8AWG,RoHS
Riser Card RSC-W-66G4 3 1U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS
RSC-WR-6 3 1U RHS WIO Riser card with one PCIe 4.0 x16 slot,HF,RoHS
Software SFT-OOB-LIC 3 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077V 3 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
*Power Supply PWS-2K06F-1R 2 2000W 1U -48Vdc single output Redundancy power supply
*Power Distributor PDB-PT201-DSG 2 Super Edge pass through board support Ultra powers up to 6KW
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
Optional sliding rail kit MCP-290-00144-1N - 2U fixed rail set, quick release, default for 2,3U 17.6"W, 26.5"-33.5" D
TPM security module AOM-TPM-9670V - SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
