SuperServer SYS-611C-TN4R (Complete System Only)

1U DP CloudDC with 4 hot-swap 3.5" NVMe/SAS/SATA bays and 2 PCIe 5.0 x16 slots + 2 PCIe 5.0 x16 AIOM slots

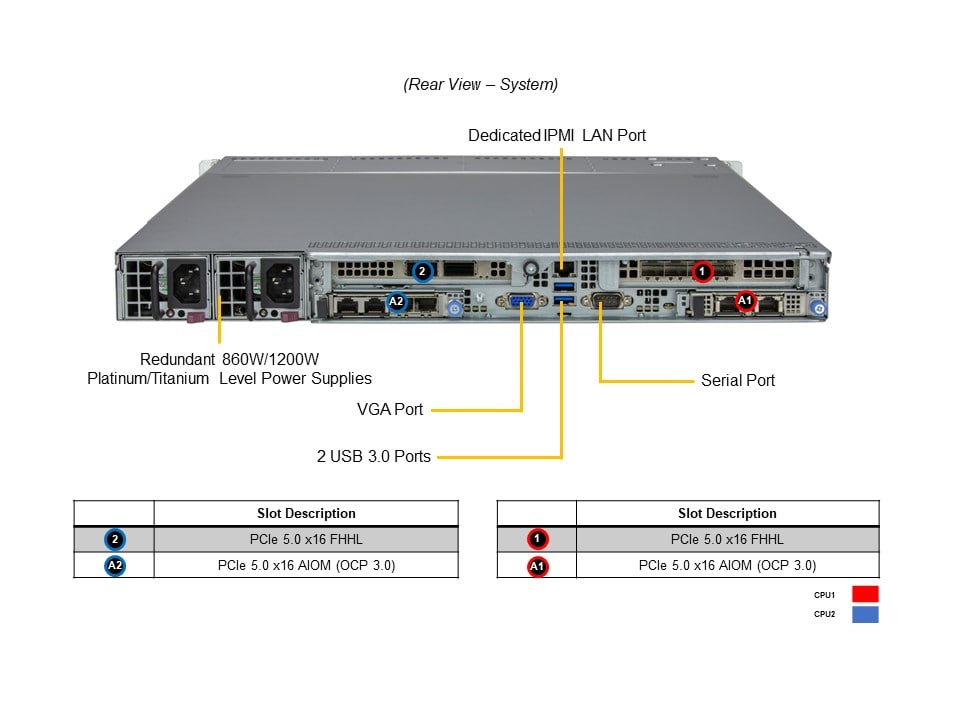

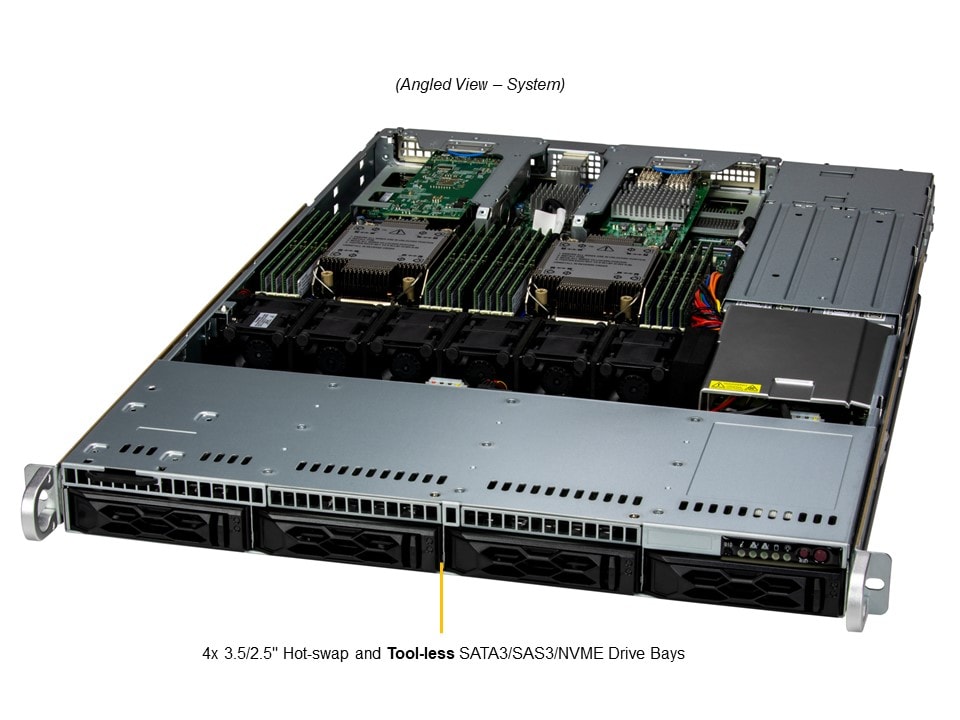

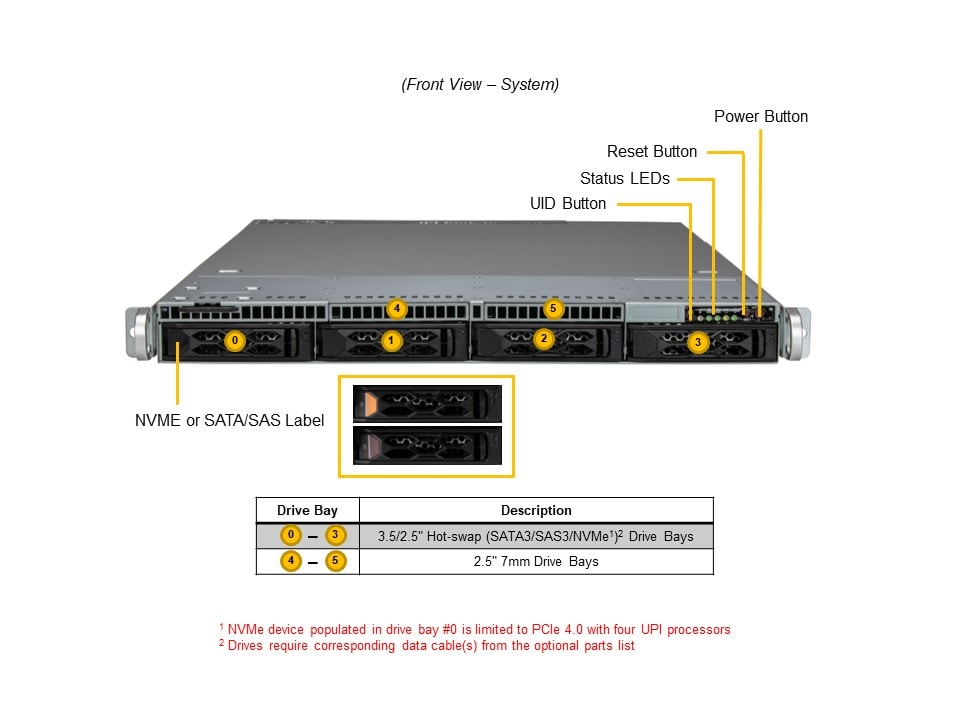

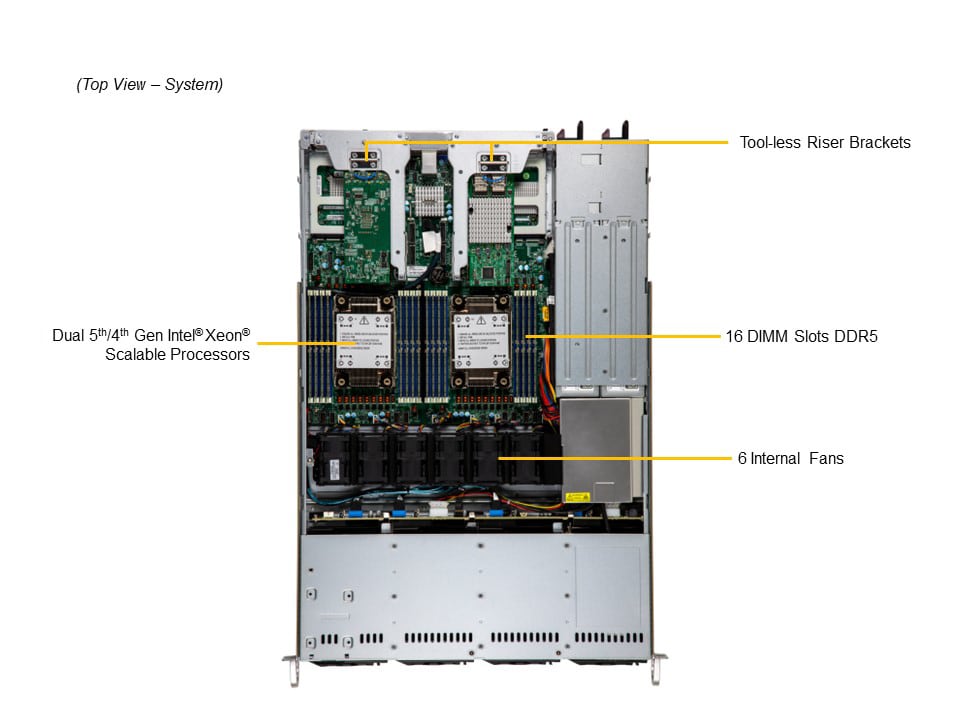

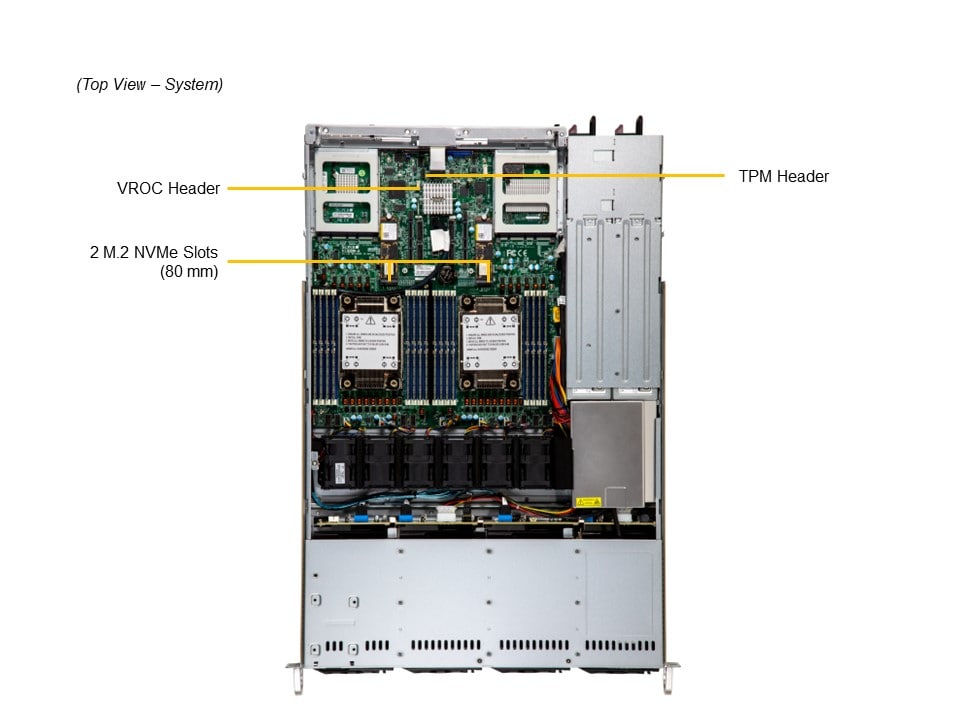

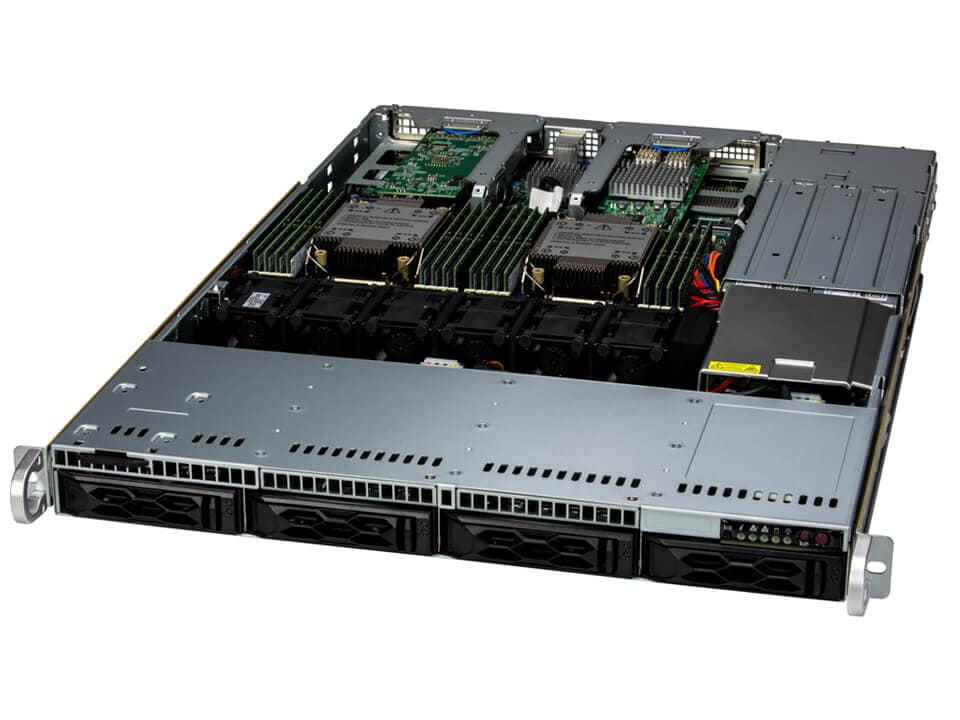

SYS-611C-TN4R Main SYS-611C-TN4R Angle SYS-611C-TN4R Top SYS-611C-TN4R Top1 SYS-611C-TN4R Front SYS-611C-TN4R Rear
Integrated Board: X13DDW-A
Learn more

Key Applications

  • Web Server, Firewall Application
  • Data Center Optimized, Value IaaS
  • Cloud Computing, Compact Server
  • DNS & Gateway Servers, Firewall Application
  • CDN, Edge Nodes

Key Features

  1. Dual sockets E (LGA-4677) 5th and 4th Gen Intel®  Xeon® Scalable processors
  2. 16 DIMMs up to 4TB 3DS ECC DDR5-5600: RDIMM
  3. 2 PCIe 5.0 x16 FHHL;
    2 PCIe 5.0 x4 NVMe M.2
  4. Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN
  5. 4x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  6. 6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
  7. 860W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
  8. 1 VGA, 1 COM, 2 USB 3.0 (rear)
...
...
SYS-611C-TN4R
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
SuperServer SYS-611C-TN4R
Motherboard
Super X13DDW-A
Processor
CPU
Core Count
  • Up to 36C/72T; Up to 82.5MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 2 single-width GPUs
Supported GPU
  • NVIDIA PCIe: L4, A2
  • Intel PCIe: Intel Data Center GPU Flex 140
  • View GPU Options
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
Chipset
  • Intel® C741
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.2 Gen1 Type-A ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 8 Phase-switching voltage regulator
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-LA15TS-R0AWNP2
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.6" (650 mm)
Package
  • 7.8" (H) x 23.8" (W) x 34.6" (D)
Weight
  • Gross Weight: 46 lbs (20.9 kg)
  • Net Weight: 25 lbs (11.3 kg)
Available Color
  • Black front & sliver body
Front Panel
LED
  • Drive activity
  • Network activity
  • Power status
  • Universal Information
Buttons
  • Power On/Off
  • Reset button
  • Unit Identifier (UID)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 5.0 x16 FHHL slots
    • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 front hot-swap 3.5" NVMe*/SAS*/SATA* drive bays
  • Option A: Total 4 bays
    • 4 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280(default); VROC required for RAID)
  • View M.2 Options
Peripheral Bays
  • 2 2.5" peripheral bays (optional)
System Cooling
Fans
  • 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shrouds
Power Supply
2x 860W
2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)54.5 x 40.25 x 322 mm
Input800W: 100-127Vac / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz
+12VMax: 66.67A / Min: 0A (100Vac-127Vac)
Max: 71.67A / Min: 0A (200Vac-240Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Name: A2
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
3808 HBA Card CBL-SAST-1275A-100 1 Slimline x8 (STR) to 4x SATA 75/75/90/90CM
AOC-S3808L-L8IT 1 Standard LP 8 internal ports (12Gb/s) Gen-4 16HDD HBA
3908 RAID Card CBL-SAST-1275A-100 1 Slimline x8 (STR) to 4x SATA 75/75/90/90CM
AOC-S3908L-H8IR-16DD 1 Standard LP 8 internal ports (12Gb/s) Gen-4 122HDD RAID 0, 1, 5, 6, 10, 50, 60
3908/3916 CacheVault BTR-CVPM05 1 CacheVault for Broadcom 3908/3916 (requires a mount)
AIOM Network Card AOC-A25G-i2SM - OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Intel® E810-XXVAM2
AOC-ATGC-i2TM - OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X710-AT2
AOC-ATG-i4SM - OCP 3.0 AIOM 4x 10GbE SFP+ PCIe 3.0 x8 Intel® XL710-BM1
AOC-ATG-i2TM - OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X550-AT2
AOC-ATG-i2T2SM - OCP 3.0 AIOM 4x 10GbE RJ45 & SFP+ PCIe x8 Intel® X710-TM4
AOC-ATG-i2SM - OCP 3.0 AIOM 2x 10GbE SFP+ PCIe 3.0 x8 Intel® X710-BM2
AOC-ATG-b2TM - OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Broadcom® BCM57416
AOC-AH25G-m2S2TM - OCP 3.0 AIOM 2x 25GbE SFP28 & 2x 10GbE RJ45 PCIe x8/x4 Mellanox® CX4 Lx EN & Intel® X550-AT2
AOC-AG-i4SM - OCP 3.0 AIOM 4x 1GbE SFP PCIe 2.1 x4 Intel® i350-AM4
AOC-AG-i4M - OCP 3.0 AIOM 4x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM4
AOC-AG-i2M - OCP 3.0 AIOM 2x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM2
AOC-A25G-m2SM - OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Mellanox® CX-6 LX
AOC-A25G-i4SM - OCP 3.0 AIOM 4x 25GbE SFP28 PCIe x8 Intel® E810-CAM1
AOC-A25G-b2SM - OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Broadcom® BCM57414
AOC-A100G-b2CM - OCP 3.0 AIOM 2x 100GbE QSFP28 PCIe 4.0 x16 Broadcom® BCM57508
Cable Management Arm MCP-290-00152-0N 1 1U Supermicro Cable Management Arm 2nd Gen
CacheVault Mount MCP-240-21747-0N 1 CacheVault mounting card for AIOM slot
MCP-240-00203-0N 1 CacheVault mounting bracket for PCIe slot
MCP-240-00127-0N 1 CacheVault mounting tray for 2.5" drive bay
Fan Upgrade FAN-0216L4-2 6 40x40x56 mm, 31K-26.6K RPM, Counter-rotating Fan, Non-service-hot-swappable
Fixed 2.5" Drive Kit CBL-0211L 1 4PIN-TO-3X SATA POWER CABLE
CBL-SAST-1295LP-100 1 SlimlineLP x4 (STR) to 4x SATA (STR)75/75/90/90/75CM
CBL-0234L 1 Y split power cable for big 4 pin
MCP-220-81511-0N 2 FDD-size tray support for 1x 2.5" 7mm drive
Heatsink Upgrade SNK-P0087V 2 1U Passive CPU VC HS for X13 Intel Eagle Stream Platform
License SFT-DCMS-SINGLE • 1 Supermicro System Managment Software License
SFT-SDDC-SINGLE 1 Supermicro Data Center Monitor License
M.2 Tray AOC-SLG4-2H8M2 - Standard LP PCIe x8 supporting 2 PCIe 4.0 x4 M-Key M.2 NVMe/SATA Modules RAID 0, 1
NC-SI Cable CBL-PWEX-1099-34 1 FLAT IDC 2X11F/P1.27 TO IDC 2X11F/P1.27 NCSI 0.5A 35CM
NVMe Cable CBL-MCIO-1228QQM5F-B 4 MCIO x4 (STR to STR) 28CM FFC 30AWG 85OHM RoHS
Power Supply Upgrade PWS-1K27A-1R 2 1200W Redundant Titanium Power Supply
SATA Cable CBL-SAST-1295LP-100 1 SlimlineLP x4 (STR) to 4x SATA (STR) 75/75/90/90/75CM
TPM AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller vertical form factor
AOM-TPM-9670V-S-FIPS 1 SPI capable TPM 2.0 with Infineon 9670 controller w/ FIPS vertical form factor
AOM-TPM-9672V 1 SPI capable TPM 2.0 with Infineon 9672 controller vertical form factor
AOM-TPM-9672V-FIPS 1 SPI capable TPM 2.0 with Infineon 9672 controller w/ FIPS vertical form factor
VROC HW Key AOC-VROCSTNMOD 1 Intel VROC Standard RAID 0, 1, 10
AOC-VROCPREMOD 1 Intel VROC Premium RAID 0, 1, 5, 10
