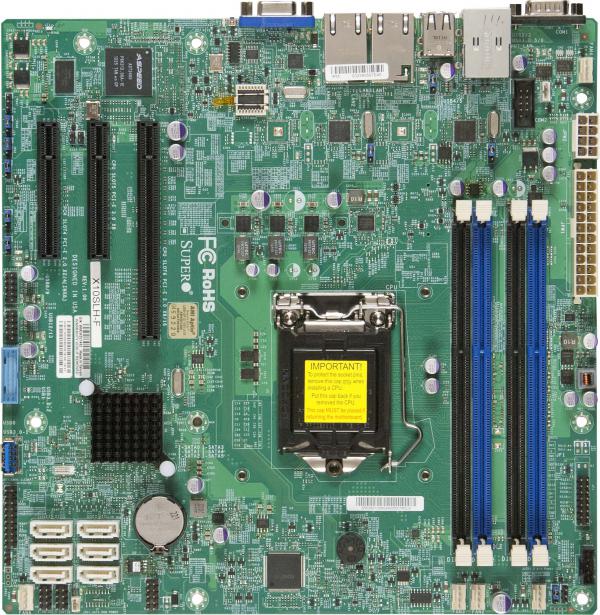

Supermicro Motherboard Xeon Boards X10SLH-F
Key Features

  1. Single socket H3 (LGA 1150) supports
    Intel® Xeon® E3-1200 v3/v4, 4th gen.
    Core i3, Pentium, Celeron processors
  2. Intel® C226 Express PCH
  3. Up to 32GB DDR3 ECC 1600MHz UDIMMs in 4 sockets
  4. Dual Gigabit Ethernet LAN ports via 2 Intel® i210AT
  5. 6 SATA (6Gbps)
  6. 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, and 1 PCI-E 2.0 x4 (in x8) slots
  7. 4 USB 3.0 (2 in the rear, 1 Type-A, 1 via header)
    6 USB 2.0 (4 rear, 2 via header)
  8. Integrated IPMI 2.0 with KVM and Dedicated LAN
  9. SATA DOM power connector support

Links & Resources

Specifications
Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
MBD-X10SLH-F
  • X10SLH-F

Physical Stats
Form Factor
  • Micro-ATX
Dimensions
  • 9.6" x 9.6" (24.38cm x 24.38cm)

Processor/Cache
CPU
  • Intel® 4th Generation Core™ i3 series, Intel® Celeron®, Intel® Pentium®v, Intel® Xeon® processor E3-1200 v3, Intel® Xeon® Processor E3-1200 v4 series
  • Single Socket LGA-1150 (Socket H3) supported, CPU TDP supports Up to 85W TDP

System Memory
Memory Capacity
  • Up to 32GB Unbuffered ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots
  • 4x 240-pin DDR3 DIMM sockets
Memory Type
  • 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 1GB, 2GB, 4GB, 8GB
Memory Voltage
  • 1.35V, 1.5V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C226 Express PCH
SATA
  • SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controllers
  • Dual LAN with Intel® Ethernet Controller I210-ATSupports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 outputRealtek RTL8211E PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC

Input / Output
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 6 USB 2.0 ports (2 rear + 4 via headers)
  • 4 USB 3.2 Gen1 ports (2 rear + 1 via header + 1 Type A)
Video Output
  • 1 VGA port
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x8 (in x16 slot),
  • 1 PCI-E 3.0 x8
  • 1 PCI-E 2.0 x4 (in x8 slot)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • SMBIOS 2.7.1
  • ACPI 5.0
  • USB Keyboard support

Management
Software
  • IPMI2.0, NMI, SuperDoctor® III, Watchdog
Power Configurations
  • ACPI Power Management
  • Main Switch Override Mechanism
  • Power-on mode for AC power recovery
  • Internal/External modem ring-on

PC Health Monitoring
Voltage
  • +12V, +3.3V, +5V, +5V standby, 5 Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V, HT, VBAT
Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, FC temperature sensing logic, Thermal Monitor 2 (TM2) support, PECI
LED
  • CPU / System Overheat LED, +5V Standby alert LED
Other Features
  • Chassis intrusion detection, Chassis intrusion header

Operating Environment
Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X10SLH-F 1 X10SLH-F Motherboard
Quick Reference GuideMNL-1464-QRG1X10SLH-F Quick Reference Guide
SATA cableCBL-0044L257.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00073-0N1Standard I/O shield for X9/X10 I/O MB, no EMI Gasket,RoHS/REACH,PBF
