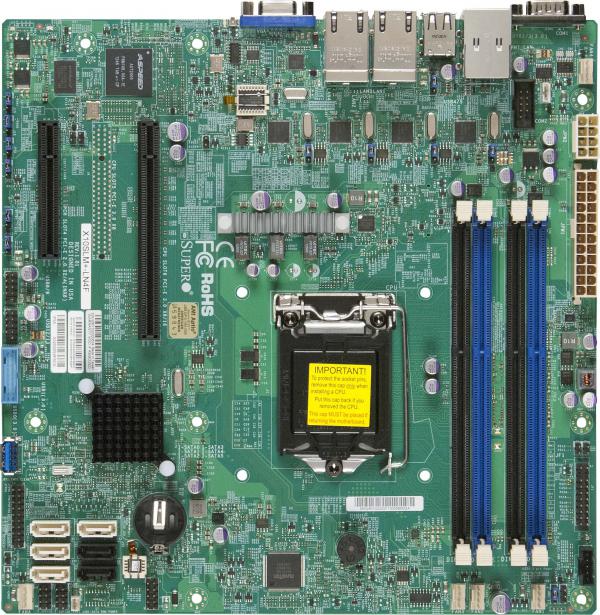

Supermicro Motherboard Xeon Boards X10SLM+-LN4F

Datacenter Optimized
Key Features

  1. Single socket H3 (LGA 1150) supports
    Intel® Xeon® E3-1200 v3/v4, 4th gen.
    Core i3, Pentium, Celeron processors
  2. Intel® C224 Express PCH
  3. Up to 32GB DDR3 ECC 1600MHz UDIMMs in 4 sockets
  4. Quad Gigabit Ethernet LAN ports via Intel® i210AT
  5. 4 SATA (6Gbps), 2 SATA (3Gbps)
  6. Expansion slots: 1 PCI-E 3.0 x16, 1 PCI-E 2.0 x2 (in x8)
  7. 4 USB 3.0 and 6 USB 2.0
  8. Integrated IPMI 2.0 with KVM and Dedicated LAN
  9. SATA DOM power connector support

Links & Resources

Specifications
Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
MBD-X10SLM+-LN4F
  • X10SLM+-LN4F

Physical Stats
Form Factor
  • microATX
Dimensions
  • 9.6" x 9.6" (24.38cm x 24.38cm)

Processor/Cache
CPU
  • Intel® 4th Generation Core™ i3 series, Intel® Celeron®, Intel® Pentium®v, Intel® Xeon® processor E3-1200 v3, Intel® Xeon® Processor E3-1200 v4 series.
  • Single Socket LGA 1150 supported, CPU TDP support 85W

System Memory
Memory Capacity
  • Up to 32GB Unbuffered ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots
Memory Type
  • 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 1GB, 2GB, 4GB, 8GB
Memory Voltage
  • 1.35V, 1.5V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C224 Express PCH
SATA
  • SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • SATA2 (3 Gbps) ports; RAID 0,1
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Quad LAN with Intel® Ethernet Controller I210-ATSupports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 outputRealtek RTL8211E PHY (dedicated IPMI)
Graphics
  • Aspeed AST2400 BMC

Input / Output
LAN
  • 4 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 6 USB 2.0 ports (2 rear + 4 headers)
  • 4 USB 3.0 ports (2 rear + 1 header + 1 Type A)
Video Output
  • 1 VGA D-Sub Connector port
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
    1 fast UART 16550 serial
TPM
  • TPM Header
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x16
  • 1 PCI-E 2.0 x2 (in x8 slot)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • ACPI 5.0
  • USB Keyboard support
  • DMI (SMBIOS) 2.7

Management
Software
  • IPMI2.0, NMI, SuperDoctor® III, Watchdog
Power Configurations
  • ACPI Power Management
  • Main Switch Override Mechanism
  • Power-on mode for AC power recovery
  • Internal/External modem ring-on

PC Health Monitoring
Voltage
  • +12V, +3.3V, +5V, +5V standby, 5 Phase-switching voltage regulator, Chipset Voltage, HT, VBAT
FAN
  • 5x 4-pin fan headers (up to 5 fans), Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control
Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI, FC temperature sensing logic
LED
  • CPU / System Overheat LED, +5V Standby alert LED
Other Features
  • Chassis intrusion detection, Chassis intrusion header

Operating Environment
Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X10SLM+-LN4F 1 X10SLM+-LN4F Motherboard
I/O CablesCBL-0044L 257.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N1STD I/O SHIELD


Chassis (Optimized for

X10SLM+-LN4F

)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
1U Heatsink:SNK-P0046P
2U Heatsink:SNK-P0046A4
 SC113MTQ-R400CB
SC113MTQ-330CB
SC811TQ-441B
SC512F-350B
SC512F-441B
SC813MTQ-R400CB
SC813MTQ-350CB
SC813MTQ-441CB
1U Heatsink:SNK-P0046P
2U Heatsink:SNK-P0046A4
 SC213LT-600LPB
SC825MTQ-R700LPB
SC823TQ-653LPB
SC213LT-563LPB
1U Heatsink:SNK-P0046P
2U Heatsink:SNK-P0046A4
 SC833T-653B
1U Heatsink:SNK-P0046P
2U Heatsink:SNK-P0046A4
 SC732i-865B
SC731i-300B
SC732I-500B
SC732i-865B
SC732D2-903B
SC732D2-865B
SC732D2-500B
SC732D4-903B
SC732D4-865B
SC732D4-500B
SC733TQ-665B
SC733TQ-500B
SC731i-300B
 SC745TQ-920B
SC745TQ-R920B
SC743TQ-865B-SQ
SC842i-500B
SC842TQ-665B
SC842TQ-865B
1U Heatsink:SNK-P0046P
2U Heatsink:SNK-P0046A4

= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU


Server (Optimized for X10SLM+-LN4F)
Server Name
SYS-5018D-MTLN4F
X10SLM+-LN4F

Certain products may not be available in your region
