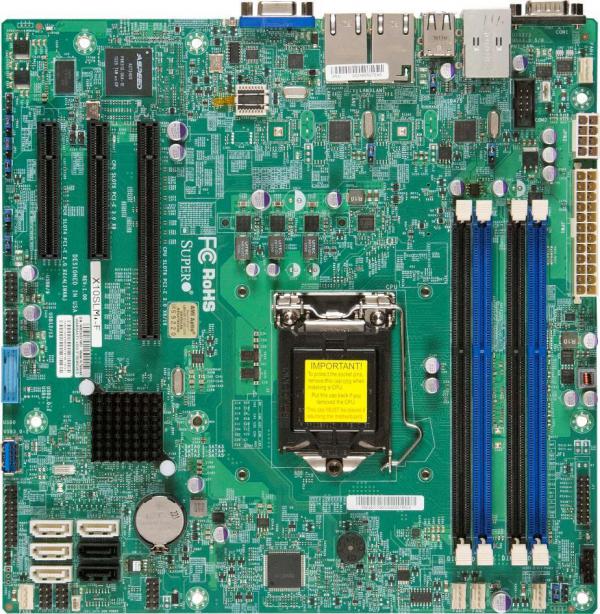

Supermicro Motherboard Xeon Boards X10SLM+-F

Datacenter Optimized
Key Features

  1. Single socket H3 (LGA 1150) supports
    Intel® Xeon® E3-1200 v3/v4, 4th/5th gen. Core i7/i5/i3 processors
  2. Intel® C224 Express PCH
  3. Up to 32GB DDR3 ECC 1600MHz
    UDIMMs in 4 sockets
  4. Dual Gigabit Ethernet LAN ports via
    Intel® i210AT
  5. 4x SATA (6Gbps), 2x SATA (3Gbps)
  6. 1 (8) PCI-E 3.0 in x16, 1 (8) PCI-E
    3.0, and 1 (4) PCI-E 2.0 in 8 slots
  7. 4 USB 3.0 and 6 USB 2.0
  8. Integrated IPMI 2.0 with KVM and Dedicated LAN
  9. SATA DOM power connector support

Links & Resources

Specifications
Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
MBD-X10SLM+-F
  • X10SLM+-F

Physical Stats
Form Factor
  • Micro-ATX
Dimensions
  • 9.6" x 9.6" (24.38cm x 22.86cm)

Processor/Cache
CPU
  • Intel® 4th Generation Core™ i3 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v3, Intel® Xeon® Processor E3-1200 v4 series.
  • Single Socket LGA 1150 supported, CPU TDP support 85W

System Memory
Memory Capacity
  • Up to 32GB Unbuffered ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots
Memory Type
  • 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 1GB, 2GB, 4GB, 8GB
Memory Voltage
  • 1.35V, 1.5V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C224 Express PCH
SATA
  • SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • SATA2 (3 Gbps) ports; RAID 0,1
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC
Network Controllers
  • Dual LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    Single LAN with Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • Aspeed AST2400 BMC

Input / Output
SATA
  • 4 SATA3 (6Gbps) port
  • 2 SATA2 (3Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 6 USB 2.0 ports (2 rear + 4 headers)
  • 4 USB 3.0 ports (2 rear + 1 header + 1 Type A)
Video Output
  • 1 VGA port
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
    1 fast UART 16550 serial
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 1 PCI-E 3.0 x8 (in x16 slot),
  • 1 PCI-E 3.0 x8
  • 1 PCI-E 2.0 x4 (in x8 slot)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • SMBIOS 2.7.1
  • ACPI 5.0
  • USB Keyboard support

Management
Software
  • IPMI2.0, NMI, SuperDoctor® III, Watchdog
Power Configurations
  • ACPI Power Management
  • Main Switch Override Mechanism
  • Power-on mode for AC power recovery
  • Internal/External modem ring-on

PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 5 Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V, Chipset Voltage, HT, Memory, VBAT
FAN
  • 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control, Support 3-pin fans (w/o speed control)
Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, FC temperature sensing logic, Thermal Monitor 2 (TM2) support, PECI
LED
  • CPU / System Overheat LED, +5V Standby alert LED
Other Features
  • Chassis intrusion detection, Chassis intrusion header

Operating Environment
Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X10SLM+-F 1 X10SLM+-F Motherboard
Quick Reference Guide MNL-1500-QRG1X10SLM+-F Quick Reference Guide
I/O Cable 1 CBL-0044L257.5 cm SATA FLAT S-S PBF
I/O Shield MCP-260-00073-0N1Standard I/O shield for X9/X10 I/O MB, no EMI Gasket,RoHS/REACH,PBF


Chassis (Optimized for

X10SLM+-F

)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
1U Heatsink:SNK-P0046P
2U Heatsink:SNK-P0046A4
 SC813MTQ-441CB
SC813MTQ-350CB
SC813MTQ-R400CB
SC512F-441B
SC512F-350B
SC811TQ-441B
SC113MTQ-330CB
SC113MTQ-R400CB
1U Heatsink:SNK-P0046P
2U Heatsink:SNK-P0046A4
 SC823TQ-653LPB
SC825MTQ-R700LPB
SC213LT-600LPB
SC213LT-563LPB
1U Heatsink:SNK-P0046P
2U Heatsink:SNK-P0046A4
 SC833T-653B
1U Heatsink:SNK-P0046P
2U Heatsink:SNK-P0046A4
 SC731i-300B
SC733TQ-500B
SC732D4-500B
SC732D4-865B
SC732D4-903B
SC732D2-500B
SC732D2-865B
SC732D2-903B
SC732i-865B
SC732I-500B
SC731i-300B
SC732i-865B
 SC842TQ-865B
SC842i-500B
SC743TQ-865B-SQ
SC745TQ-R920B
SC745TQ-920B
1U Heatsink:SNK-P0046P
2U Heatsink:SNK-P0046A4

= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
