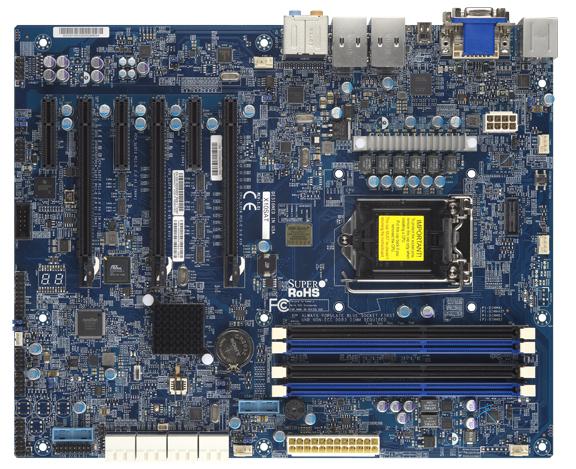

Supermicro Motherboard Xeon Boards X10SAT

Workstation
Key Features

  1. Single socket H3 (LGA 1150) supports
    Intel® Xeon® E3-1200 v3/v4, 4th/5th gen. Core i7/i5/i3 processors
  2. Intel® C226 Express PCH
  3. Up to 32GB DDR3 ECC/non-ECC 1600MHz UDIMM in 4 sockets
  4. Dual Gigabit Ethernet LAN ports (1 Intel® i217LM & 1 Intel® i210AT)
  5. 8 SATA3 (6Gbps); 6 SATA3 via C226 and 2 SATA3 via ASM1061®
  6. 3 PCI-E 3.0 16 slots and 3 PCI-E 2.0 1 (in 4) slots
  7. 8 USB 3.0 (4 rear + 4 via headers)
    6 USB 2.0 (2 rear + 4 via headers)
  8. HD Audio 7.1 channel connector by Realtek ALC1150
  9. 1 DOM power connector and 1 SPDIF Out Header

Links & Resources

Specifications
Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
MBD-X10SAT
  • X10SAT

Physical Stats
Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.48cm x 24.38cm)

Processor/Cache
CPU
  • Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v3, Intel® Xeon® Processor E3-1200 v4 series.
  • Single Socket LGA-1150 (Socket H3) supported, CPU TDP support Up to 84W TDP
  • A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3

System Memory
Memory Capacity
  • Up to 32GB Unbuffered ECC/non-ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots
  • 4x 240-pin DDR3 DIMM sockets
Memory Type
  • 1600MHz ECC/non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 1GB, 2GB, 4GB, 8GB
Memory Voltage
  • 1.35V, 1.5V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C226 Express PCH
SATA
  • Intel® C226 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • ASM1061 controller for 2 SATA3 (6 Gbps) ports;
  • SATA3 via ASM1061®
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Intel® Ethernet Controller I217LM
Audio
  • RealTek ALC1150 HD Audio
Graphics
  • Supports Triple Display , Supports 4K Display

Input / Output
SATA
  • 8 SATA3 (6Gbps) port
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 2.0 ports (2 rear + 4 headers)
  • 8 USB 3.0 ports (4 rear + 4 headers)
Video Output
  • 1 VGA port, 1 DVI - I port, 1 HDMI port,
  • Supports Triple Display , Supports 4K Display
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • TPM Header
Others
  • Firewire - 1 x Type B 1394a header
Expansion Slots
PCI-E
  • 3 PCI-E 3.0 x16 slots (16/NA/NA or 8/8/NA or 8/4/4)
  • 3 PCI-E 2.0 x1 (in x4 slot)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • SMBIOS 2.7.1
  • ACPI 5.0
  • USB Keyboard support

Management
Software
  • AMT, SuperDoctor® 5, vPro, Watchdog
Power Configurations
  • ACPI Power Management
  • Main Switch Override Mechanism
  • Power-on mode for AC power recovery
  • Internal/External modem ring-on

PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 5 (4-pin), 5 Phase-switching voltage regulator, VBAT
FAN
  • 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control, Support 3-pin fans (w/o speed control)
Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI, FC temperature sensing logic
LED
  • CPU / System Overheat LED, +5V Standby alert LED
Other Features
  • Chassis intrusion detection, Chassis intrusion header

Operating Environment
Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X10SAT 1 X10SAT Motherboard
I/O Shield MCP-260-00067-0N1X10SAT I/O Shield
SATA Cables CBL-0044L257.5CM SATA FLAT S-S PBF

Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X10SAT 1 X10SAT Motherboard
I/O Shield MCP-260-00067-0N1X10SAT I/O Shield
Quick Reference GuideMNL-1544-QRG1X10SAT Quick Reference Guide
SATA Cables CBL-0044L657.5CM SATA FLAT S-S PBF

Optional Parts List
Name Part Number Qty Description
TPM security module (optional, not included)AOM-TPM-9655V1
TPM security module (optional, not included)AOM-TPM-9655V-C1
TPM security module (optional, not included)AOM-TPM-9665V-FC1
Chassis (Optimized for

X10SAT

)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SC732D4-903B
SC732G-903B

= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU


X10SAT

Certain products may not be available in your region
