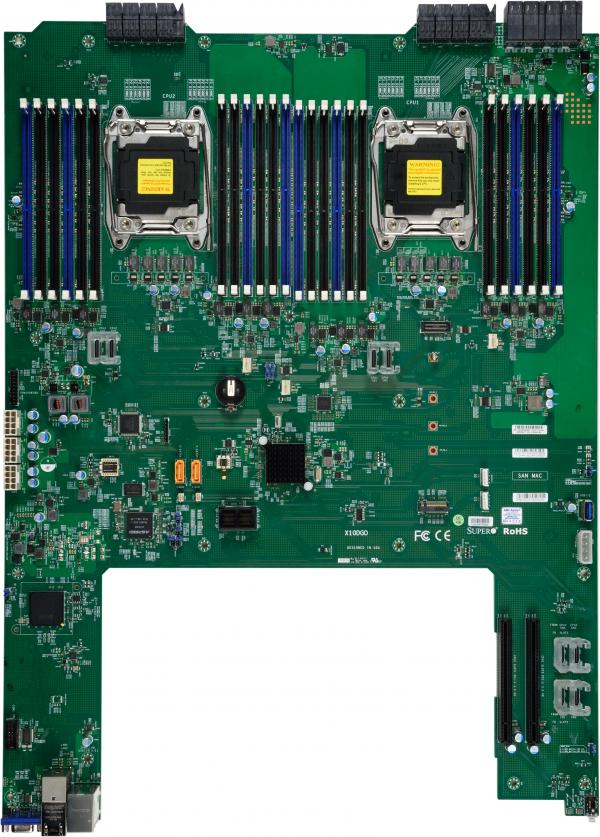

Supermicro Motherboard Xeon Boards X10DGO-T

GPU Serverboard
Key Features

  1. Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4., Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 160W, 1 QPI up to 9.6GT/s
  2. Intel® C612
  3. Up to 1.5TB 3DS ECC RDIMM, DDR4-2400MHz; Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots
  4. 2 PCI-E 3.0 x8
  5. 1 VGA port
  6. Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  7. Dual LAN with Intel® X550 10GBase-T Ethernet Controller

Links & Resources

Specifications
Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
MBD-X10DGO-T
  • X10DGO-T

Physical Stats
Form Factor
  • Proprietary
Dimensions
  • 17" x 22" (43.18cm x 55.88cm)

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
  • Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 160W, 1 QPI up to 9.6GT/s

System Memory
Memory Capacity
  • Up to 1.5TB 3DS ECC RDIMM, DDR4-2400MHz; Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots
Memory Type
  • N/A
DIMM Sizes
  • N/A
Memory Voltage
  • N/A

On-Board Devices
Chipset
  • Intel® C612
SATA
  • Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2400 BMC
Network Controllers
  • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
Graphics
  • Aspeed AST2400 BMC

Input / Output
LAN
  • 2 RJ45 10GBase-T ports
USB
  • 3 USB 3.0 ports (2 rear + 1 Type A)
Video Output
  • 1 VGA port
Serial Port / Header
  • 1 COM Port (1 rear)2 COM Ports in RJ45 Socket
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 2 PCI-E 3.0 x8

System BIOS
BIOS Type

Management
Software
  • Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

PC Health Monitoring
Voltage
  • +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 10 -fan status, Monitors CPU voltages, Supports system management utility, System temperature, VBAT
FAN
  • Fan speed control, Overheat LED indication, PWM fan speed control
Temperature
  • N/A
LED
  • N/A
Other Features
  • N/A
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X10DGO-T 1 X10DGO-T Motherboard
--


Chassis (Optimized for

X10DGO-T

)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
SCR422BG-2
2U Heatsink:SNK-P0048AP4

= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU


X10DGO-T (For SuperServer Only)
