H12DSU-iN (For A+ Server Only)
Print
H12DSU-iN
Key Features
1. Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
3. Expansion slots:
WIO:
 1 PCI-E 4.0 x32 Left Riser Slot
 1 PCI-E 4.0 x16 Right Riser Slot
Ultra:
 1 PCI-E 4.0 x40 Far Right Riser Slot
4. 16 SATA3, 2 SuperDOM, 4 NVMe
5. Integrated IPMI 2.0 + KVM with dedicated LAN
6. ASPEED AST2500 BMC graphics
7. Up to 5 USB 3.0 ports
(2 rear + 2 via header + 1 Type A)
8. 8x 4-pin PWM Fans & Speed control

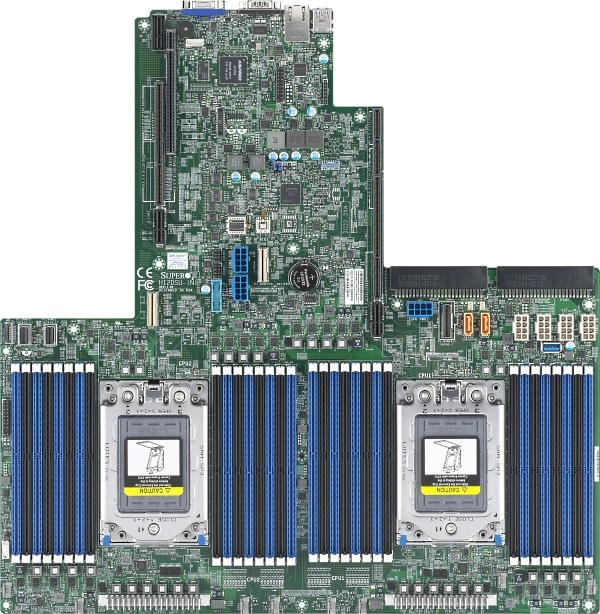

Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.
Links & Resources
Tested Memory List
Tested HDD List
Tested M.2 List
Tested AOC List
Motherboard Manual
Update Your BIOS
IPMI Firmware
Download the Latest Drivers and Utilities
Download Driver CD
OS Compatibility


Specifications
Product SKUs
MBD-H12DSU-iN
  • H12DSU-iN (for server SKUs only)

Physical Stats
Form Factor
  • Proprietary Ultra/WIO
Dimensions
  • 17" x 17" (43.2cm x 43.2cm)

Processor/Chipset
CPU
  • Dual AMD EPYC™ 7003/7002 Series Processors
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
Cores
  • Up to 64 Cores
Chipset
  • System on Chip

System Memory
Memory Capacity
  • 32 DIMM slots
  • Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM
  • 8-channel memory bus
  • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
SATA
  • SATA3 (6 Gbps)
IPMI
  • Support for Intelligent Platform Management Interface v. 2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Network Controllers
  • Provided via Ultra Riser Card
  • 1 Realtek RTL8211F PHY (dedicated IPMI)
VGA
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 16 SATA3 (6 Gbps) ports
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
VGA
  • 1 VGA port
Others
  • 1 COM port (rear)
  • 2 SATA DOM power connector
  • 4 NVMe
  • TPM 2.0 header

Expansion Slots
PCI-Express
  • WIO:
    • 1 PCI-E 4.0 x32 Left Riser Slot
    • 1 PCI-E 4.0 x16 Right Riser Slot
  • Ultra:
    • 1 PCI-E 4.0 x40 Far Right Riser Slot
Chassis ( Optimized for H12DSU-iN)
1U
  • SC119UHTS-R1K22HP-T
  • SC819UTS-R1K02P-A
2U
  • SC219U2TS-R1K62P-TN24
  • SC829U2TS-R1K62P3-T

Server(s) (with H12DSU-iN)
Model(s)

System BIOS
BIOS Type
  • AMI 256Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 6.2
  • USB Keyboard Support
  • SMBIOS 3.1.1

Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery

PC Health Monitoring
CPU
  • Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standby
  • CPU switching voltage regulator
  • VBAT
FAN
  • Up to 8 fan status tachometer monitoring
  • Up to 8x 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 8x Fan connectors
  • I²C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header

Operating Environment / Compliance
Environmental Specifications
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
Parts List
H12DSU-iN (For A+ Server Only)

Certain products may not be available in your region
