A1SRM-LN7F-2758

A1SRM-LN7F-2758
Embedded
Communication
Rangeley

Key Features


  1. Intel® Atom® Processor C2758
    Single Socket FCBGA-1283 supported, CPU TDP support 20W TDP
  2. Quad LAN with Intel® C2000 SoC
    I354, 2 pairs LAN bypass
    Dual LAN with Intel® Ethernet Controller I350-AM2
    1 pair LAN bypass
    Single LAN with Intel® Ethernet Controller I210-AT
    Management Port with shared IPMI
  3. Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots
  4. 1 PCIe 2.0 x4 (in x8 slot)
  5. SoC controller for 4 SATA2 (3 Gbps) ports; 2 SATA3 (6 Gbps)
  6. 1 VGA port
  7. System on Chip
...
...

Optimized Servers


SYS-5018A-TN7B
Specifications Resources Parts List
Specifications
Product SKUs

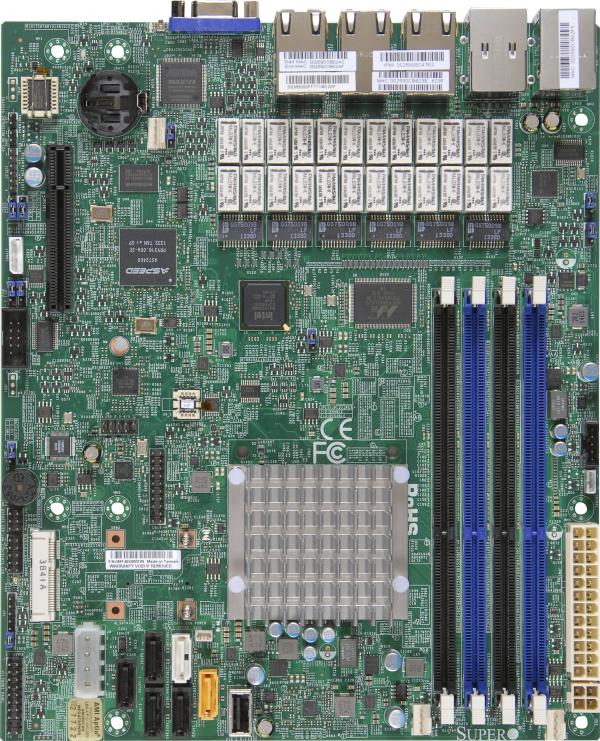

MBD-A1SRM-LN7F-2758
Physical Stats
Form Factor
  • mATX
Dimension
  • 8" x 9.6" (20.32cm x 24.38cm)
Processor
CPU
  • Intel® Atom® Processor C2758
  • Single Socket FCBGA-1283 supported, CPU TDP supports Up to 20W TDP
Core
  • Up to 8 cores, 8 threads / 4MB Cache
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR3-1600MHz
Memory Type
  • 1600 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 2GB, 4GB, 8GB, 16GB
Memory Voltage
  • 1.35V
  • 1.5V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
SATA
  • 2 SATA3 (6 Gbps) ports; RAID 0/1
  • SoC controller for 4 SATA2 (3 Gbps) ports
IPMI
  • ASPEED AST2400 BMC
Graphics
  • 1 ASPEED AST2400 BMC port(s)
Network Controllers
  • Quad LAN with Intel® C2000 SoC, I354, 2 pairs LAN bypass
  • Single LAN with Intel® Ethernet Controller I210-AT, Management Port with Shared IPMI
  • Dual LAN with Intel® Ethernet Controller I350-AM2, 1 pair LAN bypass
Input / Output
SATA
  • 2 SATA3 (6Gbps) port(s)
  • 4 SATA2 (3Gbps) port(s)
LAN
  • 7 RJ45 Gigabit Ethernet LAN ports
USB
  • 7 USB 2.0 port(s) (2 via header; 1 Type A; 4 rear)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 fast UART 16550 Serial
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 1 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Others
  • 1 Pair LAN Bypass Ports
Expansion Slots
PCIe
  • 1 PCIe 2.0 x4 (in x8 slot)
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 5.0
  • USB Keyboard support
  • DMI 2.3
  • SMBIOS 2.7.1
Management
Software
  • SuperDoctor® 5, NMI, SUM, IPMI2.0, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management, ATX Power connector, +12V DC Power Input, Control of power-on for recovery from AC power loss
PC Health Monitoring
Voltage
  • VBAT, System temperature, System level control, Supports system management utility, Memory, Chassis intrusion header, 3 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • CPU thermal trip support
  • Adaptive Thermal Monitor, PECI 3.0
FAN
  • 3x 4-pin fan headers (up to 3 fans)
  • Thermal control tachometer fan connectors, System level control, PWM fan speed control, Low noise fan speed control, Fan speed control, 3 fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication, Support 3-pin fans (w/o speed control)
Other Features
  • WOL, UID, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source, Intel® QuickAssist Technology, 4-pin 12v DC power connector
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
