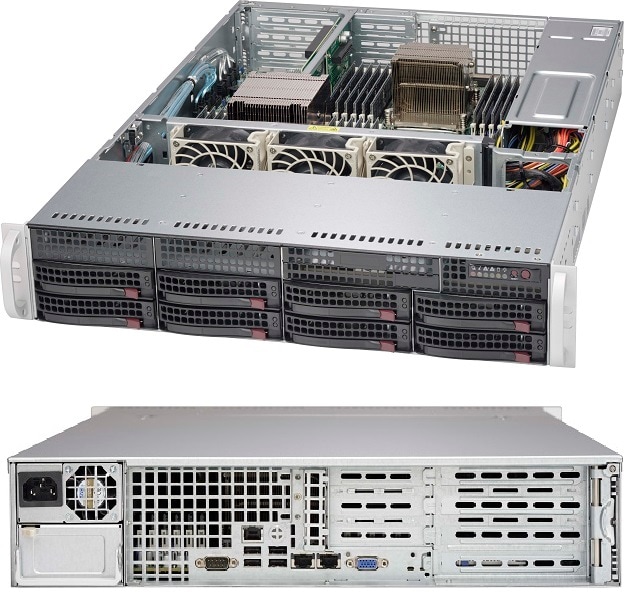

SuperChassis 825TQC-600WB

Key Features


  1. 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 13" motherboards
  2. 8 x 3.5" hot-swap SAS3/SATA drive bay, 2 x 3.5" fixed drive bay
  3. 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
  4. 1U 600W platinum efficiency multiple output power supply w/PMBus
  5. 4 full-height & full-length expansion slot(s) , 3 low-profile expansion slot(s)
  6. 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
Specifications Resources Parts List
Specifications
Product SKUs
SuperChassis 825TQC-600WB
Form Factor
  • 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 13" motherboards
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.5" (647 mm)
Gross Weight
  • 52 lbs (23.59 kg)
Net Weight
  • 37 lbs (16.78 kg)
Packaging (W x H x L)
  • 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
Available Color
  • Black
Expansion Slots
  • 3x Low-profile expansion slot(s)
  • 4x Full-height, Full-length expansion slot(s)
Drive Bays
  • 2x 3.5" fixed drive bay
  • 8x 3.5" hot-swap SAS3/SATA drive bay
Backplane
  • 8-Port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
Peripheral Drives
  • Optional 1x slim DVD-ROM drive bay
  • Optional 1x COM port tray
  • Optional 2x USB 2.0 ports
  • Optional 2x USB 3.0 ports
Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • System Information LED
  • Power Fail LED
  • 2 Network Activity LEDs
Systems Cooling
Fans
  • 3x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U 600W platinum efficiency multiple output power supply w/PMBus
Power Efficiency
  • 92%
Total Output Power and Input
  • 600W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 279.4 x 76 x 40.4 mm
Output Type
  • 24pin ATX
-12V
  • Max: 0.5A / Min: 0A
+12V
  • Max: 49A / Min: 0.5A (100Vac - 240Vac)
+5V
  • Max: 18A / Min: 0.5A
+3.3V
  • Max: 15A / Min: 0.5A
+5Vsb
  • Max: 3A / Min: 0A
Certification
  • Platinum Certified  Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class B
  • TUV/CB
  • UL/CUL
Resources
Motherboard (for CSE-825TQC-600WB)
Motherboard Name
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Documentation
Chassis Manual
