Drive Kit MCP-220-83608-0N

Print

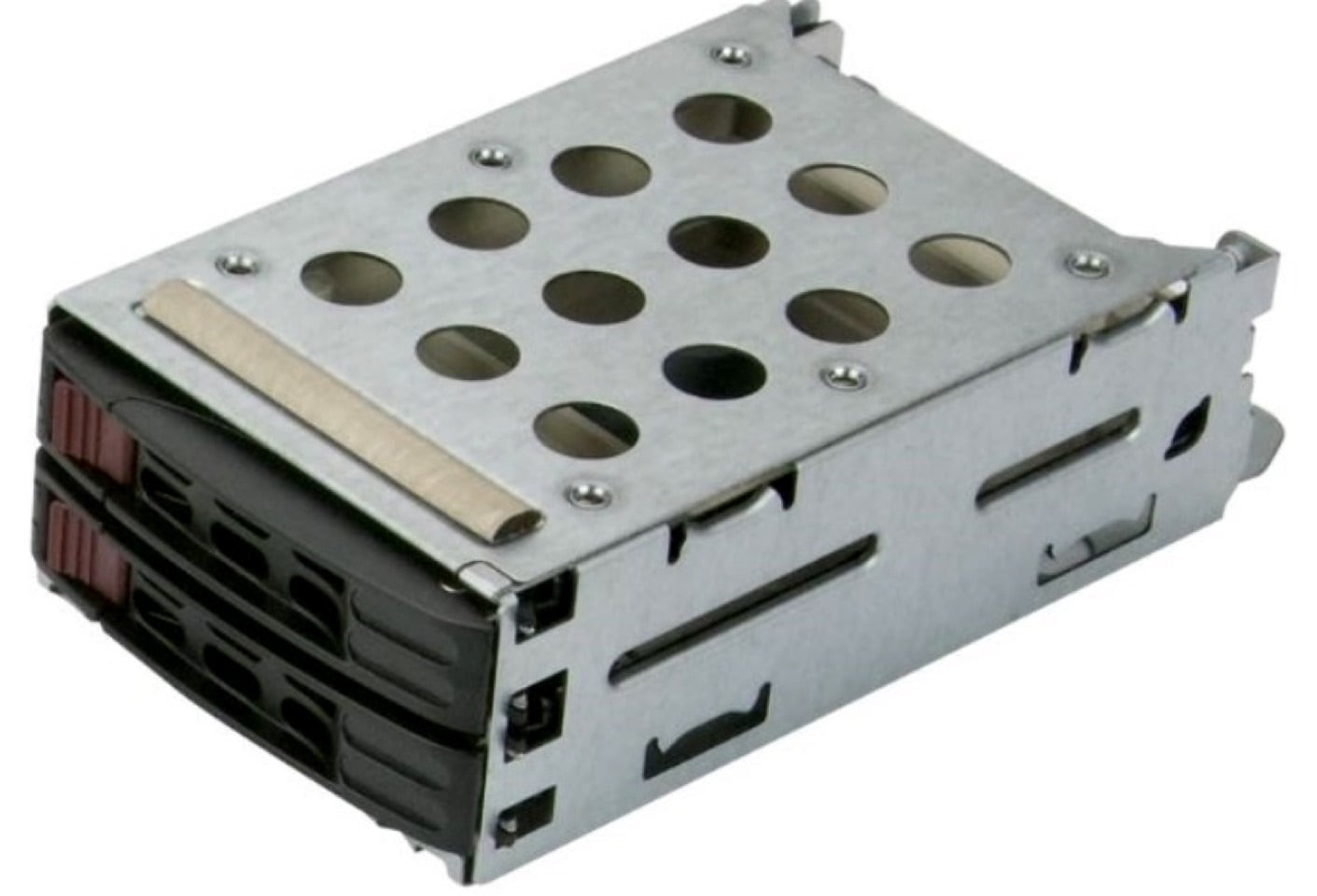

MCP-220-83608-0N Drive KitMCP-220-83608-0N Drive Kit
Note: Image above may show a varied configuration of optional parts. Please refer to parts list for standard parts included.


Key Features

1. 12G Rear 2.5"x2 Drive Kit
2. Hot-swappable SAS3/SATA3 Drives
3. Drive Activity and Status(Fail) LED Support
4. Tool-less HDD Trays
5. SGPIO, Power extension Y-cable and 6G data cables are included
6. Optional 12G cable CBL-SAST-0699 (internal mini SAS HD to 4 SAS/SATA) available


Available Colors
  Black
Downloads
Manual Download Manual
Specifications
Specifications
Dimensions
  • 3.2"W x 1.6"H x 6.1"D (81mm x 41 x 155mm)
Gross Weight
  • 1.5 lbs (0.68 Kgs)
Available Colors
  • No Paint
Occupancy
  • 2x 2.5" Drive Bays
Capacity
  • 2x 2.5" Hot-swap SAS/SATA Hard Drives
Cooling Subsystem
  • N/A (via chassis fan)
System Monitoring
  • Drive Activity LED and Failure LED
Compatibility
Chassis • SC835B, SC836B Series
Parts List
Drive Kit MCP-220-83608-0N
