Drive Kit MCP-220-81506-0N

  Products  Accessories   [ MCP-220-81506-0N ]

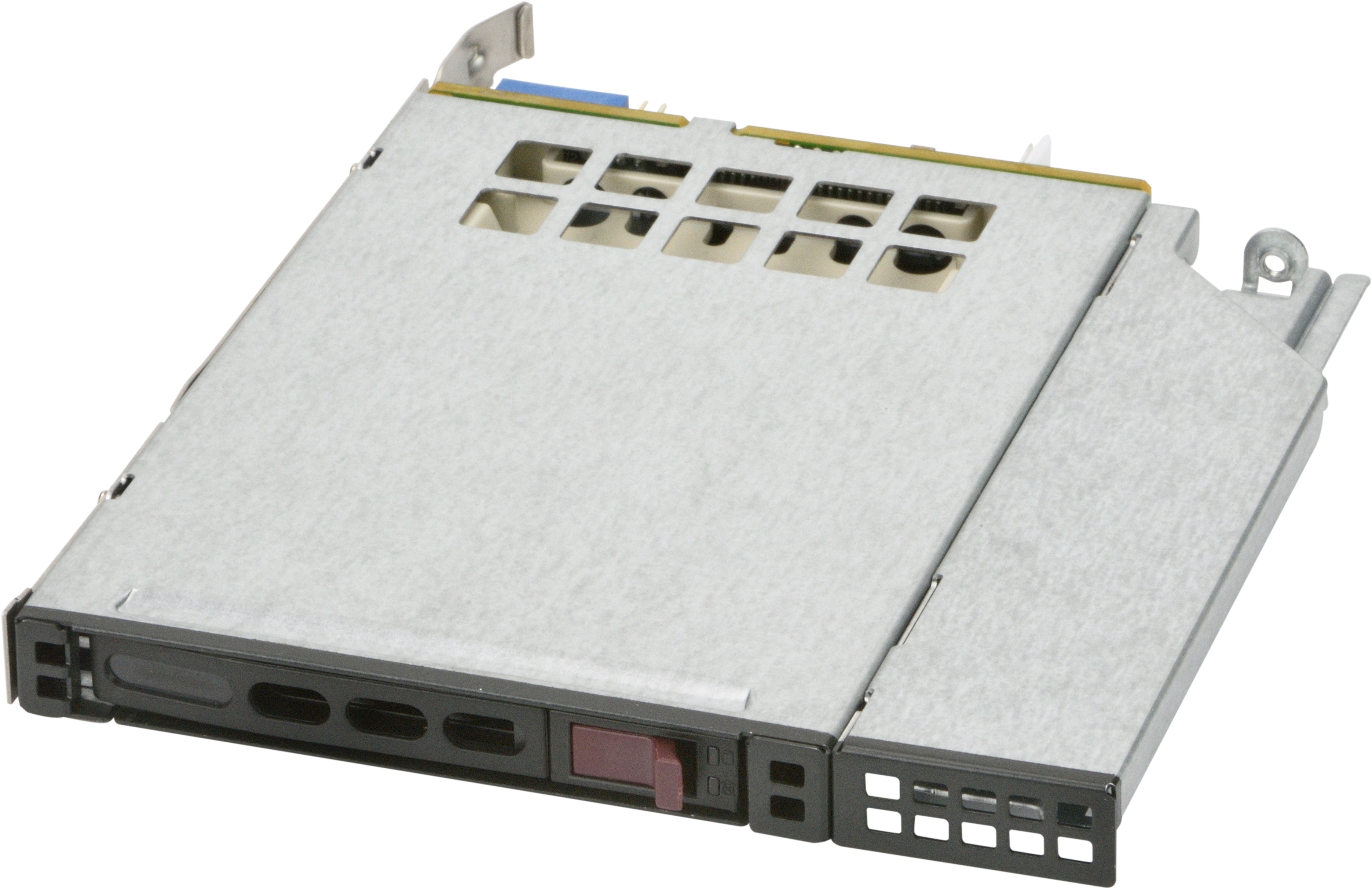

MCP-220-81506-0N Drive KitMCP-220-81506-0N Drive Kit


Key Features

1. 12G 2.5" Slim DVD Size Drive Kit
2. 1x 2.5" Hot-swappable SAS3/SATA3 Slim HDD (up to 9.5mm)
3. Drive Activity and Status(Fail) LED Support
4. SGPIO and 6G data cables are included
5. Optional 12G cable CBL-SAST-0699 (internal mini SAS HD to 4 SAS/SATA) available


Available Colors
  Black
Downloads
Manual Download Manual
Specifications
Dimensions
  • 5.05"W x 1.6"H x 6.3"D (128mm x 41 x 160mm)
Gross Weight
  • 1 lbs (0.45 Kgs)
Available Colors
  • No Paint
Occupancy
  • 1 x 2.5" drive bays
Capacity
  • 1 x 2.5" hot-swap SAS/SATA hard drives
Cooling Subsystem
  • N/A (via chassis fan)
System Monitoring
  • Drive Activity LED and Failure LED
Compatibility
Chassis • SC815, SC813, SC818, SC819, SC119, SC113, SC811, SC721 Series

• SC512, SC219, SC213, SC828, SC825, SC825M, SC823 Series

• SC836 Series


Standard Parts List
  Part Number Qty Description
HDD Backplane BPN-SAS3-FDDTQ 1 1-Port 12G Backplane for 1x2.5" SAS/SATA SSD up to 9.5mm (PORT #0)
HDD Tray MCP-220-81508-0N 1 2.5-in 7mm / 9.5mm Hot-swap HDD tray (for slim DVD/floppy kit)
Cable CBL-CDAT-0662 1 8 pin to 8 pin round SGPIO cable, 61.5cm, 28AWG, pinout 1-1
Cable CBL-0484L(55cm) 1 55cm 30AWG SATA S-S cable
Optional Parts List
  Part Number Qty Description
Cable CBL-SAST-0699(75cm) -- Internal 12G mini SAS HD to 4 SAS/SATA, 75/75/90/90cm w/75cm SB, S. 30AWG,RoHS/REACH
Cable CBL-0210L -- REQUIRED for 818/819/815/813: FDD, DVD, 4 pin power adapter cable, 8cm. 24AWG
