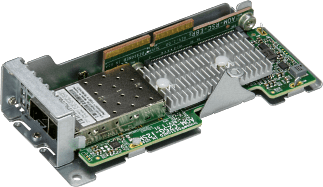

Add-on Module AOM-C25G-i2SM-12
Specifications
Add-on Module

Compact and Powerful dual-port 25 Gigabit Ethernet Adapter

The AOM-C25G-i2SM-12 25 Gigabit Ethernet Adapter is one of the most compact and scalable 25G Ethernet adapters for today’s demanding data center environments. Based on the latest Intel® network controller E810-XXVAM2, it addresses the demanding needs of the next-generation data center. With NC-SI built-in, this adapter provides connection for both data and remote management which simplifies cabling needs in a data center. The AOM-C25G-i2SM-12 is designed in a proprietary and small MicroLP form factor to fit Supermicro MicroCloud 12-node systems.


To order, contact your distributor. This product is only available through Supermicro.
Key Features
  • Dual 25GbE SFP28 Connectors
  • MicroLP Form Factor
  • PCI-E 4.0 x8, backward compatible to PCI-E 3.0 x8
  • Intel E810-XXVAM2 Ethernet Controller
  • NC-SI for remote management
Compliance
RoHS
  • RoHS Compliant 6/6


Supported Platforms
Supported Platforms


Downloads
User's Guide [ Download ]
Datasheet [ Download ]
Driver Choose the latest CDR-NIC folder, and then click on Intel folder for driver [ Download ]
Driver CD Click on the latest CDR-NIC ISO file to download [ Download ]

Specifications
  • General
    • Intel E810-XXVAM2 Ethernet Controller
    • MicroLP Form Factor
    • Dual SFP28 ports
    • PCI-E 4.0
    • Application Device Queues (ADQ)
    • [Dynamic Device Personalization (DDP)
  • Host Interface
    • PCI-E v4.0
    • Backward compatible with PCIe v3.0
    • Message Signal Interrupt (MSI-X)
  • Networking Features
    • Jumbo Packet (9K Max)
    • Teaming
    • Virtual LANs 802.1q VLAN tagging
  • Stateless Offload Features
    • TCP, UDP, IPv4, IPv6 checksum offload
    • Large Send Offload
    • Receive Segment Coalescing
    • TCP segmentation Offload (TSO)
    • UDP Segment Offload (USO)
    • Large Segment Offload (LSO)
    • Receive Side Scaling (RSS)
  • Virtualization Features
    • VXLAN
    • NVGRE
    • Geneve
    • SR-IOV
    • 768 Virtual Station Interface (VSI)
    • 8 Physical Functions (PF)
    • Microsoft VM Queue
    • VMWare NetQueue
    • DPDK Support
    • QoS: Priority-based Flow Control (802.1Qbb)
    • Enhanced Transmission Selection (802.1Qaz)
  • Mnaageability
    • Network Controller Sideband Interface (NC-SI)
    • Asset Management with Thermal Sensors
  • RDMA over Converged Ethernet (iWARP and RoCE)
    • iWARP
    • RoCEv2
    • Data Center Bridging
  • Remote Boot
    • UEFI PXE Boot
  • Data Center Bridging
    • Enhanced transmission – IEEE 802.1Qaz
    • Priority based Flow Control – IEEE 802.1Qbbb
    • Edge Virtual Bridging - IEEE 802.Qbg
  • Power Saving
    • ACPI Compliant power management
    • Pass through Energy Efficient Ethernet (IEEE802.3az-2010)
  • Cables Support
    • SFP28 Direct Attach Copper cables
    • Fiber-optic cables (with required optional SFP28 transceivers)
  • Power Consumption
    • Maximum power consumption: 10.5W
  • Operating Conditions
    • Storage temperature: -40°C to 70°C (-40°F to 158°F)
    • Storage humidity: 90% non-condensing relative humidity at 35°C
  • Physical Dimensions
    • Card PCB dimensions: 113mm (4.463in) x 49mm (1.929in)

Parts List
Add-on Module AOM-C25G-i2SM-12
