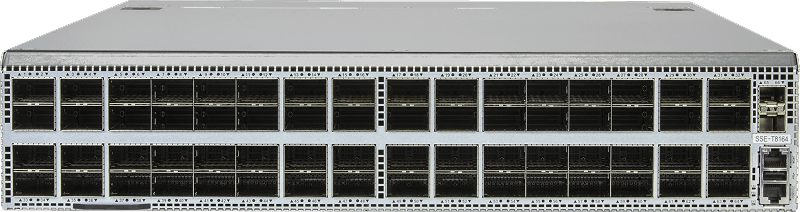

Supermicro SSE-T8164S 800G Ethernet Switch

Supermicro SSE-T8164 switch is a high through-put, low-latency Ethernet switch that comes with 64 800G OSFP ports and 2 25G SFP28 ports in a compact 2 RU form factor. The switch provides the highest density of 800G Ethernet ports with 51.2 Tbps of switching capacity making it highly suitable for building large flat scale-out network fabrics. The SSE-T8164 high-performance switch has been designed to meet the complex requirements of AI data center networks. The cutting-edge switch silicon in the SSE-T8164 and the software comes with advanced features that are needed for ensuring faster job completion time in large AI training networks. The switch can inter-operate with all the latest AI accelerators and industry standard fiber optic and copper cables, making it a great choice for all the standard AI cluster designs architectures. The switch supports Direct Attached Copper (DAC) cables up to 4 meters in length which facilitate building dense low-power cost-effective AI training clusters.

The 800G ports in the SSE-T8164 are flexible and can be broken down to 400G, 200G, 100G using breakout cables. The choice of multiple port speeds from 25G to 800G and the advanced software features enables the switch to operate at all the tiers, as a leaf, spine or a border leaf in a multi-tier CLOS network fabric. SSE-T8164 is a versatile switch that is suitable for building networks of all sizes for various use cases, from smaller enterprise data centers to large scale AI/ML training and hyper scale cloud networks.

SSE-T8164 switches run the Supermicro Advanced Enterprise SONiC Operating system which provides a range of features needed for different types of applications such as enterprise, AI/ML, and high-performance computing and cloud computing . In addition to the standard layer 2, layer 3 and tunneling features, it supports advanced features like RoCEv2, packet spraying, Dynamic load balancing coupled with advanced traffic engineering and QoS features making SSE-T8164 is an optimal solution for building large-scale high performance low-latency AI networks. The Supermicro Enterprise SONiC Operating system can be configured using industry standard CLI, REST/gNMI etc. and can work with all industry standard management applications.

The SSE-T8164 provides both front to back and back to front airflow options. The switch is air cooled and has been designed with Direct Liquid Cooling capability as well which can be used to significantly reduce the power consumption and building energy efficient networks. The switch comes with a choice of AC and DC power supply options, and the included rail kit facilitates simple and easy installation of the switch.
Supermicro SSE-T8164S 800G Ethernet Switch

Operating System / NOS
The SSE-T8164 series switch comes with preloaded Broadcom Advanced Enterprise SONiC OS.
No additional licensing is required.

Download
Datasheet


Hardware Specifications
  • Key Switch Specs
    • Switch Fabric Capacity: 51.2Tbps
    • Non-blocking, wire-speed data forwarding
    • 165MB memory packet buffer
    • BMC AST2600


  • Physical Ports
    • 64x800G OSFP Ports
    • 2x25G SFP28 ports
    • 1xRJ45 console and 1xOOB Ethernet management ports
    • 1x USB 2.0 Type A interface


  • CPU Engine
    • Intel Xeon-D x86 CPU, 8C at 2.3GHz
    • 32GB DDR4
    • 128GB SSD


  • Power
    • 3200W AC PSU, support 1+1 Hot-pluggable, load balancing, and redundant, Input Voltage: 200-240VAC, 200-277VAC, 50/60Hz
    • 1600W DC PSU, Shared, Input Voltage: 48-72 VDC
    • Support Optics/Cables: Up to 18W transceivers.
  • Physical and Environmental
    • Hot Swappable 3+1 load balancing Fan Modules
    • Capability for future Direct Liquid Cooling
    • Front to rear/Rear to Front airflow
    • 2RU, Mountable in 19” or 21” racks
    • Dimensions:
      • (WxDxH) 438.4 x 650 x 87.4mm
    • Weight: 26kg
    • Temperature:
      • Operating 0C to 40C
      • Storage -40C to 70C
    • Humidity: Operating: 5% to 95%
  • IEEE compliance
    • 802.1p QOS/COS
    • 802.1Q VLAN Tagging
    • 802.1AB Link Layer Discovery Protocol
    • 802.3ad Link Aggregation with LACP
    • 802.3ae 10 Gigabit Ethernet
    • 802.3-2022 25 Gigabit Ethernet
    • 802.3cd 50 Gigabit Ethernet
    • 802.3ba 100 Gigabit Ethernet
    • 802.3bs 400 and 200 Gigabit Ethernet
    • 802.3cm 400 Gigabit over multimode fiber
    • 802.1Qbb PFC 802.1Qaz ETS
    • 802.1X Network Access Control
    • 802.3x Flow Control
  • Cables and Transceivers
    • OSFP DAC options from 2-4m (4m on certain NICs)
    • OSFP Active Electrical Copper
    • OSFP Active Optical to 10m
    • SR4/SR8/VR4/VR8 MMF transceivers to 50m
    • DR4/DR8 SMF transceivers to 500m
    • FR8 SMF transceivers to 2km
Safety and Compliance
  • Safety
    • EU:
      • EC/EN 62368-1
    • North America:
      • UL 60950-1
      • CAN/CSA-C22.2 No. 60950
    • Taiwan(BSMI):
      • CNS 15598-1


  • Electromagnetic Compatibility
    • EU:
      • EN 300 386
      • EN 55032
      • EN IEC 61000-3-2
      • EN 61000-3-3
      • EN 55035
      • BS EN 55032
      • BS EN IEC 61000-3-2
      • BS EN 61000-3-3
      • BS EN 55035
    • North America:
      • FCC 47 CFR Part 15 Subpart B
      • ICES-003 Issue 7
    • Australia/New Zealand:
      • AS/NZS CISPR 32
    • Japan:
      • VCCI CISPR 32
    • Taiwan(BSMI):
      • CNS 15936
    • Korea (KCC):
      • KS C 9832
      • KS C 9835


  • Environmental
    • EU:
      • RoHS
      • REACH
      • WEEE
    • Taiwan (BSMI):
      • CNS 15663

Software Features
  • System and Platform Infrastructure Features
    • Dynamic Port Breakout
    • DOM Information Display
    • System Locator LED Support (Beacon)
    • CMIS 4.0 Optics Support
    • Hardware Watchdog
    • CoPP (Control Plane Policing)
    • Transceiver Parameter Tuning
    • Third-Party Container Management
    • PDDF and PDK Framework
    • Interface Aliasing (IS-Standard and IS-Standard-Extended Interface Naming)
    • Kdump Support
    • Maintenance Mode
      • LACP Graceful Shut
      • BGP Graceful Shut
      • OSPFv2 Maximum Metrics
    • Multi-Instance Redis DB
    • Hardware Resource Allocation and Reservation
    • Zero Touch Provisioning (ZTP)
    • Auto Negotiation and Link Training
    • Link Statistics Enhancements
    • Link-Down Reason Codes
    • Link Flap Error-Disable
    • Forwarding Plane Drop Counters
    • Time Zone Command Support
    • Broadcom Debug Tool
    • Memory Histogram
    • System Ready for Services and Applications
    • Secure Boot Process and Reference Implementation
    • Syslog High Threshold notifications and clear for CPU/Temperature
    • Per Platform CoPP
    • Interface Beacon LED
    • ZTP Provisioning using a USB Drive
    • Flexible DPB
    • Support Option to Bind the Third Party Container to the Management VRF
    • Limiting CPU/Memory/Disk Usage for Third Party Containers
    • Patching Support in SONiC (Patch Host/Containers)
    • Option to Send Audit Log Messages to Syslog Server
    • Ability to Filter Logs based on Facility and Severity
    • Media AutoFEC for FEC Type automation


  • Layer 2 Features
    • VLAN Auto-state
    • Interface Hold-Down
    • LACP Graceful Shutdown
    • link Tracking
    • LACP Fast Rate and LACP Fallback
    • Static LAG
    • LLDP
    • UDLD
    • PVST and RPVST+
    • MSTP
    • DHCP snooping
    • Port Channel Min-Links configuration enhancement


  • Layer 3 Features
    • DHCP Relay Enhancements
      • Overlay Interfaces
      • DHCP Relay Source Interface Selection (e.g. loopback)
      • DHCP Relay over IPv6 Link-Local Interfaces with RFC5549 Routes
      • DHCP Relay Hop Count Configuration
      • DHCP Relay Over IPv4 Unnumbered Interfaces
      • DHCP Relay Option 82, Sub Option 151 VRF Name/ID Option
      • DHCP Relay Option 82, Sub Option 5 Link-Selection Option RFC3527
      • Support for Circuit-Id Formats
      • DHCP Relay Circuit-Id Option
      • DHCP Relay and DHCP snooping support on the same VLAN
    • Dynamic BGP Neighbor
    • IP Fabric over IPv6 underlay RFC5549
    • IP Helper
    • Route Leaking across VRFs including Management VRF
    • BGP Docker Warm Restart
    • Avoid Netlink for Handling IPv6 Link-Local Address
    • BFD Optimizations to Support 5x100msec Aggressive Timers in SW
    • IP SLA (ICMP and TCP tracker)
    • IPv4 Unnumbered Interfaces
    • RPVST+ over MC-LAG
    • RPVST+ Scaling to 3500 VLAN Ports
    • Symmetric Hashing
    • BFD IS-CLIs
    • BFD with VRF
    • VRF support for syslog
    • VRF support for SSH.in
    • VRRPv3, VRRP/VRRPv3 over VRF
    • Management VRF Hardening
    • OSPFv2
    • Multi-Site Data Center Interconnect (DCI)
    • RIB/FIB Consistency Checker
    • Next Hop Group (NHG) Support
    • RIF Counters for L3 Interfaces
    • BFD Profile
    • Route Updates Performance Improvements
    • Drop Neighbor Entry to Protect CPU from Unknown IP Packets Hitting the CPU
    • CPU Offload for Neighbor Suppression
    • CPU Offload for Slowpath ARP Flooding
    • OSFPv2 GR
    • Router Advertisement
    • KLISH/REST/gNMI Support
      • CLI Commands for RA Retransmission Interval, RADv Disable
      • RFE-8106


  • ACL and Flow-Based Services
    • PBR Enhancements for Service Chaining
    • ACL-based CoPP
    • ACL DSCP Map/Remarking
    • ACL Rate Limiting
    • Control Plane ACL
    • Policy-based Routing (IPv4 and IPv6)
    • ACL-based Packet Replication
    • ACL Consistency Checker


  • Security Features
    • RADIUS and TACACS
    • RADIUS/TACACS Password Obfuscation
    • NTP Server and NTP Authentication
    • NTP Prefer Option
    • LDAP Integration
    • AAA Authorization support with TACACS+
  • Manageability Features
    • Industry Standard CLI (IS-CLI)
    • REST and gNMI Interfaces via OpenConfig YANG (OC-YANG)
    • Role-Based Access Control (RBAC)
    • RBAC and HAMd Enhancements
    • SNMP Configuration Traps and OIDs
    • gNMI Subscription Support for Limited YANG Paths (OnChange, Interval, Once, Poll, Target defined)
    • Bulking support in both REST(YANG patch) and gNMI
    • Query parameter for REST and filtering support for gNMI
    • Scalar encoding support for gNMI
    • Support to Read Service Tag via SNMP
    • SNMP Trap Enablement on Interface Instead of Global


  • Multicast Features / Enhancements
    • L3 Multicast with PIM operates on L3 interfaces only
    • IGMP
    • IGMP Snooping (v1, v2, v3)
    • IPv4 PIM-SSM Support


  • Debuggability / Serviceability features
    • In-memory Debug Logging
    • Audit Logging and Syslogs
    • Command to Return Interfaces to the Default Configuration
    • Port Mirroring on Port Channel and VLAN


  • Scalability improvements
    • L3 VLAN Scale to 4K
    • Host Table Resource Reservation for Local Hosts


  • QoS
    • DSCP Marking Preservation for
    • QoS Map Support for Remarking and SVI
    • Port and Priority Shaping


  • Telemetry and Instrumentation
    • sFlow on Management VRF
    • BST – Watermarks,
    • Port MAC Security
    • LLDP-MED


  • Warmboot
    • AI/ML Focused Features
      • RoCEv2
      • PFC
      • ECN
      • Enhanced DCQCN
      • Dynamic Load Balancing (DLB)
      • Packet Spraying
      • Enhanced Hashing and Load Balancing with 100mSec granularity
      • Rich Congestion and Load Balancing Telemetry
